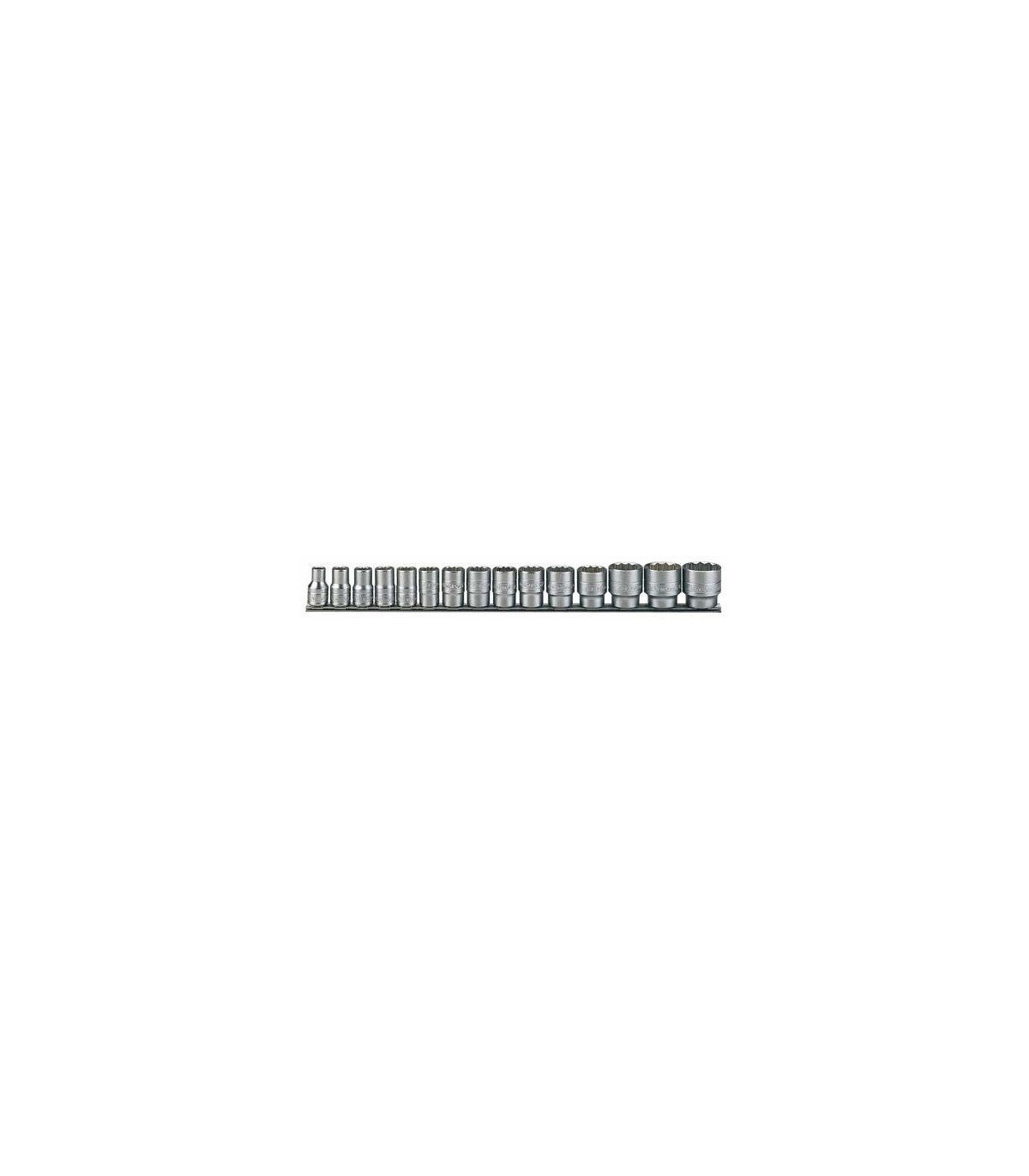

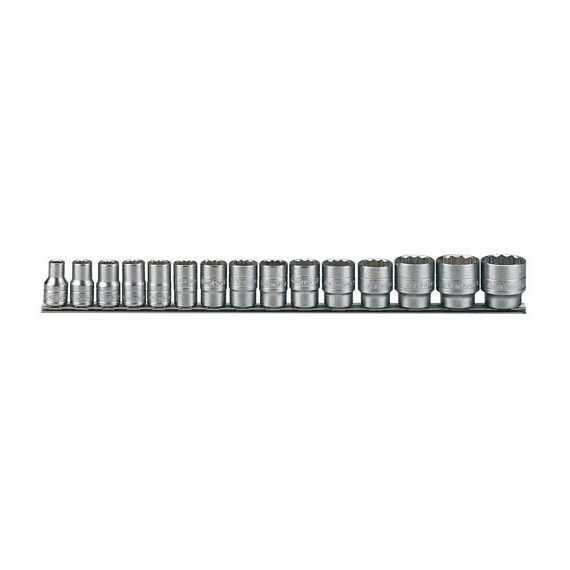

1/2" Socket Set 12 Points 15 Pieces M1215MM TENG TOOLS

1/2" Socket Set 12 Points 15 Pieces M1215MM TENG TOOLS. Set of 15 bi-hexagonal 1/2" regular series sockets, metric, made of chrome vanadium. Fixed on a rail with clips for sockets. Matte finish.

Regular series sockets: 10-12-13-14-15-16-17-18-19-21-22-24-27-30-32 mm

FEATURES

Bi-hexagonal socket

Chrome vanadium

Satin finish

Retention groove for the ball retainer that secures the connection of the socket to the drive end

Supplied with a clip rail with socket clips for easy storage as a set.

Designed and manufactured according to DIN3120/3124 and ISO2725

TECHNICAL DATA

APPLICATIONS

Construction

Electronics and fine mechanics

Aerospace

Industrial maintenance

Automotive industry

Naval and railway industry

REGULATIONS

Establish the standardization and dimensional specifications for manual drive tools and sockets, ensuring their compatibility and interchangeability at an international level.

DIN 3120/3124 and ISO 1174/2725: Connection and Socket Standards

The DIN3120/3124 standard defines the exact dimensions of the drive square in tools such as ratchets, T-handles, and torque wrenches. This standardization ensures that, for example, a 1/2 inch socket from any manufacturer will fit perfectly and securely onto a 1/2 inch ratchet from another manufacturer, thanks to the ball retainer and defined geometry. DIN 3124 focuses on the dimensions and tolerances of the receiving square in socket wrenches.

The ISO 2725 standard for machine/impact sockets establishes the dimensions and performance requirements of socket wrenches, in aspects such as dimensions, design, and dimensional tolerances. The standard ensures a precise fit and the necessary mechanical strength to work safely on nuts and bolts.
