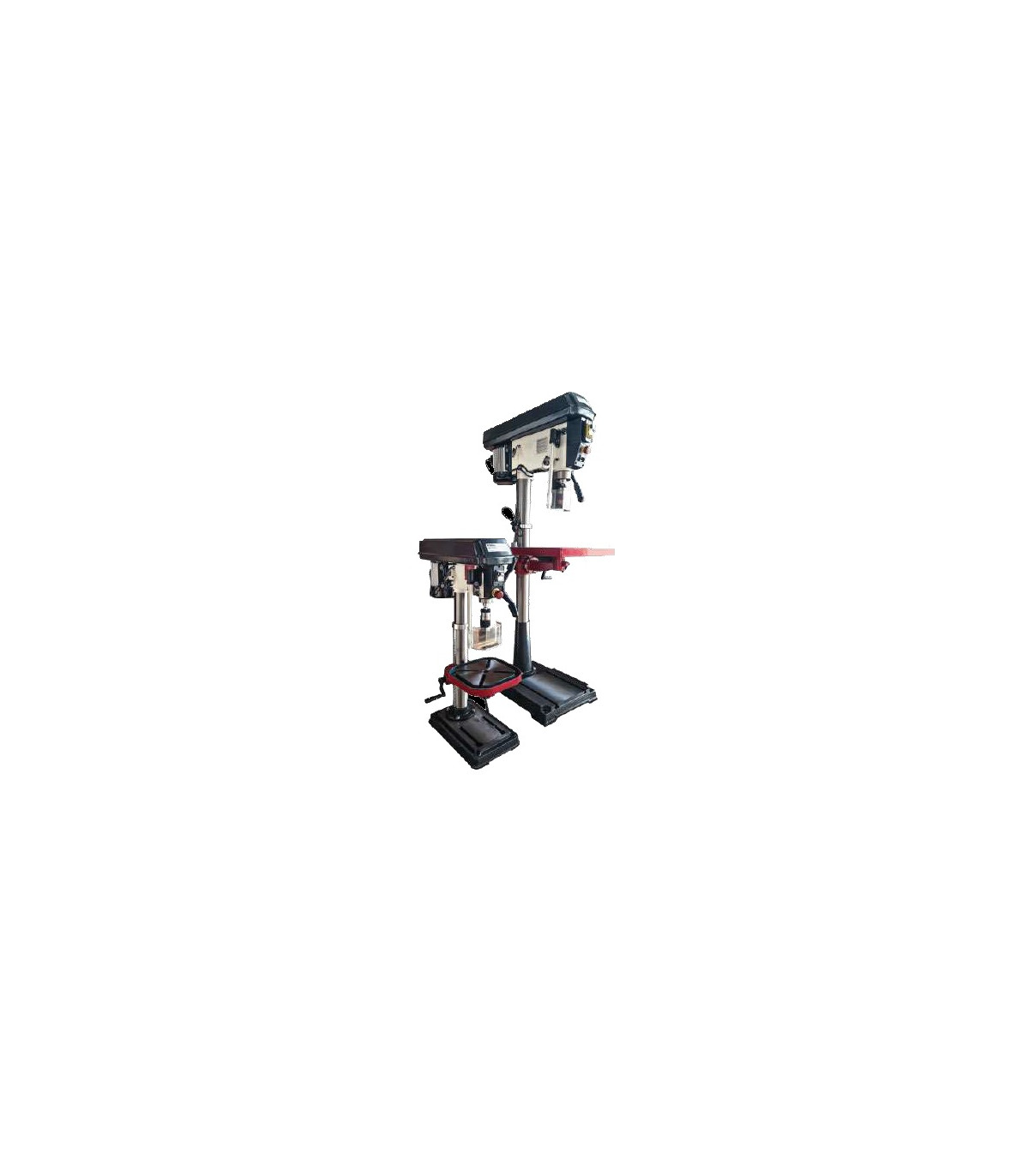

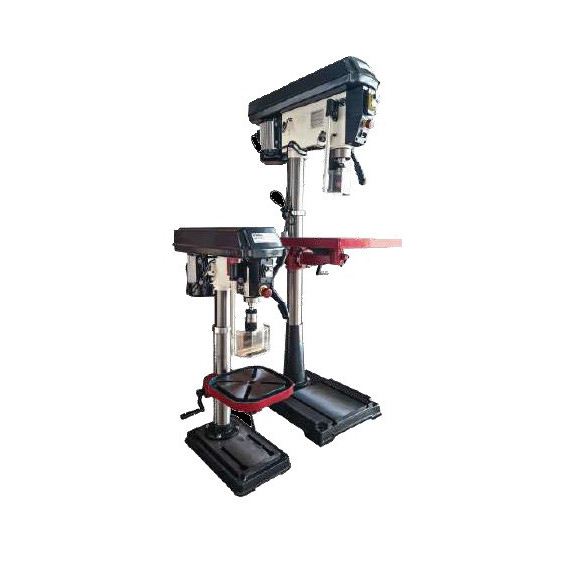

MW TP20230 Bench Drill - 230V

Bench drill with column and trapezoidal belt transmission.

FEATURES

• Model: MW TP20230
• Code: 33020230
• Speed: 120/2580 rpm
• Working surface: 190 - 500 mm

BENEFITS

• Work table with T-slots.
• Table tilt ±45° and 360° adjustable.
• Aluminum pulley for smooth operation.

TECHNICAL DATA

• Min. dimensions (l x w x h): 650 x 370 x 980 mm
• Distance from spindle to base: 610 mm
• Distance from chuck to column: 178 mm
• Max. distance from spindle to base: 610 mm
• Max. distance from spindle to table: 430 mm
• Shank / cone: MT2
• Table dimensions (l x w): 290 x 290 mm
• Base T-slot dimensions: 15 mm
• Table T-slot dimensions: 16 mm
• Rotating work table: 360º
• Tilting work table: +45 -45
• Tilting/rotating work table: yes
• Weight: 55 KG
• Motor power: 550W
• Quill travel: 80 MM
• Morse cone type: MT2
• T-slot type: T16
• Voltage: 230 V
• Column Ø: 70 mm
• Max. drill Ø in steel: 19 MM
