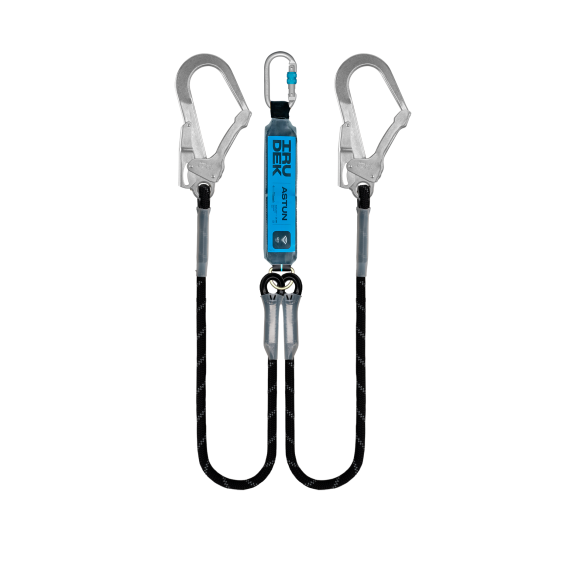

Energy absorber with rope ASTUN Y 180HSS (363) (140kg) IRUDEK

Energy absorber with rope ASTUN Y 180HSS (363) (140kg) IRUDEK, being a purified model designed according to VG11.063:2014, additional resistance test for energy absorbers with 2 branched ropes.

FEATURES

• We present our wide range of energy absorbers with rope, with different finishes and lengths.
• Absorbers designed to withstand falls, reducing the impact to less than 6kN.
• Additionally, the branched models have been designed according to VG11.063:2014, additional resistance test for energy absorbers with 2 branched ropes.

APPLICATIONS

The safety rope is essential in activities such as climbing, mountaineering, working at heights, and rescue. It is used to secure and protect in case of falls, both on rocky terrain and at heights. It is also employed in water sports and in rescue situations. Its use requires proper training.

TECHNICAL DATA

• Standard EN 355, EN 362
• Length 180 cm
• Weight 1820 g
• Carabiner 981 (18mm) + 2 x 39 (50mm)
• Capacity 140 Kg
• Service life: 10 years of use + 2 years of storage

NORMATIVE

The EN 362 standard defines the requirements for screw-locking connectors (also known as "maillons") used in fall protection and industrial positioning systems. Unlike conventional quick-opening carabiners, class Q connectors are designed to be semi-permanent connection components, meaning they should only be opened or closed using a tool or deliberate and complete manual effort on their thread. This standard ensures that, once properly closed, these connectors provide superior structural strength and extreme safety against accidental openings at critical points in a safety system.

The EN 355 standard regulates energy absorbers, devices designed to dissipate the shock force in case of a fall. Their critical function is to deploy through a controlled tearing system to ensure that the impact received by the worker's body never exceeds 6 kN, thus preventing serious internal injuries that could occur with a sudden stop.
