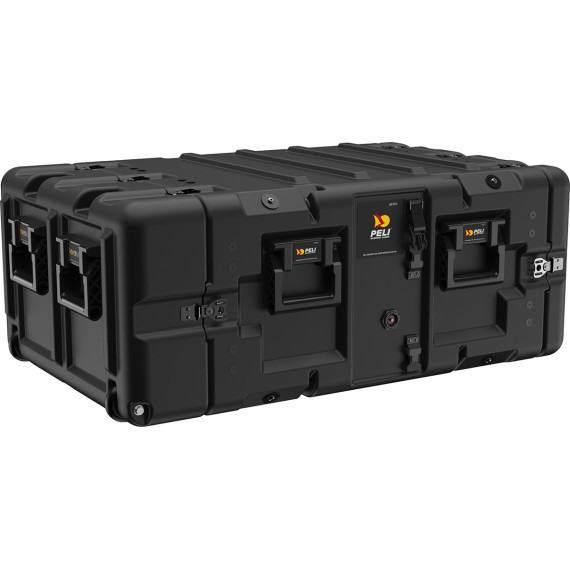

Case for assembly equipment 5U SUPER-V-SERIES-5U PELI

Case for 5U SUPER-V-SERIES-5U PELI mounting equipment. It is a very durable protective case with an internal structure for mounting standard electronic equipment of various heights.

FEATURES

• SUPER V-SERIES 5U, 2112-02/29/05W
• Option for M6 metric or SAE 10-32 clip nuts for even more flexibility in equipment mounting
• Black anti-reflective bolts
• Molded wheels on the rear edges with handles on the lid for easy movement
• Weight ranges for 7U 14U = 100-170 lb per case
• Designed to provide safe transport for rack-mountable electronic equipment
• Complies with REACH and RoHS
• Coupling hooks for secure stacking
• Plastic handles with comfortable grip
• Fixed frame with square hole for universal equipment adjustment
• Available in 3U, 4U, 5U, 7U, 9U, 11U, and 14U
• The sealing and PRV keep the container airtight and eliminate over-pressurization
• Lid supports to hold the lid while in use
• Front lid of 2, rear lid of 5
• Weight ranges for 3U 5U = 80-100 lb per case
• EXTERIOR
  38.50" x 28.30" x 14.90" (97.8 x 71.9 x 37.8 cm)

SPECIFICATIONS

Body: RotoMolded Polyethylene

Neoprene sealing ring: Silicone Sponge

Compensation body: Aluminum

Metal components: Stainless Steel (Black Oxide) / RoHS Nickel Black

FRAME: Steel (Clear Coated)

RACK HEIGHT: 8.75" (22.2 cm)

Rack depth: 24.00" (61 cm)

Interior lid depth: 2.20" (5.6 cm)

Rear interior lid depth: 5.20" (13.2 cm)

Weight: 55.00 lbs (24.9 kg)

CONFIGURATIONS

SUPER-V-SERIES-5U - Standard

APPLICATIONS

The 5U SUPER-V-SERIES-5U case is ideal for:

Field equipment: Transporting electronics to remote or difficult locations.

Rapid deployments: Mobilizing and setting up equipment in temporary or emergency situations.

Extreme protection: Ensuring that delicate equipment withstands adverse travel or environmental conditions.
