Connection kit for KRC box
English GBSteel ventilation box CDV-A for toxic vapors ECOSAFE
Brand:
Steel ventilation box CDV-A for toxic vapors ECOSAFE
- External dimensions h x w x d (mm): 235 x 235 x 250
- Weight (kg): 8.00
€904.60
€904.60
(TAX incl.)
€747.60 (no TAX)
€747.60 (no TAX)
Reference:
CDV-A
SECURE PAYMENT WITH
SHIPMENTS
from 3,99€ + VAT. Free from €150 +VAT
EXCHANGES AND RETURNS
Free up to 14 days after purchase, excluding personalized and made-to-order products
EXCHANGES AND RETURNS
WE HELP YOU
+34 876 43 01 24
info@sekureco.eu
You may also like
€79.28
€79.28
(TAX incl.)
€65.52 (no TAX)
€65.52 (no TAX)
Flexible tube with a diameter of 1 meter 100mm for connection kit
Shipping dimensions h x w x d (mm): 200 x 150 x 150
Weight (kg): 0.50
€50.82
€50.82
(TAX incl.)
€42.00 (no TAX)
€42.00 (no TAX)
Connection unit diameter 100mm for ECOSAFE ventilation kit
Weight (kg): 0.50
€14.23
€14.23
(TAX incl.)
€11.76 (no TAX)
€11.76 (no TAX)
Clamp diameter 100mm CDS100
Weight (kg): 0.10

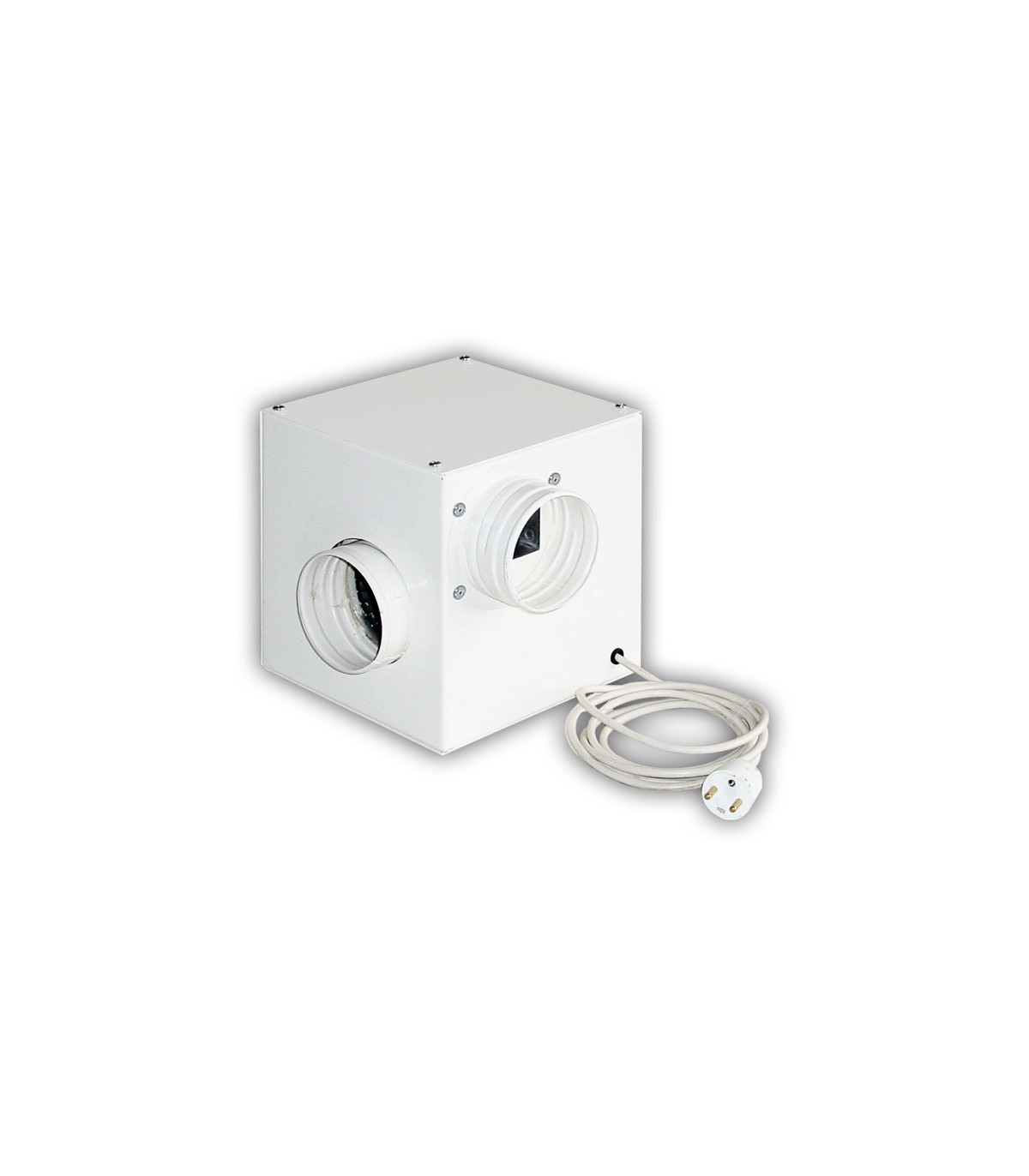

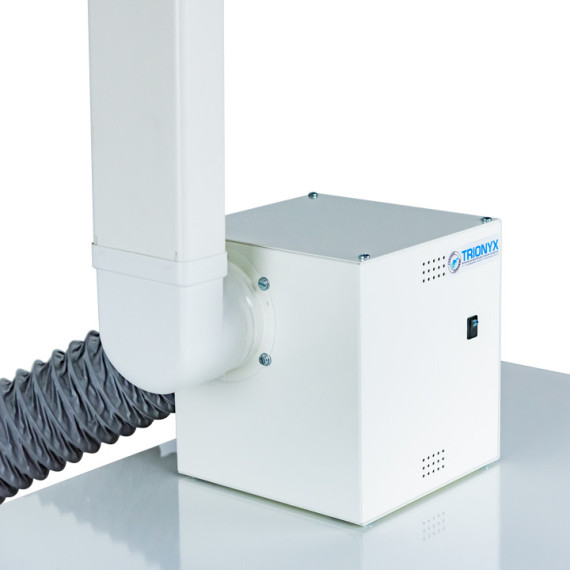

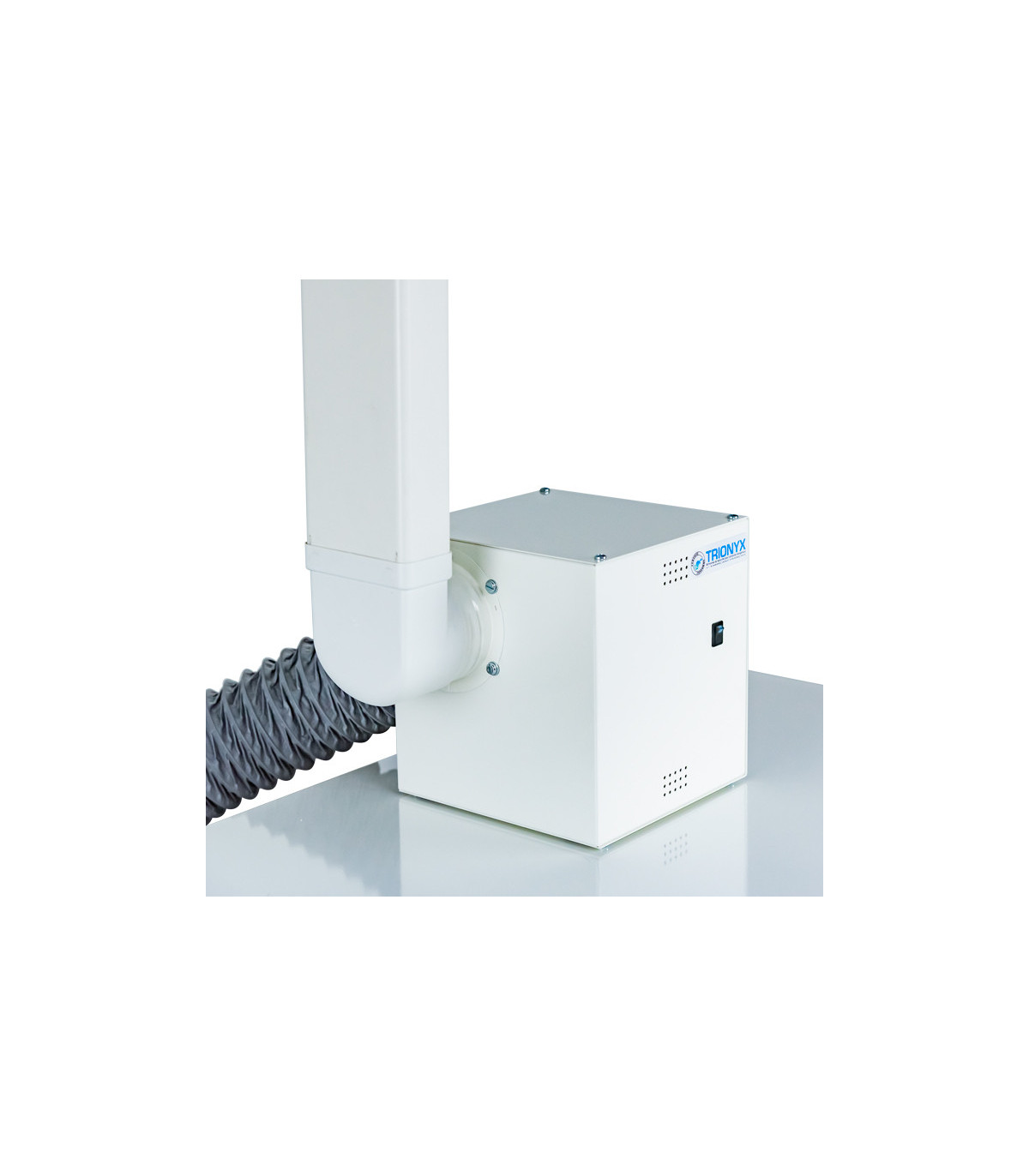

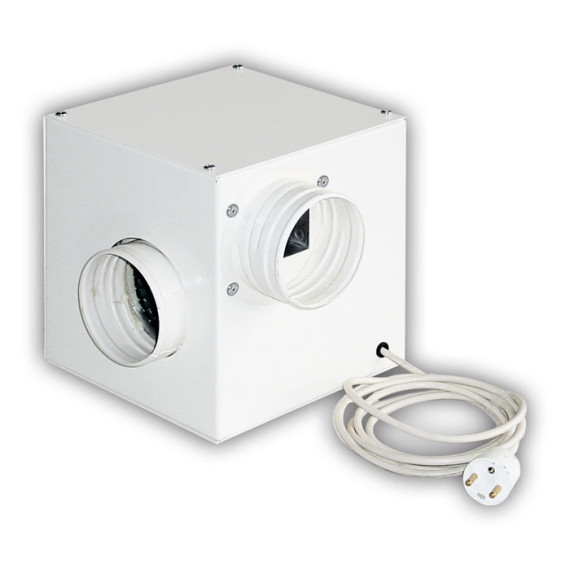

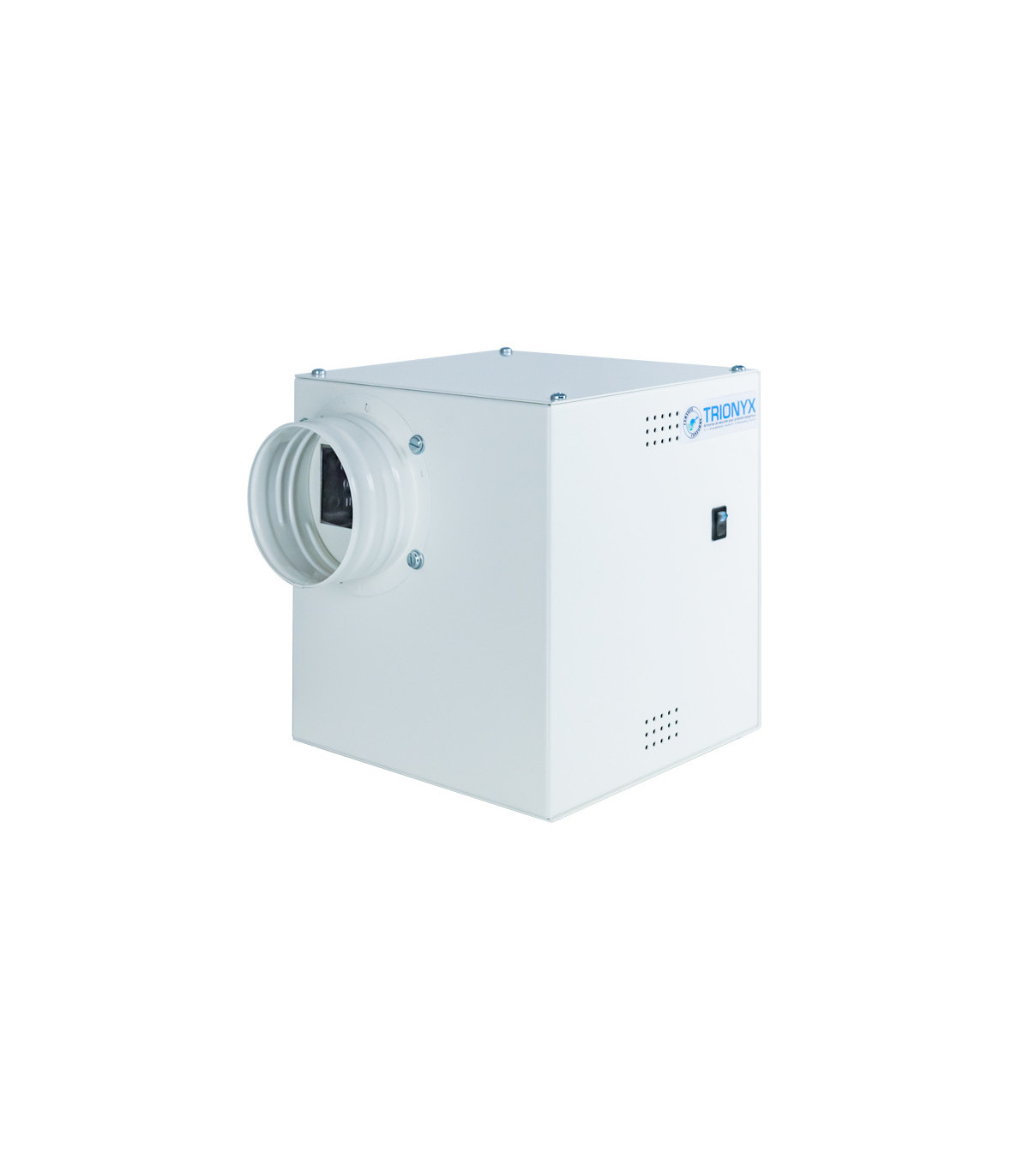

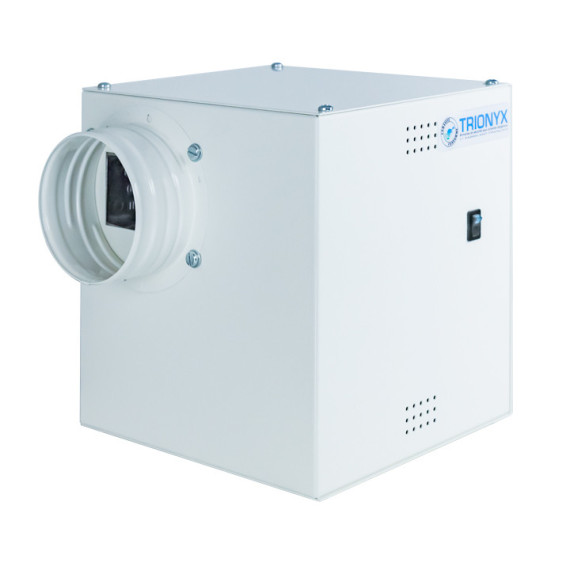

Ventilation box in steel CDV-A for toxic vapors ECOSAFE. Adaptable to all ECOSAFE cabinets. Easy connection between the cabinet and the ventilation box.
AREA OF USE
The electric fan allows for the extraction of toxic vapors generated inside your safety cabinet.
ADVANTAGES
- Adaptable to all our cabinets.
- Simple and aesthetic adaptation.
- Easy connection between the cabinet and the ventilation box.
- Connection via flexible tube Ø 100 mm (optional).
- Lighting control that allows monitoring the proper functioning of the fan.
- Technical specifications
- Constructed in 12/10 steel, white epoxy paint RAL 9010.
- Electric motor with ON/OFF switch with lighting control. • 220/240 volts – 50 Hz – 97 W - 0.54 A - 55.5 dB(A) (excluding airflow) • Flow rate: 215 m3/h – Protection: IP44. • Inlet and outlet: Ø 100 mm.
TECHNICAL DATA
- Your safety cabinet. compliance Electric fan in accordance with ISO 3744; CE marking.
- Compliance: ISO 3744, CE
- Cabinet materials: 12/10 steel
- Connection mouth: 2
- External dimensions height x width x depth (mm): 235 x 235 x 250
- Weight (kg): 8.00
- Constructed in 12/10 steel
- White epoxy paint RAL 9010.
- Electric motor with ON/OFF switch with lighting control.
- 220/240 volts - 50 Hz - 97 W - 0.54 A - 55.5 dB(A) (excluding airflow)
- Flow rate: 215 m3/h - Protection: IP44.
- Inlet and outlet: Ø 100 mm.
COMPLIANCE
Electric fan in accordance with ISO 3744; CE marking.
