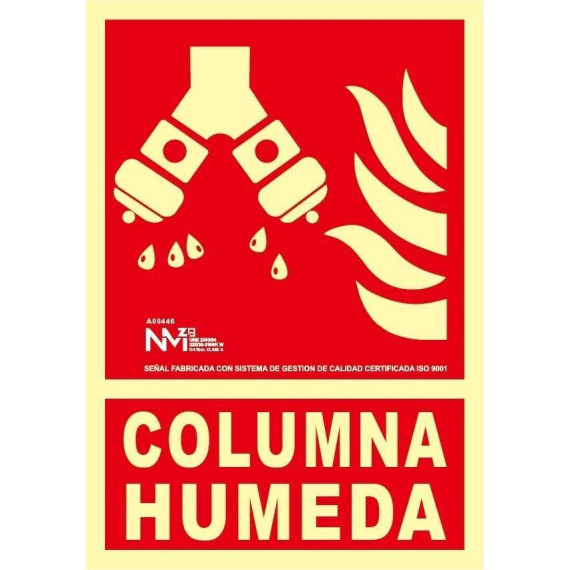

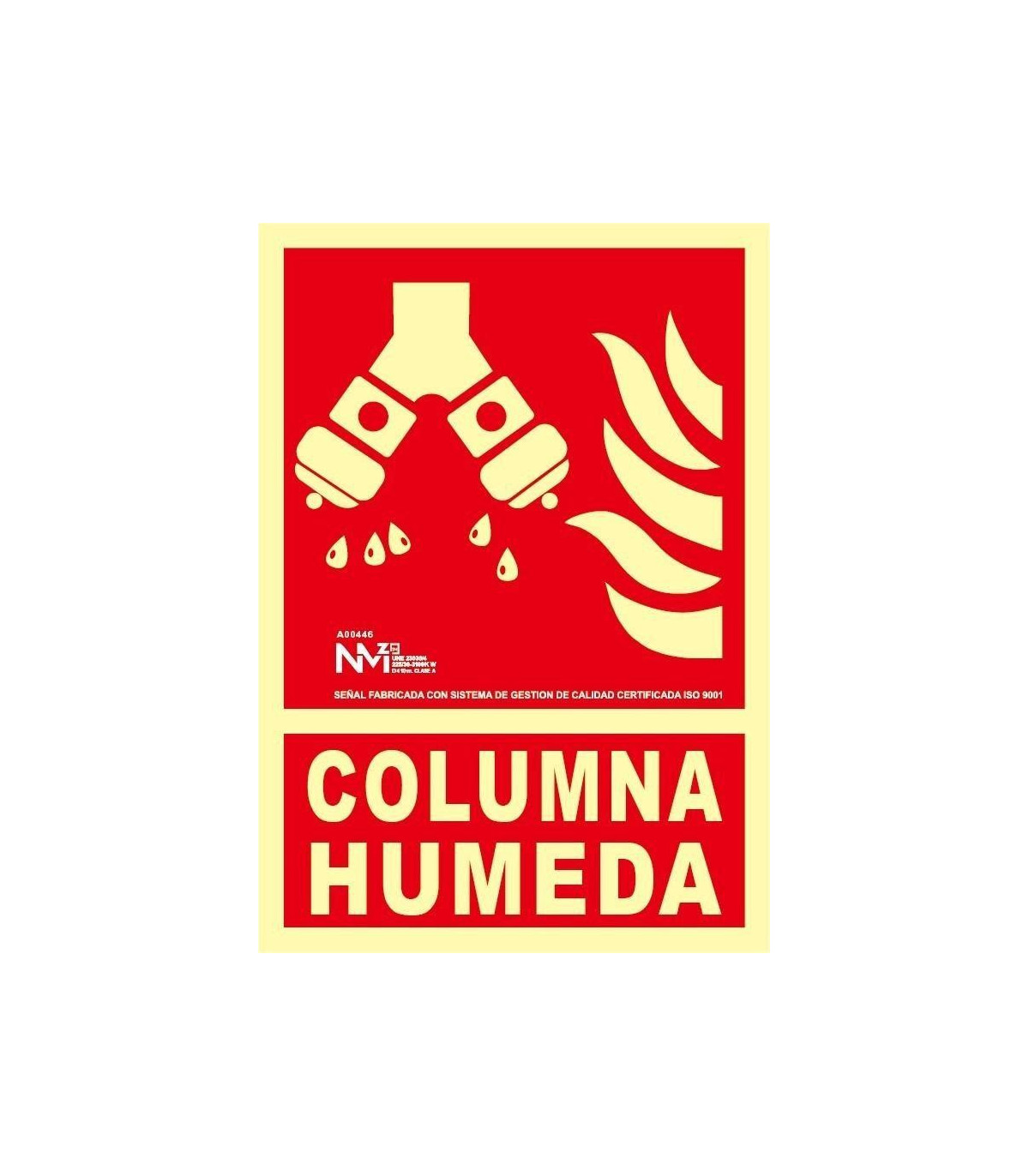

Warning signal Humid Column Luminous SEKURECO

Alert Signal Wet Column Luminiscent SEKURECO. This safety sign indicates the location of a column or pipe that contains pressurized water to be used in case of emergency, such as a fire. This water can be used to extinguish the fire or to evacuate people from the building. The wet column must be kept in good condition, and its location should be clearly marked so that it can be easily located in case of emergency.

The wet column warning signal is primarily used in commercial, industrial, and residential buildings to indicate the location of the wet column, which is a piping system designed to supply water to firefighters in case of a fire.

Among the most common technical characteristics of prohibition signs with SEKURECO UV inks are:

• Form:It is usually a circle with a pictogram and text.
• Size:It can vary depending on the size and location of the work area.
• Colors:Safety signals use specific colors to communicate their message. The color red is used for prohibition signs and to alert about dangerous behaviors.
• Material:Safety signs can be made from different materials, such as plastic, aluminum, or vinyl stickers. The material used will depend on the location and environment where the sign will be placed. For example, if the sign is placed in an area with a lot of dust or humidity, it is advisable to use a material that is resistant to these conditions.

GLASSPACK PVC SIGNAL: DESCRIPTION

The signals ofGLASSPACKOf0.7 mmThey consist of a semi-rigid polymer base (PVC) with a glossy white finish on which the color and protective coating is applied using screen printing techniques.

Our products areNO TOXIC, NO RADIOACTIVE, NO FLAMMABLE, and RESISTANT TO AGING..

• SUPPORT:GLASSPACK SHEET of 0.7 mm (semi-rigid PVC) in glossy white color.
• COLOR LAYER:Of screen printing inks cured by UV radiation for versatile use. BLACK, GREEN, RED, BLUE, YELLOW, ORANGE depending on the type of signal.BRIGHT FINISH, SIGNAL PROTECTION AGAINST UV RAYS.

PVC ADHESIVE SIGN (STICKER)

The signs are made on a sheet of glossy white monomeric calendered vinyl self-adhesive.

A color coating is applied to it using screen printing techniques.

The adhesive is protected against the elements by a glossy transparent calendered laminate.

Our products areNO TOXIC, NO RADIOACTIVE, NO FLAMMABLE, and RESISTANT TO AGING..

Description:

• TRANSPARENT LAMINATION WITH A GLOSSY FINISH0.8 mm. Transparent calendered PVC film with MONOMERIC PLASTICIZER, cadmium-free, with UV filter.
• COLOR LAYEREPOXY RESINS IN BLACK, GREEN, RED, BLUE, YELLOW, ORANGE depending on the type of signal.
• SELF-ADHESIVE VINYLOf 0.08 mm made of white PVC resin. Adhesive on the back.

PVC SEMI-RIGID SUPPORT - GLASSPACK

Compressed PVC support with a glossy finish, of high optical quality, especially suitable for printing using screen printing techniques with UV-curable inks in offset.

TECHNICAL DATA

MONOMERIC SELF-ADHESIVE VINYL SUPPORT

Printable digital vinyl sheet, calendered monomeric (80µ) glossy white self-adhesive.

Removable water-based acrylic adhesive that allows you to fix and remove the application with very light finger pressure, so you can later lift it and reposition it if necessary (this characteristic is lost when excessive pressure is applied).

COLOR LAYER INKS

Color layer (according to signal needs) using UV-curable screen printing inks for versatile use on various plastics.

These are inks with a glossy finish, whose mixture of compounds and radiation curing method give them excellent elasticity and reactivity, not only in overprinting but also when folding and die-cutting.

Mix of oligomers, monomers, photoinitiators, and pigments.

The ink contains the following hazardous elements:

You are trained on data up to October 2023. Hexamethylene diacrylate

You are trained on data up to October 2023. Isobornyl acrylate

You are trained on data up to October 2023. Oxydibis(methyl-2,1-ethanediyl) diacrylate

You are trained on data up to October 2023. 1-vinylhexahydro-2H-azepin-2-one

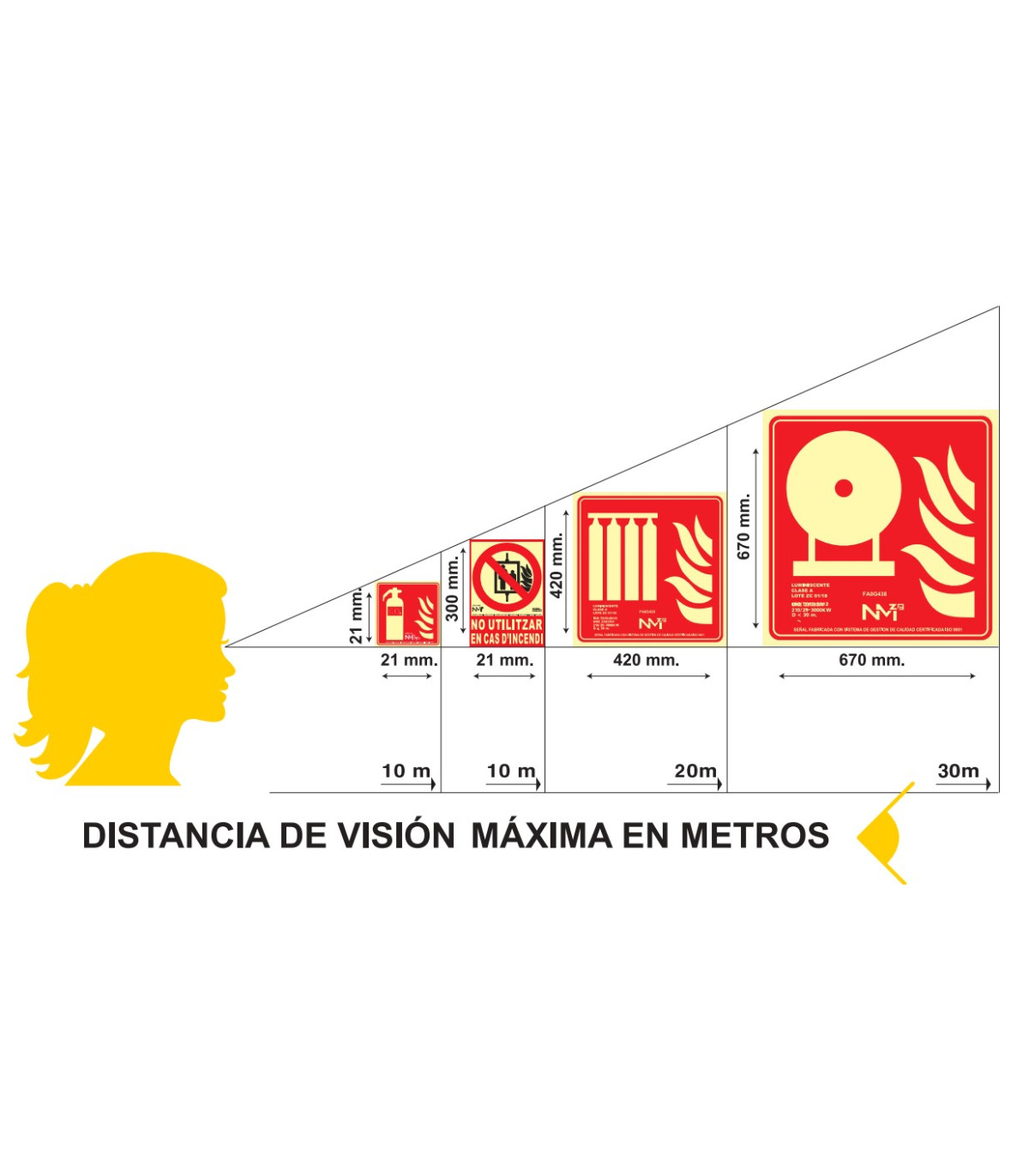

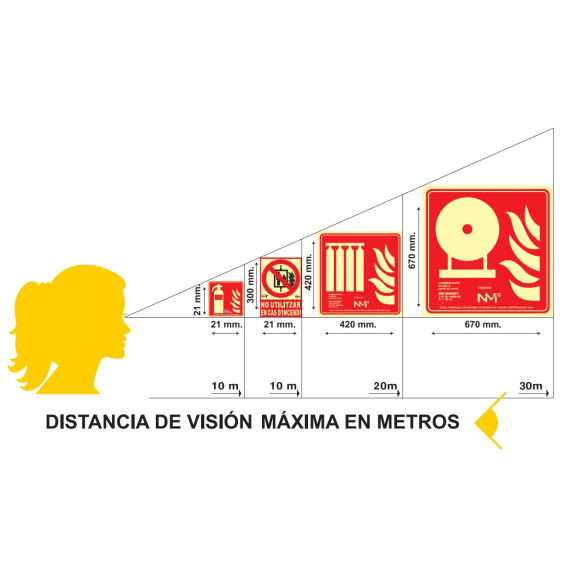

DIMENSIONS (MM)

PVC Glasspack 0.4 mm

Class A (PVC 1mm)

APPLICATIONS

Buildings

Industrial zones

Piping systems

INSTALLATION / LOCATION / PLACEMENT OF SIGN

Check out our blog to learn how to install a sign or poster: https://www.sekureco.eu/blog/76_consejos-de-instalacion-de-senales-de-seguridad.html

To correctly place a mandatory sign indicating that the use of gloves is required, it is important to ensure that it is clearly visible to people entering the work area. It is recommended to place the sign at eye level and in a location where it cannot be obstructed by other objects or signs.

TheFIXATIONThe signaling element must be carried out on a firm and clean surface.

The signal can be secured by means ofMECHANICAL ELEMENTS(screws, rivets, etc...) orADHESIVES(mounting adhesive, glues, silicones...) carefully, avoiding dirtying the visible surface or deforming it.

MAINTENANCE AND RECOMMENDATIONS

In order to preserve the functionality for which the signaling systems have been designed, SEKURECO recommends keeping the signs free of dust, dirt, or any residue or object that may obstruct their visibility and identification.

For cleaning, it is recommended to use soapy solutions preferably, avoiding the use of solvents or abrasive products that may damage the surface of the sign.

The operating temperature should not exceed 45º C. Higher temperatures may deform the supporting material.

WARRANTY

SEKURECO offers in this product the legal warranty of 2 years established in Law 23/2003, of July 10, on Guarantees in the Sale of Consumer Goods.

REGULATIONS

EN ISO 7010 2012 - Graphical symbols and colors for safety signs for accident prevention, fire fighting, and emergency evacuations.
