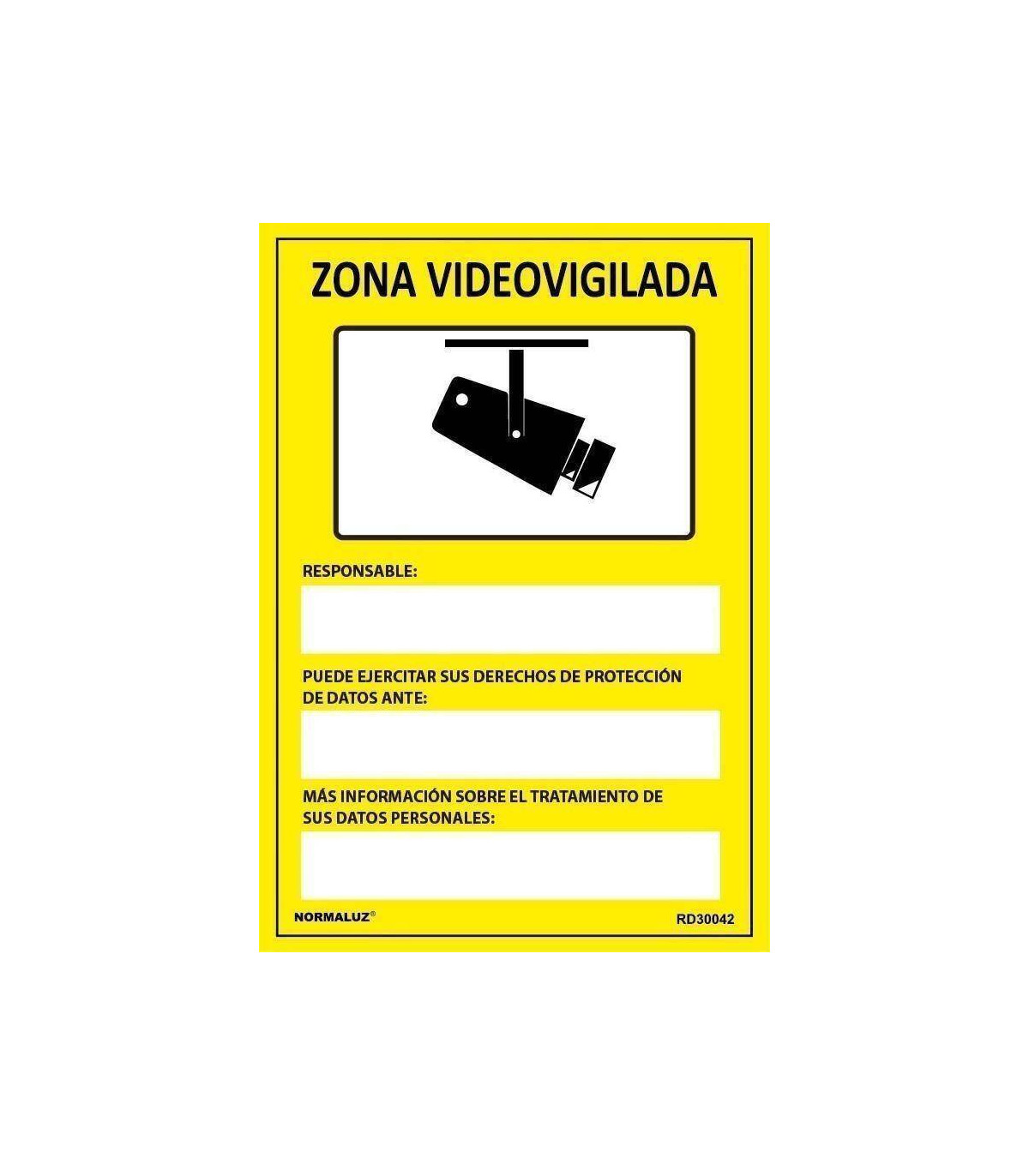

Warning sign Video surveillance area SEKURECO

Warning sign Video surveillance area SEKURECO. Warning sign "Video Surveillance Area" to comply with Organic Law 15/1999 on Data Protection and to inform that you may be under surveillance by video cameras and to exercise your rights.

The poster is available in PVC glasspack 0.7mm materials, Vinyl adhesive (sticker), and 0.5mm aluminum. Check the sizes and materials that best suit your industry.

Another essential characteristic of this type of warning signs is that it uses UV drying inks with high adhesion and resistance, which allows for great flexibility in the final product.

CHARACTERISTICS

• Made from materials:
PVC glasspack 0.7mm Vinyl adhesive (sticker) 0.5mm Aluminum

1. PVC glasspack 0.7mm
2. Vinyl adhesive (sticker)
3. Aluminum 0.5mm

• Danger signs made of flexible laminated polyester or adhesive.
• Easy to install.
• Available in different sizes to suit all your needs.
• Non-photoluminescent.
• Standard EN-ISO 7010.
• UV drying inks with high adhesion and resistance. It allows for great flexibility in the final product.
• Non-flammable. Non-toxic.
• Self-extinguishing.

MEASURES

The signaling plates are made as defined in Annex III of RD485/1997, both in their intrinsic characteristics and in the type of signal.

The size of the sign makes it visible from 9.30 meters away in A4 size and from 13.4 meters away in A3 size (according to the formula published in the TECHNICAL GUIDE supporting RD 485/1997).

PVC GLASSPACK 0.7 mm

• RD31042..............300x400 mm *
• RD30042..............210x300 mm

VINYL ADHESIVES

• RD30642..............200x300 mm
• RD35642..............150x200 mm
• RD36642..............100x150 mm

ALUMINUM 0.5 mm

• RD31942..............300x400 mm *
• RD30942..............210x300 mm *

* This measure is served with perforated corners.

PVC ADHESIVE SIGN (STICKER)

The signs are made on a sheet of glossy white monomeric calendered vinyl self-adhesive.

A color coating is applied to it using screen printing techniques.

The adhesive is protected against the elements by a glossy transparent calendered laminate.

Our products areNO TOXIC, NO RADIOACTIVE, NO COMBUSTIBLE, and RESISTANT TO AGING.

Description:

• TRANSPARENT LAMINATION WITH A GLOSSY FINISH0.8 mm. Transparent calendered PVC film with MONOMERIC PLASTICIZER, cadmium-free, with UV filter.
• COLOR LAYEREPOXY RESINS IN BLACK, GREEN, RED, BLUE, YELLOW, ORANGE depending on the type of signal.
• SELF-ADHESIVE VINYLOf 0.08 mm made of white PVC resin. Adhesive on the back.

SEMI-RIGID PVC SUPPORT - GLASSPACK

Compressed PVC support with a glossy finish, of high optical quality, especially suitable for printing using screen printing techniques with UV-curable inks in offset.

MONOMERIC SELF-ADHESIVE VINYL SUPPORT

Digital printable calendered monomeric vinyl film (80µ) glossy white self-adhesive.

Water-based removable acrylic adhesive that allows you to fix and remove the application with very light finger pressure, and then lift it and reposition it if necessary (this characteristic is lost when excessive pressure is applied).

COLOR LAYER INKS

Color layer (according to signal requirements) using UV radiation curable screen printing inks for versatile use on various plastics.

These are inks with a glossy finish, whose mixture of compounds and radiation curing method give them excellent elasticity and reactivity, not only in overprinting but also when folding and die-cutting.

Mix of oligomers, monomers, photoinitiators, and pigments.

The ink contains the following hazardous elements:

You are trained on data up to October 2023. Hexamethylene diacrylate

You are trained on data up to October 2023. Isobornyl acrylate

You are trained on data up to October 2023. Oxydibis(methyl-2,1-ethanediyl) diacrylate

You are trained on data up to October 2023. 1-vinylhexahydro-2H-azepin-2-one

REGULATIONS

• UNE EN-ISO 7010 - Colors and safety signs.
• UNE 53127:2002 - Determination of combustion characteristics.
• RD 485/1997 - On safety signage.
• RD 486/1997 - On safety in workplaces.
• CTE - Technical Building Code.
• RSCIEI - Fire safety regulations for industrial buildings.
• Law 31/1995 - On the prevention of occupational risks.
• SEKURECO signals are manufactured with a certified quality management system UNE-EN ISO 9001.

STORAGE, CLEANING, AND CONSERVATION

The operating temperature should not exceed 45º C. Higher temperatures may deform the supporting material.

The optimal storage temperature will be between 15º C and 25º C; and with a humidity of 10/50%.
