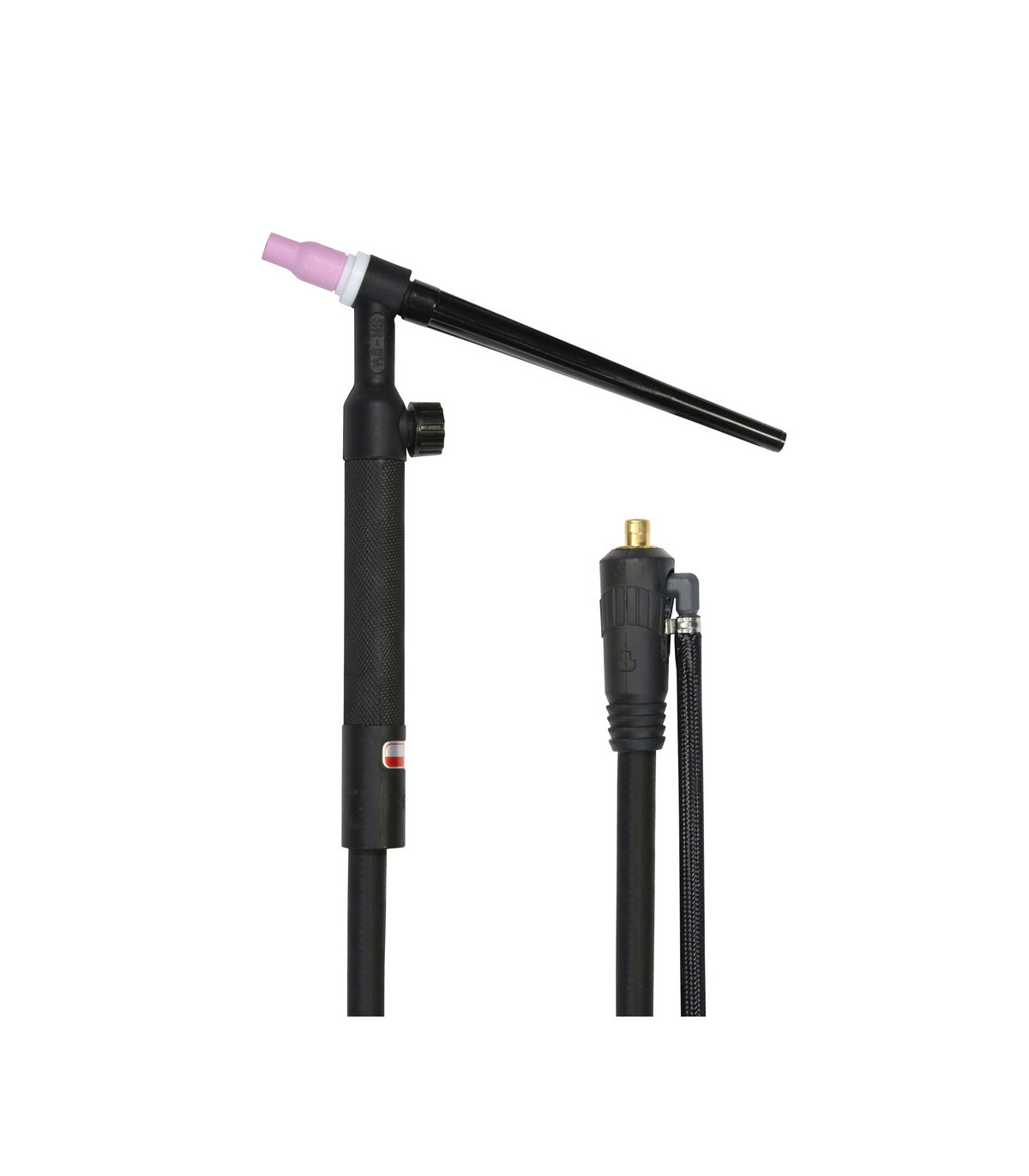

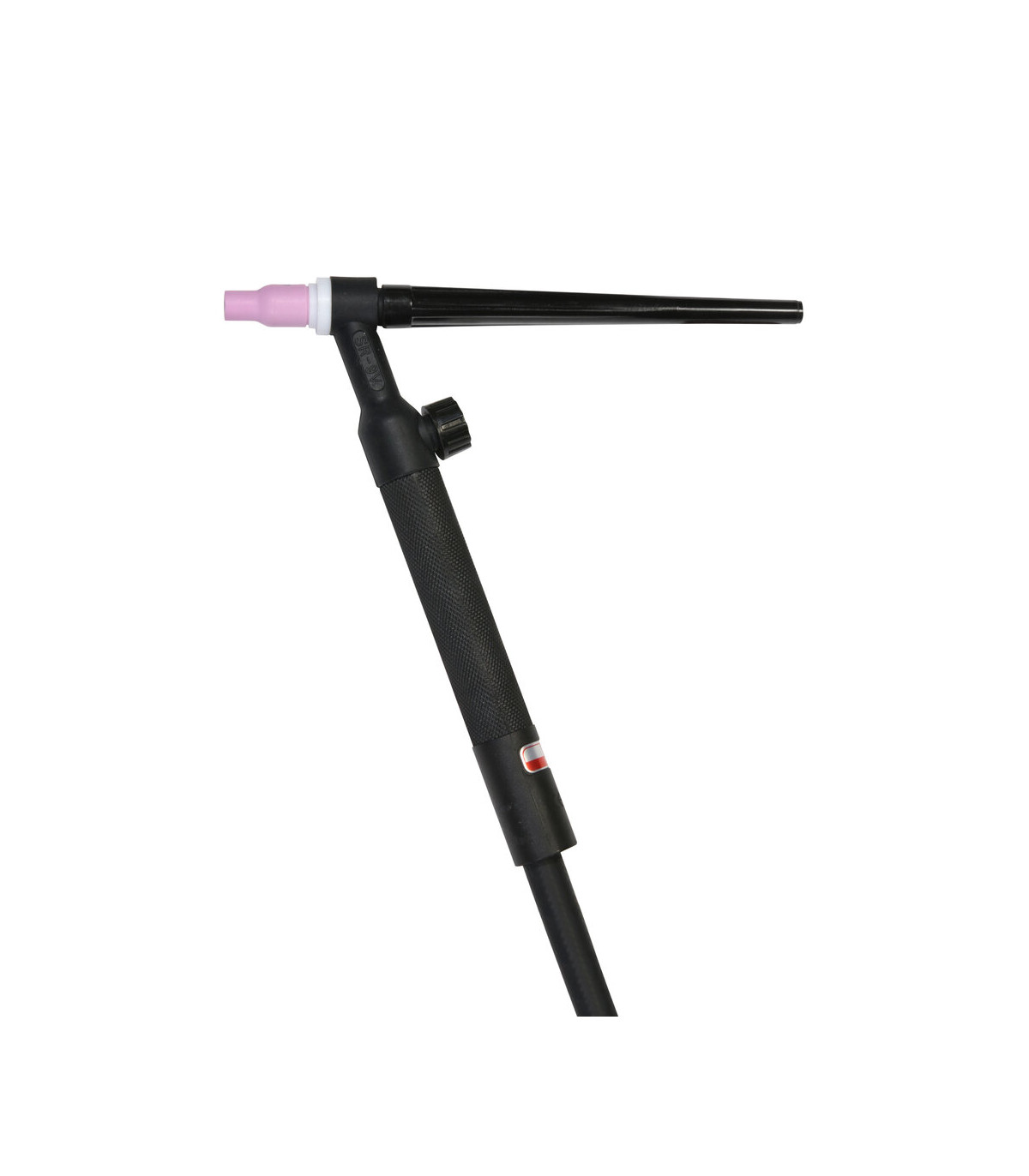

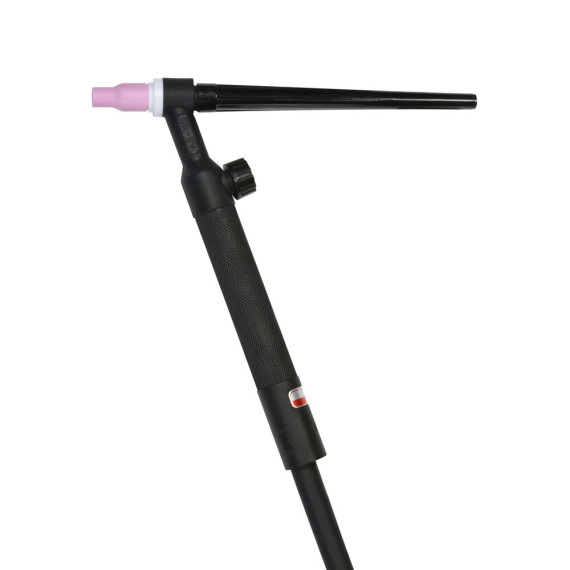

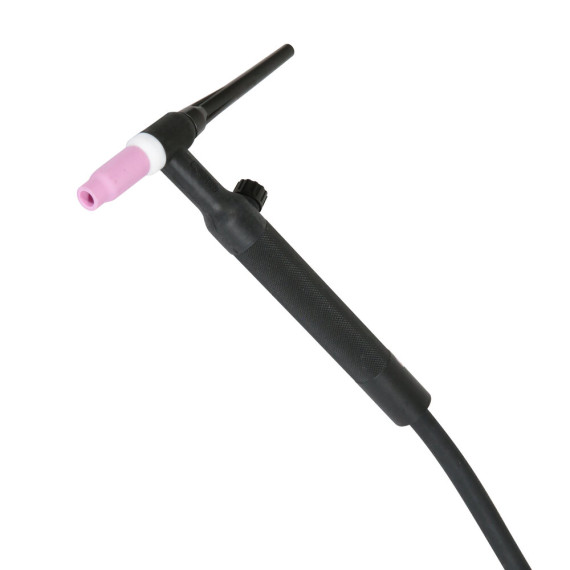

TIG Torch ST9V 150A with Dx25 connector and 4m cable TELWIN

TIG Torch ST9V 150A with Dx25 connector and 4m cable TELWIN. TIG welding torch ST9V with 4 meters of cable (AX25 connector). The gas regulation is done with the knob located on the handle (not a button, primed by contact). The torch can operate with a maximum current of 110A in DC and 80A in AC (@35%). Supplied with a 1.6 mm DC electrode and related consumables.

FEATURES

• TIG Torch ST9V with 4m cable (AX25 connector).
• Knob for gas opening.
• Air cooling.
• Max current 110A DC / 80A AC @35%.

TECHNICAL DATA

Cable length: 4 m

Cable section: 16 mm²

Maximum current: 110A DC / 80A AC @35% A

Connection: AX25

Remote control: No

Standard: EN 60974-7

Dimensions: 370x310x80 mm

Weight: 1.630 kg

NORMS

- EN 60974-7: The main objective of EN 60974-7 is to ensure that these components are safe, efficient, and compatible with each other, minimizing the risk of electrical or mechanical failures during use. The standard establishes specific criteria for construction, design, testing, and necessary documentation, ensuring that the equipment can operate under safe and effective conditions.

WHAT TYPE OF WORK IT IS SUITABLE FOR

The TIG Torch Dx25 ST9V 150A with 4m cable TELWIN is suitable for welding machines such as:

• Tecnica 190
• Advance 227
