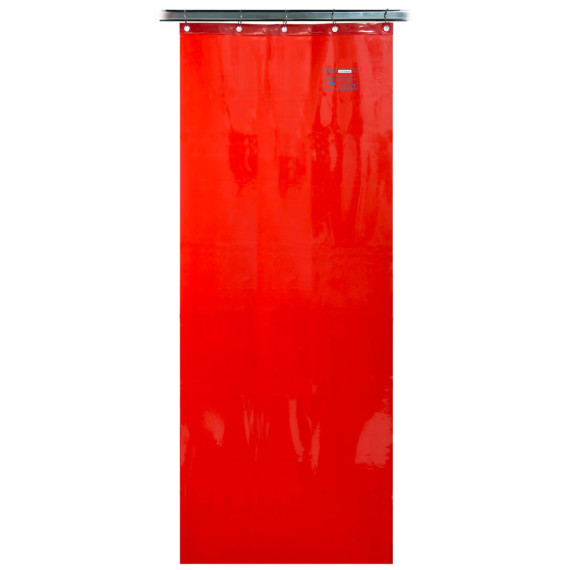

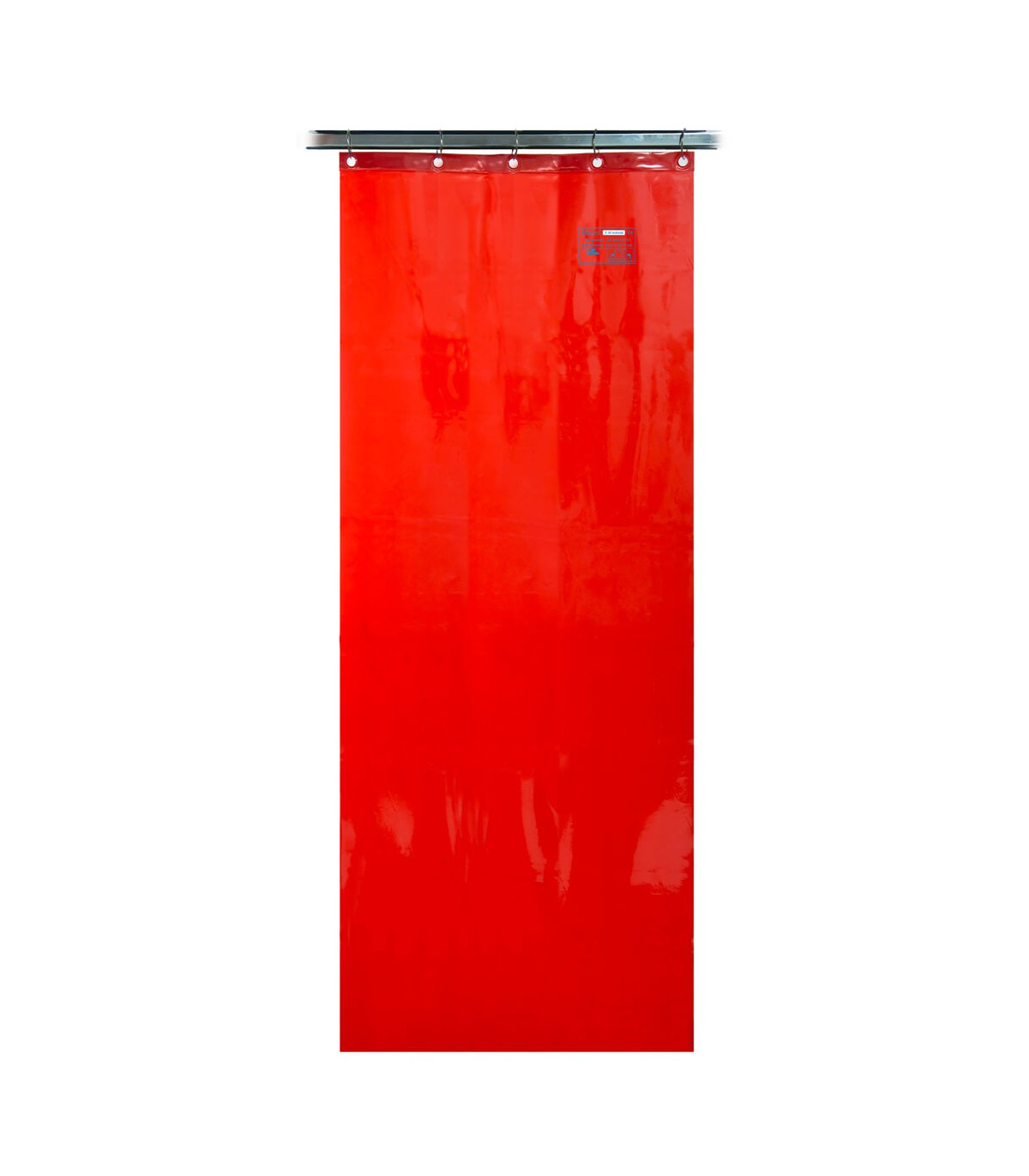

Welding sheets WELDAS 68 x 180 cm LAVASHIELD ECO

Welding sheets WELDAS 68 x 180 cm LAVASHIELD ECO.

Made with a specially formulated vinyl, 0.4 mm thick. An effective solution for the toughest jobs in the welding field!

FEATURES

• The screens with econo Weldas LAVAshield strips are made with a specially formulated vinyl, 0.4 mm thick

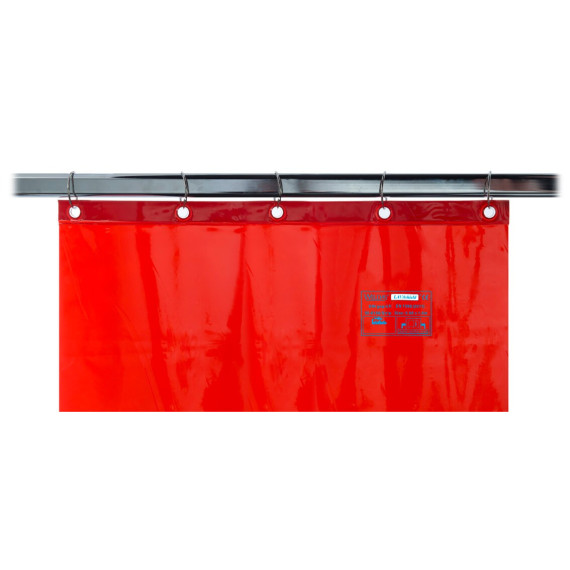

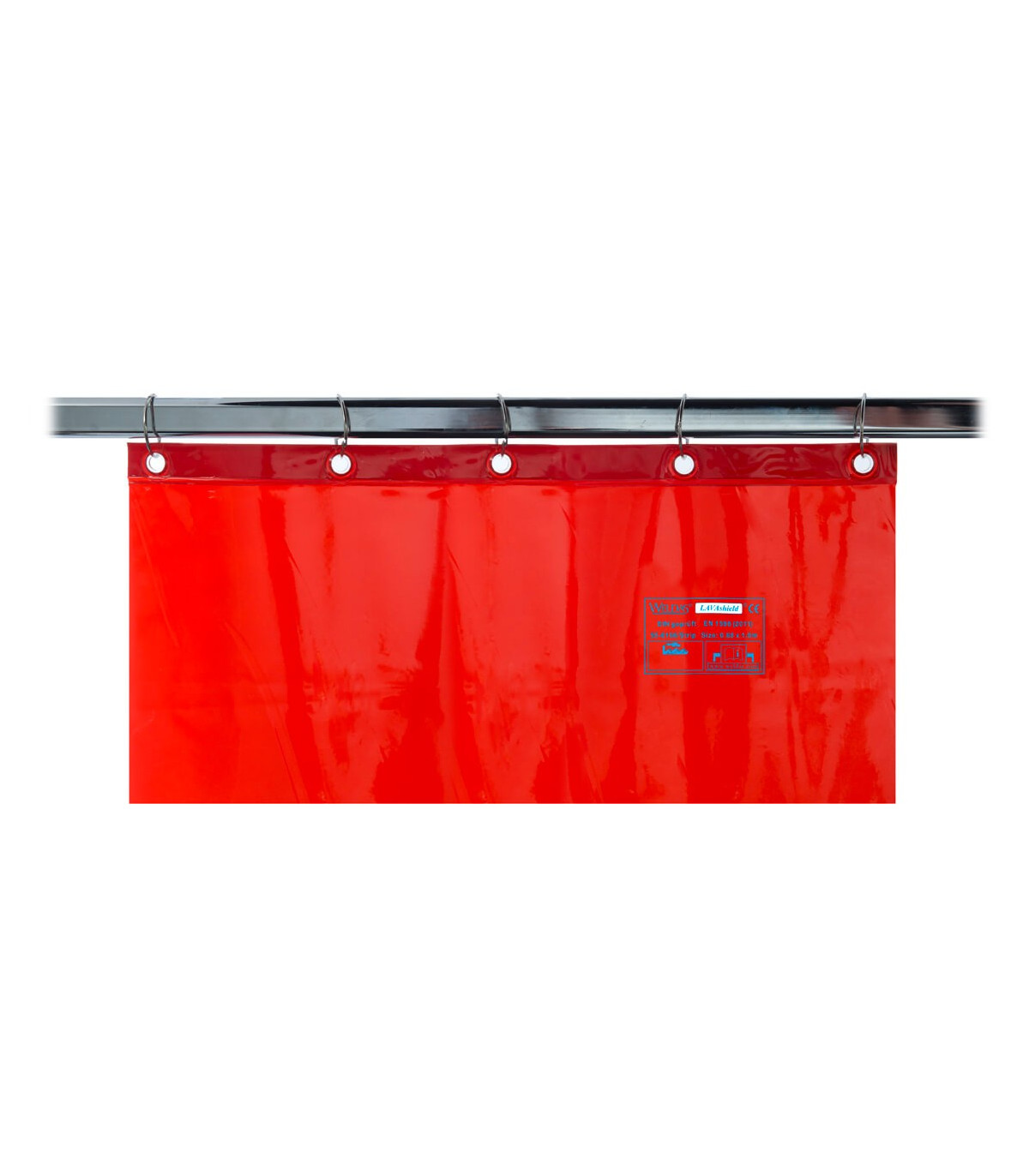

• On the upper side of the strip, there is a reinforced thermally sealed seam with 5 eyelets
• Includes 5 rings (Ø 50 mm) for added convenience and secure fastening
• The screens with econo Weldas LAVAshield are manufactured and certified according to the EN 1598 standard

MEASUREMENTS

Length: 180 cm

Width: 68 cm

*Measurements expressed in cm

MATERIALS

The curtain is made of PVC (Polyvinyl chloride)

APPLICATIONS

This product is designed to protect the environment from UV rays and welding arc reflections. Welding and grinding should be carried out more than 1 m away from the curtain.

Thermally sealed seams and washers. Nylon ties are provided for fastening to WELDAS modular frames (frame/screen not included).

TECHNICAL DATA

The Weldas curtains have been tested and certified at DIN CERTCO Gesellschaft für Konformitätsbewertung mbH, Alboinstraße 56, 12103 Berlin, Germany, Notified Body: 0196

STANDARDS/ REGULATIONS

DIN EN ISO 25980:2015-01 13821-PZA-17

PACKAGING

1 unit
