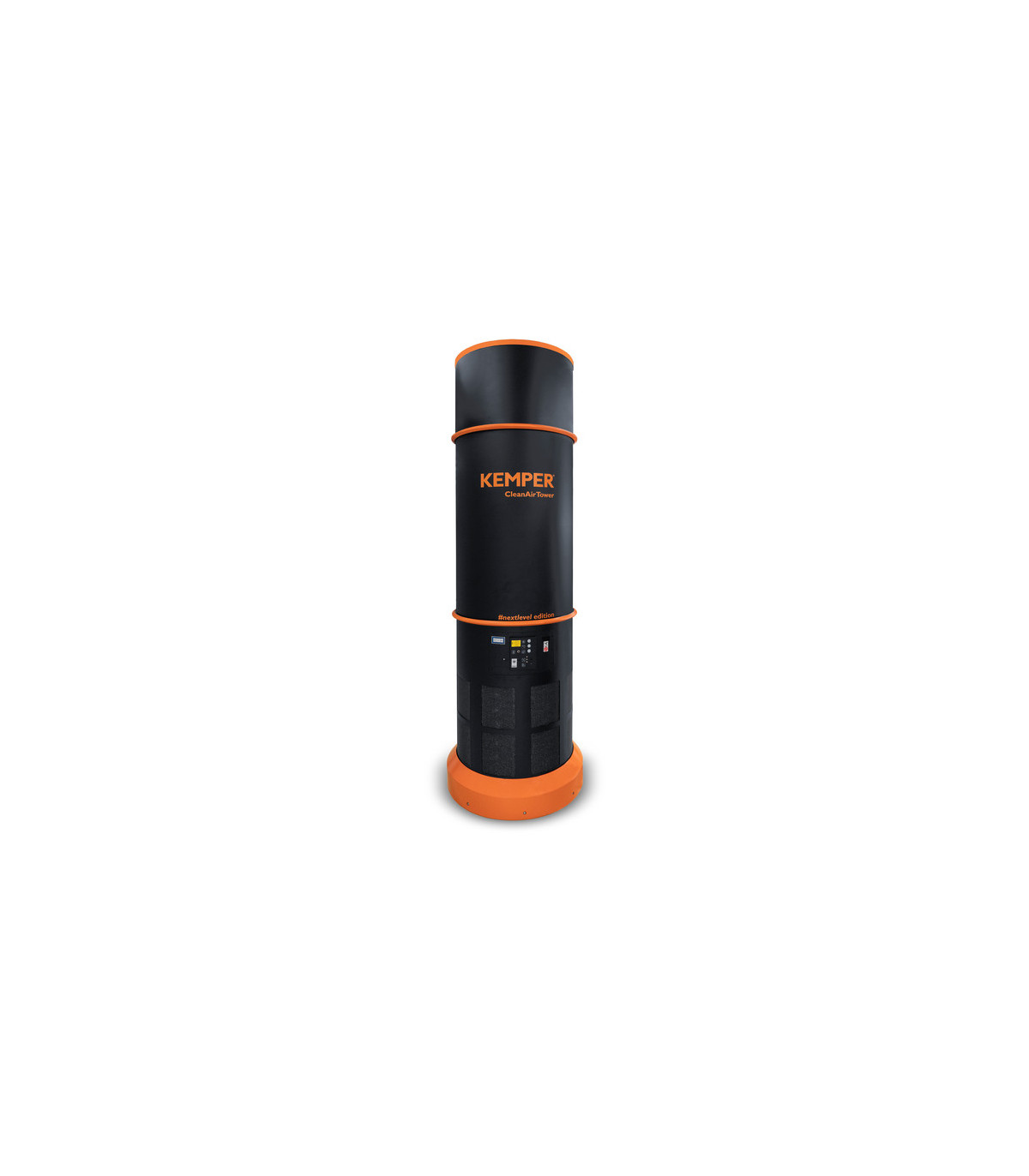

CleanAirTower environmental aspiration for energy savings for KEMPER production halls.

CleanAirTower environmental aspiration for energy savings for production halls. *Service on request.

The ventilation of the CleanAirTower room and the room ventilation is used when the extraction of welding fumes is insufficient.

The tower effectively protects employees and machines from fine dust during welding. Clean air is returned to the room.

The new optimized airflow has a special effect and, similar to pinball, ensures that possible sparks and particles collide with steel sheet elements at 10 or more points, effectively dissipating their energy.

The room ventilation causes only minimal air turbulence, so contaminated air does not reach uncontaminated areas.

The CleanAirTower operates according to the stratified ventilation principle recommended by the Employers' Liability Insurance Association for corridor ventilation.

Service: on request

FEATURES

• Automatic filter cleaning
• Lifting hooks
• KEMPER-Cloud connection via mobile radio*
• Contamination-free dust removal in single-use buckets
• Optimized airflow
• Pinball method and tornado principle
• Layered ventilation principle recommended by the occupational safety professional association
• The system produces hardly any air turbulence

BENEFITS

• Effective energy extraction from possible sparks and particles using the pinball method with 10 or more collision points
• Effective efficiency through the tornado principle
• Low danger potential due to foreign bodies
• Reduction of heating costs thanks to air recirculation and distribution
• The filter's lifespan is enormously long due to optimized airflow
• High safety due to contamination-free dust removal
• Low cost, also for retrofitting as no ducts are needed
• The new head element can be adapted to existing systems
• Safe transport and easy installation using lifting hooks
• Uninterrupted operation thanks to automatic dust discharge into the metal container.

TECHNICAL DATA

FOR WHAT TYPE OF WORK IS IT SUITABLE

• Workshops where point extraction is not possible
• Complementary to point extraction systems
• Environments with variable sources of dust and smoke
• Workstations, production halls.
• Logistics and storage halls.

OPERATION

• Aspiration of air from the environment through an integrated fan
• The purified air is returned to the hall through low impulses from the bottom of the system
• The purified warm air supports the rise of welding smoke towards the extraction grille, creating a slow air recirculation at the workstation (layered ventilation)

ADDITIONAL EQUIPMENT

Air monitoring AirWatch

SPARE PARTS

KemTex® filtration cartridge with ePTFE membrane 20 M2
