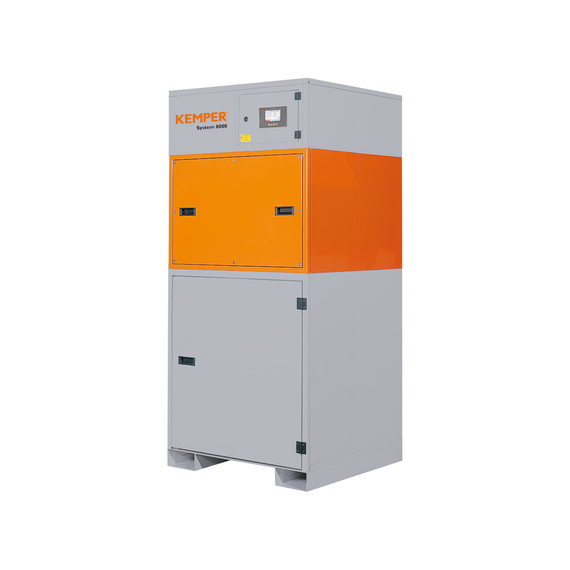

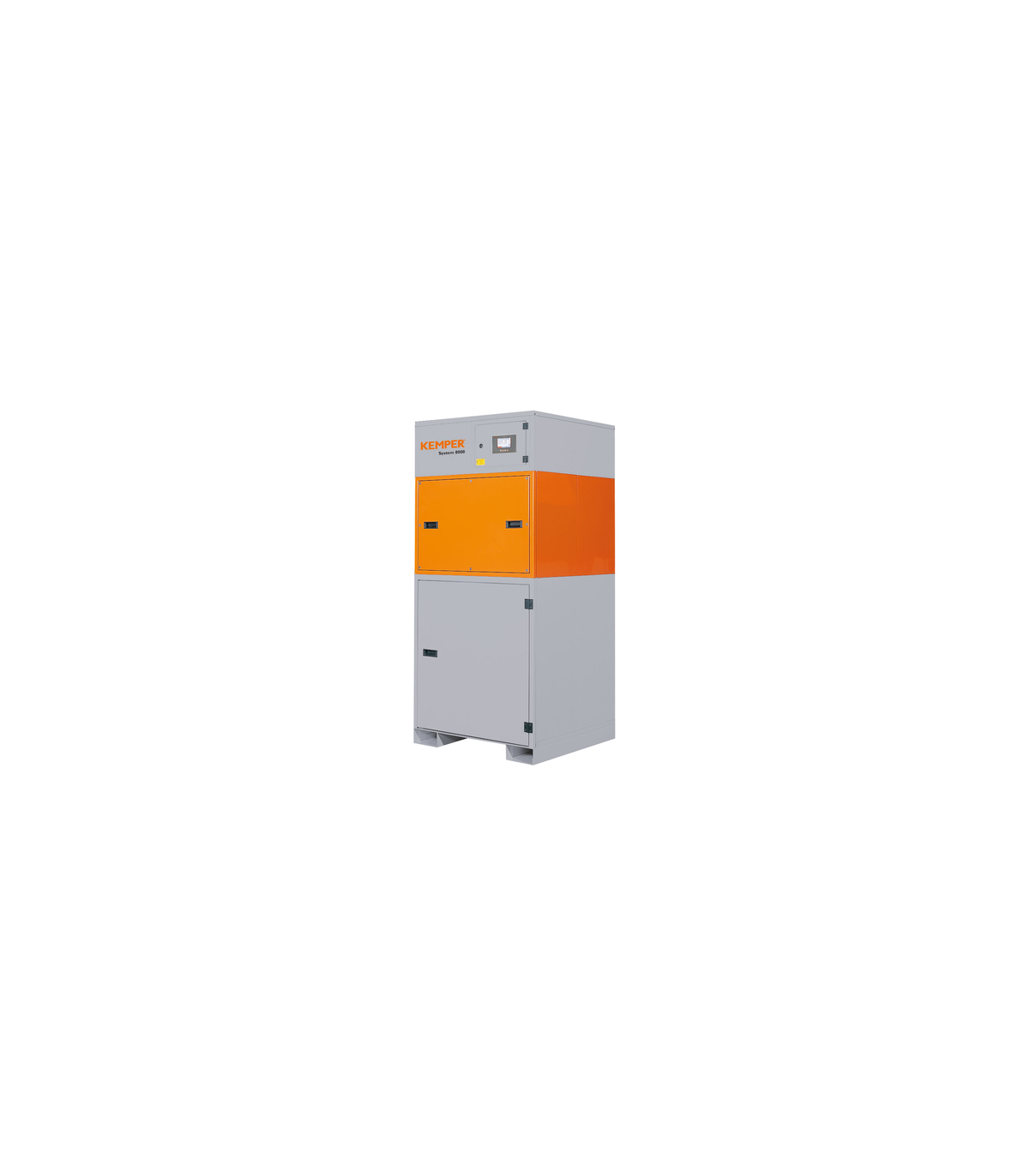

Welding fume extraction system 810200020

The solid and at the same time compact installation is perfectly suited for production halls and welding workshops with large amounts of smoke and dust. Ready to plug in and equipped with cavities for forklifts, as well as lifting rings, the System 8000 is continuously installed as a central suction and filtering system for various welding workstations, cutting machines, or welding robots. The KemTex® ePTFE membrane filter cartridges used for ultrafine dust capture even particles smaller than 0.1 _m, and thanks to the W3/IFA certification, the System 8000 is also suitable for use in chrome-nickel steel machining.

Summary/Applications

• Large amounts of smoke/dust
• Welding workshops and schools
• Training centers and automated welding lines
• Oxy-fuel cutting, plasma cutting, and laser cutting systems
• Possible outdoor installation

Benefits

• Contamination-free dust collection thanks to the airtight sealing of the container through a mechanism activated by compressed air.
• Uninterrupted continuous operation thanks to the automatic cleaning of the filter driven by differential pressure
• Low noise emissions due to operation with a particularly low noise level
• Quick and easy assembly, as it is supplied ready to plug in and with cavities for forklifts.
• Significant savings in energy costs when using the power regulator, due to the automatic adjustment of suction power based on demand
• Convenient handling thanks to intelligent control via the touchscreen with diagnostic system
• Flexible integration of control into third-party systems such as cutting machines due to potential-free contacts
• Maximum health protection for operators thanks to the use of KemTex® ePTFE filter cartridges with surface filtration

Features

• Automatic filter cleaning driven by differential pressure
• Control via touchscreen
• W3/IFA certified
• KemTex® ePTFE filter cartridges
• Dust collectors with pressure air lifting device
• Pre-assembled ready to plug in
• Automatic volumetric flow regulation (optional)
• Cavities for forklifts

Additional Equipment

• Automatic dust removal: DustEvac
• Power regulator
• External start/stop
• Spark pre-separator: SparkTrap
• Climate protection housing for outdoor installations

Variants

• Different power supply voltages available
• Different filter surfaces
• Different volumetric flow powers
