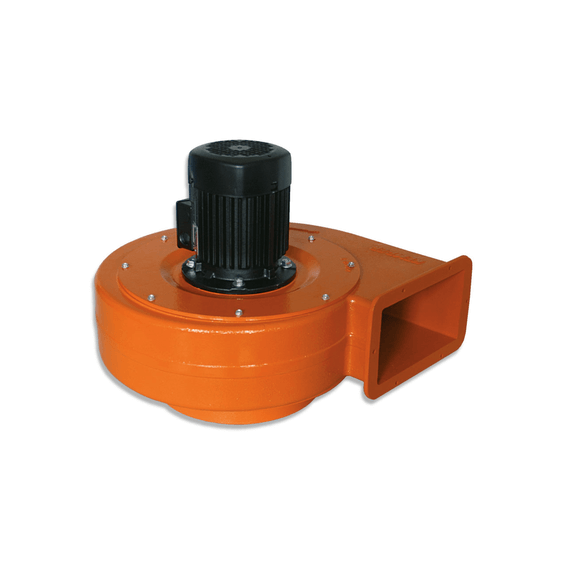

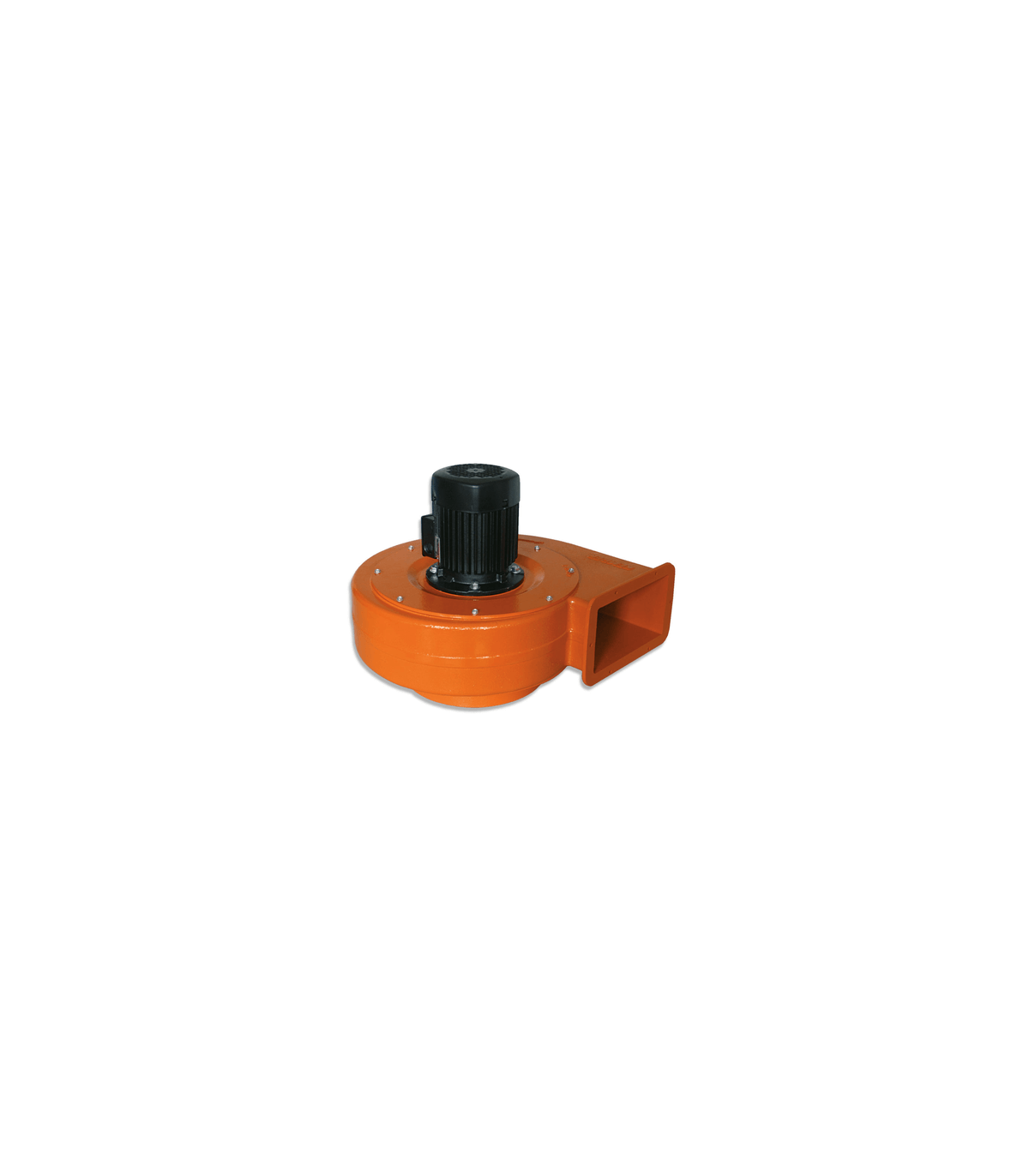

Fan for suction arms and telescopic arms up to 3,000 m³/h power KEMPER

Fan for extraction arms and telescopic arms up to 3,000 m³/h of power. Fans are used in combination with pipes in arms.

Fans are used in combination with pipes in KEMPER extraction arms, telescopic arms, and suction hoses. They are used for air extraction and ventilation where air filtration is not important. Thanks to the siluminium cast housing, the fan is especially quiet and spark-proof.

SUMMARY / APPLICATIONS

• For extraction arms, telescopic arms, and suction hoses
• Large amounts of smoke/dust
• Continuous use

BENEFITS

• Especially quiet and spark-proof, as the housing is made of siluminium cast

FEATURES

• Siluminium cast housing and fan

VARIANTS

• Different supply voltages available
• Various power classes

TECHNICAL DATA

ADDITIONAL INFORMATION

Suction connection Ø 250 mm

SPARE PARTS

7910331 Suction hood with magnetic base - Hood with magnetic base and hose of Ø 150 mm, length 6.0 m

93083 Suction hose with funnel nozzle - Suction hose, Ø 150 mm, length 6.0 m, includes suction nozzle with magnetic base
