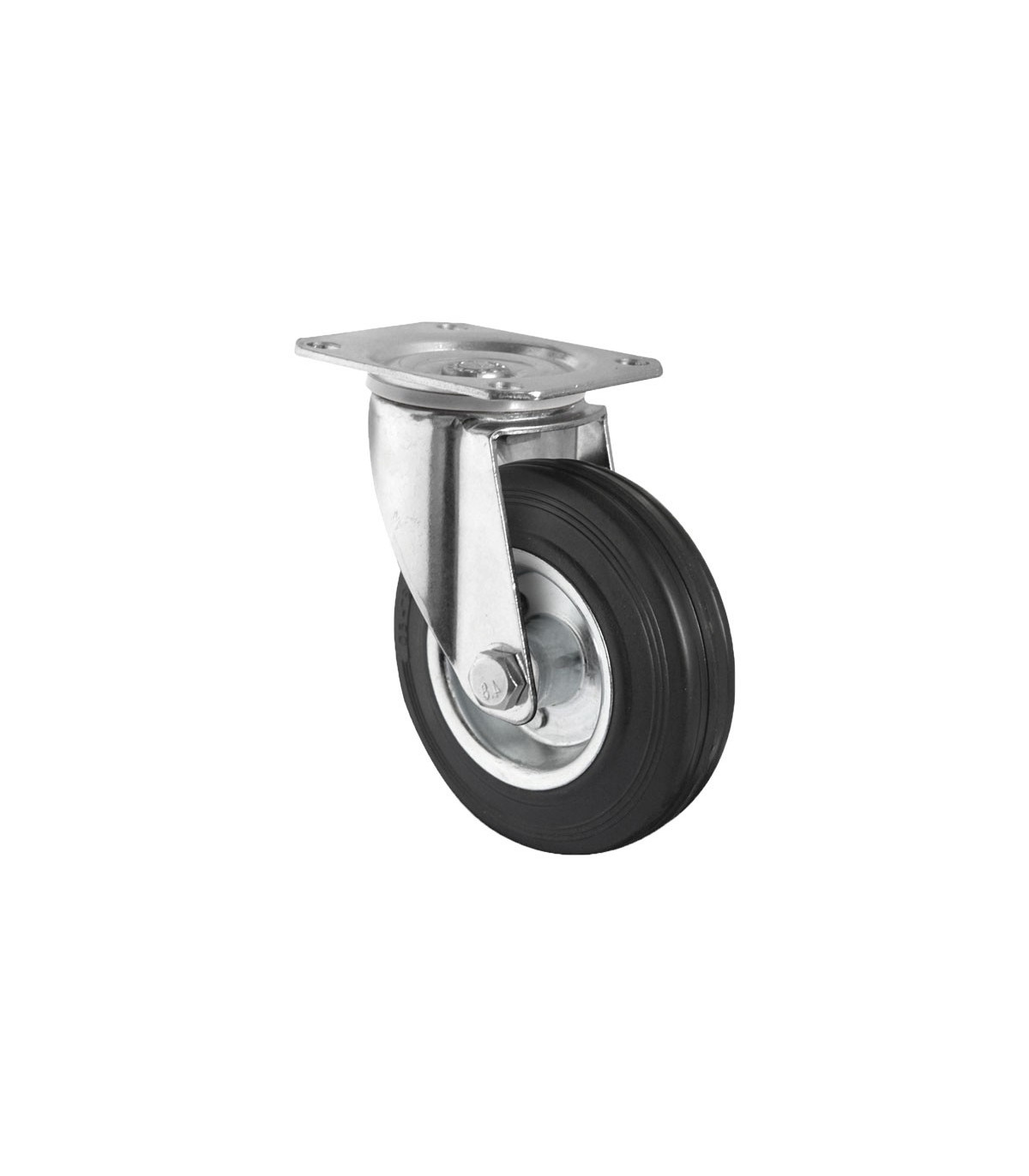

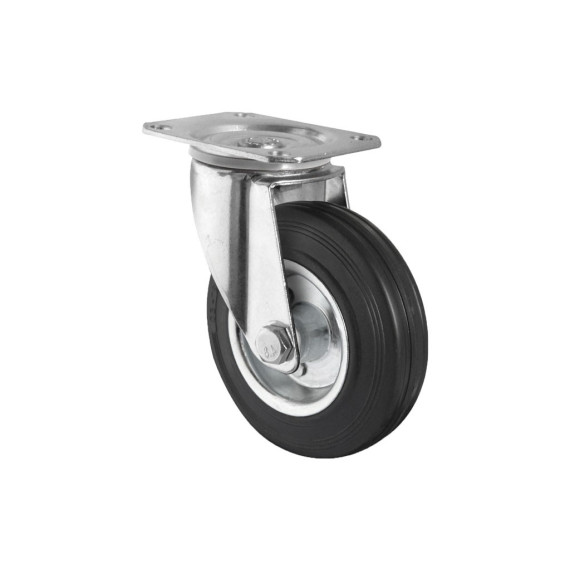

Rubber and metal wheel with swivel plate with diameters ranging from 80 mm to 125 mm for weights of up to 150 kg COFAN.

Rubber wheels with metal and special plate for industrial trolleys, containers, toolboxes, etc. For weights of up to 150 kg. Made of black rubber and galvanized steel. Wheels suitable for industrial and domestic use. They are made of hard rubber and do not scratch or damage the floor, so they can be used on delicate floors without causing any harm.

FEATURES

- Made with stamped steel sheet up to 4mm thick

- Support with double ball bearing

- Bright galvanized finish

- Manufacturer according to European standards EN 12530

- Natural rubber black color

- Maximum quality

- Temperature range: -30ºC to +80ºC

TECHNICAL DATA

Wheel diameter: 80/100/125 mm

Band width: 27/38 mm

External plate size: 105x80

Internal plate size: 80/77x60

Hole diameter: 9 mm

Maximum total height: 155 mm

Maximum load capacity: 80/100/150 kg

Bearing type: Smooth roller

APPLICATIONS

The wheels are applied to various industrial uses to facilitate work in factories, offices, or stores. Meanwhile, their application is common in:

• Containers

• Toolboxes

• Tables and chairs

• Industrial trolleys

• Displays

• Music equipment

• Furniture

• Small items

• Commercial equipment

• Store and shop equipment
