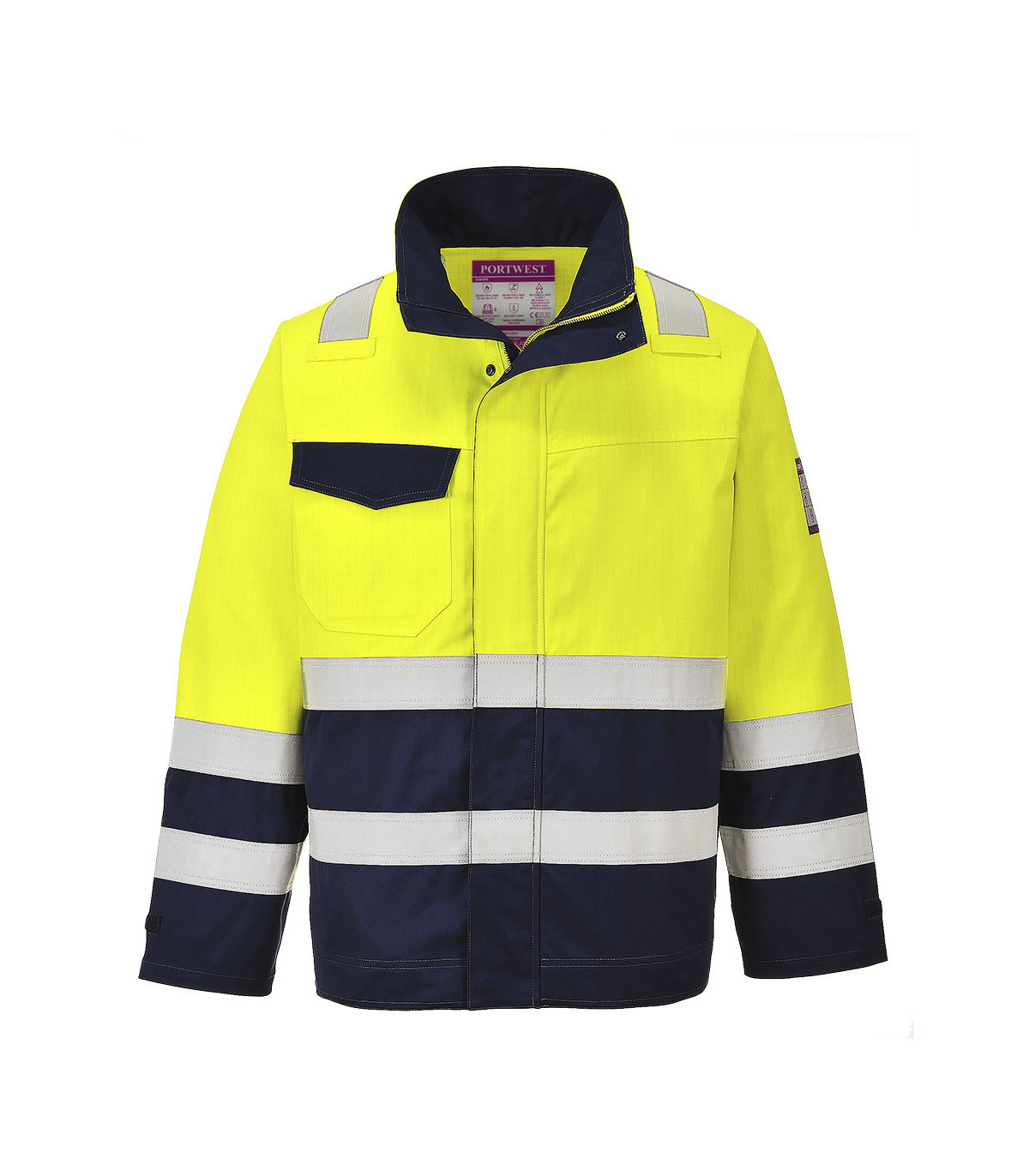

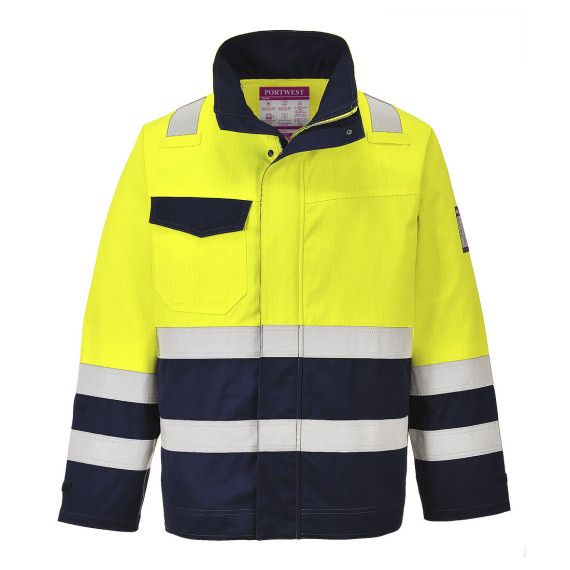

High Visibility Work Jacket Modaflame Thermal Arc Protection PORTWEST MV25

High visibility jacket Modaflame Thermal Protection against Arc PORTWEST MV25. The bicolor modacrylic fabric, along with the reflective strips, provides greater visibility and total protection to the user in dangerous situations. The improved design meets the strict requirements for protection against arc flash.

Modaflame™

Garments can be layered to achieve a specific combined Arc Thermal Protection Value (ATPV) or a Break Energy Threshold (Ebt) level. For example, thermal underwear can reach an Ebt level of 4.3 Cal/cm², and an outer coverall can achieve an ATPV of 13.6 Cal/cm². However, the ATPV value of the combination will be greater than the sum of the values of the individual layers, as the air space between them provides additional protection to the user.

Flame resistant

This market-leading collection provides multi-standard protection for hazardous environments. These cutting-edge products are the result of years of experience combined with advanced technology and market research. The commitment to user health, safety, and comfort is evident in the wide variety of products suitable for all weather conditions and applications.

COMPOSITION

Cover fabric: Modaflame Work HV: 60% Modacrylic, 39% Cotton, 1% Carbon Fiber 280g

WASHING CARE

Maximum washing temperature 60°C, gentle cycle.

Do not use bleach.

Dryer, normal temperature

Iron at a maximum of 150°C.

Do not dry clean.

Maximum 25 washes

CHARACTERISTICS

• The inherent qualities of flame resistance will not diminish with washing.
• Protection against contact, convective, and radiant heat.
• Side pockets
• Zipper closure and hidden snaps
• Resistant and durable brass zipper
• Adjustable cuffs with self-adhesive closure for a secure fit.
• 4 Pockets for greater capacity
• Clamp to easily hold the radio.
• Flame-resistant reflective tape for sewing, suitable for industrial washing.
• UPF 40+ classified fabric that blocks 98% of UV rays.
• Hidden pocket for the mobile phone
• CE Certificate
• Bio Motion patterned tape to improve the identification of the human figure from a distance.
• CE-CAT III
• UKCA marking

SIZE GUIDE

REGULATIONS

EN ISO 11612 (A1+A2, B2, C1, F1)

EN ISO 11611 Class 1 (A1+A2)

EN 1149 -5 IEC 61482-2

IEC 61482-1-1 (Elim 6.4 CAL/CM²)

IEC 61482-2 IEC 61482-1-2 APC 1

EN 13034 Type PB[6]

EN ISO 11611 Class 1 A1+A2: Refers to protection for welding and similar processes.

EN 1149-5: It relates to protection against electrostatic charges.

IEC 61482-2 IEC 61482-1-1 Elim 6.4 CAL/CM²: Refers to protection against electric arcs.

EN 13034 Type PB[6]It is about protection against chemical splashes.

FOR WHAT TYPE OF WORK IS IT APPROPRIATE

Industry and construction

urban maneuvers

Welding

Chemical areas

Public services, etc.

LABORATORY

SATRA Technology Europe Ltd (Notifier Body No.: NB: 2777) Bracetown Business Park D15 YN2P, Ireland Cert. No: 2777/12420-01/E00-00
