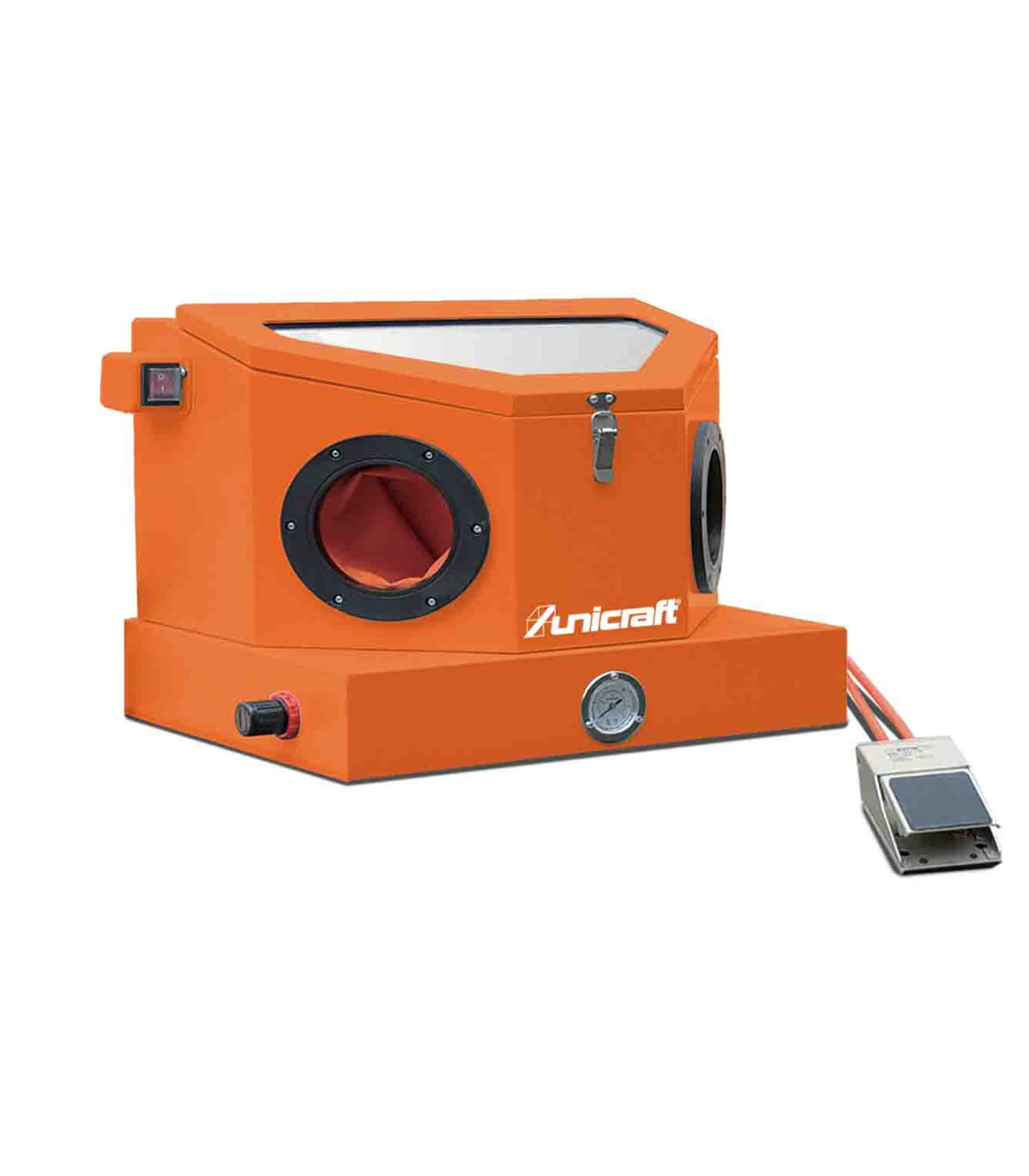

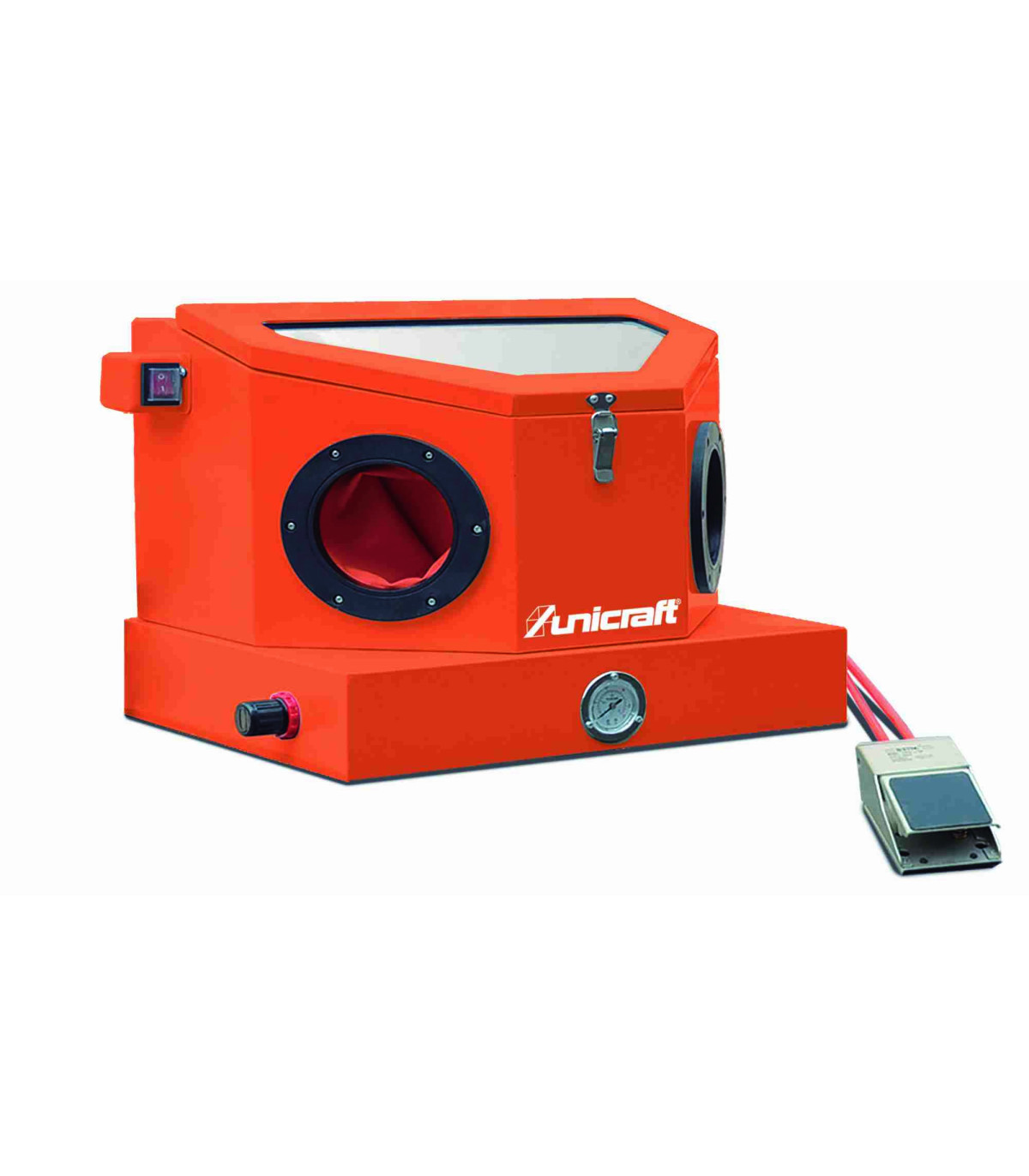

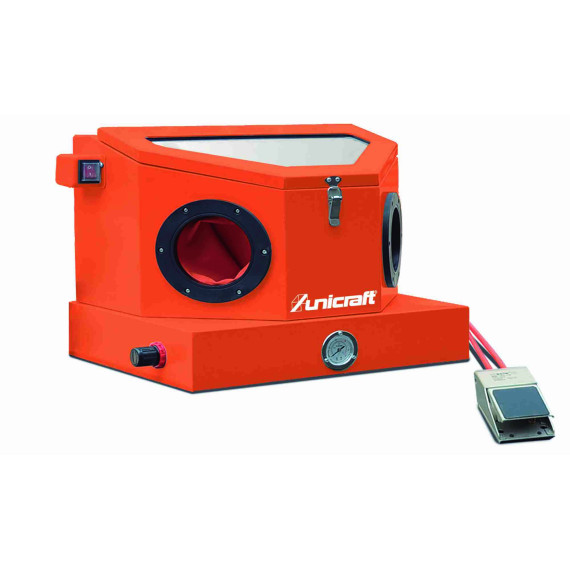

SSK 1.5 UNICRAFT blasting cabin

SSK 1.5 UNICRAFT blasting cabinet. The SSK 1.5 UNICRAFT blasting cabinet is a versatile tool suitable for sandblasting various materials, such as quartz, glass beads, and plastic beads. It is ideal for removing paint and cleaning or deoxidizing metal parts of any kind.

This cabinet features high-quality latex work gloves that are securely attached to the housing, ensuring comfort and safety during use. The lens is equipped with a protective film that provides optimal visibility while machining the workpiece. Additionally, it allows for dust-free operation thanks to the circumferential seals on the lid and door frame.

The stable storage grid facilitates the placement of parts inside, and it has an opening to drain the blasting material. The suction tube for the material is fixed to the bottom of the collection container and has a compressed air connection on the outside. This cabinet is compatible with various abrasives, including glass bead blasting, corundum, silicon carbide, and plastic abrasives, among others.

FEATURES

• Suitable for various blasting materials, such as quartz, glass beads, plastic beads, etc.
• Ideal for removing paint or for cleaning and deoxidizing metal parts of all kinds.
• High-quality latex work gloves are securely attached to the housing.
• The lens with a protective film allows for optimal visibility and safety during machining of the workpiece.
• Dust-free operation thanks to the circumferential seals on the lid and door frame.
• The stable storage grid allows for placing workpieces inside the cabinet.
• With an opening to drain the blasting material.
• Suction tube for the blasting material fixed to the bottom of the collection container.
• With a compressed air connection on the outside.
• Abrasives for glass bead blasting, corundum abrasives, silicon carbide, plastic abrasives, and much more.

Benefits

• Pressure regulation through a pressure regulator with a manometer.
• Fixed nozzle with a 120° tilt for comfortable two-handed operation.
• Airflow control via a pedal.
• Integrated cabinet ventilation with a replaceable air filter.
• 12-volt fluorescent tube with a 230-volt power supply and external switch.

TECHNICAL SPECIFICATIONS

Recommended abrasive grain size 0.2 – 0.3 mm

Maximum abrasive grain size 0.125 – 0.45 mm

Nozzle diameter 3.5 millimeters

Maximum load of the net 10 kilos

Maximum weight of the blasting medium 5.45 kilos

VPE 1

Dimensions and weights

Cabinet volume 25.4 liters

Interior length of the cabinet 410 millimeters

Interior width of the cabinet 310 millimeters

Interior height of the cabinet 200 millimeters

Diameter of the hand hole 100 millimeters

Approx. length 475 millimeters

Approx. width/depth 370 millimeters

Approx. height 370 millimeters

Approx. weight 12.5 kilos

Opening hatch (see drawing)

A 150 millimeters

B 419 millimeters

do 261 millimeters

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

3 ceramic nozzles (3.5 mm)

3 replacement sheets for the viewing window

FOR WHAT TYPE OF WORK IS IT SUITABLE

The SSK 1.5 UNICRAFT blasting cabinet is suitable for:

• Sandblasting
• Quartz
• Glass beads
• Plastic
