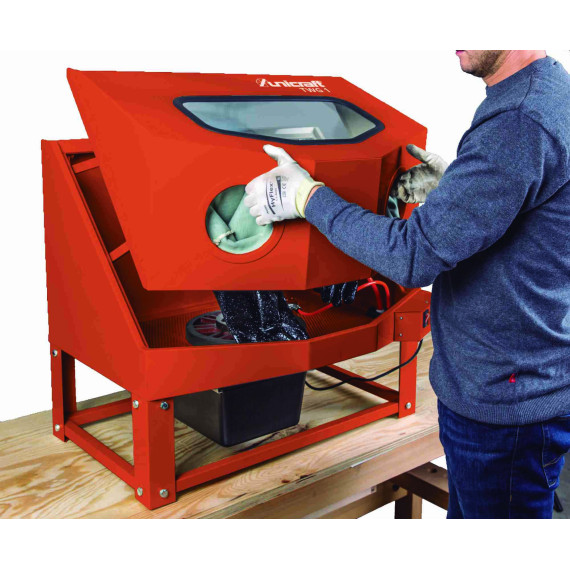

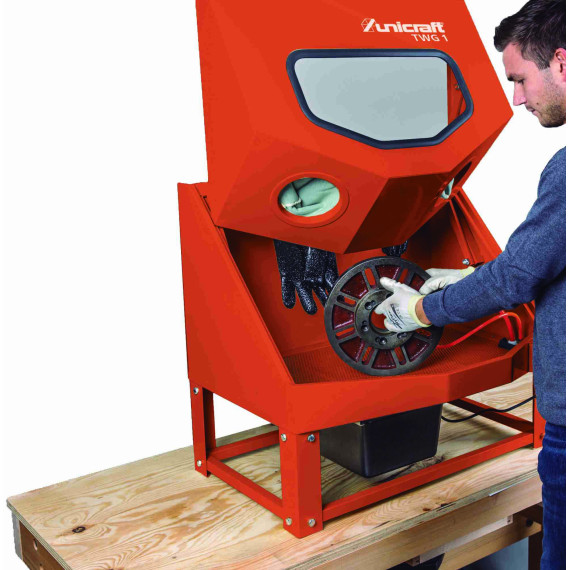

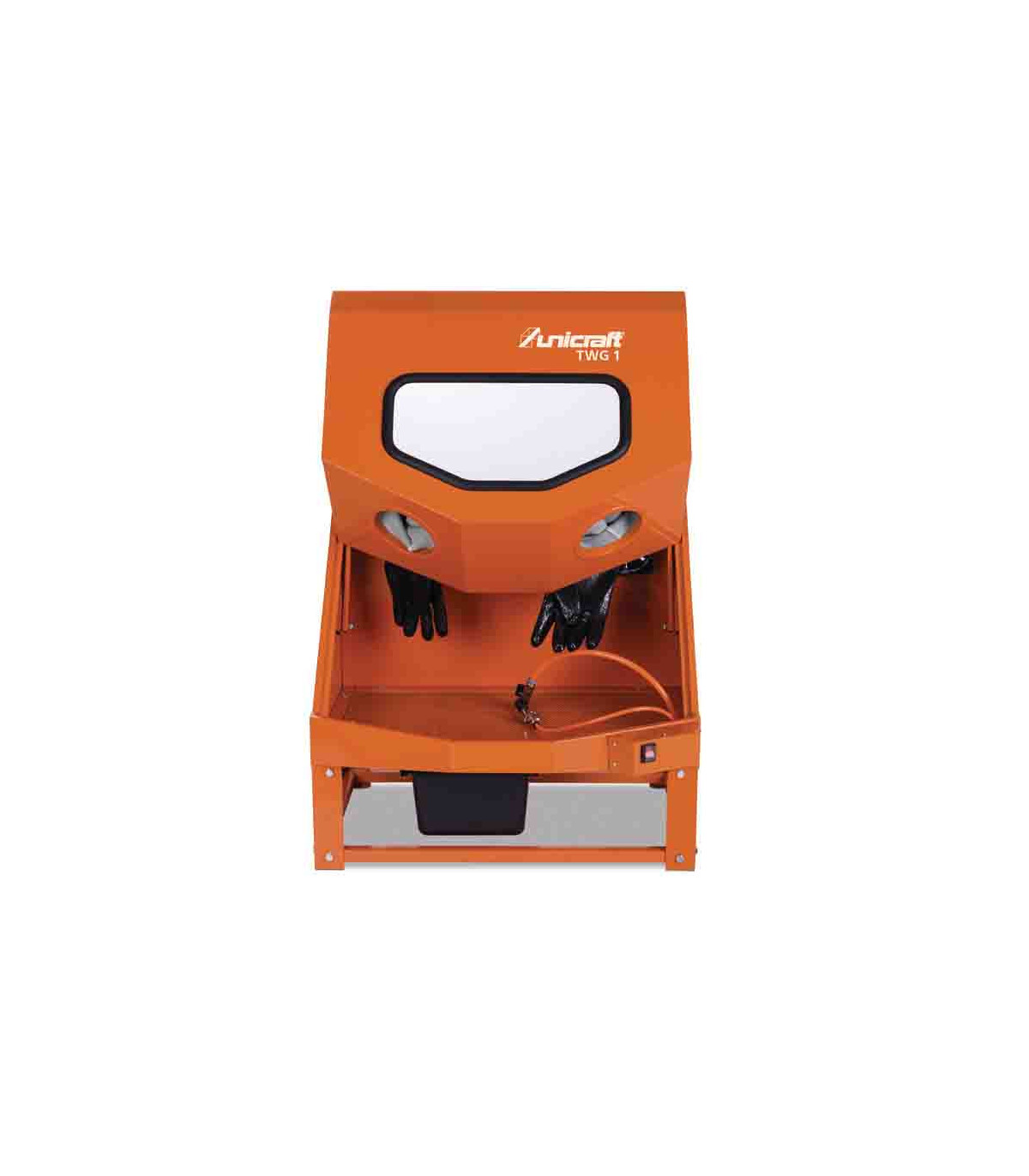

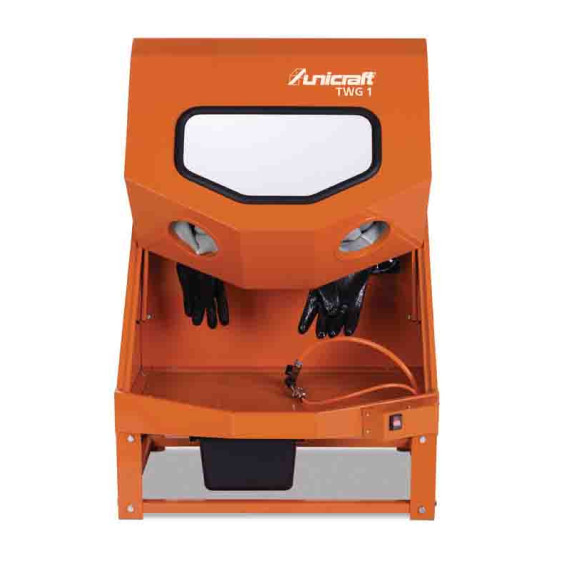

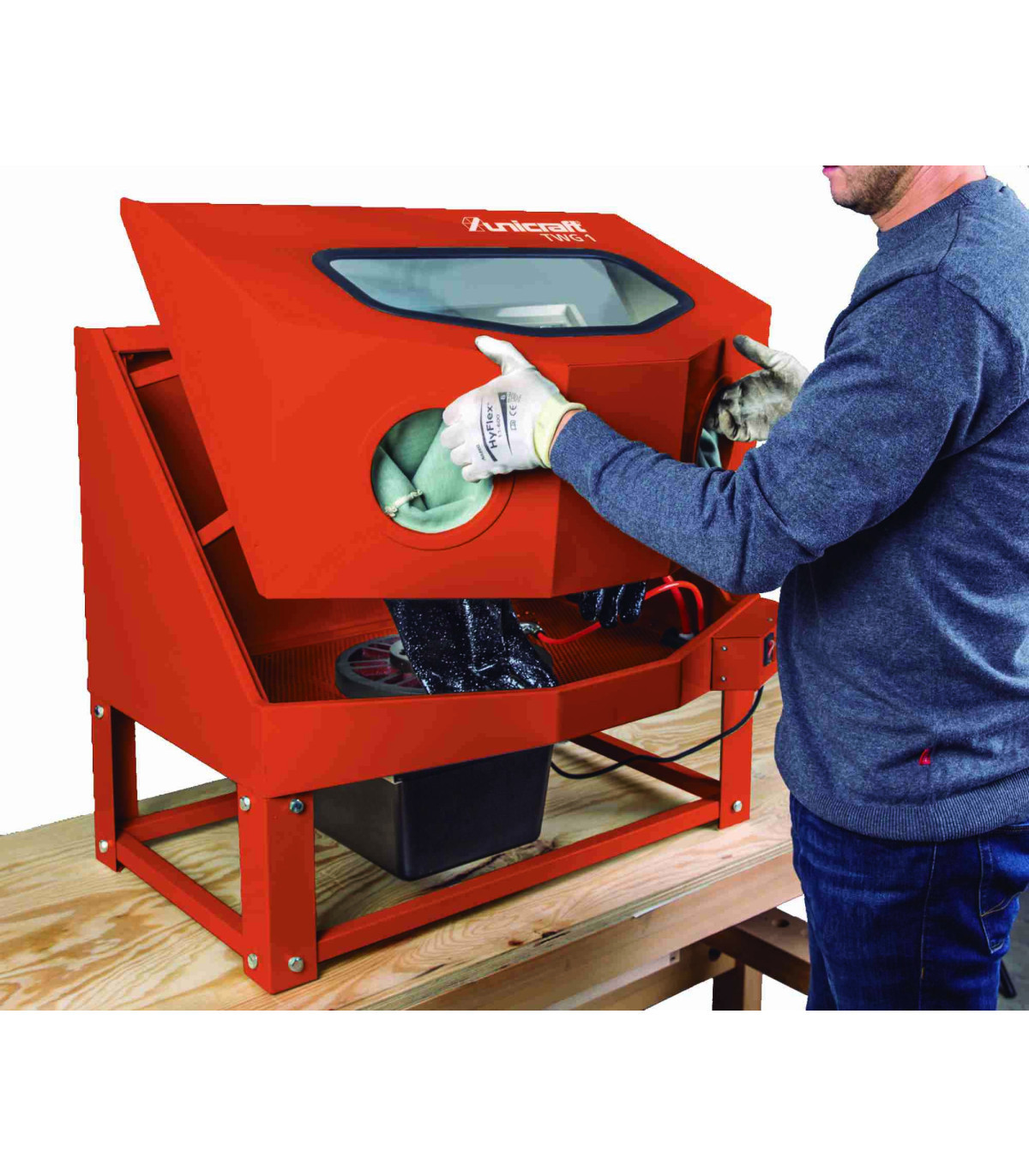

Cleaning cabin for complex parts TWG 1 AIRCRAFT

Cleaning booth for complex parts TWG 1 AIRCRAFT. The cleaning booth for complex parts TWG 1 AIRCRAFT offers optimal cleaning in difficult areas, allowing for quick and effective degreasing of automotive parts.

Its closed design keeps dirt inside, while the interior lighting and large window ensure a clear view. It includes protective gloves, an easy-to-operate lid, and is compact, making it ideal for any workbench. Additionally, it features a simple compressed air connection and easy-to-remove components for practical maintenance.

FEATURES

Optimal cleaning even where it is not possible to vacuum with a brush or cloth

• Even complex automotive parts can be cleaned and degreased quickly and easily before welding or painting.
• High-pressure working gun for fast cleaning and blowing.
• Optimal visibility of the work area thanks to bright interior lighting and a large viewing window.

Clean work

• The closed design keeps dirt in the booth.
• A fan ensures clean air inside.
• Comfortable protective gloves integrated into the housing.

Well-thought-out details

• Large, smooth-operating lid for quick and easy loading and unloading.
• Thanks to its compact design, the booth fits any workbench.
• The sieve, support grid, and water tank are easy to remove.
• Simple compressed air connection on the right side of the booth.

BENEFITS

• Thorough cleaning of complex parts.
• Cleaning gun with dual function.
• Compact design.

TECHNICAL SPECIFICATIONS

Booth capacity 140 liters

Maximum weight on support grid 40 kilos

Circulation speed 0.8 l/min

Minimum solvent capacity 4 – 9 liters

VPE 1

Dimensions and weights

Interior booth length 736 millimeters

Interior booth width/depth 560 millimeters

Interior booth height 450 millimeters

Hand hole diameter 100 millimeters

Approximate length 785 millimeters

Approximate width/depth 595 millimeters

Approximate height 700 millimeters

Approximate weight. 29.5 kilos

Electrical data

Connection cable length 1.5 meters

Drive motor power consumption 0.04 kW

Power supply voltage 230 V

Network frequency 50 Hz

Pneumatic connection

Working pressure 5 – 8 bars

Approximate requirement 140 l/min

Connection thread ¼ "

COMPONENTS/PACKAGING

Unit: pza(s).

Packaging unit: 1

FOR WHAT TYPE OF WORK IS IT SUITABLE

The cleaning booth for complex parts TWG 1 AIRCRAFT is suitable for:

• Workshops
• Mechanics
• Aerospace
• Construction

CERTIFICATION

Quality Management System of the Stürmer Group certified according to ISO 9001:2015

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management
