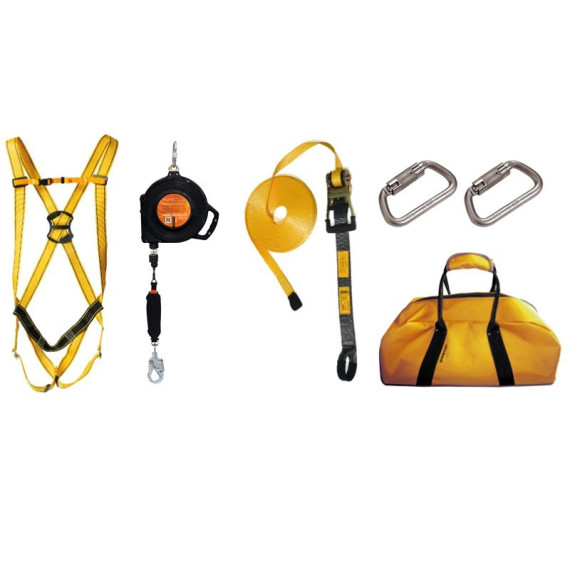

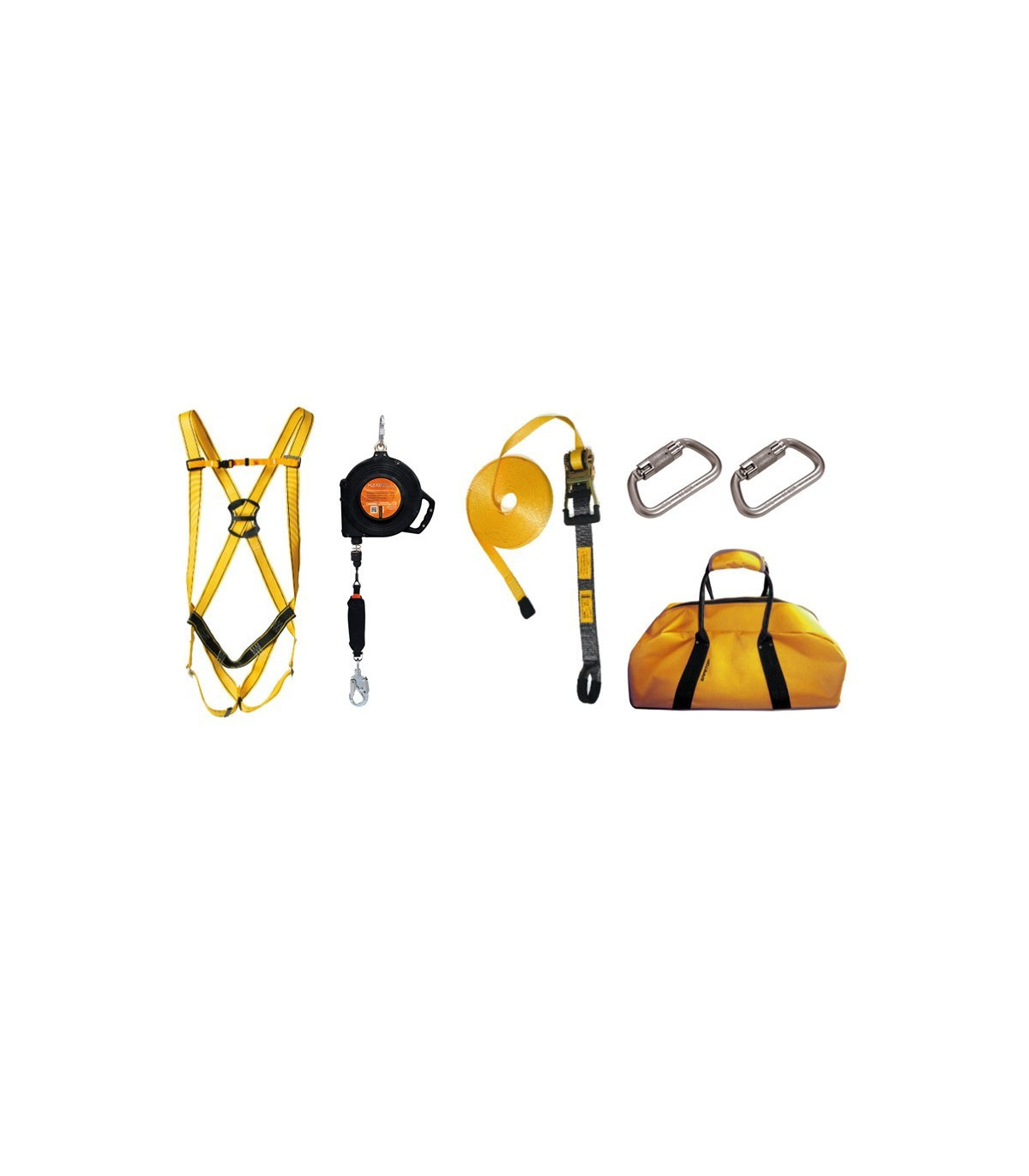

Horizontal Lifeline Kit Plus SAFETOP

Fall protection equipment consisting of an Ancares 80050 Harness, a 6-meter cable reel, suitable for horizontal and vertical use. A 20-meter lifeline 80266, suitable for 3 workers. Two 80120 carabiners, with a screw lock and 1/4 turn, made of steel. Backpack 80157.

FEATURES OF THE ANCARES HARNESS

• Basic fall protection harness with yellow nylon straps combined with black.
• 45 mm wide tapes
• 1 dorsal fixation point
• With a dorsal hook ring to connect the damping subassembly.
• Dorsal attachment ring to connect the damping subassembly.
• Adjustment and closure buckles that allow for adjusting the length of the straps to the user's body. A closure and adjustment buckle for the chest that connects and adjusts the two main shoulder straps.
• Subgluteal band that connects the two thigh bands.
• Model available in two sizes: standard and 2XL.

HORIZONTAL LIFELINE FOR 3 OPERATORS

• PPE category III
• Horizontal lifeline Type B, valid for tasks that require frequent horizontal movement.
• Both ends manufactured in a loop for connection to anchoring elements.
• Reinforced leather straps to make wear and tear more difficult.
• High visibility yellow color
• The equipment is valid for use by three users at the same time.
• The total length is 20 m, but it is adjustable in length through the tensioner.
• Its structure consists of: * A tensor made of galvanized steel. Includes a ratchet with a plastic handle. * A 35 mm wide x 19 m long polyester strap, in contrasting color, connected to the metal tensioner.
• The main strap is presented rolled up with a tie to prevent it from coming undone. To open it, you just need to operate a "backpack" type buckle. * A polyester connecting strap, 50 mm wide and 0.7 m long.
• At the end, it includes a loop with leather protection. No spare parts are supplied.

CHARACTERISTICS OF MAXIROLL

• Category III PPE
• 6-meter retractable steel cable lifeline
• Valid for use in vertical and horizontal.
• Galvanized steel cable of 4.8 mm finished in a loop and connected to a rotating lower carabiner.
• Attachment via a carabiner at the top (not included): oval steel fastening.
• Integrated energy absorber in polyester, width 45 mm.
• Its casing is made of high-strength nylon.
• The lower carabiner for attaching to the harness has a rotating head "swivel ring," which prevents the cable from twisting if the operator turns.
• Fall indicator
• Certificate for maximum load of 120 kg
• Includes a handle for easy transport.
• Materials: Nylon casing. Galvanized steel cable, steel carabiner.

Lifespan

• Reviews: the equipment must be inspected every 12 months by an authorized person or by the manufacturer.
• Inspections must be recorded on the inspection sheet attached to the PPE along with the instruction manual.
• Refer to the instruction manual to find out the product's lifespan.

FEATURES OF MANUAL CARABINER

• PPE category III
• Manual 1/4 turn carabiner in a single maneuver, with a screw lock mechanism and automatic closure.
• The nut has a diamond pattern to facilitate turning.
• Galvanized steel body with a silver finish.
• Aperture: 22 mm
• Static resistance: 40 kN major axis
• Dimensions: 110x70 mm
• Weight: approximately 180 g

FEATURES: EQUIPMENT CARRYING BAG

• Tear-resistant polyester bag, designed to store fall protection equipment.
• Zipper closure
• Upper handle protected with a protector fixed with Velcro.
• Waterproof
• Rigid waterproof plastic base
• Colors: yellow and black
• Measurements: 77x31 cm
• Packaging: 1 unit (individually packaged)

APPLICATIONS

Surface suspension, installation of collective protections, attachment to horizontal lifelines, among others.

Valid lifeline for horizontal movements in work at height. The equipment must be used in conjunction with a fall protection system. It can only be used with carabiners certified under the EN362 standard.

MAXIROLL is suitable for work in vertical or horizontal positions. It is used in general construction tasks, hydrocarbon production, maintenance, telecommunications, and confined spaces where worker mobility and fall protection are necessary.

STANDARDS/ REGULATIONS

• EN361 (full body harness)
• EN795 Class B (Lifeline 80266)
• EN360 (Retractable devices)
