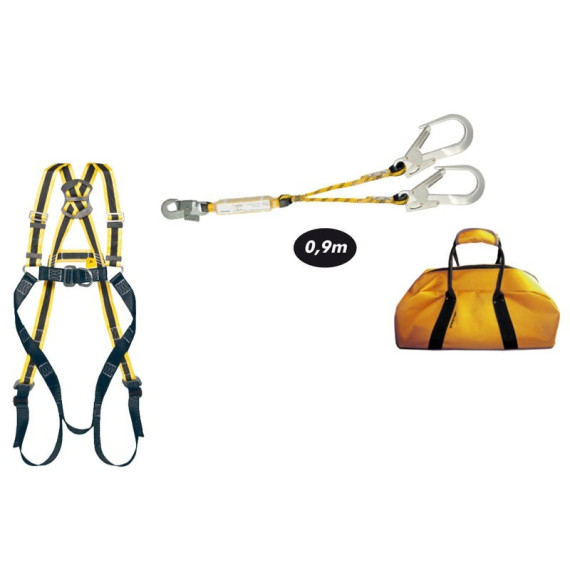

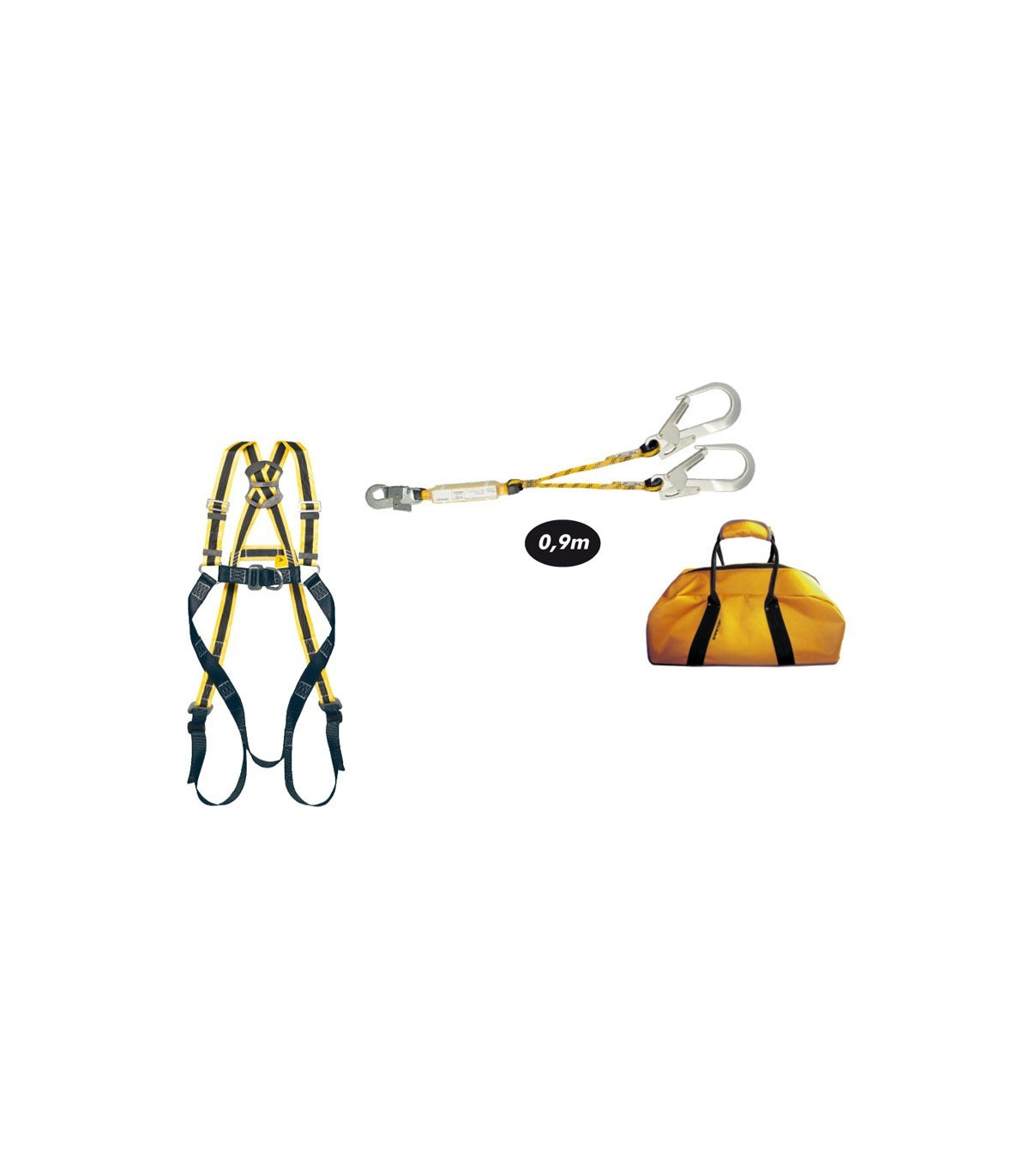

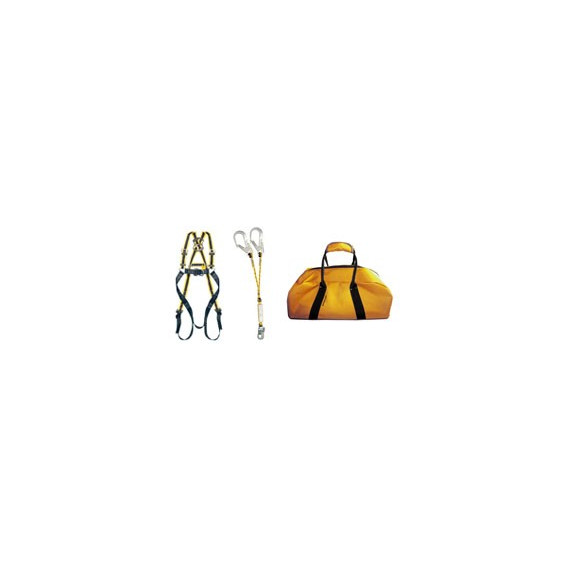

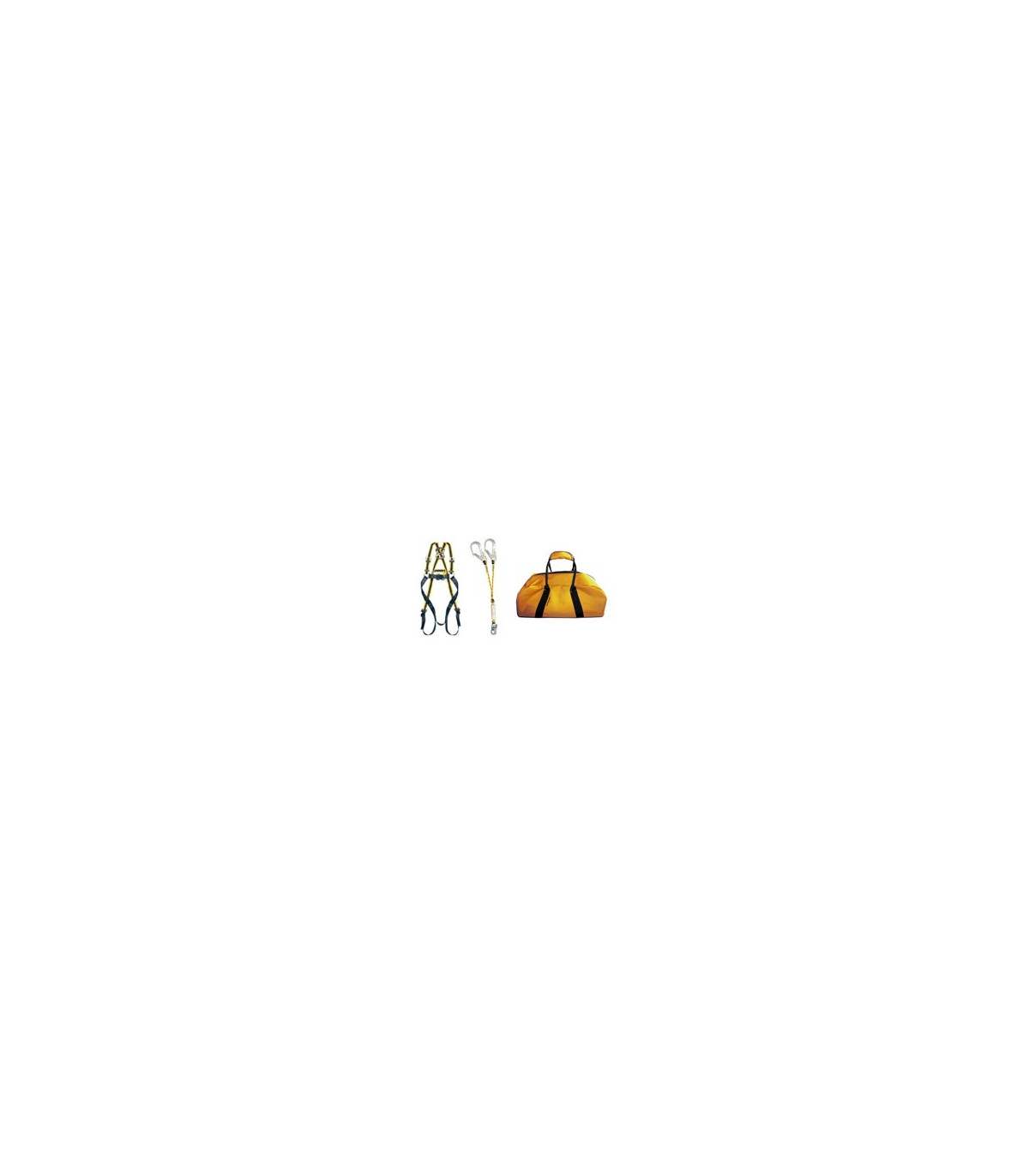

Fall protection kit with Samaja harness and double rope Scotia New 1 SAFETOP.

Fall protection kit with Samaja harness and double rope Scotia New 1 SAFETOP. The fall protection kit with Samaja harness and double rope Scotia SAFETOP is a comprehensive solution for safety in working at heights, presented in a durable tear-resistant polyester bag that protects and organizes the fall protection equipment.

With a practical zipper closure and a top handle protected by a Velcro strap, this waterproof bag ensures that the contents stay dry and secure. Its rigid plastic base adds stability and durability, while its yellow and black color design provides high visibility. Measuring 77x31 cm, it is ideal for carrying everything you need in an organized and accessible manner.

SAMAJA HARNESS CHARACTERISTIC

• PPE category III
• Full body fall protection harness with two anchor points.
• A dorsal anchor point and a frontal point.
• Metal rings
• Elastic upper shoulder straps for greater comfort.
• All the straps of the harness are adjustable, so it can be adjusted at the shoulders and leg straps, making it adaptable to each user.
• Includes adjustment and closure buckles for easy and quick placement.
• Polyamide tapes
• Aluminum buckles

ROPE WITH ENERGY ABSORBER AND CARABINERS

• Category III PPE
• Energy absorber with double rope and carabiners
• Total length of the equipment: 0.9 m, including the connectors.
• Total length in case of fall: 1.50 m
• Includes absorber 80217K, made with 32 mm wide polyamide tapes.
• Dimensions: 230 mm (length) x 34 mm (width) x 32 mm (height)
• It is equipped with protected loops at the ends.
• Protected with a polyethylene tube.
• Maximum elongation: 0.56 m
• 10.5 mm diameter kermantle safety rope
• At one end, it has a quick connector 80111 made of galvanized steel with automatic locking, with an opening of 19 mm.
• On the other end, two galvanized steel hooks 80113B, with an opening of 56 mm.
• No spare parts are supplied.

Lifespan

• Reviews: the equipment must be inspected every 12 months by an authorized person or by the manufacturer. The inspections must be recorded in the review sheet attached to the PPE along with the instruction manual.
• The maximum shelf life is 5 years from the date of first use.
• Cleaning: Clean with water and soap that does not exceed 30ºC. Do not dry with heat. Lubricate the hinges and levers occasionally after washing.

FEATURES: EQUIPMENT CARRYING BAG

• Tear-resistant polyester bag, designed to store fall protection equipment.
• Zipper closure
• Upper handle protected with a protector fixed with Velcro.
• Waterproof
• Rigid waterproof plastic base
• Colors: yellow and black
• Measurements: 77x31 cm
• Packaging: 1 unit (individually packaged)

APPLICATIONS

The anti-fall kit with harness Samaja and double rope Scotia SAFETOP is suitable for:

• Surface suspension
• Installation of collective protections
• Attachment to horizontal lifelines
• Work at heights
• Fall and impact protection
• Construction
• Industrial maintenance
• Scaffolding
• Elevated platforms
• Rescue
• Security

ESTÁNDARES

• EN361 (full body harness)
• EN354 (lashing equipment)
• EN355 (energy absorber)
• EN362 (carabiners)

- EN 361The EN 361 standard establishes the safety requirements for full body harnesses used in work at height. This European standard specifies the design, manufacturing, and performance characteristics that these harnesses must meet to ensure effective user protection in the event of a fall. It includes tests for strength, durability, and ease of use, ensuring that the harnesses provide a proper fit and comfort, which is essential for safety in work environments where there is a risk of falls.

- EN 355This standard refers to energy-absorbing devices, which are essential components in personal fall protection systems. EN 355 establishes the design, performance, and testing requirements for these devices, ensuring that they are capable of reducing the forces generated during a fall. These devices, such as shock absorbers or energy absorbers, are crucial for minimizing the risk of injury to the user and ensuring a safe stop in fall situations.

- EN 354The EN 354 standard focuses on ropes used as anchorage elements and lifelines in personal fall protection systems. This certification establishes the performance criteria and tests that these ropes must meet to ensure their strength and durability. By complying with EN 354, the ropes guarantee that they are effective in connecting the user to a safe anchorage point, providing the necessary confidence to work at height without compromising safety.

- EN 362This standard addresses the connectors used in personal fall protection systems, such as carabiners and anchors. EN 362 establishes the technical requirements and tests that these devices must pass to ensure their reliability and safety. Connectors certified under this standard are essential for ensuring effective connection between the user and other elements of the protection system, minimizing the risk of accidental disconnection and ensuring safe use in demanding work environments.
