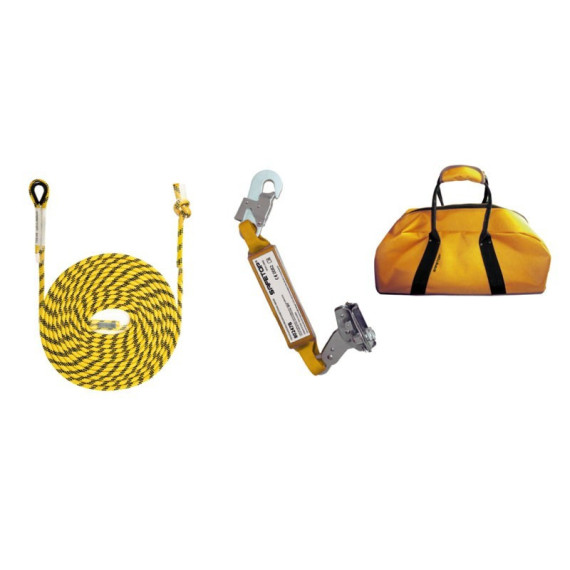

Vertical lifeline kit in various sizes with high chute and SAFETOP bag.

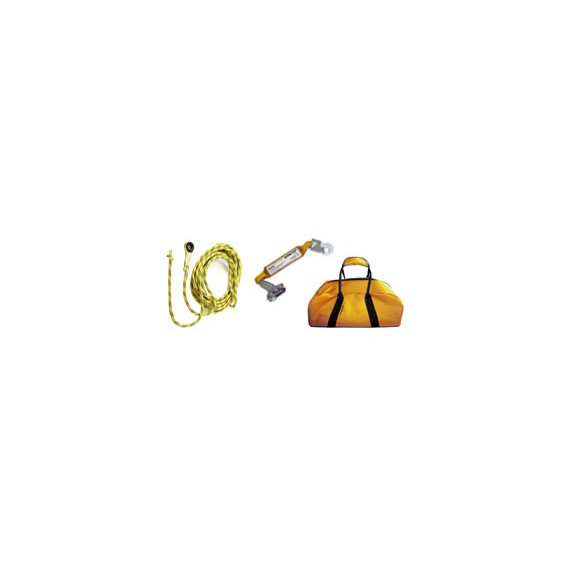

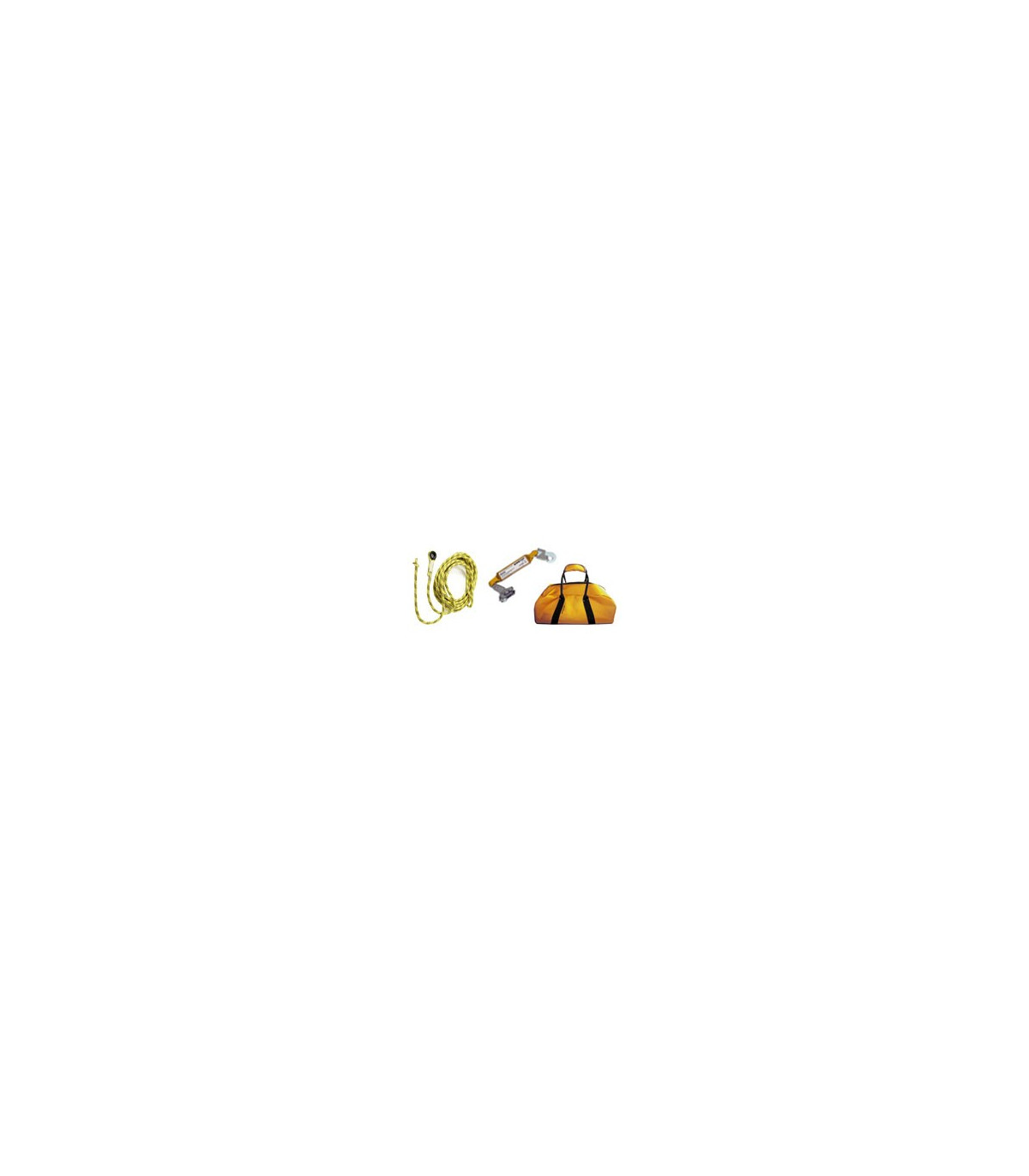

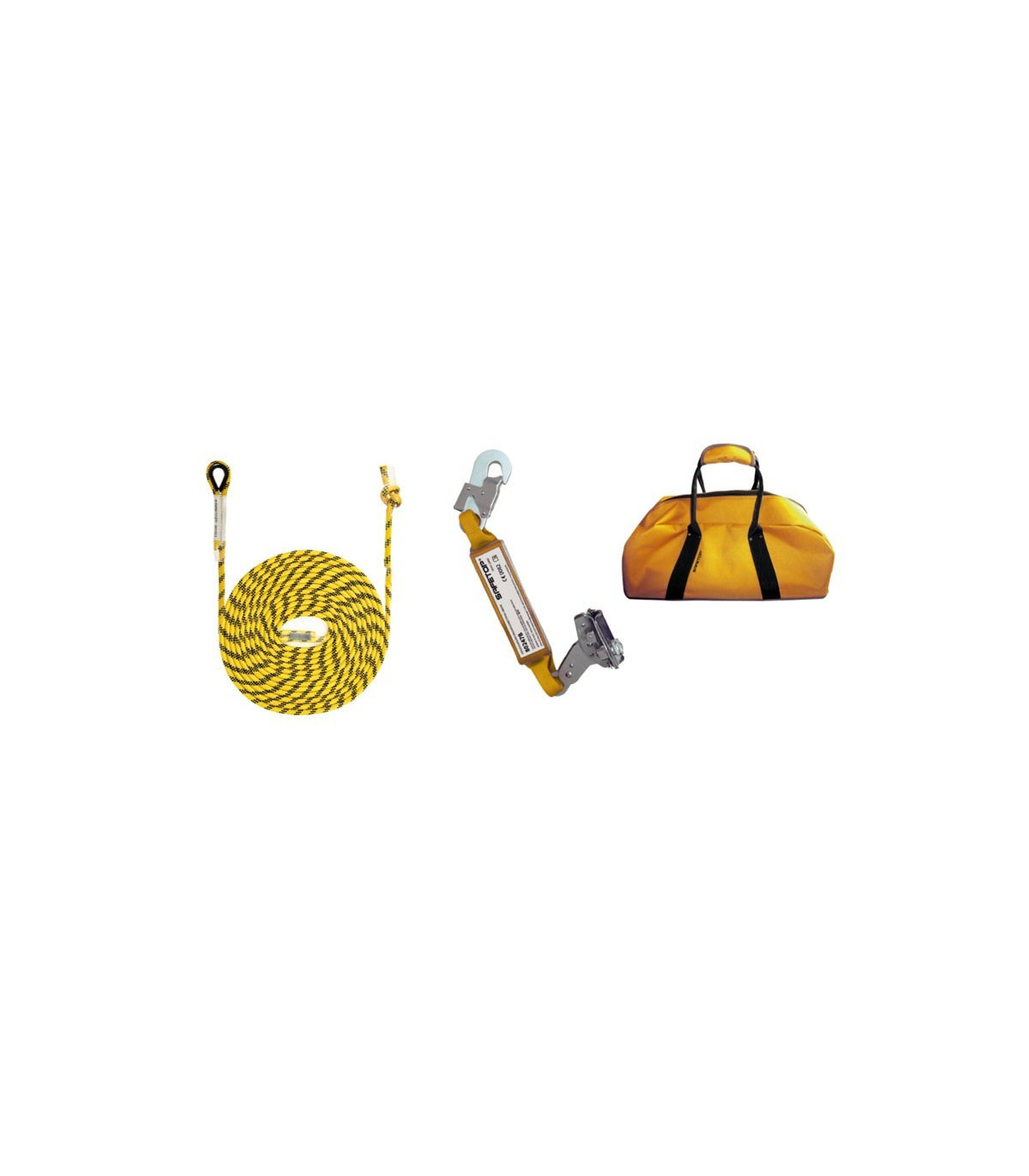

Vertical lifeline kit, consisting of rope, Altochut, and storage bag.

Personal Protective Equipment (PPE) essential for jobs that involve fall risks. Available in different sizes.

CHARACTERISTICS OF VERTICAL LIFELINE

• PPE of category II
• Rope made of polyester with a breaking strength of 28.20 kN.
• High visibility yellow cylindrical rope

STANDARDS/ REGULATIONS:

• EN 354 (Lashing equipment)
• EN 358 (Positioning work)

TECHNICAL DATA

• Reviews: the equipment must be inspected every 12 months by an authorized person or by the manufacturer. The inspections must be recorded in the review sheet attached to the PPE along with the instruction manual.
• The maximum lifespan is up to 10 years from the date of manufacture for plastics and textile products. It is indefinite for metal products.
• Cleaning: Clean with water and soap that does not exceed 30ºC. Do not dry with heat.

CHARACTERISTICS OF CONNECTION CORD

• Category III PPE
• Yellow-black polyester rope for easy visibility.
• At the upper end, eyelet protected by a heat-shrink insulating sleeve.
• On the other end, a knot that serves as a stopper at the lower end, protected by a heat-shrink insulating sleeve.
• Valid for use with anti-fall sliding devices (high-chuts).
• Diameter of the rope: 12 mm

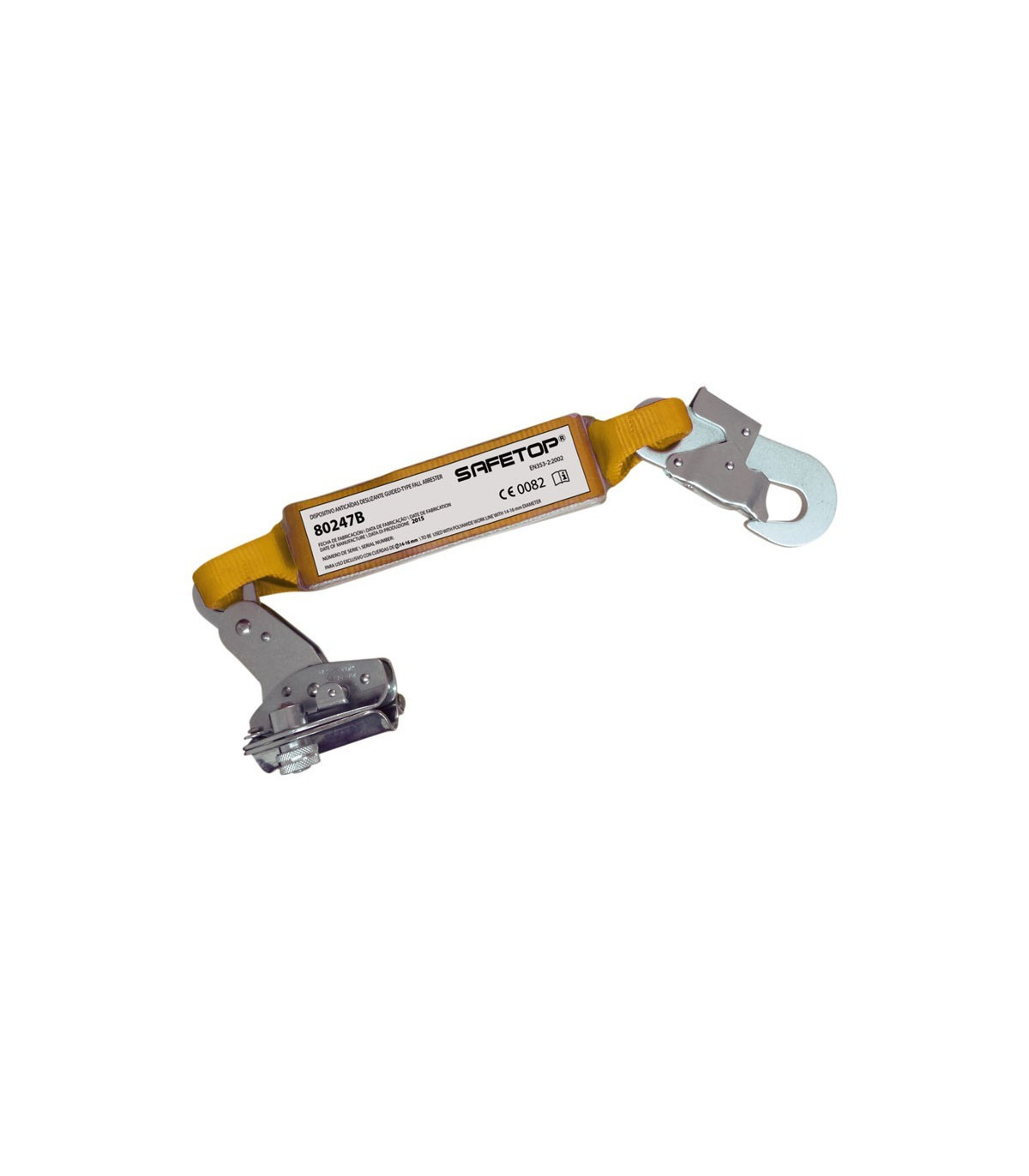

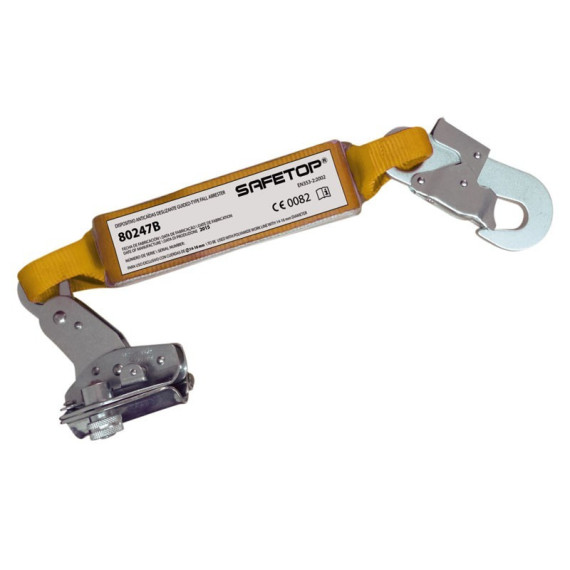

CHARACTERISTICS OF THE ALTOCHUT

• Altochut with absorber and carabiner for 14 mm diameter rope.
• Includes a locking and sliding mechanism, retention pin, locking lever.
• With a locking lever spring
• It contains a flexible cable runner cylinder.
• Automatic carabiner: opening 19 mm and strength 20 kN.
• Carabiner and high-altitude hook made of galvanized steel.

REGULATIONS

EN353-2 (Sliding anti-fall device)

APPLICATIONS

• Valid for working with 14 mm polyamide ropes.
• It should be used with fall protection equipment.
• Valid for use by a single user.

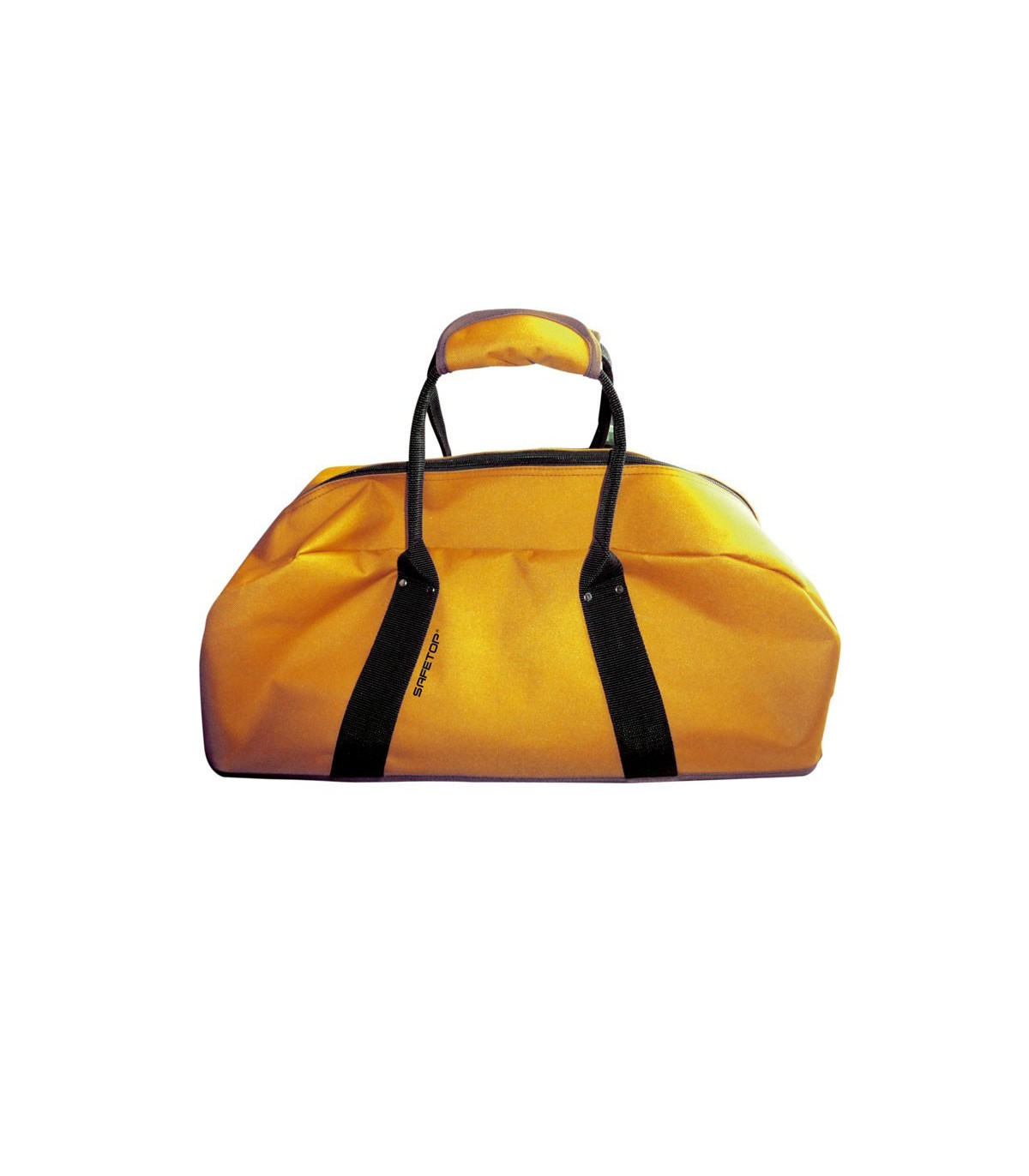

EQUIPMENT BAG

• Tear-resistant polyester bag designed to store fall protection equipment.
• Upper handle protected with a protector fixed with Velcro.
• Waterproof
• With a rigid plastic base
• Measurements: 77x31 cm

PACKAGING

1 unit (individually packaged)

WORK AREAS FOR LIFELINE KIT

The vertical lifeline kit, composed of rope, Altochut, and storage bag, is an essential piece of equipment for various types of work maneuvers where the operator needs to be secured for greater protection. Among the different areas where this type of equipment is mandatory are:

• Transport and cargo activities
• For activities that require elevation and descent.
• Employees as part of the rescue team
• Urban electricians
• AlbaWorkers and construction workers
• Civil works
• Finishing and cleaning of buildings
