€62.40 (no TAX)

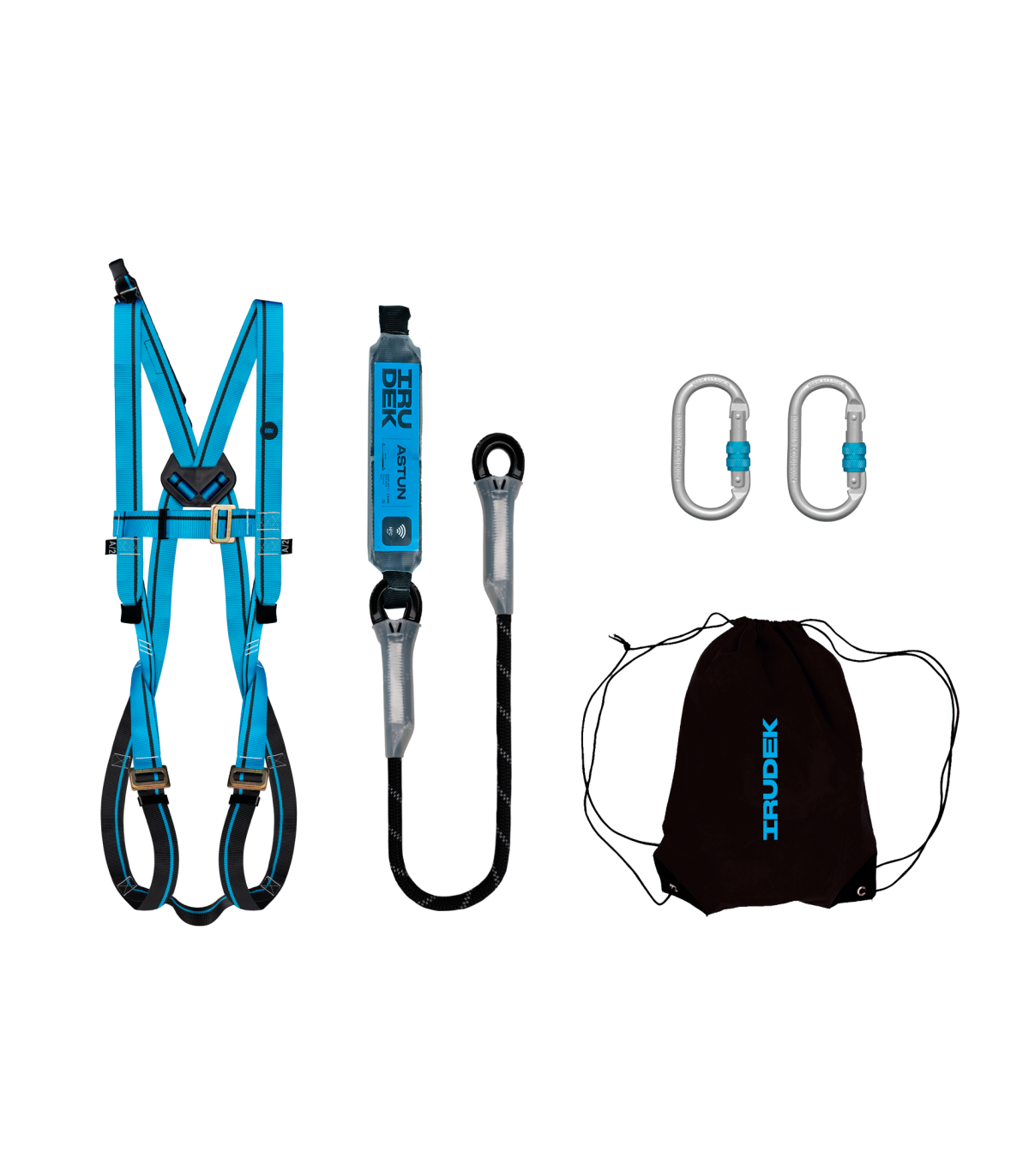

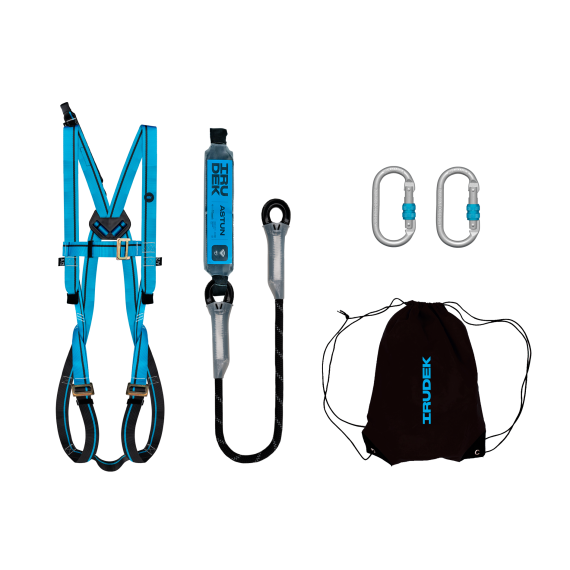

Fall protection kit with Apeninos harness and semi-static rope absorber IRUDEK.
Fall protection kit with harness and semi-static rope absorber.
COMPONENTS:
1 LIGHT PLUS 2 HARNESS
2 CARABINERS REF. 981
1 SEMI-STATIC ROPE ABSORBER REF. 361
1 NET BAG
€65.02 (no TAX)
Fall protection kit with Apeninos light plus 2 harness, semi-static rope absorber, and Steelsafe SENKO.
Fall protection harnesses are personal protective equipment (PPE) against falls from height and comply with standard EN 361: 2002.
The fall protection harness is a basic component of the fall protection system in accordance with standard EN 363:2018. Some harnesses are equipped with positioning belts (EN 358: 1999), may also incorporate a seat harness (EN 813: 2008) for use in restraint, retention, or rope access systems, or may include evacuation anchors for rescue (EN 1497: 2007). IRUDEK harnesses comply with EU Regulation 2016/425 on PPE.
FEATURES
COMPONENTS:
- 1 light plus 2 harness:
- Textile dorsal anchor + textile lining (A/2)
- Extension strap
- Adjustable leg straps
- 1 semi-static rope absorber ref. 361:
- Energy absorber with semi-static rope. Designed to withstand falls.
- Reduces fall impact to below 6kN
- Rope ends sewn and covered with polyethylene material, abrasion-resistant edge guards.
- 2 Steelsafe carabiners ref. 981: Steel connector with manual screw lock.
- 1 mesh bag
TECHNICAL DATA OF LIGHT PLUS HARNESS
- Weight: 750 grams
- Harness strength > 15kN
- Ring strength: 22 kN
- Strap width: 44 mm
- Load: 140 Kg
MATERIALS OF LIGHT PLUS HARNESS
Strap Material: Polyester
Threads: High tenacity polyamide
Rings: Steel
Buckles: Steel Dorsal anchor for fall protection
TECHNICAL DATA SEMI-STATIC ROPE ABSORBER
- Length: 150 cm
- Weight: 45 grams
- Diameter: 11mm
- Static strength: 25 kN
- Stopping distance: 1m
- Service life (years): 10 years of use and 1 year of storage
MATERIALS SEMI-STATIC ROPE ABSORBER
Rope Materials: Polyamide
Absorber: Polyester
TECHNICAL DATA STEELSAFE CARABINER
- Weight: 174 kg
- Opening: 18 mm
- Closure: Screw-Lock (Manual screw)
- Service life: Unlimited
MATERIALS STEELSAFE
Body: Steel
Screw: Steel
PACKAGING KIT
Units/box: 10
Packaging length: 35 cm
Packaging width: 17 cm
Packaging height: 15 cm
APPLICATIONS
The use of the anchoring element with a fall protection subsystem must be compatible with the usage instructions of each component of the system and with the Standards: EN 355, EN 361, EN 362.Indicated for work at height, frequently used in work environments such as:
- Civil works
- Construction Industry
- Climbers
- General Industry
SIZE GUIDE
Size: S, M, L, XL, XXL, 3XL
%2000-05-44.png)
%2000-03-09.png)
STANDARDS/ REGULATIONS
EN361 - Personal protective equipment against falls from height. Fall protection harnesses.
EN362 - Personal protective equipment against falls from height. Connectors.
EN355 - Personal protective equipment against falls from height. Energy absorbers
USAGE LIMITATIONS
- The equipment must be assigned individually to a person. - It is recommended that the anchorage point where the fall protection system will be fixed is above the user. The anchorage point must have a minimum static strength of 12 kN and must comply with the requirements of standard EN 795.WARNING
- A fall protection harness is the only acceptable body restraint device that can be used in a fall protection system. - The fall protection system must be connected only to the connection points of the harness that carry an identification with the uppercase letter “A”. The identification “A/2” indicates that it is necessary to connect two connection points with the same identification at the same time. It is prohibited to connect the protection system to a single connection point identified with “A/2”. - In harnesses with an integrated belt, the connection to equipment for positioning work must be made only to the lateral anchorage rings of the belt. - The connection to the anchorage point and to other equipment must be made through carabiners in accordance with EN 362:2004. - For use with fall protection EN 353-1:2014+A1:2017, EN 353-2:2002 it is recommended to connect the equipment to the frontal anchorage point of the harness. For use with energy absorbers EN 355 or with fall protection EN 360, it is recommended to connect the equipment to the dorsal anchorage point of the harness. - Before each use of the personal protective equipment, it must be carefully checked to ensure that it is in usable condition and functions correctly. - During the pre-use check, it is necessary to carefully inspect all elements of the equipment to verify that they do not show signs of deterioration, excessive wear, corrosion, abrasions, UV radiation degradation, cuts, and misuse. Pay special attention to the straps, seams, anchorage rings, buckles, and adjustment elements.SERVICE LIFE
The estimated service life of the equipment is 11 years from the date of manufacture (1 year of storage and 10 years of use). The following factors may reduce the product's service life: intensive use, contact with chemicals, particularly aggressive environments, exposure to extreme temperatures, exposure to ultraviolet rays, abrasion, cuts, strong impacts, or improper use and maintenance. The mandatory annual inspection will validate the correct functioning of the equipment. It is mandatory for the equipment to be examined by the manufacturer or by an authorized person at least once a year. In the event of a fall arrest, the equipment must be removed from use.MAINTENANCE INSTRUCTIONS
- CLEANING: The personal protective equipment must be cleaned in a way that does not cause adverse effects on the materials used in the manufacture of the equipment. For textile and plastic materials (straps, ropes), clean with a cotton cloth or a brush. Do not use any abrasive materials. For deep cleaning, wash the equipment at a temperature between 30ºC and 60ºC using a neutral detergent. For metal parts, use a damp cloth. If the equipment gets wet, whether from use or cleaning, it should be allowed to dry naturally, away from direct heat.
- STORAGE: The personal protective equipment must be stored in loose packaging, in a dry, ventilated place, protected from sunlight, ultraviolet rays, dust, sharp-edged objects, extreme temperatures, and aggressive substances.
ABOUT IRUDEK
Irudek Group is an expanding group of companies based in Spain, with operations in Italy, Brazil, and India, and sells its products in over 50 countries. Irudek Group represents safety and guarantee, backed by years of experience and by clients who have placed their trust in its products.
SOBRE IRUDEK
Irudek Group es un grupo de empresas en expansión con central en España, implantaciones en Italia, Brasil e India y vende sus productos en más de 50 países. Irudek Group es seguridad y garantía, avalada por años de experiencia y por clientes que han depositado su confianza en sus productos.
Technical documentation
- Ficha Técnica Ficha Técnica Kit anticaídas con arnés Apeninos y absorbedor de cuerda semiestática IRUDEK Download
- Declaración de Conformidad Cumple con los requisitos del Reglamento/ Directiva de Equipos de Protección Individual (EPI) Download
- Manual de Usuario Absorbedores Leer atentamente las instrucciones de uso antes de utilizar el absorbedor de energía Download
- Manual de Usuario Conectores Leer atentamente las instrucciones de uso antes de utilizar el conector Download
- Manual de Usuario Arneses Leer atentamente las instrucciones de uso antes de utilizar el arnés Download
