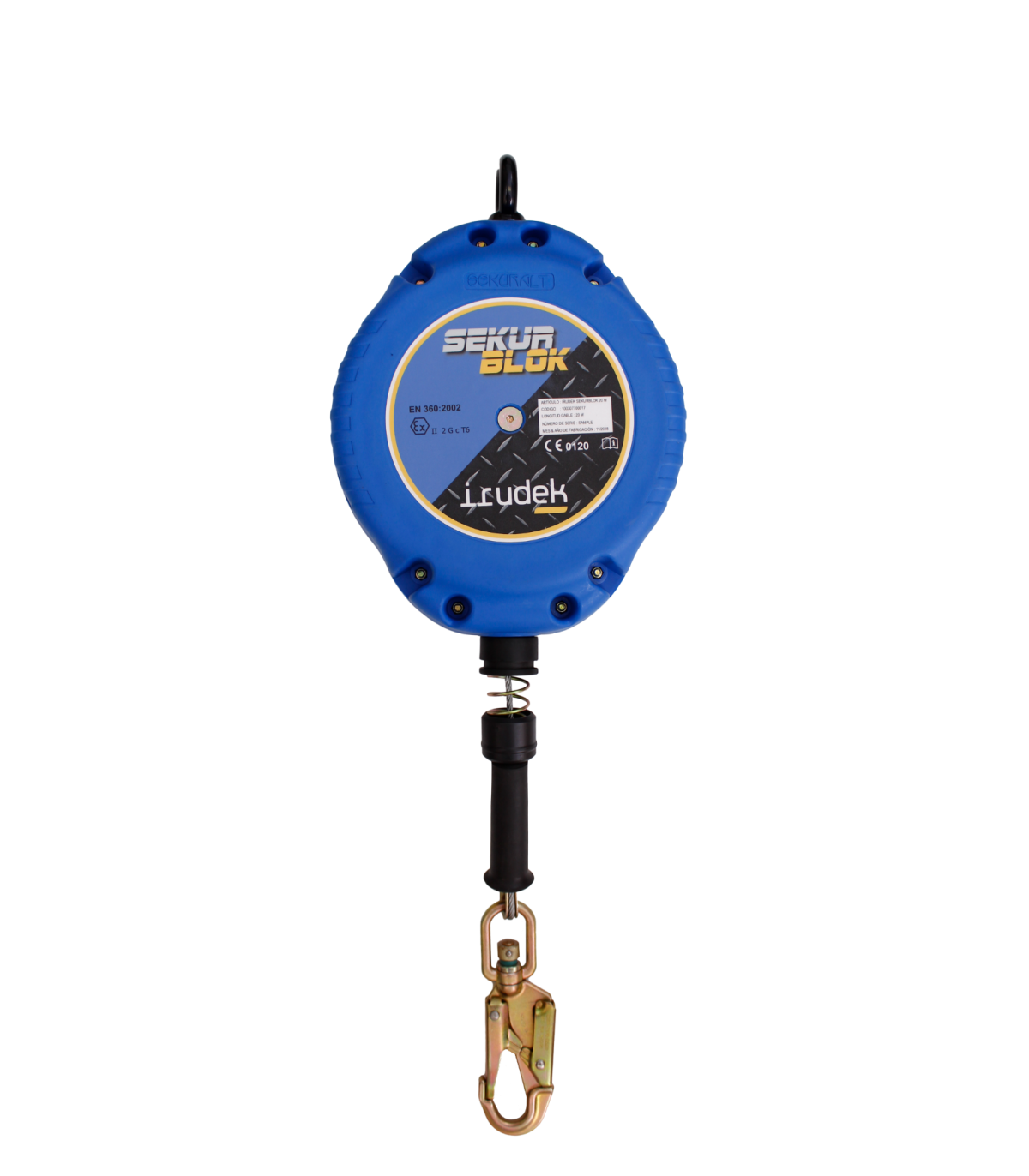

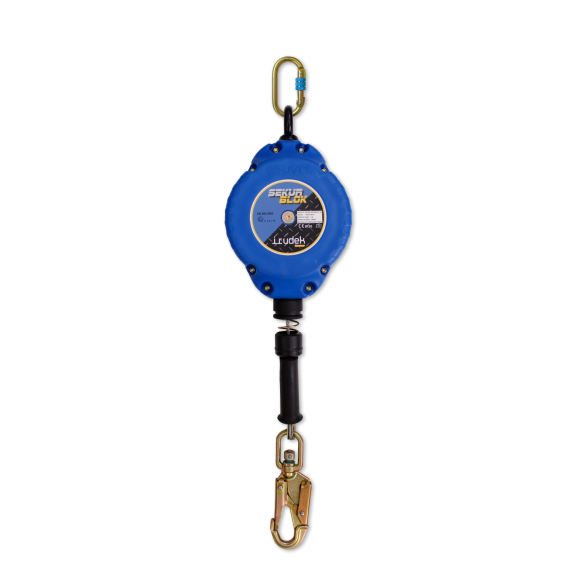

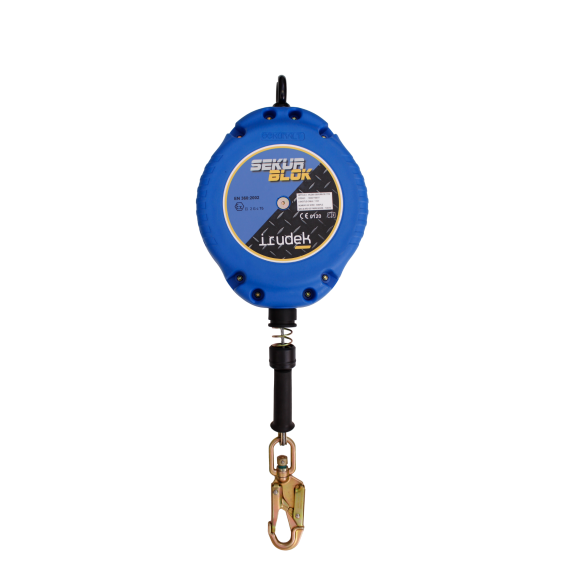

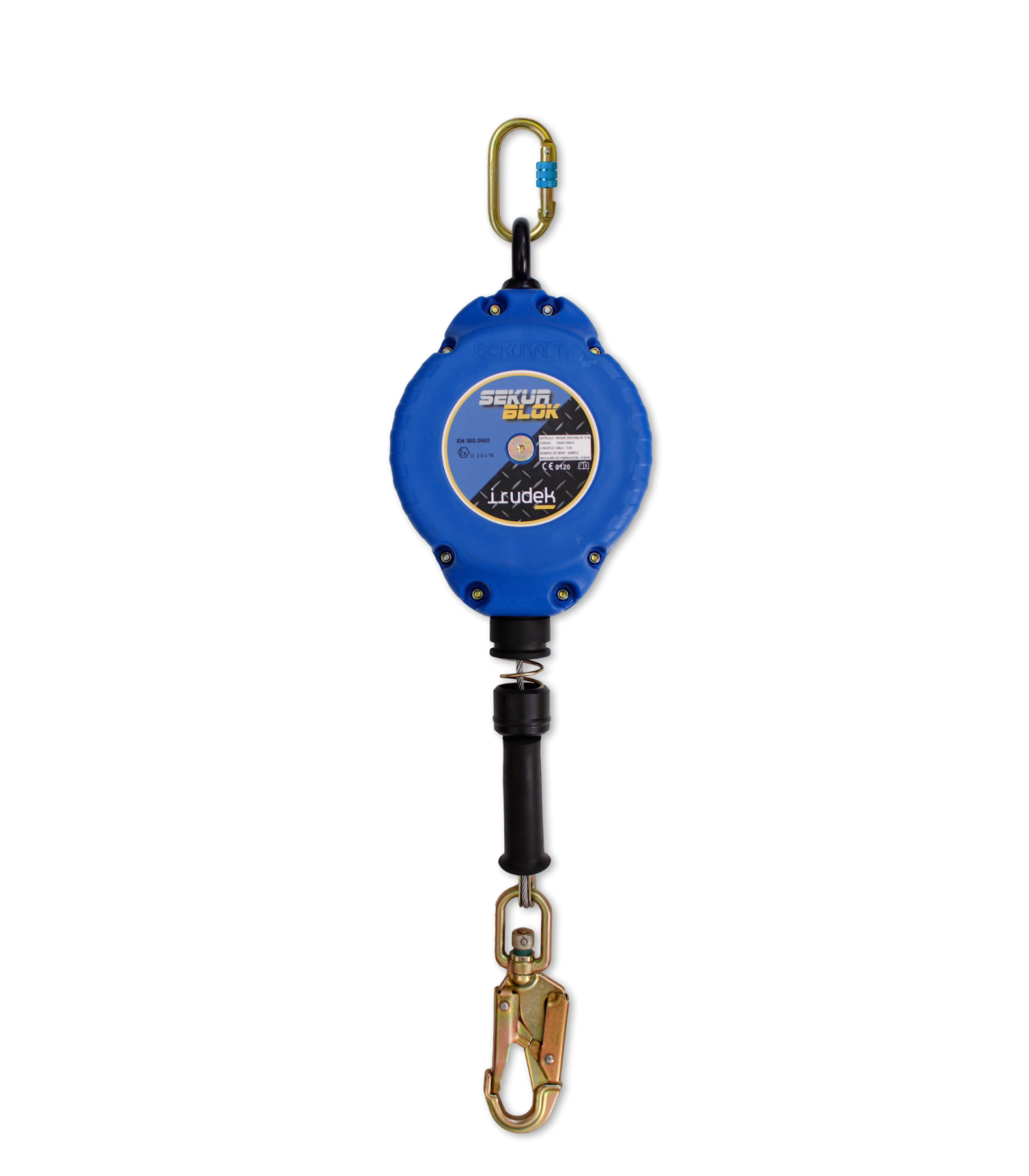

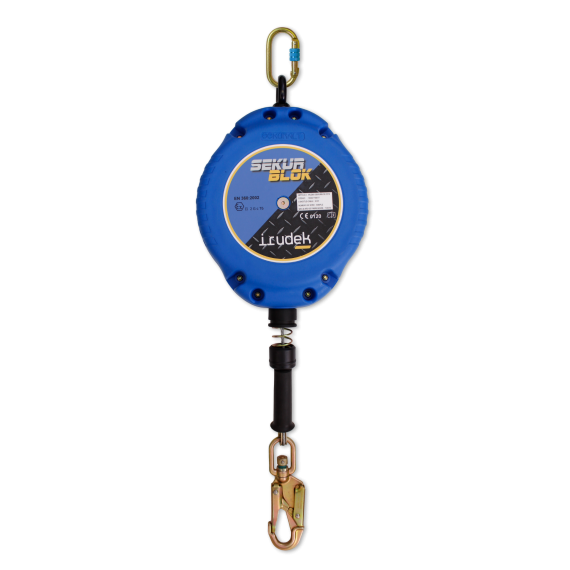

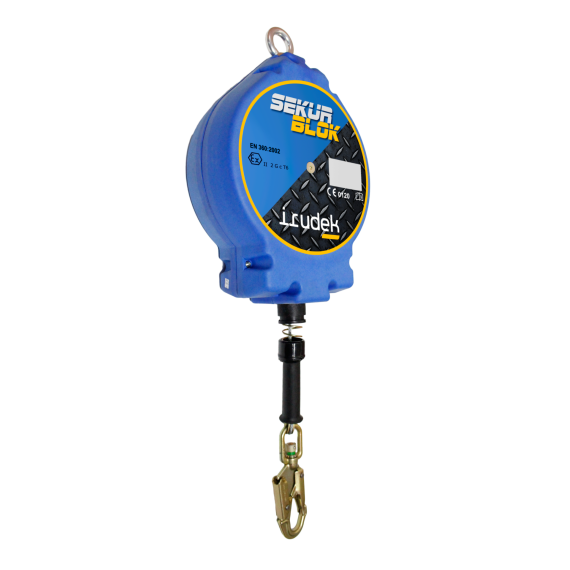

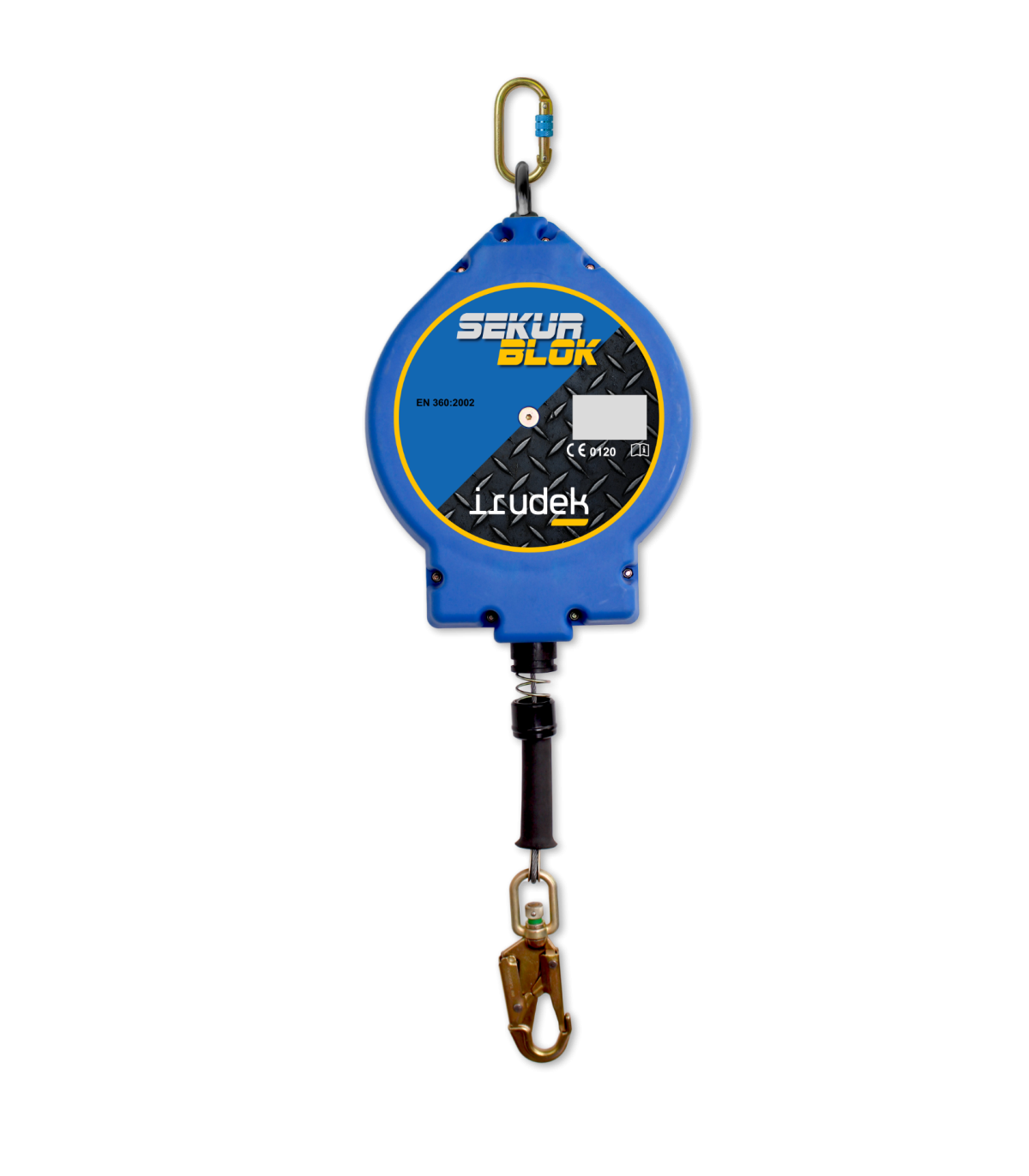

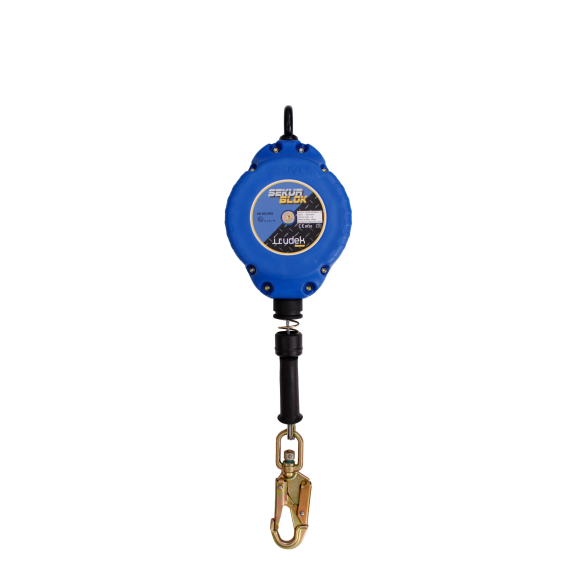

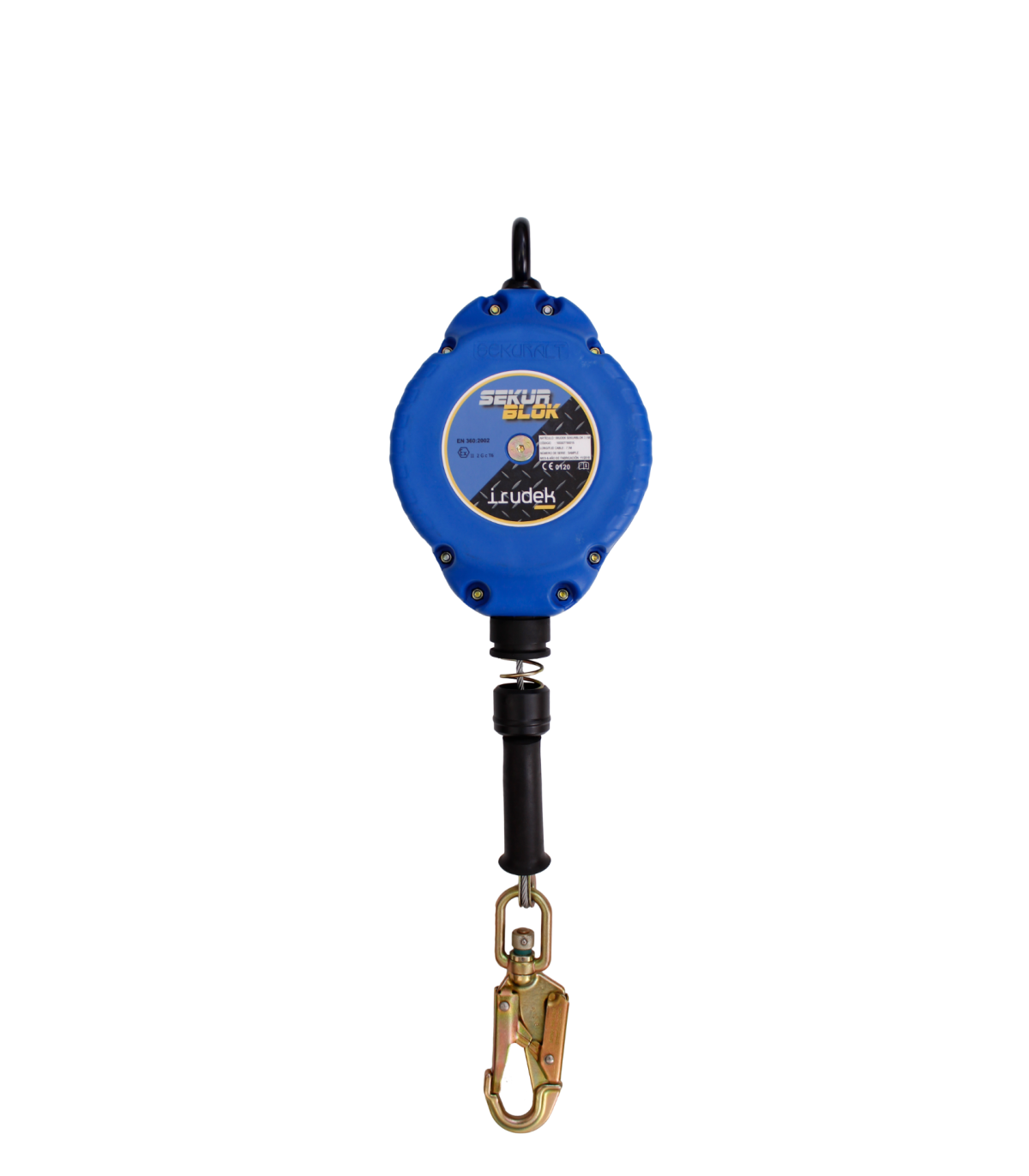

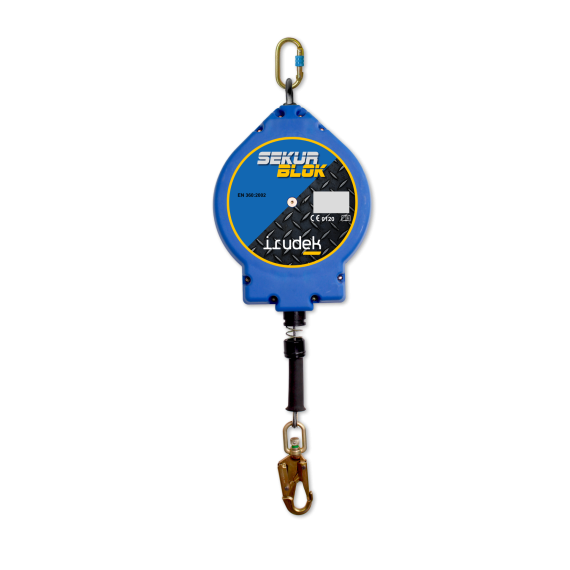

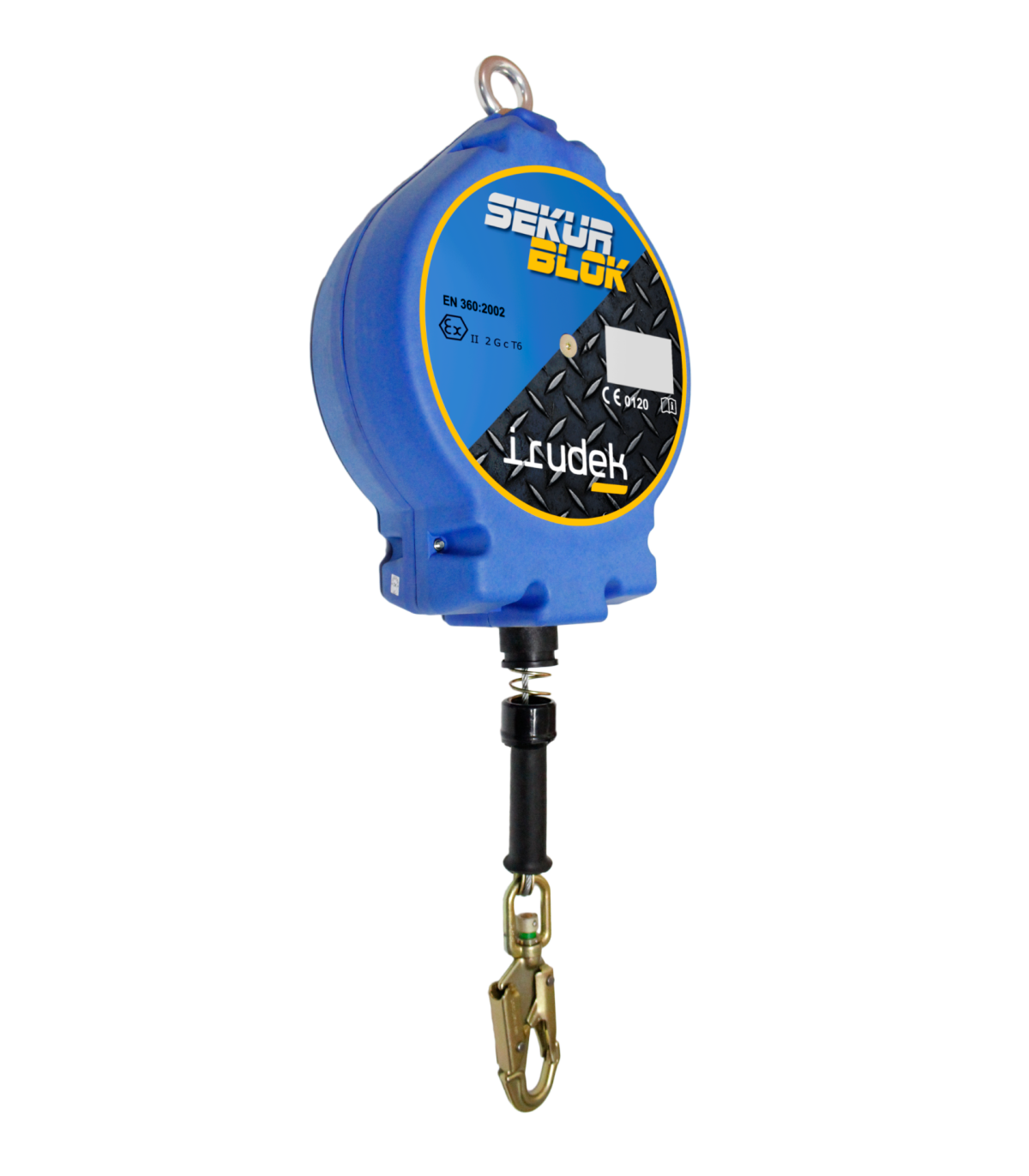

Retractable anti-fall device for work at height IRUDEK ATEX Sekurblok

Automatic replacement fall arresters Sekurblok with synthetic housing and galvanized steel cable of Ø4.5 mm. Includes 1 steel carabiner with screw closure at the top + 1 new automatic steel carabiner, swivel, with a fall indicator at the lower end to prevent the cable from getting tangled during use.

The fall protection device Sekurblok is certified in accordance with Directive 94/9/EC, regarding equipment and systems for protection used in potentially explosive atmospheres. AVAILABLE SIZES: 7.5M, 10M, 15M, 20M, 30M

CHARACTERISTICS

• Robust: High-strength synthetic character, offering long durability.
• Sure: for maximum loads of 140 kg reducing the impact force below 6 kN
• Rotating ring: to avoid entanglements and improve the functioning of the team.
• Fall indicator: In case of a fall, the green line turns red, indicating the user's fall.

TECHNICAL DATA

MATERIALS

Material: Galvanized steel (4.5 mm)

Carter: Synthetic

PACKAGING DATA

• Length: 75 M
• Weight: 3.57 kg
• Dimensions: 172x87x390
• Packaging width: 55 cm
• Packaging width: 19 cm
• Packaging height: 10 cm

SEKURBLOK CONNECTORS

Lower connector 976:

• Opening: 20 mm
• Material: Steel
• Resistance: 23 kN
• Closure: Automatic
• Rotating: Yes
• Witness of the fall: Yes

Upper connector 981:

• Aperture: 21 mm
• Material: Steel
• Resistance: 25 kN
• Closure: Thread
• Rotating: No
• Witness of the fall: No

APPLICATIONS

Suitable for work at heights and in potentially explosive environments.

LIFESPAN

The estimated lifespan of the equipment is unlimited. The following factors may reduce the product's lifespan: intensive use, contact with chemicals, especially aggressive environments, exposure to extreme temperatures, exposure to ultraviolet rays, abrasion, cuts, strong impacts, or improper use and maintenance. The mandatory annual inspection will validate the correct functioning of the equipment. It is mandatory for the equipment to be examined by the manufacturer or an authorized person at least once a year. In the event of a fall, the equipment must be taken out of use.

ATTENTION

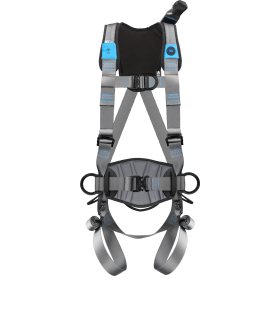

- A fall protection harness is the only acceptable body restraint device that can be used in a fall protection system. - The fall protection system must be connected only to the connection points of the harness that are marked with a capital "A". The identification "A/2" indicates that it is necessary to connect two connection points with the same identification at the same time. It is prohibited to connect the protection system to a single connection point that is marked with "A/2".

- The connection to the anchorage point and other equipment must be made using carabiners in accordance with EN 362. - For use with fall protection EN 353-1, EN 353-2, it is recommended to connect the equipment to the front anchorage point of the harness. For use with energy absorbers EN 355 or with fall protection EN 360, it is recommended to connect the equipment to the dorsal anchorage point of the harness. - Before each use of the personal protective equipment, it must be carefully inspected to ensure that it is in usable condition and functioning properly. - During the pre-use check, it is necessary to carefully examine all elements of the equipment to verify that there are no signs of deterioration, excessive wear, corrosion, abrasions, UV radiation degradation, cuts, or misuse.

STANDARDS/ REGULATIONS

The Antifall Sekurblok Irudek It is classified as PPE (Personal Protective Equipment) in accordance with Regulation EU 2016/425 on PPE and complies with the European Standard EN360:2002.

• ATEX94/9/CE
• EN 13463-1 is a European standard that specifies the general requirements for non-electrical equipment intended for use in potentially explosive atmospheres. It is part of a series of standards that aim to ensure the safety and reliability of equipment used in environments where there is a risk of explosion due to flammable gases, vapors, or dust. The standard outlines the necessary design, construction, and testing criteria to minimize the risk of ignition and ensure safe operation in such hazardous conditions.
• EN 13463-5
