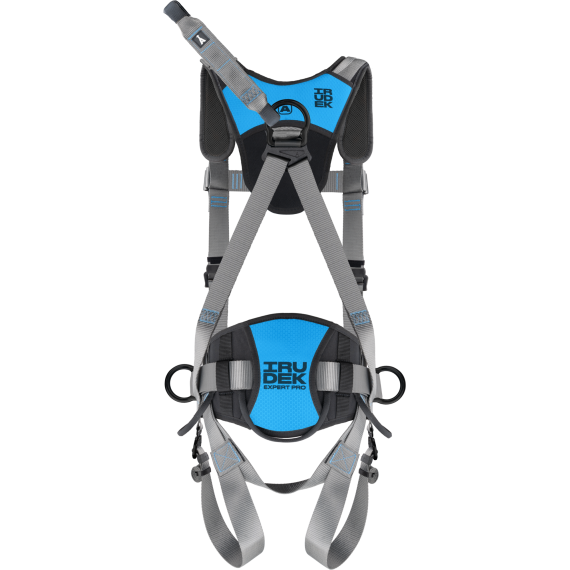

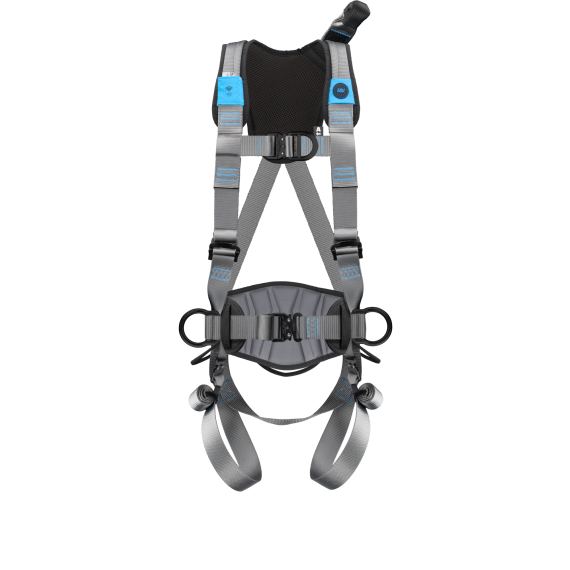

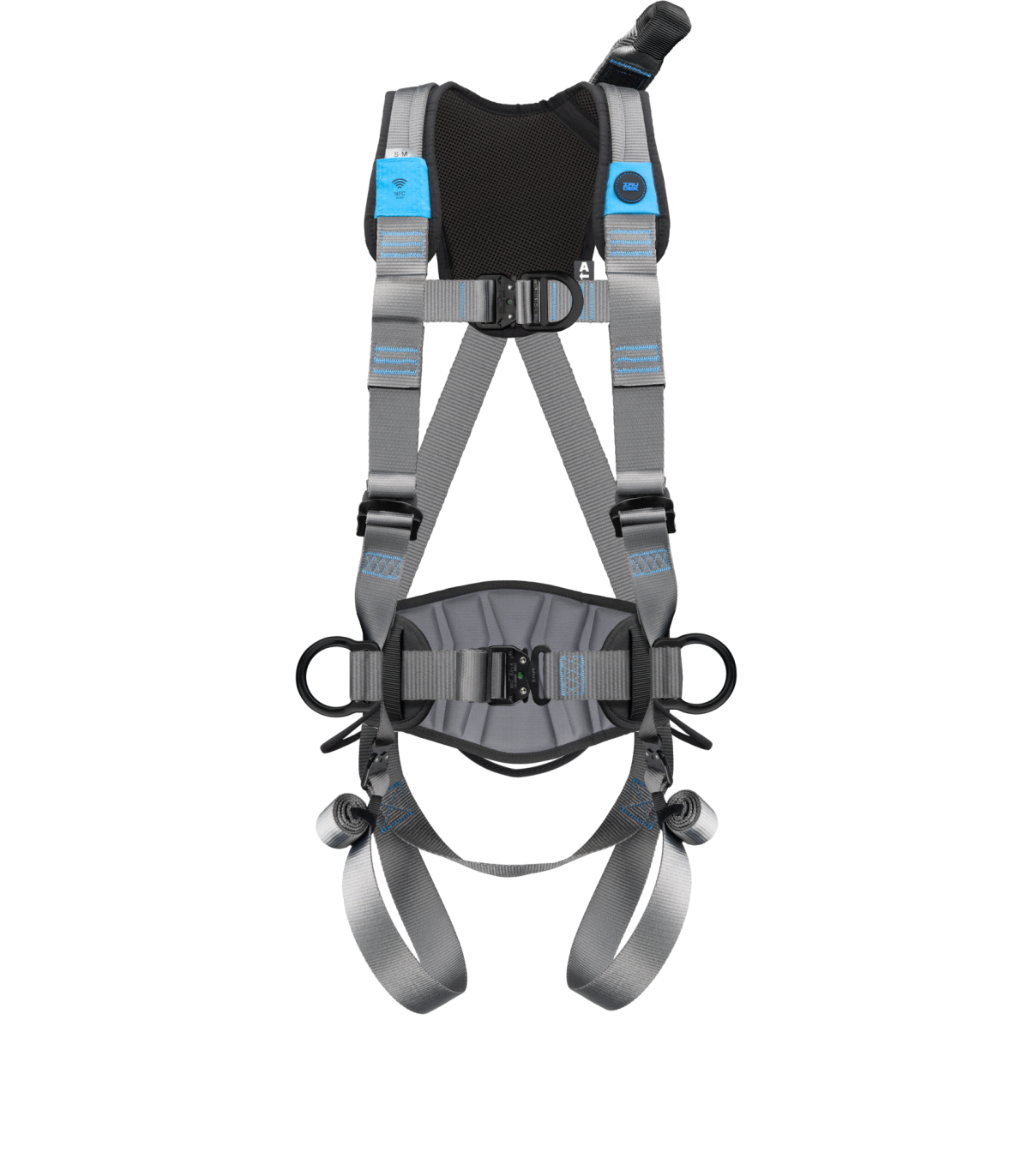

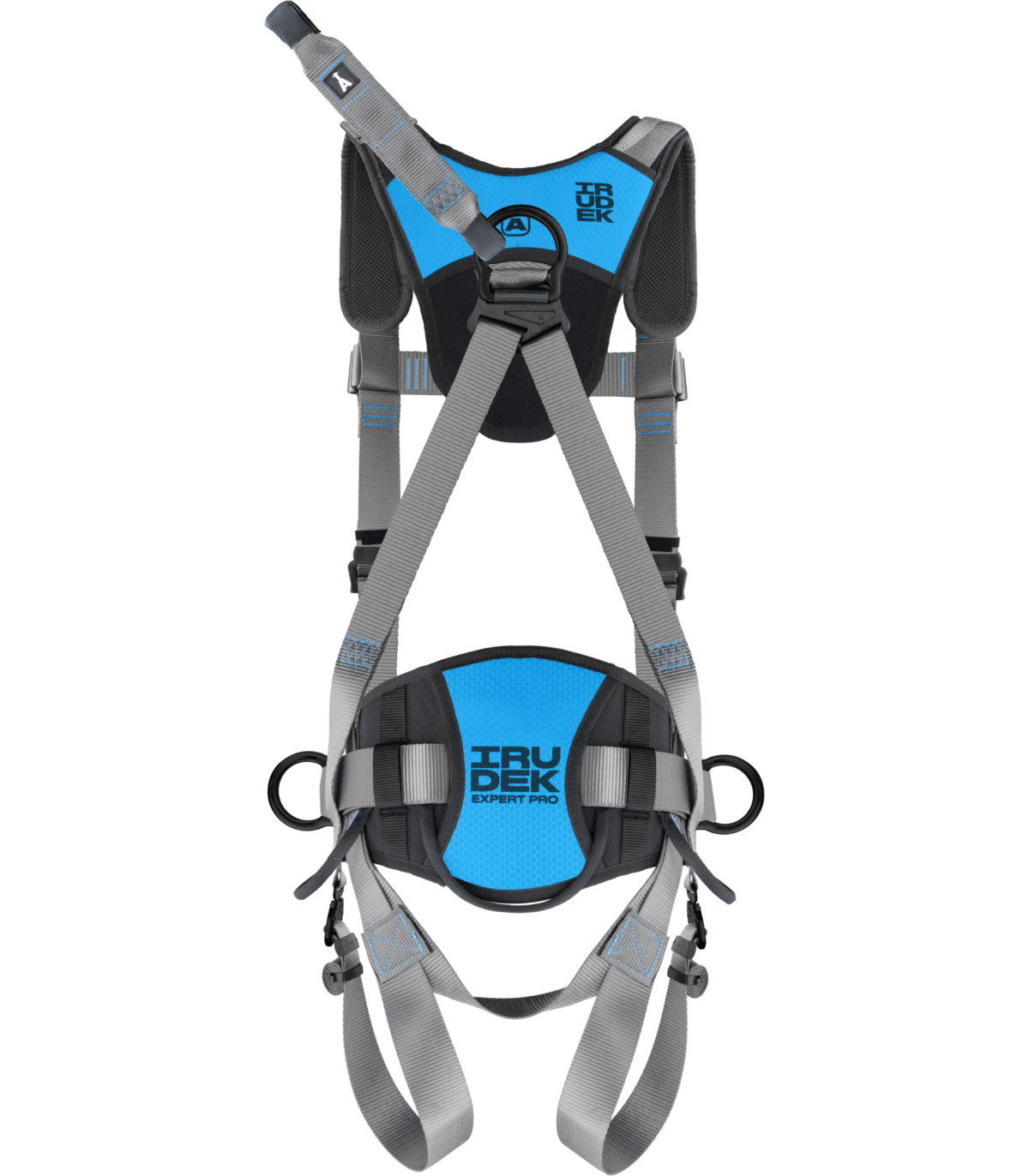

Fall protection harness with 180º rotating positioning belt IRUDEK Expert Pro 200

Harness with 1 dorsal anchorage point and extension strap + 1 sternum anchorage point + 180º rotating positioning belt with 2 lateral “D” rings and tool holder rings.

Adjustable at shoulders and thighs. Chest strap, elastic strap on shoulders, pelvic strap, and padded leg straps. Automatic quick-release buckles.

The rings are made of forged aluminum. Supplied in a nylon bag.

FEATURES

• Dorsal anchorage for fall protection
• Textile anchorage point
• K-Easy automatic buckles for easy adjustment
• Extension strap
• Elastic strap on shoulders
• Positioning belt
• Expert 3D rotating 180º with 2 "D" rings for positioning
• Adjustable at shoulders and thighs

TECHNICAL DATA

• Weight: 2 Kg
• Usage capacity: 140 Kg
• Belt: Expert 3D 180º
• Harness strength: 15 > kN
• Antislip System: Yes
• Automatic buckles: Yes
• Strap width: 44 mm
• Size: S-M, L-XXL

PACKAGING DATA

• Weight: 2 Kg
• Units/box: 5
• Packing length: 43 cm
• Packing width: 30 cm
• Packing height: 16 cm

MATERIALS

• Rings: Aluminum
• Buckles: Black galvanized steel
• Automatic buckles: Steel
• Strap: Polyester
• Thread: Polyamide

SIZE GUIDE

*Measurements expressed in centimeters

*Approximate measurements

STANDARDS/REGULATIONS

Meets the requirements of the Regulation/Directive on Personal Protective Equipment (PPE)

- EN 361

- EN 358

APPLICATIONS

For work at height

Securing and positioning

USAGE LIMITATIONS

The equipment must be assigned individually to a person.

- It is recommended that the anchorage point where the fall protection system will be fixed is above the user. The anchorage point must have a minimum static strength of 12 kN (metal) or 18 kN (textile) and must comply with the requirements of Standard EN 795:1996 / EN 795:2012.

- Personal protective equipment should not be used by individuals whose health status may affect the safety of the user under normal use conditions or in case of emergency.

- Personal protective equipment should only be used by a trained and competent person in its safe use.

WARNING

- A fall arrest harness is the only acceptable body restraint device that can be used in a fall protection system.

- The fall protection system must only be connected to the connection points of the harness that carry an identification with the uppercase letter “A”. The identification “A/2” indicates that it is necessary to connect two connection points with the same identification at the same time. It is prohibited to connect the protection system to a single connection point identified with “A/2”.

- In harnesses with an integrated belt, the connection to equipment for positioning work must only be made to the lateral anchorage rings of the belt.

- The connection to the anchorage point and other equipment must be made through carabiners in accordance with EN362:2004.

- For use with fall protection EN 353-1:2014+A1:2017, EN 353-2:2002 it is recommended to connect the equipment to the frontal anchorage point of the harness. For use with energy absorbers EN 355 or with fall protection EN 360 it is recommended to connect the equipment to the dorsal anchorage point of the harness. - Before each use of the personal protective equipment, it must be carefully inspected to ensure it is in usable condition and functions correctly.

- During the pre-use check, it is necessary to carefully inspect all elements of the equipment to verify that they do not show signs of deterioration, excessive wear, corrosion, abrasions, UV radiation degradation, cuts, and misuse. Pay special attention to straps, seams, anchorage rings, buckles, and adjustment elements.
