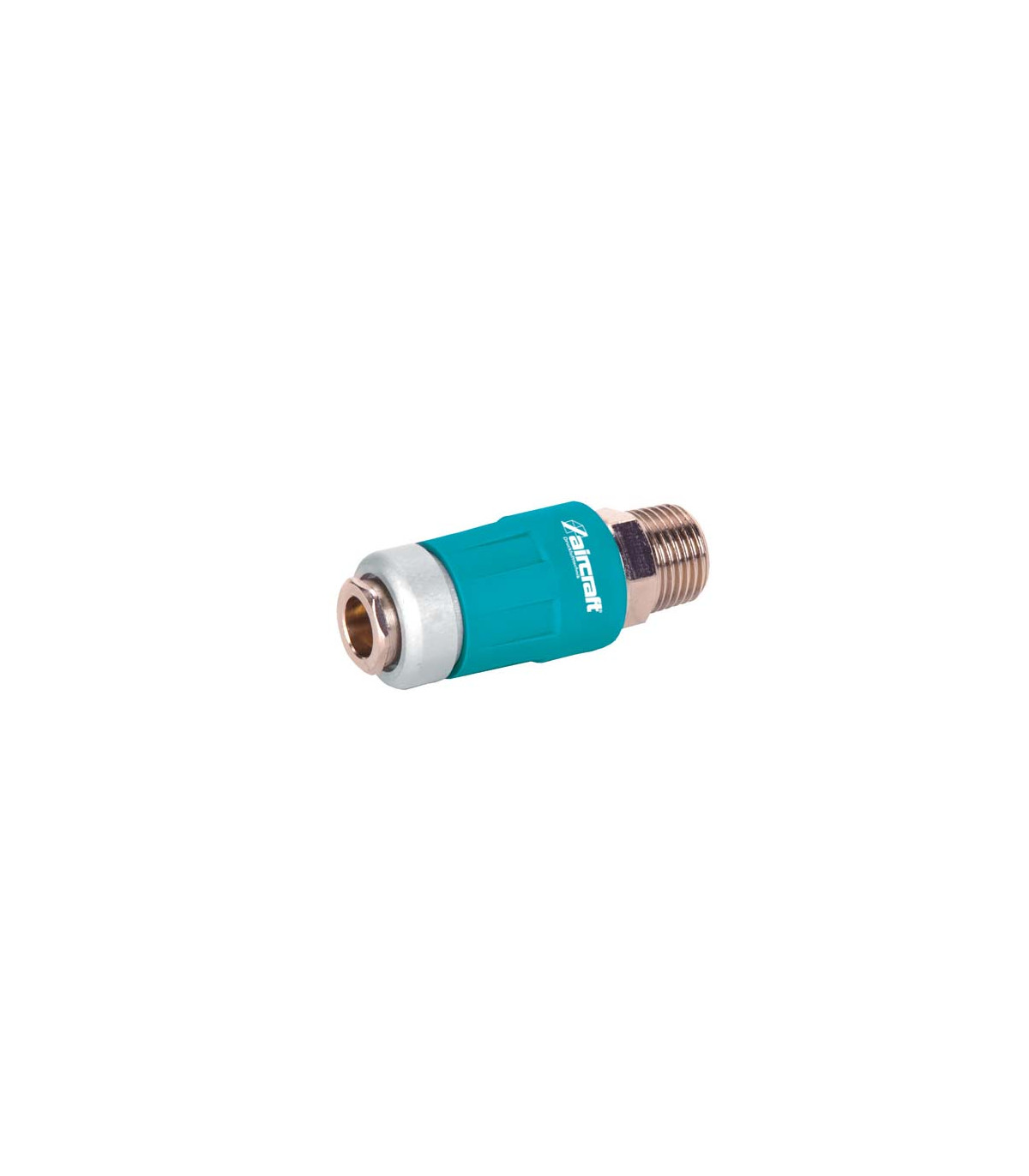

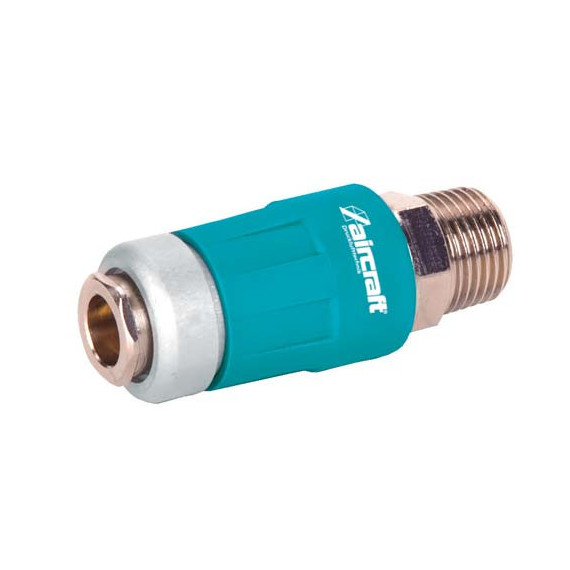

Quick DIN connector with one hand, various sizes AIRCRAFT

Quick DIN connector with one hand in various sizes AIRCRAFT. The AIRCRAFT quick DIN connector, available in various sizes, offers a comfortable and secure coupling solution, standing out as the first manufacturer to incorporate one-handed safety couplings as standard equipment in all compressed air supply points of the Airprofi series.

This innovative system not only prevents the detachment of parts and dirt particles but also eliminates hose jerking that is common in conventional quick-disconnect couplings. Complying with the requirements of ISO 4414 and being compatible with BIA, AIRCRAFT sets a high standard of safety in the workplace.

FEATURES

• Comfortable and secure couplings
• AIRCRAFT is the first manufacturer to use one-handed safety couplings as standard equipment in all compressed air supply points of the Airprofi series.

Safety advantages at work:

• No parts or dirt particles detach.
• No hose jerking as in a conventional quick-disconnect coupling
• The system complies with the requirements of ISO 4414 and is compatible with BIA. A higher safety standard in the workplace!

Very high flow and high resistance:

• The plug nozzle is not exposed to mechanical stress, brass nozzles also last longer

Comfort:

• COMFORT safety couplings: incomparably easy to use
• Pressure-free coupling Nozzle guide possible with two fingers

Universal coupling:

• Equally applicable with connection nozzle systems from Germany, Switzerland, Italy, and USA

TECHNICAL SPECIFICATIONS

Connection External thread

Performance at 6 bar 2500 l/min

Dimensions and weights

Diameter (product) approx. 28 millimeters

Approximate weight. 125 grams

Technical data

Maximum pressure 20 bars

Temperature -15 – 80 °C

Plug-in nozzle system German, Swiss, Italian, American.

FOR WHAT TYPE OF WORK IS IT SUITABLE

Pneumatic and compressed air systems

Air tools

VIDEOS

CERTIFICATION

- The ISO 4414 standard establishes guidelines for safety in the use of pneumatic systems in machinery and equipment. Its main objective is to ensure the safety of people and the protection of equipment when working with pneumatic components. This standard addresses aspects such as design, installation, maintenance, and use of pneumatic systems, and also includes recommendations for training personnel operating these systems.

Quality Management System of the Stürmer Group certified according to ISO 9001:2015

ISO 9001 is a globally recognized quality management standard. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management
