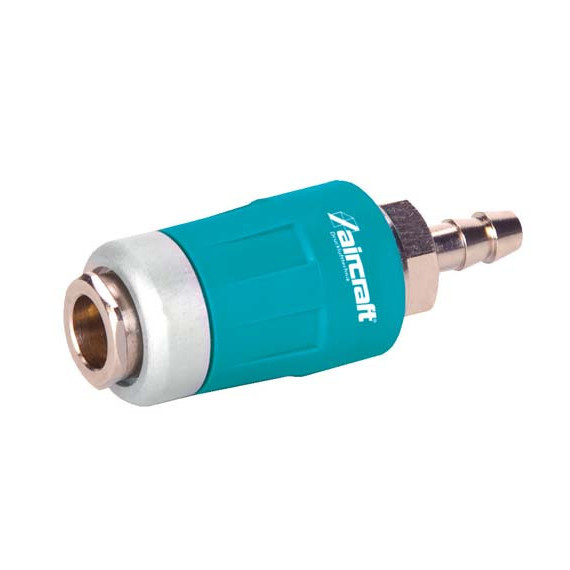

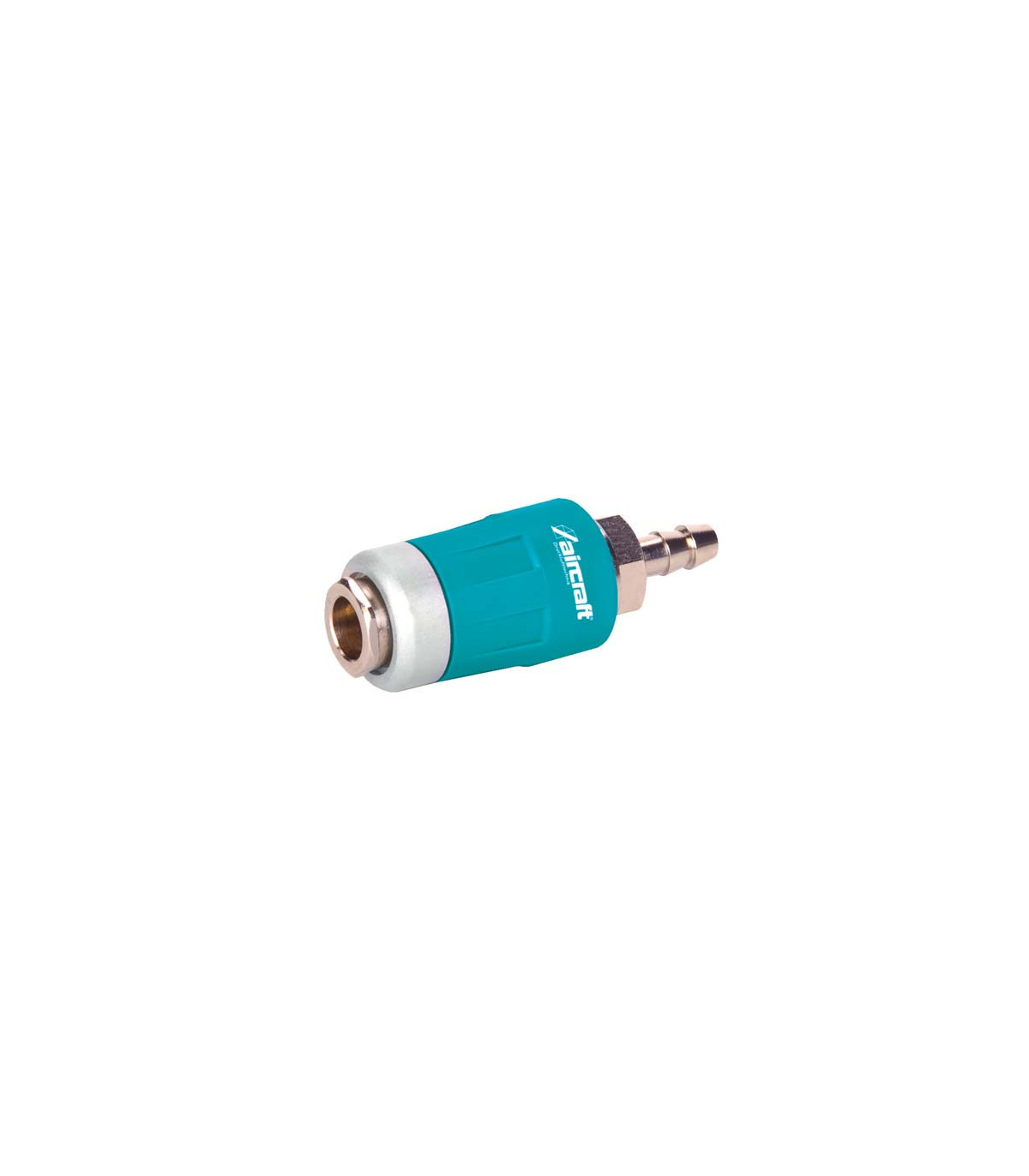

Quick connector with one hand 8 mm with AIRCRAFT hose nozzle

Quick connector with one hand 8 mm with AIRCRAFT hose nozzle. The 8 mm quick connector with AIRCRAFT hose nozzle is an innovative solution that allows for comfortable and secure coupling with one hand. AIRCRAFT stands out as the first manufacturer to incorporate one-handed safety couplings as standard equipment in all compressed air supply points of the Airprofi series.

This system offers significant advantages in workplace safety, as it prevents the detachment of parts and dirt particles, in addition to eliminating the typical hose jerks found in conventional quick-disconnect couplings. Complying with the requirements of ISO 4414 and being compatible with BIA, it establishes a high standard of safety in the workplace.

FEATURES

• Comfortable and secure couplings
• AIRCRAFT is the first manufacturer to use one-handed safety couplings as standard equipment in all compressed air supply points of the Airprofi series.

Advantages in workplace safety:

• No parts or dirt particles detach.
• No hose jerks as in a conventional quick-disconnect coupling
• The system complies with the requirements of ISO 4414 and is compatible with BIA. A higher safety standard in the workplace!

High resistance

• The nozzle of the plug is not exposed to mechanical stress, brass nozzles also last longer

Comfort

• COMFORT safety couplings: incomparably easy to use
• Pressure-free coupling Nozzle guide with two fingers possible

Universal coupling

• Equally applicable with connection nozzle systems from Germany, Switzerland, Italy, and EE.UU.

TECHNICAL SPECIFICATIONS

Connection Hose nozzle

Connection dimensions 8 millimeters

Performance at 6 bar 2500 l/min

VPE 1

Dimensions and weights

Approximate length 81 millimeters

Approximate diameter (product) 28 millimeters

Approximate weight. 125 grams

Technical data

Maximum pressure 20 bars

Temperature -15 – 80 °C

Plug-in nozzle system German, Swiss, Italian, American.

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

FOR WHAT TYPE OF WORK IS IT SUITABLE

The 8 mm quick connector with AIRCRAFT hose nozzle is suitable for:

• Hoses
• Pneumatic tools
• Nail guns
• Compressors
• Air tools

VIDEOS

CERTIFICATION

- The ISO 4414 standard establishes guidelines for safety in the use of pneumatic systems in machinery and equipment. Its main objective is to ensure the safety of people and the protection of equipment when working with pneumatic components. This standard addresses aspects such as design, installation, maintenance, and use of pneumatic systems, and also includes recommendations on the training of personnel operating these systems.

Stürmer Group's Quality Management System certified according to ISO 9001:2015

ISO 9001 is a globally recognized quality management standard. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management
