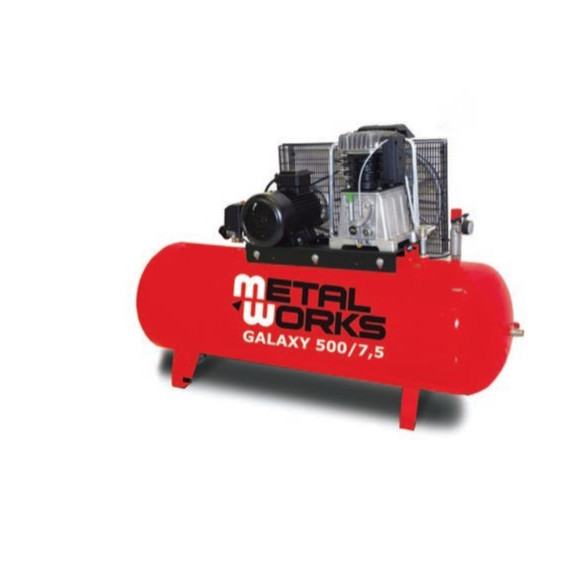

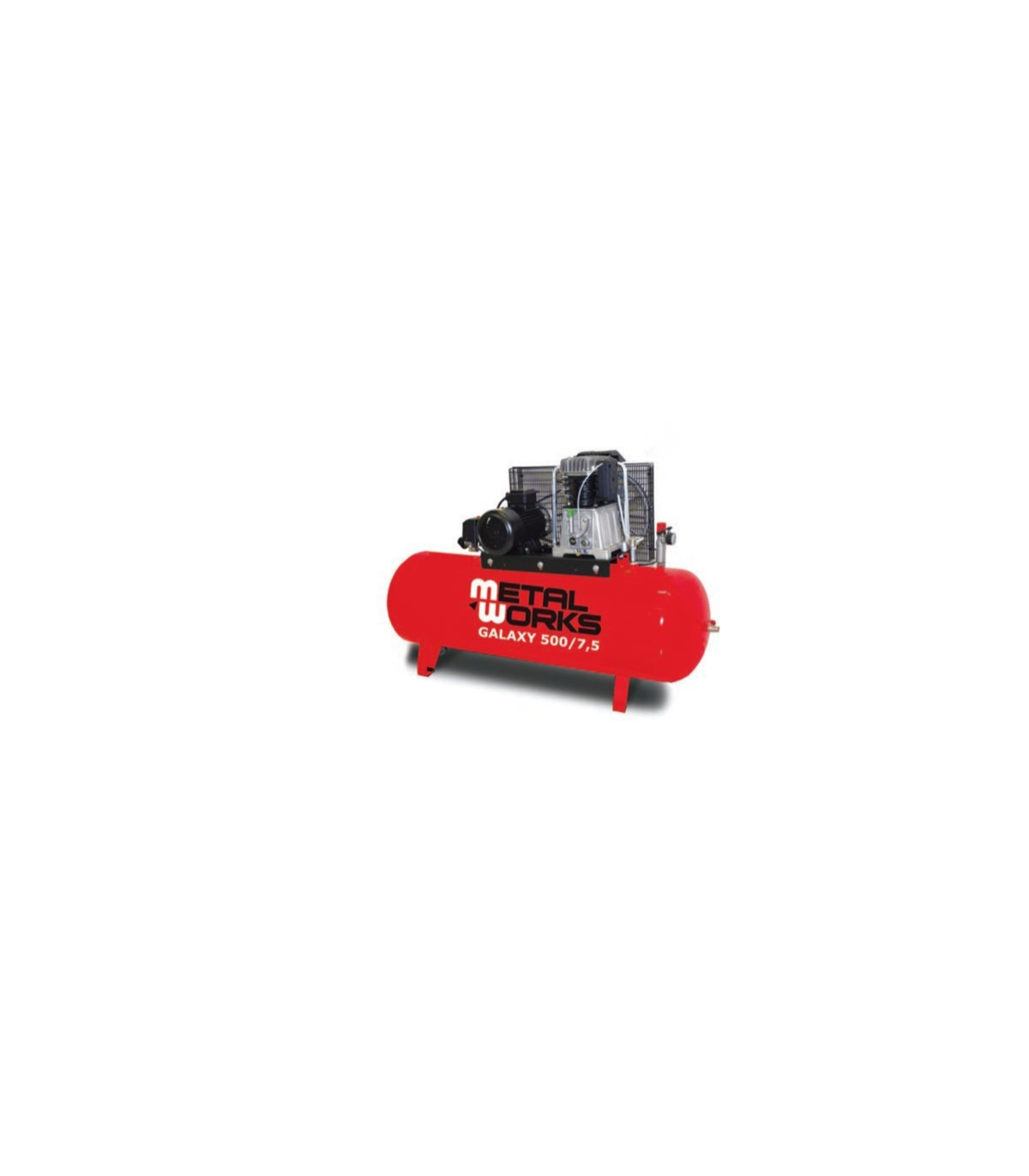

Industrial Piston Compressor 500L 7.5HP Galaxy 500/7.5 | METALWORKS

The Industrial Piston Compressor 500L 7.5HP Galaxy 500/7.5 | METALWORKS offers power, reliability, and a large air reserve for the professional workshop. The Galaxy 500/7.5 compressor, with its 7.5 HP motor and 500-liter tank, is designed for intensive and continuous use, powering multiple pneumatic tools simultaneously.

FEATURES

This industrial compressor is built to last and perform. Its cast iron two-stage head and low revolutions (1,200 r.p.m.) ensure more efficient compression, lower operating temperature, and a significantly longer lifespan. The large 500-liter tank ensures a stable air supply, reducing the motor's start-up cycles. It is equipped with a high-quality pressure switch, safety valve, pressure gauge, and drain valve for easy maintenance.

SPECIFICATIONS

• Compression system HOS
  Suction air 830 ltr./min.
  Effective air output 833 ltr./min.
  Maximum pressure 10 bars
  Tank capacity 500 ltr.
  Cylinders/stages 2/2
  Number of revolutions 1,280 r.p.m.
  Motor power 7.5 HP / 400 V
  Dimensions (l x w x h) 1,970 x 590 x 1,300 mm
  Net weight 255 kg

APPLICATIONS

• Ideal for automotive workshops with multiple workstations.

• Feeding paint booths and bodywork tools.

• Use in metal and wood carpentries for pneumatic machinery.

• Air supply for sandblasters and other high-consumption tools.
