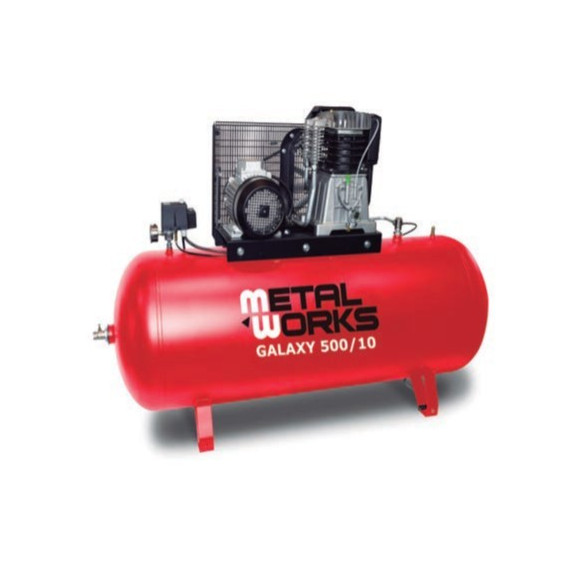

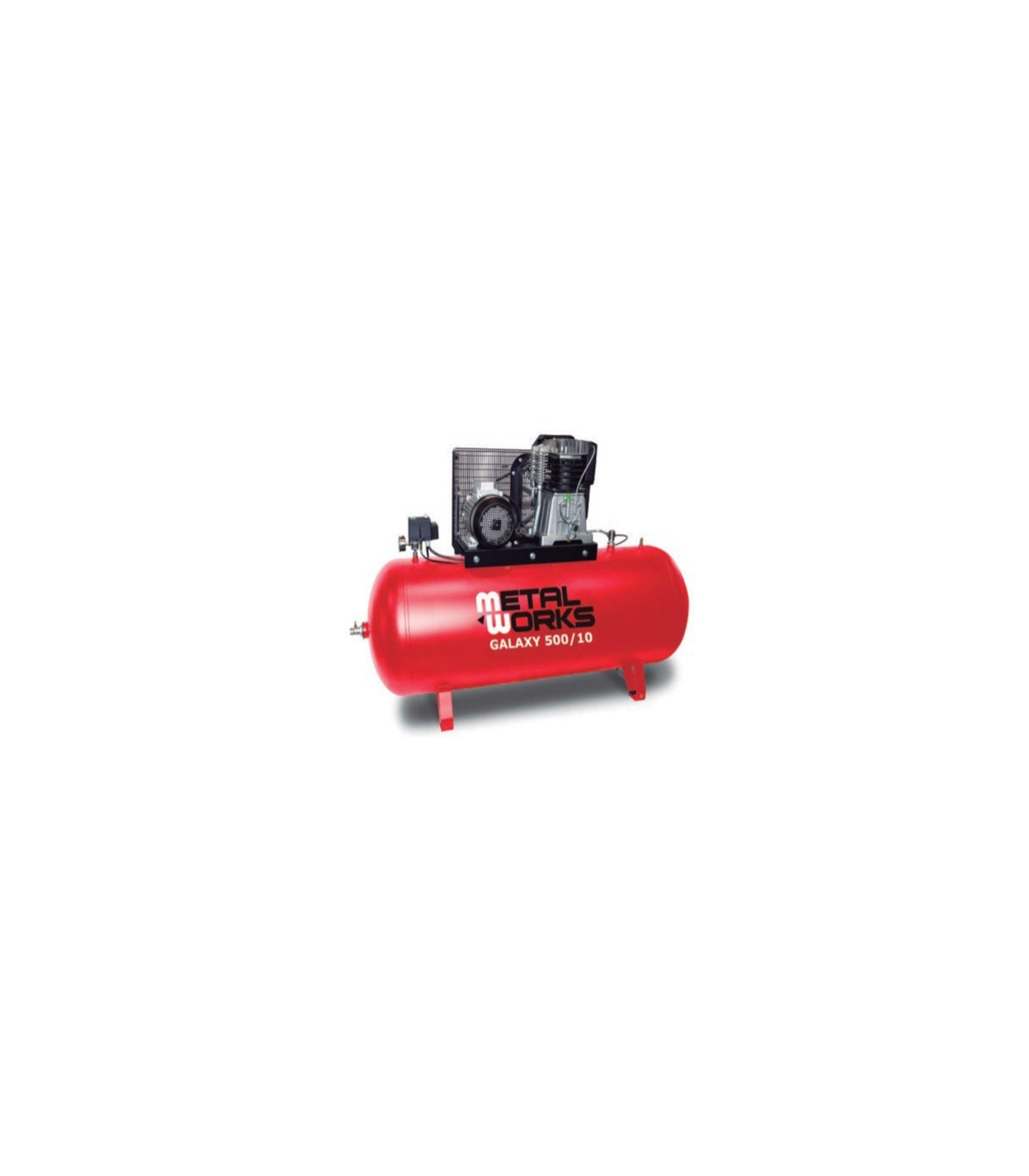

Industrial Piston Compressor 500L 10HP Galaxy 500/10 METALWORKS

The Industrial Piston Compressor 500L 10HP Galaxy 500/10 METALWORKS offers superior performance for the most demanding industrial applications. The Galaxy 500/10 piston compressor, with its 500-liter tank and 10 HP motor, ensures a continuous and reliable air supply for professional workshops and production lines.

FEATURES

The Galaxy 500/10 is a high-end industrial compressor. Its two-stage cast iron head and low revolutions ensure greater efficiency, lower operating temperature, and an extended lifespan. The large 500-liter tank provides a massive air reserve to handle peak demand. It includes a pressure switch, safety valve, pressure gauge, and drain valve.

SPECIFICATIONS

• Air intake 1,070 ltr./min.
  Effective air output 1,070 ltr./min.
  Maximum pressure 10 bars
  Tank capacity 500 ltr.
  Cylinders/stages 2/2
  Number of revolutions 1,270 r.p.m.
  Motor power 10 HP / 400 V
  Dimensions (l x w x h) 1,970 x 590 x 1,300 mm
  Net weight 260 kg

APPLICATIONS

• Feeding compressed air networks in automotive and bodywork workshops.

• Use with high-consumption pneumatic tools such as 1" impact wrenches, orbital sanders, and sandblasters.

• Manufacturing industry, metal carpentry, and production workshops.

• Agricultural applications and installations that require a large constant air flow.
