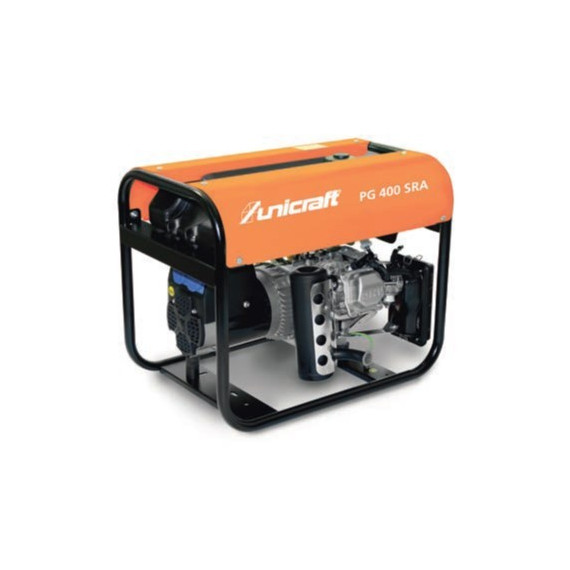

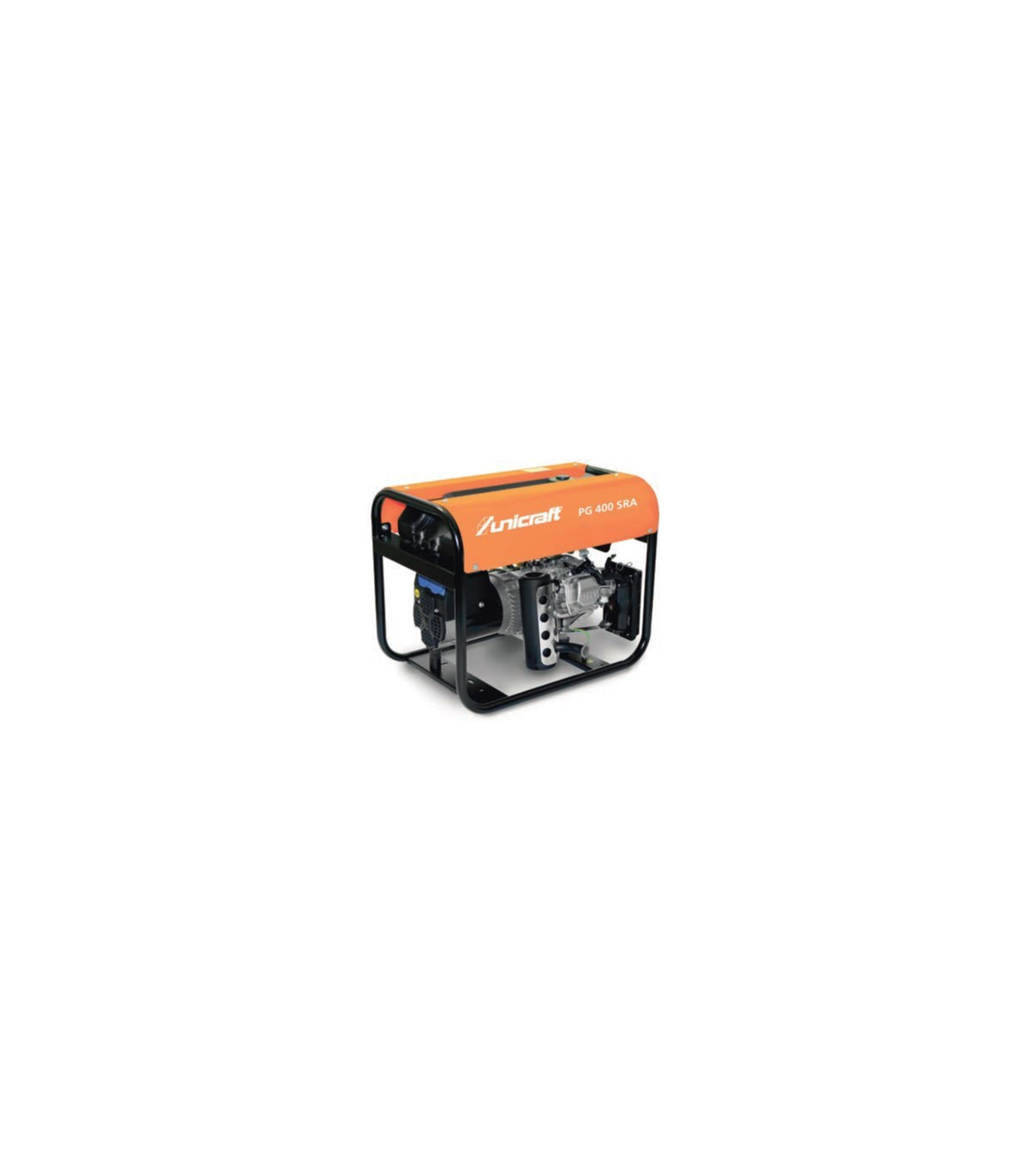

Synchronous current generator PG 400 SRA for UNICRAFT machines and tools.

Synchronous current generator PG 400 SRA for UNICRAFT electric machines and tools. Robust and powerful synchronous generator, easy to handle and quick to use. The generator provides overload protection through a thermal protection switch.

Shutdown due to lack of oil. Short-term power of up to 3 times the nominal power.

FEATURES

PG 320 SR and PG 400 SR

Professional current generator in standard version

Maximum reliability and efficiency

Generators regulated by capacitor

Ergonomically favorable connections at the end

Overload protection through a thermal protection switch

Shutdown due to lack of oil

Short-term power of up to 3 times the nominal power

PG 400 SRA and PG 500 SRA

Long operating times thanks to the large 11l tank

Electronic voltage control AVR

Protection against splashes and impacts through covering plates

Ergonomically favorable connections at the end

Overload protection through a thermal protection switch

Shutdown due to lack of oil

Short-term power of up to 3 times the nominal power

Quality Made in Europe

TECHNICAL DATA

Dimensions and weights

Approximate length: 623 mm

Approximate width/depth: 409 mm

Approximate height: 500 mm

Approximate weight: 43 kg

Drive

Drive: Honda GX200

Performance factor: 0.9 cos φ

Starter: Manual start

Fuel: Gasoline

Tank capacity: 11 l

Sound pressure level Lp: 69 dB(A)

Sound power level Lw: 69 dB(A)

Power generator

Nominal voltage: 230 V

Apparent power in LTP: 3.4 kVA

Power in LTP: 3.1 kW

Apparent power in COP: 2.9 kVA

Power of the COP: 2.6 kW

Generator protection class: IP 23

Plug version: 2 x 230 V, Schuko

Plug protection class: IP 54

VPE: 1

WHAT TYPE OF WORK IS IT SUITABLE FOR

Construction: Ideal for providing power to heavy electric tools, such as saws, drills, and compressors. Its high starting current makes it suitable for this type of machinery.

Outdoor events: Used to power sound equipment, lighting, and other temporary installations at concerts, fairs, and festivals.

Agriculture: Can be used to power water pumps, agricultural machinery, and other devices during outdoor activities.

Emergencies: In power outage situations, this generator can provide a reliable power supply for homes and businesses, ensuring continuity of operations.

Maintenance and repair: Used by technicians and contractors who require power at sites where there is no access to the electrical grid.
