Synchronous power generator PG-E 40 SRA For the demanding private user and the semi-professional UNICRAFT

Synchronous power generator PG-E 40 SRA For the demanding private user and the semi-professional UNICRAFT. This generator has overload protection via a thermal protection switch. It features an oil shortage shutdown with a warning light. And the 3-in-1 display for voltage provides frequency and operating hours.

FEATURES

All generators with copper winding

Short-term power of up to 3 times the nominal power

Automatic voltage regulation AVR provides a constant output voltage and allows the operation of sensitive devices

Overload protection via a thermal protection switch

Oil shortage shutdown with a warning light

3-in-1 display for voltage, frequency, and operating hours

Long operation thanks to the large tank

Tank with level indicator

Ergonomically favorable connections at the end

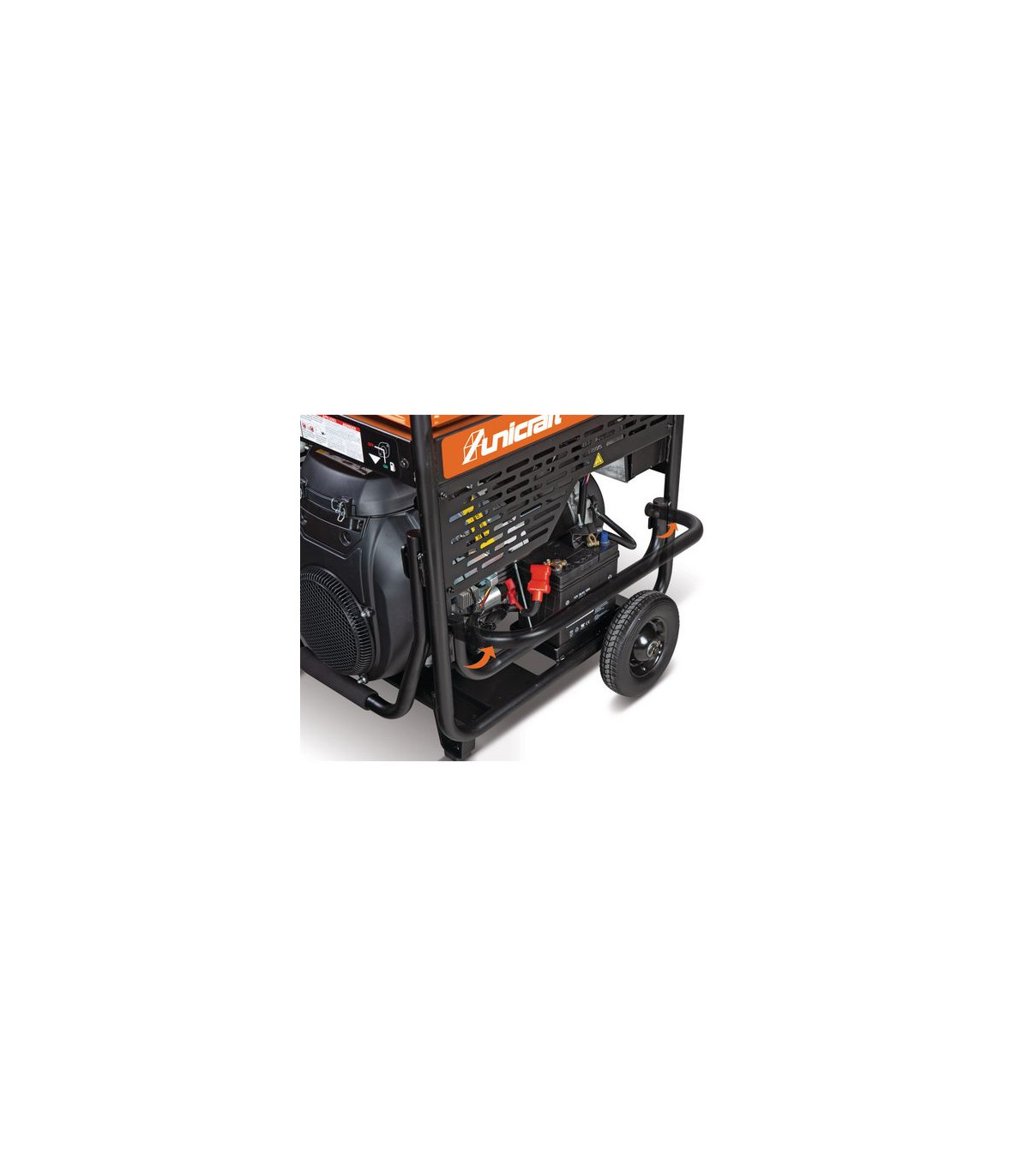

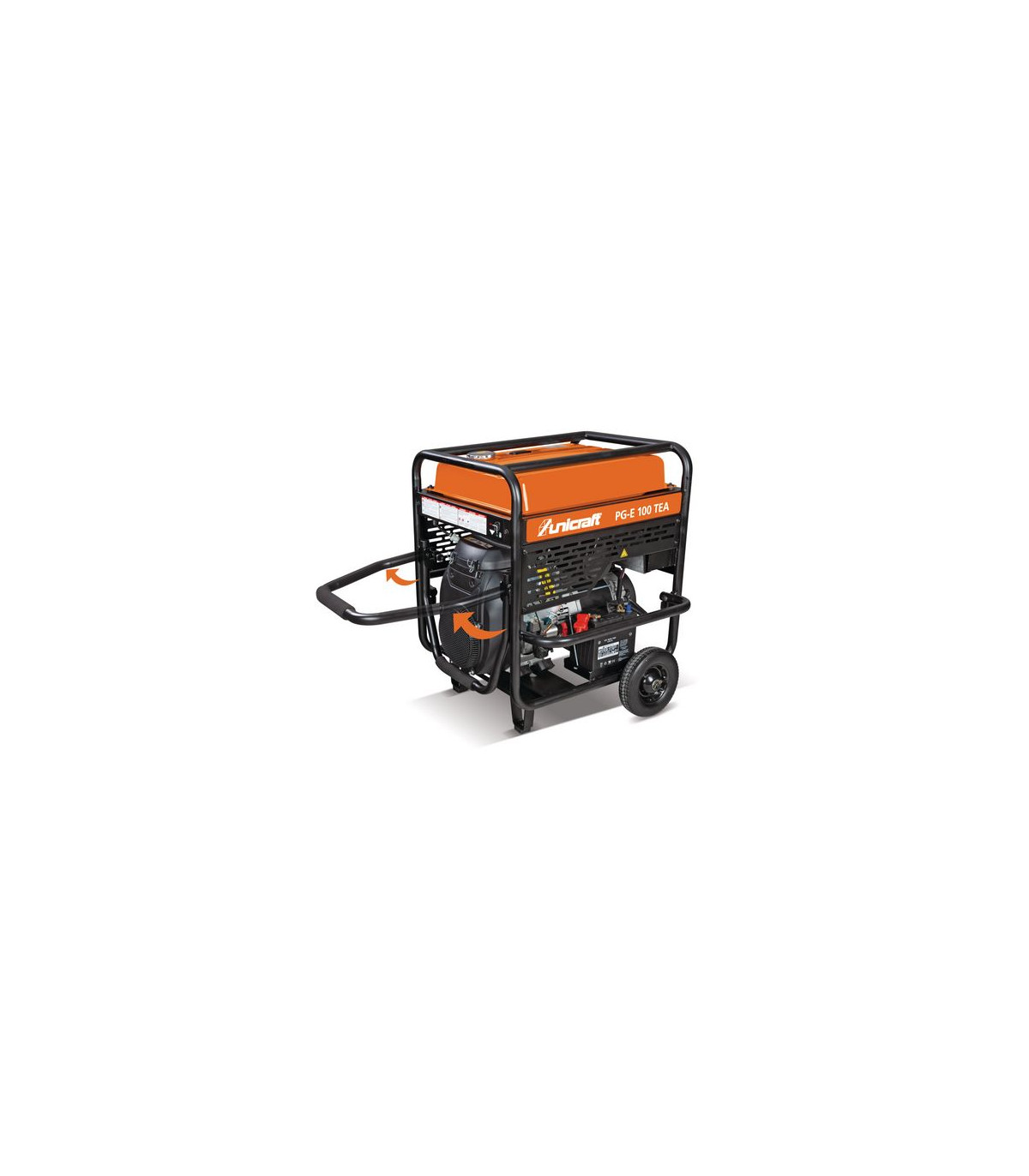

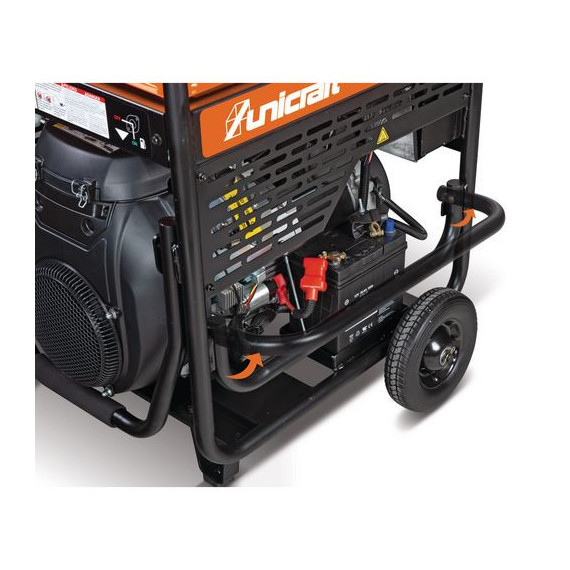

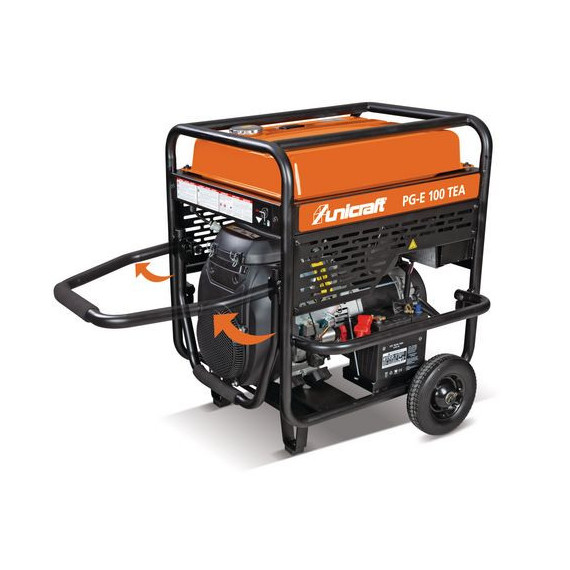

Easy to transport thanks to the wheel set and stable folding handles

TECHNICAL DATA

Dimensions and weights

Approximate length: 730 mm

Approximate width/depth: 600 mm

Approximate height: 910 mm

Approximate weight: 170 kg

Drive

Drive: GB680

Performance factor: 0.9 / 0.8 Cos ɸ 230V/400V

Starter: E-Start

Fuel: Gasoline

Tank capacity: 45 l

Duration at 50% load: 10 h

Duration at 100% load: 8 h

Sound pressure level Lp: 79 dB(A)

Sound power level Lw: 99 dB(A)

Maximum tilt load: 25 %

Power generator

Nominal voltage: 230 / 400 V

Maximum voltage deviation (+/-): 5 %

Apparent power in LTP: 4.05 / 13.2 kVA

Power in LTP: 3.68 / 11 kW

Apparent power in COP: 3.79 / 12 kVA

Power of the COP: 3.45 / 10 kW

Generator protection class: IP 23

Plug version: 2 x 230 V, Schuko / 1 x 400 V, CEE 16 A

Plug protection class: IP 44

VPE: 1

FOR WHAT TYPE OF WORK IS IT SUITABLE

Construction: Ideal for providing power to heavy electric tools, such as saws, drills, and compressors. Its high starting current makes it suitable for this type of machinery.

Outdoor events: Used to power sound equipment, lighting, and other temporary installations at concerts, fairs, and festivals.

Agriculture: Can be used to power water pumps, agricultural machinery, and other devices during outdoor activities.

Emergencies: In power outage situations, this generator can provide a reliable power supply for homes and businesses, ensuring continuity of operations.

Maintenance and repair: Used by technicians and contractors who require power at sites where there is no access to the electrical grid.
