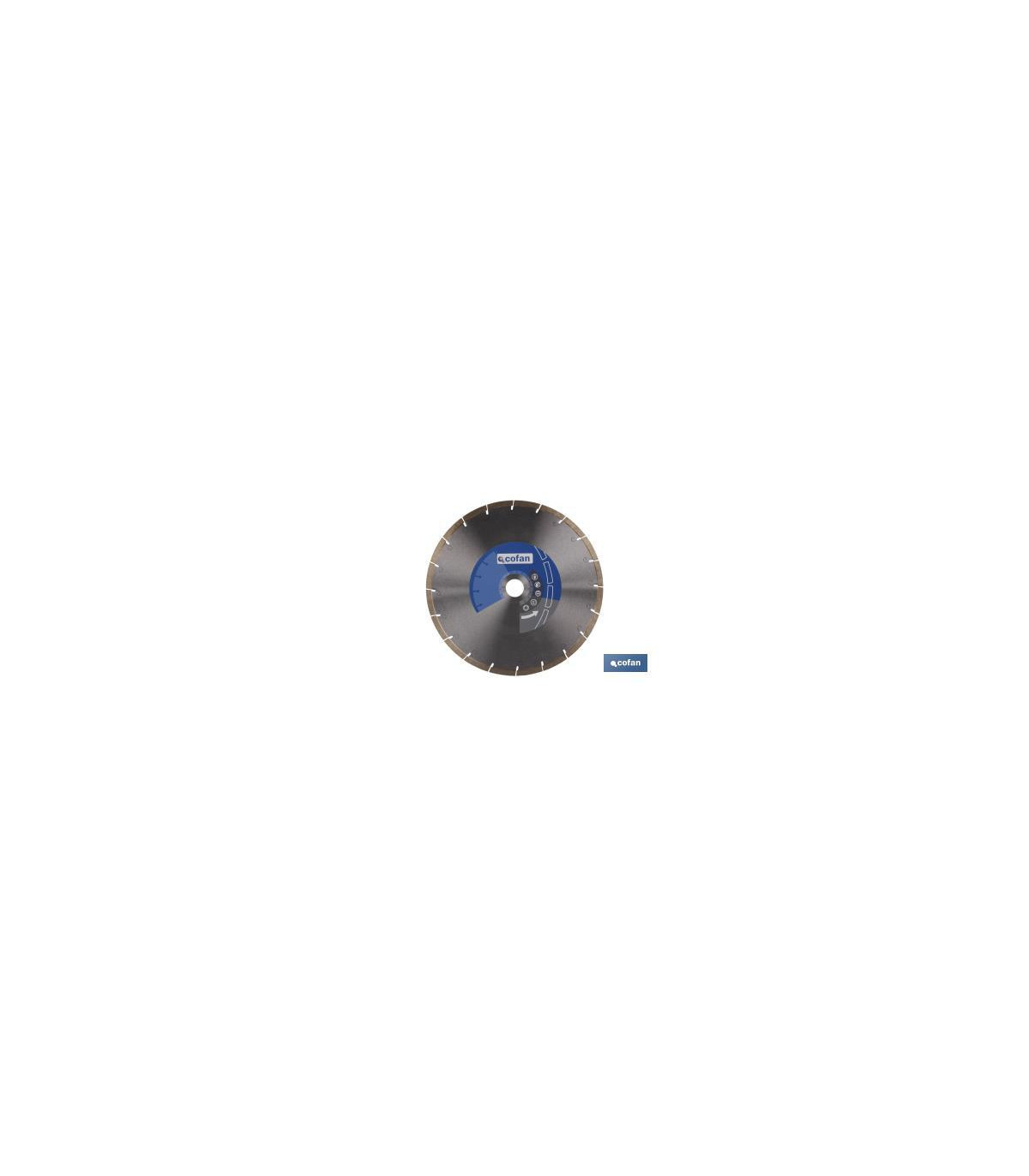

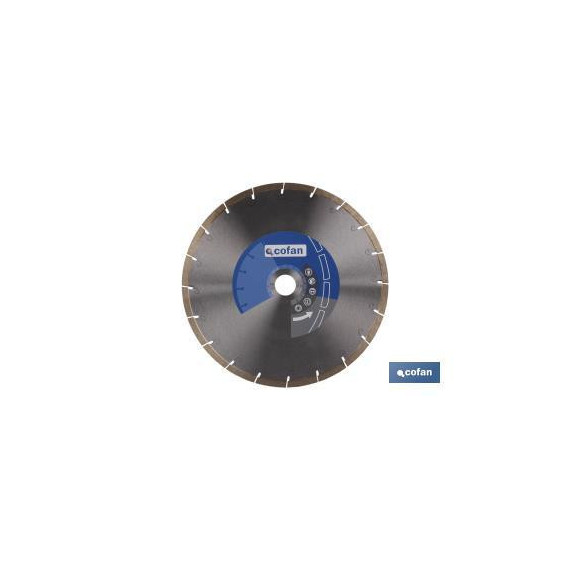

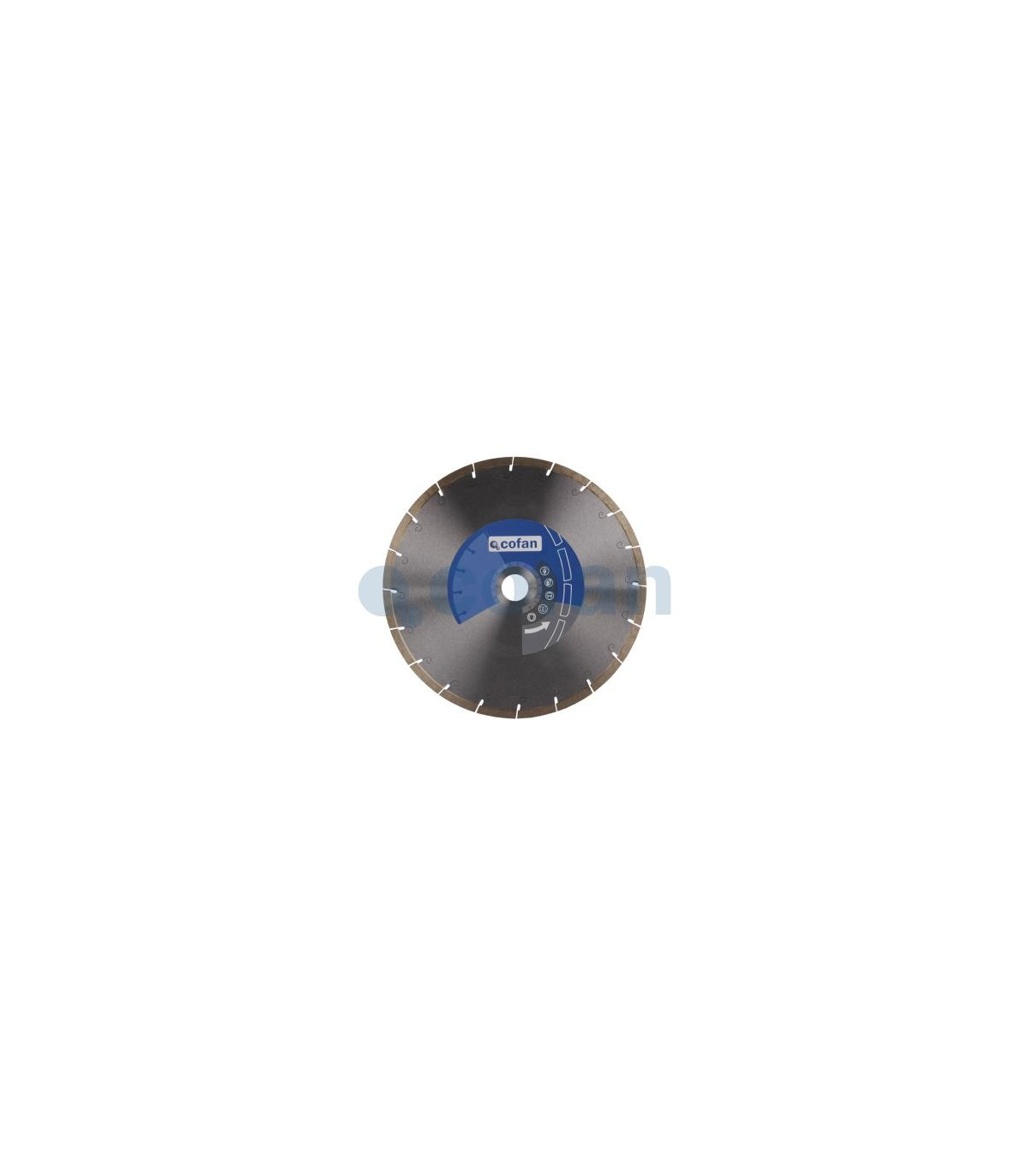

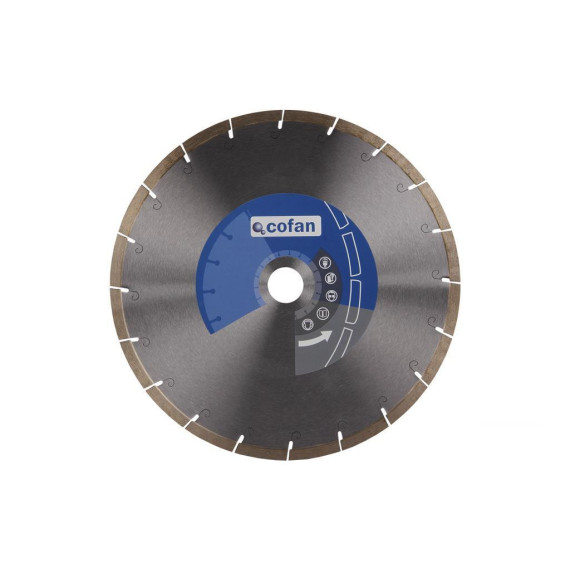

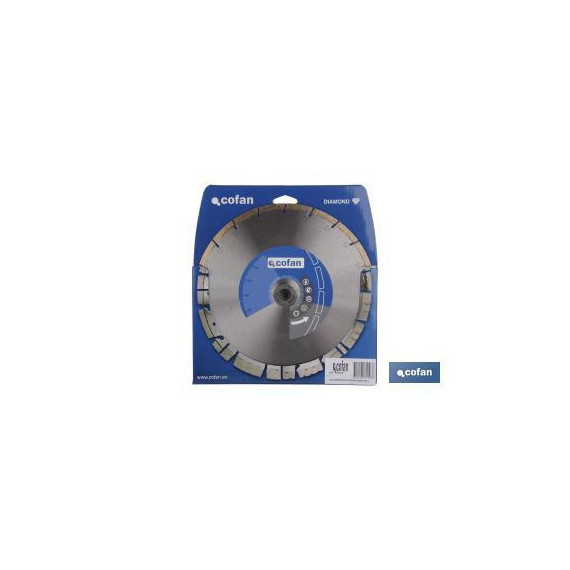

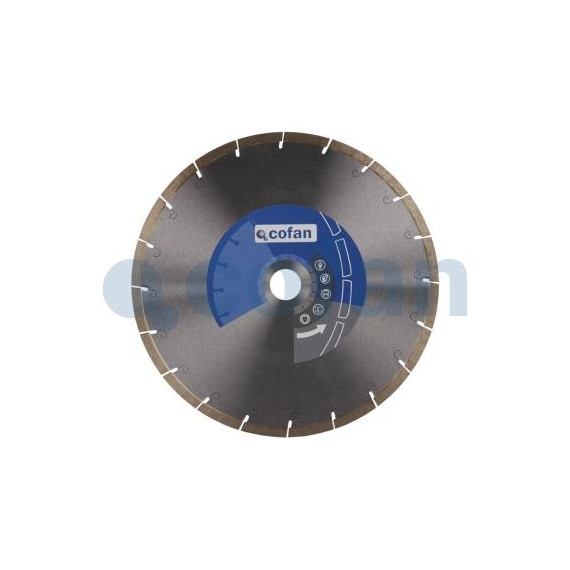

Porcelain disc for small table machines 200mm, 250mm, 300mm COFAN

The Porcelain Disc for COFAN Table Machines offers you an exceptional cutting solution for working with hard porcelain, Dekton, and artificial stones on small table machines. Its robust design and manufacturing with high-quality materials guarantee precision and optimal performance in demanding cutting tasks.

ø200mm - ø250mm - ø300mm.

Axis: 25.4 mm.

Segment: 7 mm

FEATURES

• Manufactured with high-quality diamonds and a durable metal matrix that ensures a long lifespan and a clean, precise cut.
• Its segmented design with 7mm high segments offers excellent cooling capacity and rapid dust removal, preventing overheating and optimizing performance.
• Available in diameters of ø200mm, ø250mm, and ø300mm to fit a wide range of small table machines.
• Its 25.4 mm axis makes it compatible with most table machines on the market.
• Specifically designed to work with hard porcelain, Dekton, and artificial stones, materials of great hardness and resistance that require a precise and efficient cutting tool.

NORMS

ISO 9001:2000

International standard for IT service management. This standard has been published by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC).

EN 12413

The EN 12413 standard, titled "Safety requirements for bonded abrasive products," establishes safety requirements for rotating bonded abrasive products such as grinding wheels, cutting discs, and mounted points. Its aim is to prevent accidents and injuries during the use of these products.

FOR WHAT TYPE OF WORK IS IT SUITABLE

For angle grinders of any power.

With just a light pressure, a very good cutting quality is achieved in construction materials.

The cutting discs are very resistant to impacts and prevent fragmentation during continuous cutting operations.

USES AND APPLICATIONS

• Grinding and leveling of weld beads on all types of metals, removal of burrs.

• Grinding of hard layers on surfaces and deep oxidations. They are designed to be used in polishing or cutting tools, both pneumatic and electric, with a maximum rotational speed of 8,500 to 13,300 RPM (depending on size).

USAGE INSTRUCTIONS

Do not use cutting discs on tools without protective guards. The guard must cover at least half of the disc. Never exceed the maximum rotational speed of the disc. Do not tighten the disc too much when installing it on the machine, as this could cause breakage.

The disc should not be forced against the workpiece during the cutting process until it stops or the machine motor stops. Only make straight cuts, do not bend the disc. Do not rest the machine on the disc when storing it. Before installing the disc, check it for cracks.

STORAGE

This product should be stored in its original packaging, in a place where the temperature is between 15°C and 26°C and the humidity is between 35% and 50%.

It should also be kept away from the ground, windows, and external walls. Improper storage can lead to a significant reduction in the quality of this product.

EXPOSURE CONTROLS AND PERSONAL PROTECTION

1. Eye protection: Use safety glasses to prevent metallic particles or disc fragments from entering the eyes during the cutting or grinding process.

2. Hand protection: Use gloves.

3. Skin protection: Avoid contact with skin from dust and metal shavings generated.

4. Respiratory protection: Use authorized respirators. In this case, a dust mask.

5. Ingestion: Not applicable.

6. Recommended ventilation: Provide adequate extraction.

PRODUCT LIFESPAN

5 years from the date of manufacture.
