Emergency signal Sound, text, and pictogram notifier COFAN

Emergency luminous signal with sound alert. Size to choose.

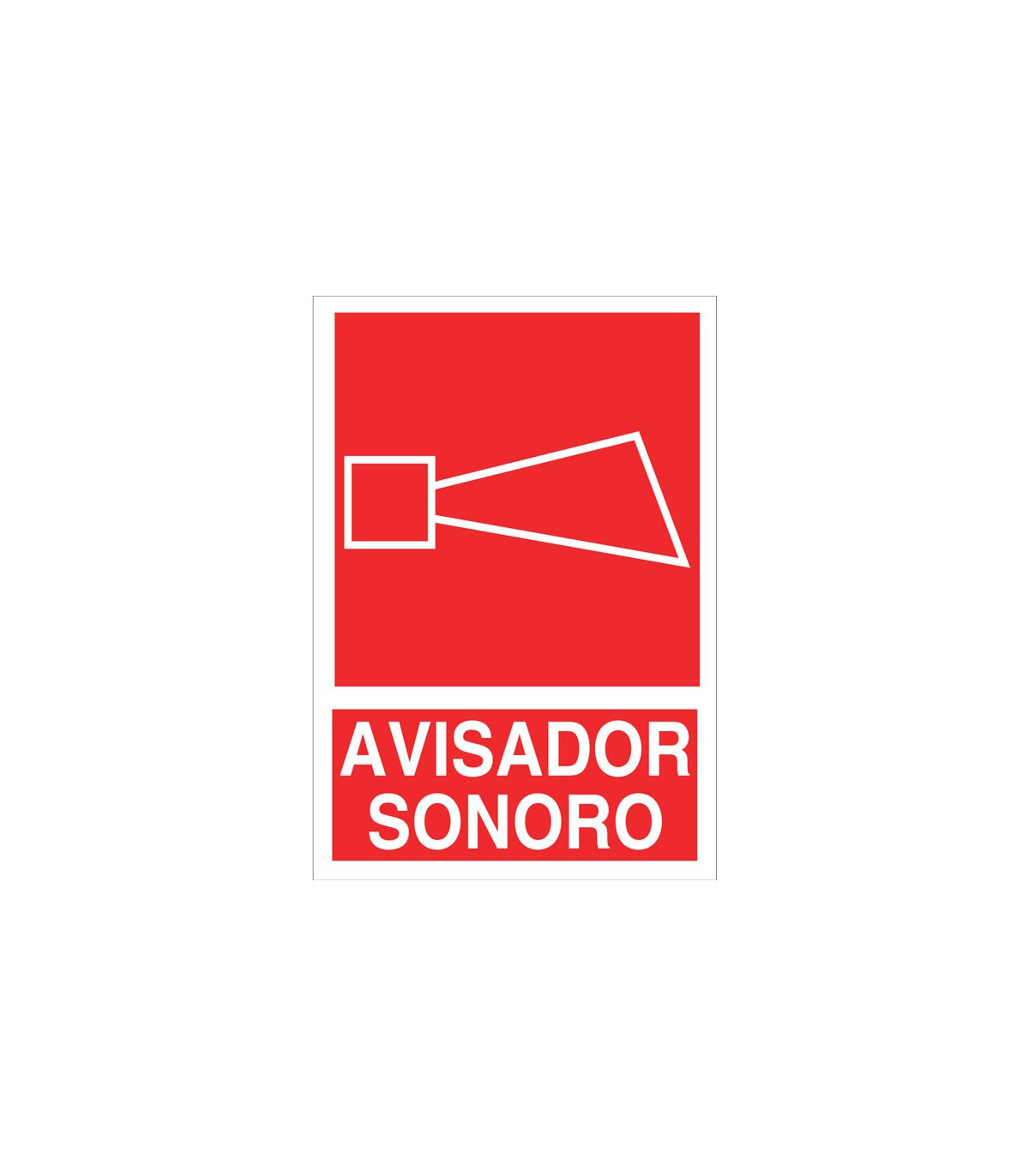

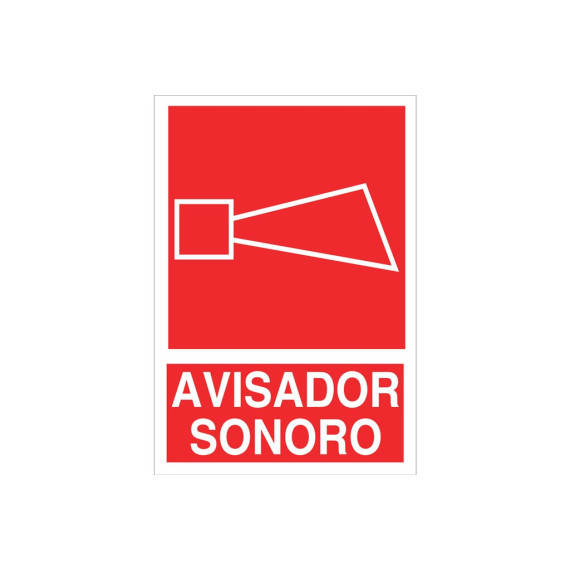

Emergency signal Sound alert, with text and pictogram COFAN. The sign is used to indicate the existence of a sound alert to be activated in case of emergency. The sound alert is used as an element of the fire alarm system. It is an audible, visible notification that can have visual stimuli to alert the occupants of a building of a fire or other type of emergency.

The emergency sign is made on a luminous sheet (after absorbing light, the product emits it in the dark, so it does not need any electrical source and the product can be charged an indefinite number of times).

This type of signs are installed in different types of industries as a measure of alert and safety, fulfilling the function of keeping users and workers informed about emergency actions.

In this sense, this type of signs can be found in public buildings, such as government offices, schools, hospitals, factories, shopping centers, and other places where an audible alert is required in case of an emergency or critical situation.

Material:

Luminous

Dimensions:

148 x 105 mm

210 x 148 mm

297 x 210 mm

420 x 297 mm

PRODUCT IDENTIFICATION

According to UNE 23035/4:

• Manufacturer's name or brand
• Manufacturing date
• Denomination (class A or class B as applicable)

According to RIPCI 513:

• Manufacturer's name or brand

MINIMUM LUMINESCENCE VALUES AFTER SALINE CHAMBER

All NMZ signage undergoes various internal and external tests of luminous response that guarantee compliance with the light intensity values contemplated in the UNE 23035 standard.

CLASS A:

CLASS B:

CHARACTERISTICS

SUPPORT MATERIAL PVC

According to UNE 53127:

• White PVC 1mm for class A and transparent PVC 0.7mm for class B
• White lacquered aluminum 0.6mm thick.
• Stability with Tª < 55º.
• Negligible water absorption (0.04 ± 0.01)%.
• Self-extinguishing.
• No appreciable lead and phosphorus content (less than 0.01%)
• Non-toxic.

PICTOGRAMS

According to standards:

• UNE EN ISO 7010
• UNE 23033/1

TEXTS

• According to UNE 23033/1

PHOTOLUMINESCENT PRODUCT

• Made from pigments.
• Unlimited photo-luminescent charge and discharge cycles

COLOR

Shades according to standard:

• UNE EN ISO 7010
• UNE 23033/1
• High adhesion and resistance ink.
• Allows for great flexibility in the final product.
• Non-flammable. Non-toxic

FINAL THICKNESS

Class A

• PVC 1.2 mm (±10%).
• ALUMINUM 0.8 mm (±10%).

Class B

• PVC 0.8 mm (±10%).
• ALUMINUM 0.7 mm (±10%).

REFERENCE

• Printed on the sign

DIMENSIONS

• According to UNE 23033/1

COLOR PERCENTAGES

• According to UNE 23033-1

MAXIMUM VIEWING DISTANCE

• Printed on the sign.

To calculate the necessary dimensions of a sign, the formula will be applied, up to a maximum distance of 50 m:

S≥ L2 /2000

“S” represents the surface area of the sign in square meters, and “L” the distance in meters from which the sign can be perceived.

MEASURES

CLASS B (PVC 0.7 mm)

• 148 x 105 mm

  210 x 148 mm

  297 x 210 mm

  420 x 297 mm

APPLICATIONS

Public buildings, Factories, Fire stations, etc.

REGULATIONS

The UNE 23035-4 standard from December 2003 requires signs to meet certain qualities of light intensity and resistance to pigment attenuation. Both the inks and the photoluminescent PVC used in the production of our signs fully comply with this standard. Since safety signage can help save lives and is mandatory, use the best possible signage. Usage Recommendations: Minimum sizes to be used based on meters.

STORAGE, CLEANING, AND MAINTENANCE

The working temperature should not exceed 45º C. Higher temperatures may deform the support material.

The optimal storage temperature will be between 15º C and 25º C; and with a humidity of 10/50%.

Cleaning methods; avoid applying abrasive products. It is recommended to clean them with water and neutral detergents.

The technical building code – Basic document on fire safety requires that photoluminescent signage must comply with the UNE 23035 standard.

In order to maintain the functionality for which the signaling systems have been conceived, SEKURECO recommends keeping the signs free of dust, dirt, or any residue or object that may hinder their visibility and identification.

For cleaning, it is advisable to use soapy solutions preferably, avoiding the use of solvents or abrasive products that may damage the surface of the sign.

Photoluminescent signs should be placed in such a way that they receive energy from a natural or artificial light source to ensure their proper functioning.

According to RD 513/2017 (TABLE III), luminous signaling systems must undergo an annual inspection/review to be carried out by specialized personnel from the manufacturer, a maintenance company, or by the user or owner personnel of the installation.

Once the useful life period of the signs that make up the signaling system has elapsed, the inspection of these elements will be carried out following the indications collected in RD 513/2017 and UNE 23035-2

SIGN INSTALLATION

Check our blog to learn how to install a sign or poster: https://www.sekureco.eu/blog/76_consejos-de-instalacion-de-senales-de-seguridad.html

The RECOMMENDED INSTALLATION HEIGHT ranges from 2 to 2.50 meters, always maintaining a separation distance of 0.30 meters from the ceiling.

Photoluminescent signs should be placed in such a way that they receive energy from a natural or artificial light source to ensure their proper functioning.

The FIXING of the signaling element must be done on a firm surface and free of dirt.

The sign can be secured using MECHANICAL ELEMENTS (screws, rivets, etc...) or ADHESIVES (mounting adhesive, glues, silicones…) carefully, avoiding soiling the visible surface or deforming it.

The EVACUATION signage should be installed in such a way that from any point likely to be occupied in the premises, an evacuation can be initiated, so it is recommended to install directional signs on all routes, intersections, stairs, etc. that serve as a path.

The signage on DOORS will be placed above the lintel with the appropriate label (“EXIT”, “EMERGENCY EXIT”, “NO EXIT”, ...).

The signage for FIRE protection, rescue, and/or assistance will be carried out on the same elements to be signaled whenever possible.
