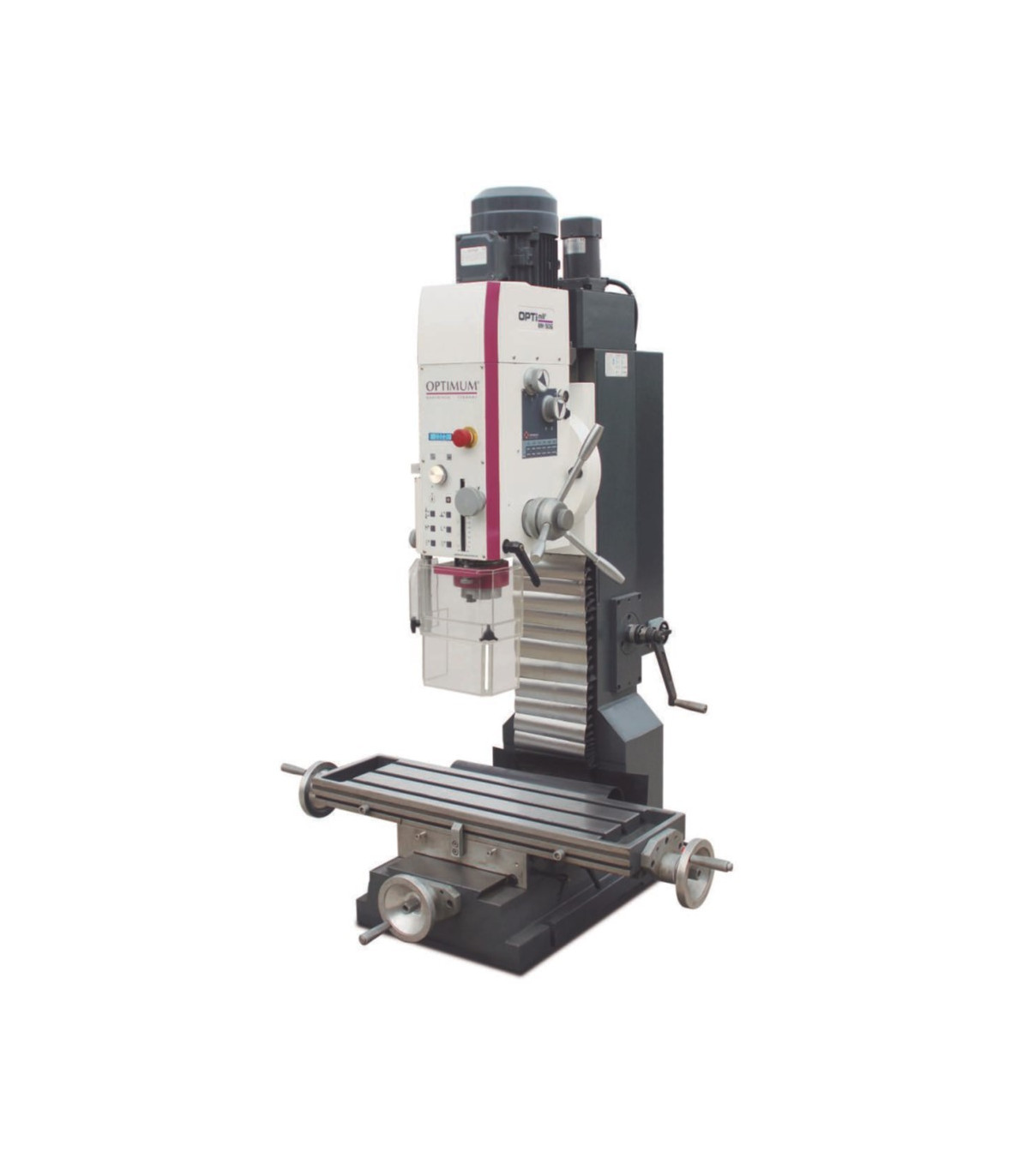

Desktop milling machine for small parts MH 50 G OPTIMUM

Desktop milling machine for small parts MH 50 G OPTIMUM. The MH 50 G OPTIMUM desktop milling machine is ideal for small parts, featuring an electric motor and high speed. It offers an adjustable table, high precision, and robustness, as well as a digital display and an easy-to-use panel.

FEATURES

• Electric motor that drives a milling cutter or cutting tool at high speed
• Speed change via gears
• Adjustable work table for shaping parts
• Series: Belongs to the INDUSTRIAL SERIES
• Precision: Recommended for manufacturing small parts with a high degree of precision
• Construction: Robust materials that ensure stability and durability
• Digital Display: Easy to read
• Control Panel: Easy-to-use membrane keyboard, resistant to dirt and water
• Functions: Allows forward/reverse operations
• Depth Adjustment: Rotary button on the control panel
• Concentricity: High concentricity thanks to the tapered roller bearing
• Head Tilt: Ability to tilt up to ± 30 °
• Manual Fine Feed: Allows manual adjustment of fine feed
• Electric Adjustment: At the milling head height
• Adjustable wedges for greater precision
• Screen protection against chips and fluids with adjustable function and safety microswitch
• Heavy, stable, and solid centering column made of high-quality gray cast iron
• Protective cover for Z-axis with stainless steel protective cover
• Large XY table with T-slots
• Two-stage industrial electric motor

TECHNICAL SPECIFICATIONS

Max. table load: 175 kg

X-axis table travel: 520 mm

Y-axis table travel: 260 mm

Z-axis table travel: 465 mm

Dimensions (l x w x h): 1,210 x 1,020 x 1,645 mm

Distance from vertical spindle to table: 545 mm

T-slot distance: 80 mm

Base dimensions (l x w): 850 x 240 mm

Number of speeds: 225 – 3,260 r.p.m.

Net weight: 518 kg

T-slot size / distance: 18 mm

Voltage: 400 V

WHAT TYPE OF WORK IS IT SUITABLE FOR

The MH 50 G OPTIMUM desktop milling machine for small parts is suitable for:

• Metal machining industry
• Precision parts manufacturing
• Prototype workshops
• Production of industrial components
• Manufacturing of custom parts
• Machining of steel and other materials
• Projects that require high concentricity and precision

CERTIFICATION

- DIN EN 55011: The DIN EN 55011 standard refers to the limits and measurement methods for the emission of electromagnetic interference from industrial, scientific, and medical equipment. This standard establishes criteria to ensure that devices do not generate interference that could affect other electronic equipment and also defines the permitted levels of electromagnetic radiation. It is essential to ensure compliance in the design and use of equipment operating in environments where electromagnetic compatibility is crucial.

- EMC Level C2: The EMC Level C2 refers to an electromagnetic compatibility (EMC) standard that applies to electrical and electronic equipment and systems. Specifically, Level C2 indicates requirements for the emission of interference and immunity to electromagnetic disturbances in industrial environments. Devices that meet this level are designed to operate without causing significant interference to other equipment and to withstand external disturbances, which is crucial in environments where various electronic devices coexist.
