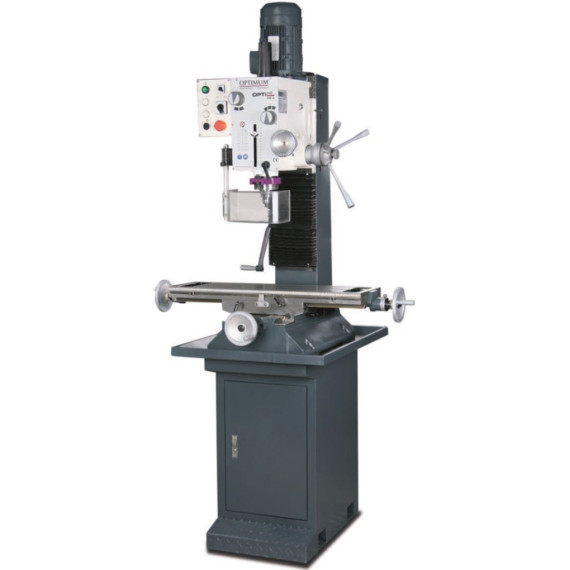

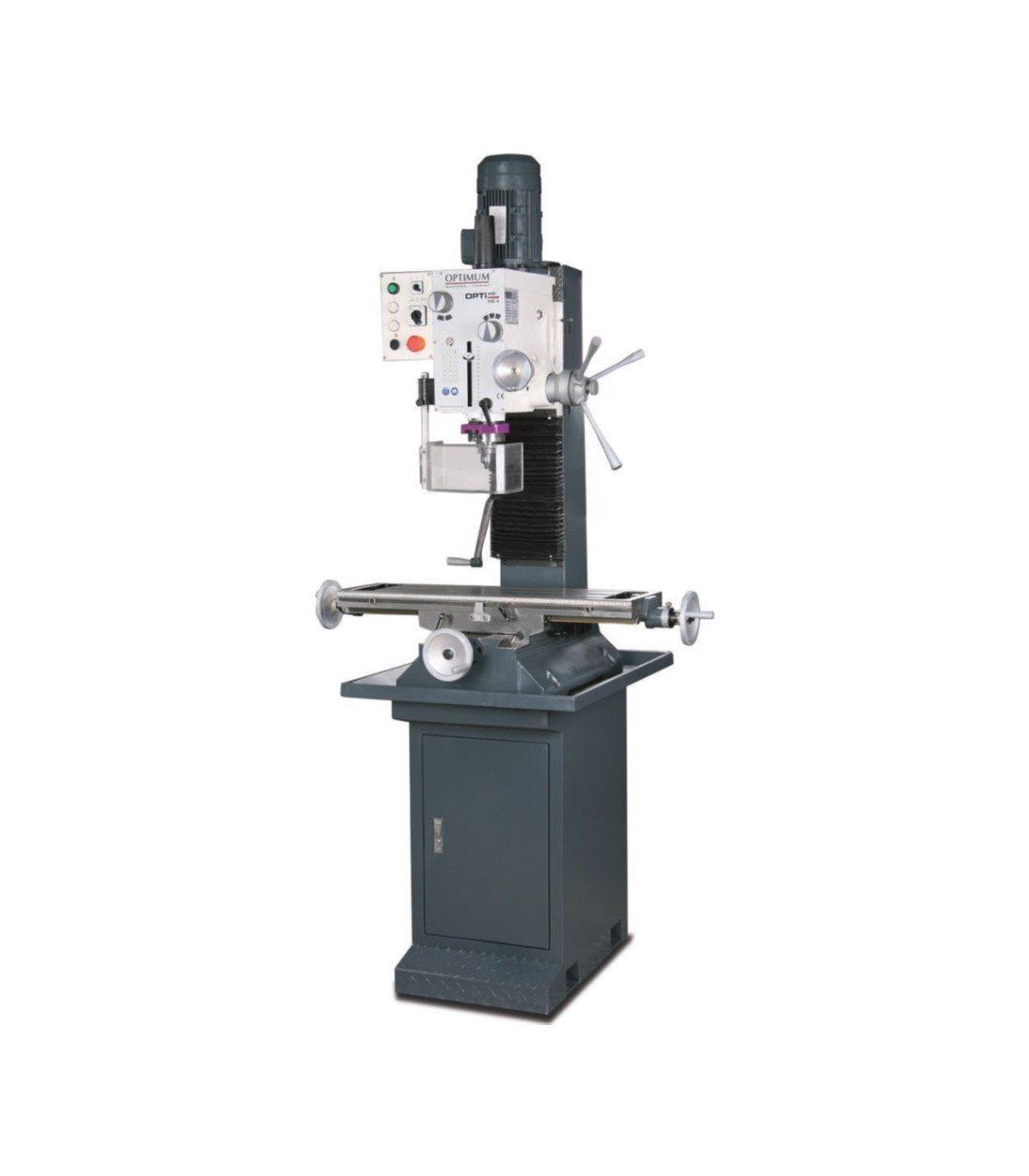

Precision milling and drilling machine MB 4 OPTIMUM

Precision drilling milling machine MB 4 OPTIMUM. The MB 4 OPTIMUM milling drilling machine stands out for its quiet operation and certified safety. With 12 speeds ranging from 95 to 3200 rpm, it offers fine adjustment, a tiltable head up to 60º, and an automatic threading function.

FEATURES

• Oil-immersed gears that allow for very quiet operation.
• Completely certified safety system.
• Mechanical transmission with 12 selectable speeds.
• Speed range from 95 to 3200 revolutions per minute.
• Two-stage electric motor.
• Includes a stop to limit drilling depth.
• Control panel with emergency button, switch to change rotation direction, and threading function.
• Speed adjustment via a gear lever.
• Coordinate table with V-guides, T-slots, adjustable stops, and integrated measuring scale.
• Manual spindle feed via a handwheel, with fine adjustment and easy handling.
• Automatic threading function via motor, allowing pre-setting of the quill path and depth stop.
• Head that can be tilted up to 60º.
• Tapping function.

TECHNICAL SPECIFICATIONS

Tiltable head: ± 60º

X-axis table travel: 450 mm

Y-axis table travel: 200 mm

Z-axis table travel: 510 mm

Dimensions (l x w x h): 760x850x1,440 mm

Distance from spindle to column: 275 mm

Table dimensions (l x w): 800 x 240 mm

T-slot dimensions on the table: 14 mm

Number of speeds: 2 x 6

Net weight: 320 kg

Motor power (2 stages): 1.1-1.5 kW/400 V

Quill travel: 120 mm

Spindle revolutions: 95 - 3,200 r.p.m.

Spindle Morse taper type: MK 4

Max Ø with end mill: 28 mm

Max Ø drill in steel: 28 mm

Max Ø tool holder: 63 mm

Max Ø drill in cast iron: 32 mm

WHAT TYPE OF WORK IS IT SUITABLE FOR

The MB 4 OPTIMUM precision drilling milling machine is suitable for:

• Metal machining industry
• Manufacturing of precision parts
• Prototype workshops
• Production of industrial components
• Manufacturing of custom parts
• Machining of steel and other materials
• Projects requiring high concentricity and precision

CERTIFICATION

- DIN EN 55011: The DIN EN 55011 standard refers to the limits and measurement methods for the emission of electromagnetic interference from industrial, scientific, and medical equipment. This standard establishes criteria to ensure that devices do not generate interference that could affect other electronic equipment and also defines the permitted levels of electromagnetic radiation. It is essential to ensure compliance in the design and use of equipment operating in environments where electromagnetic compatibility is crucial.

- EMC Level C2: The EMC Level C2 refers to a standard of electromagnetic compatibility (EMC) that applies to electrical and electronic equipment and systems. Specifically, Level C2 indicates requirements for the emission of interference and immunity to electromagnetic disturbances in industrial environments. Devices that meet this level are designed to operate without causing significant interference to other equipment and to withstand external disturbances, which is crucial in environments where various electronic devices coexist.
