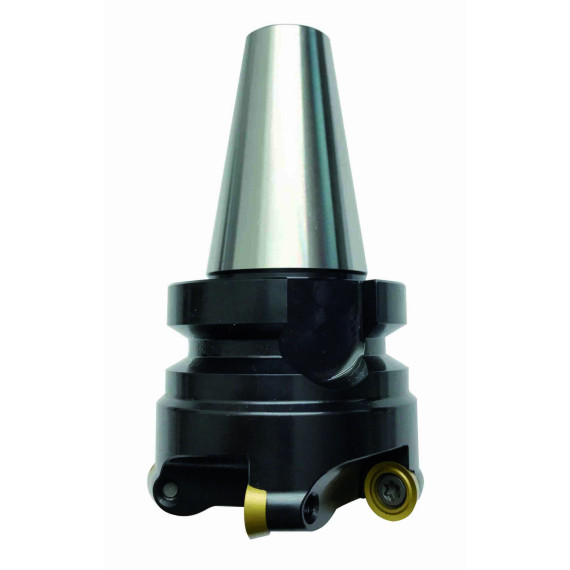

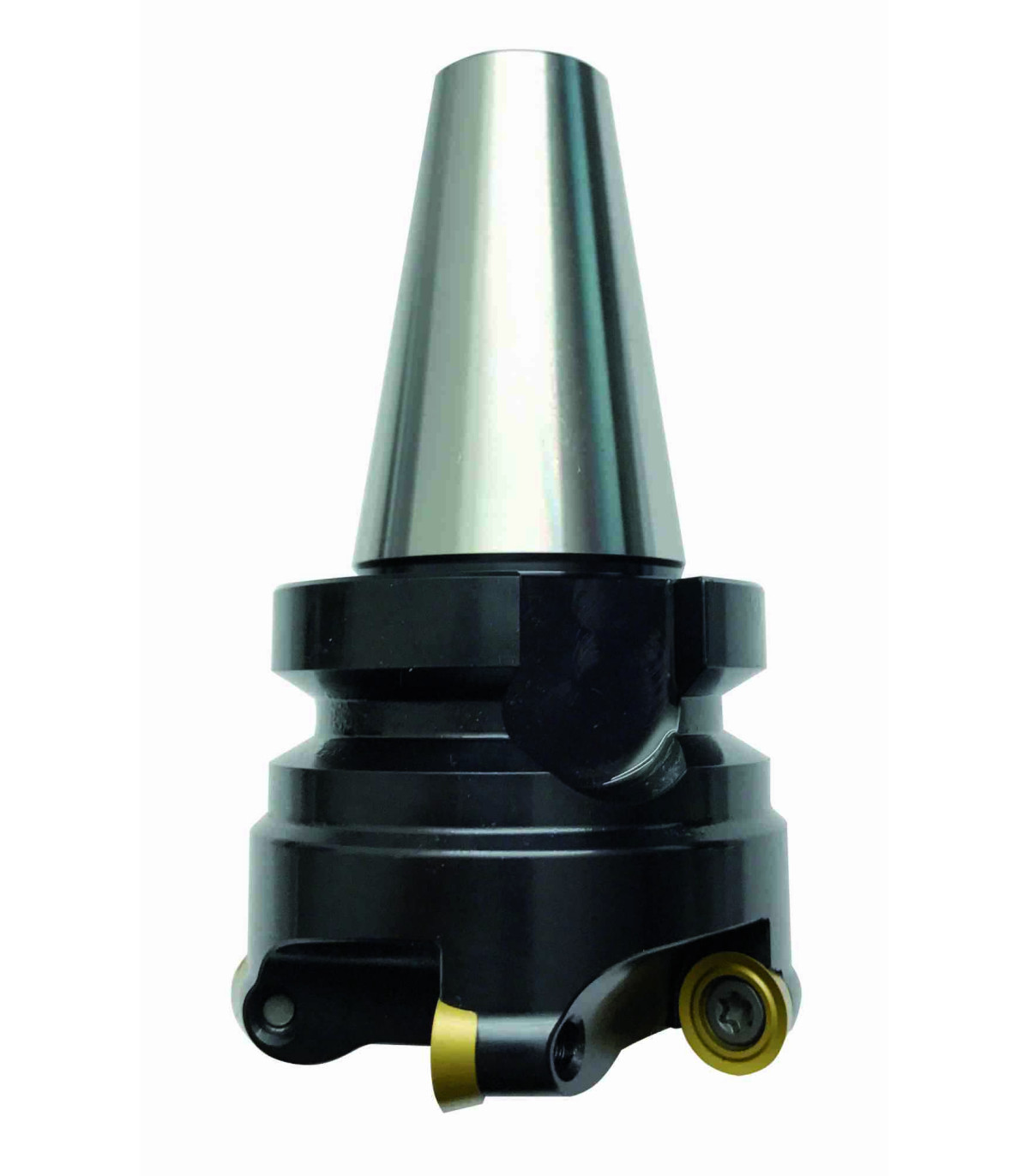

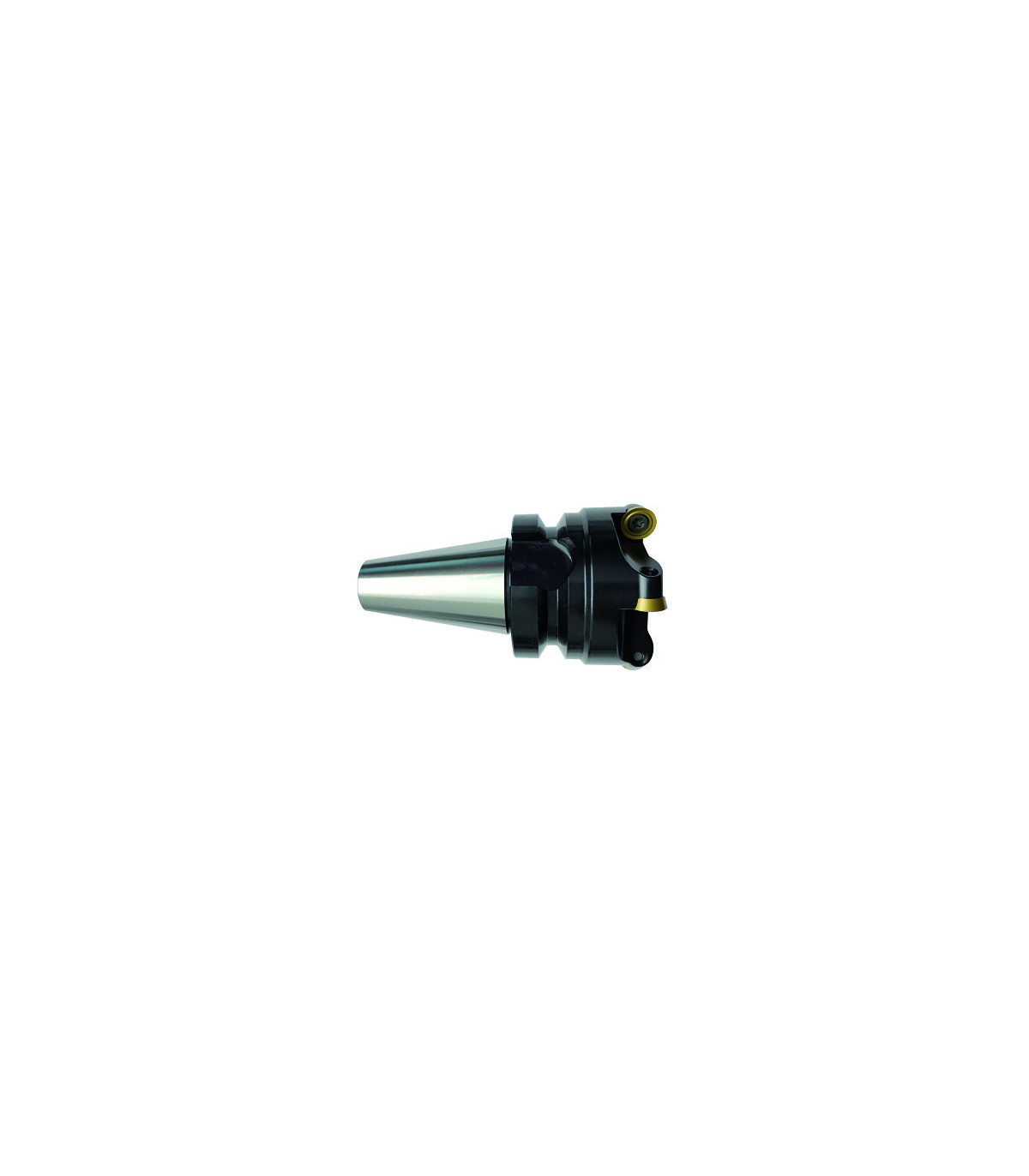

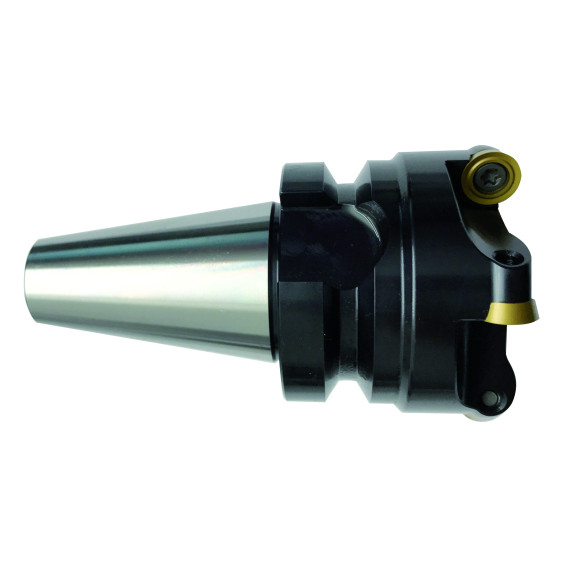

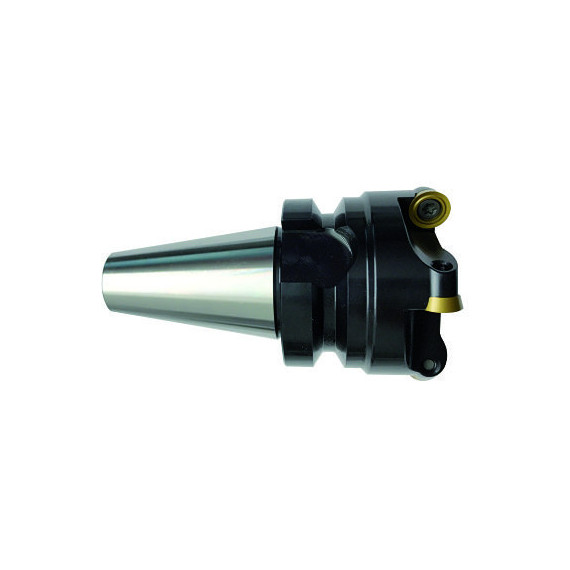

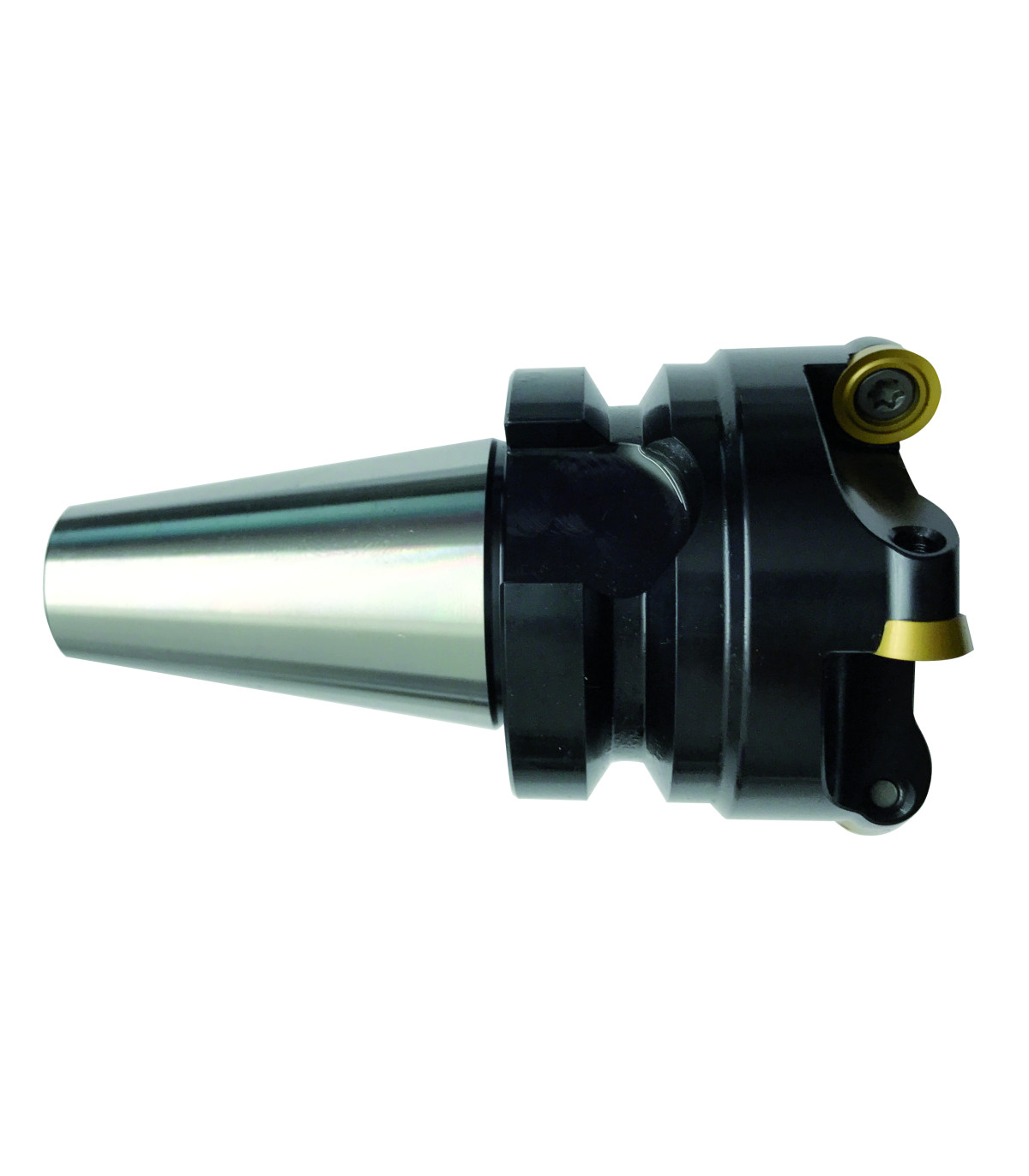

BT30 planning cutter with OPTIMUM inserts

BT30 face mill with OPTIMUM inserts. The BT30 face mill with OPTIMUM inserts is ideal for milling flat surfaces and copies in the manufacturing of mechanical parts, automotive components, and molds. Its hardened steel design offers high concentricity and uniform cuts, making it economical and efficient.

FEATURES

• For milling flat surfaces and copies
• Made of special steel - highly hardened
• High concentricity and precision
• Milling body with irregular pitch for especially smooth operation and uniform cutting
• The body and clamping shank form a unit, resulting in a short overhang and stable tension.
• No additional cutting pin is used
• Special geometry for high-speed milling
• Economical, as with a dull edge, the insert can be rotated further (up to twelve times usable)
• Indexable inserts Ø 10 mm

TECHNICAL SPECIFICATIONS

Number of cutting edges 5

Outer diameter 52 millimeters

Mounting shaft BT 30

Indexable inserts 10 millimeters

ISO designation RDX 1003 D52/R5

VPE 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

5 inserts RDET 1003 MOSN 8026

Torx TX15

FOR WHAT TYPE OF WORK IS IT SUITABLE

The BT30 face mill with OPTIMUM inserts is suitable for:

• Manufacturing mechanical parts
• Automotive industry
• Manufacturing molds and dies
• Machining of metal structures
