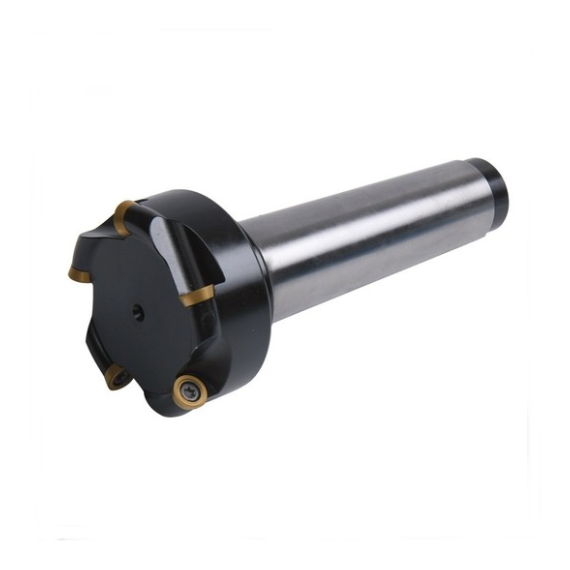

Circular planer cutter BT 40 OPTIMUM

BT 40 OPTIMUM circular face mill. The BT 40 OPTIMUM circular face mill is perfect for milling flat surfaces and copies in the manufacturing of mechanical parts and molds. Its hardened steel and efficient design ensure smooth and precise cuts.

FEATURES

• For milling flat surfaces and copies
• Made of special steel - highly hardened
• High concentricity and roundness
• Milling body with irregular pitch for especially smooth operation and uniform cutting
• The body and clamping shank form a unit, so the overhang length is short and the tension is stable.
• No additional cutting pin is used
• Special geometry for high-speed milling
• Cost-effective, as with a dull edge, the insert can be rotated further (up to twelve times usable)
• Indexable inserts Ø 10 mm

TECHNICAL SPECIFICATIONS

Number of cutting edges 5

Outer diameter 63 millimeters

Mounting shaft BT 40

Indexable inserts 10

ISO designation RD X1003 D63/R5

VPE 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

5 inserts RDET 1003 MOSN 8026

Torx TX15

FOR WHAT TYPE OF WORK IS IT SUITABLE

The BT 40 OPTIMUM circular face mill is suitable for:

• Manufacturing mechanical parts
• Automotive industry
• Manufacturing molds and dies
• Machining of metal structures

CERTIFICATION

The ISO designation RD X1003 D63/R5 specifies the circular face mill, indicating its type, inserts, diameter of 63 mm, and 5 cutting edges, facilitating its identification in machining.
