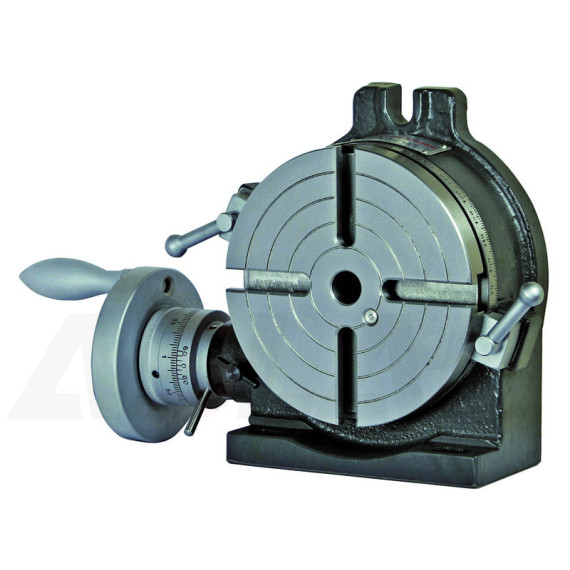

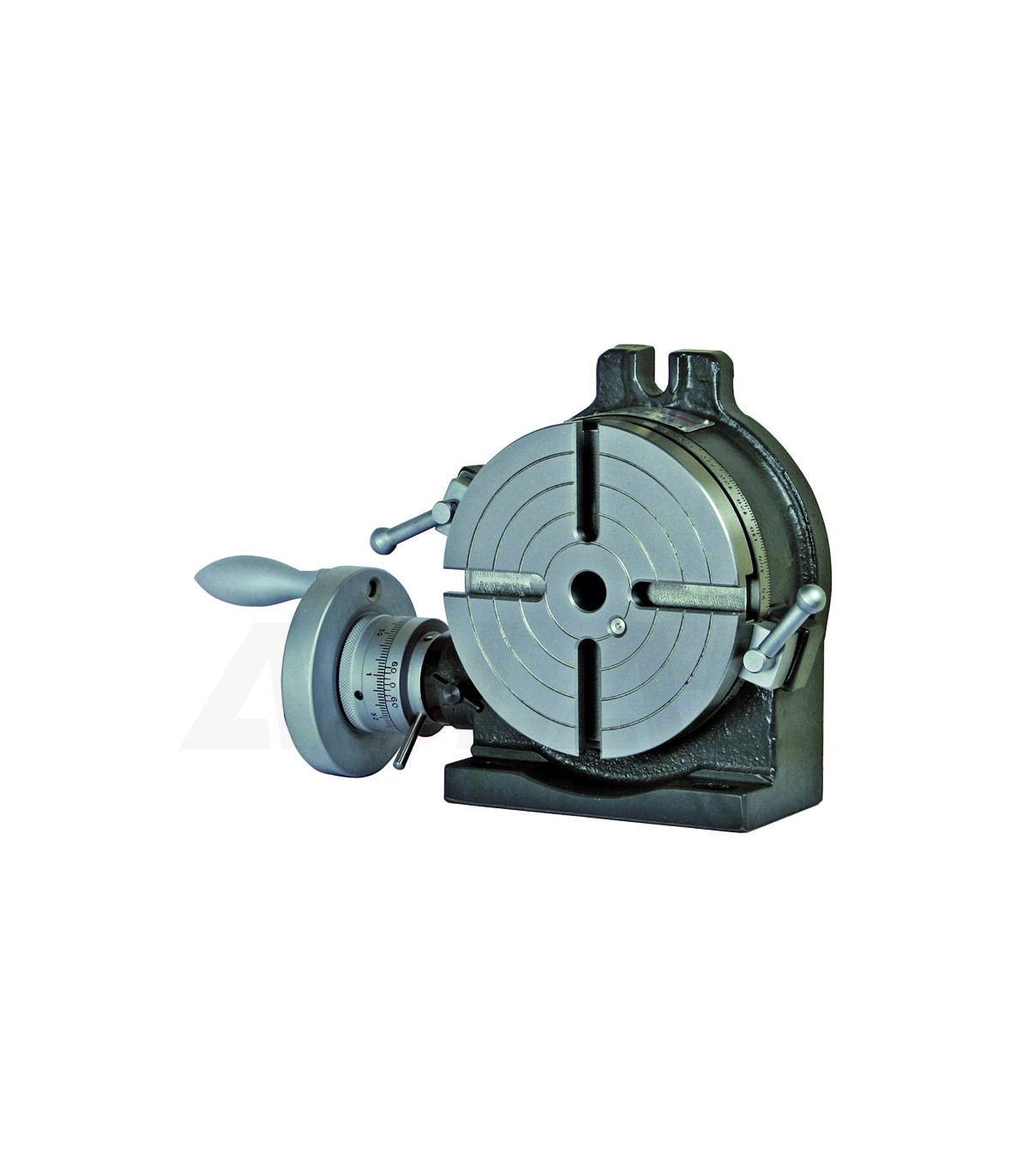

Dividing plate RT 200
€860.69 (no TAX)
Plate made of high-quality Mehanite cast material. Reliable and precise. Great stability even in demanding work. Hardened and polished spindle. Transmission ratio 90:1. The work table with a scale of 360°. 1 rotation of the handwheel means 4° of rotation. Graduation of the scale on the handwheel 2. Possibility of division by scales on the handwheel using a vernier caliper. Centering cone MT 3 Ø of the plate 210 mm Total height 104 mm Total length 265 mm Total width 199 mm Height of tips 133 mm Width of groove 16 mm Net weight 30 kg
