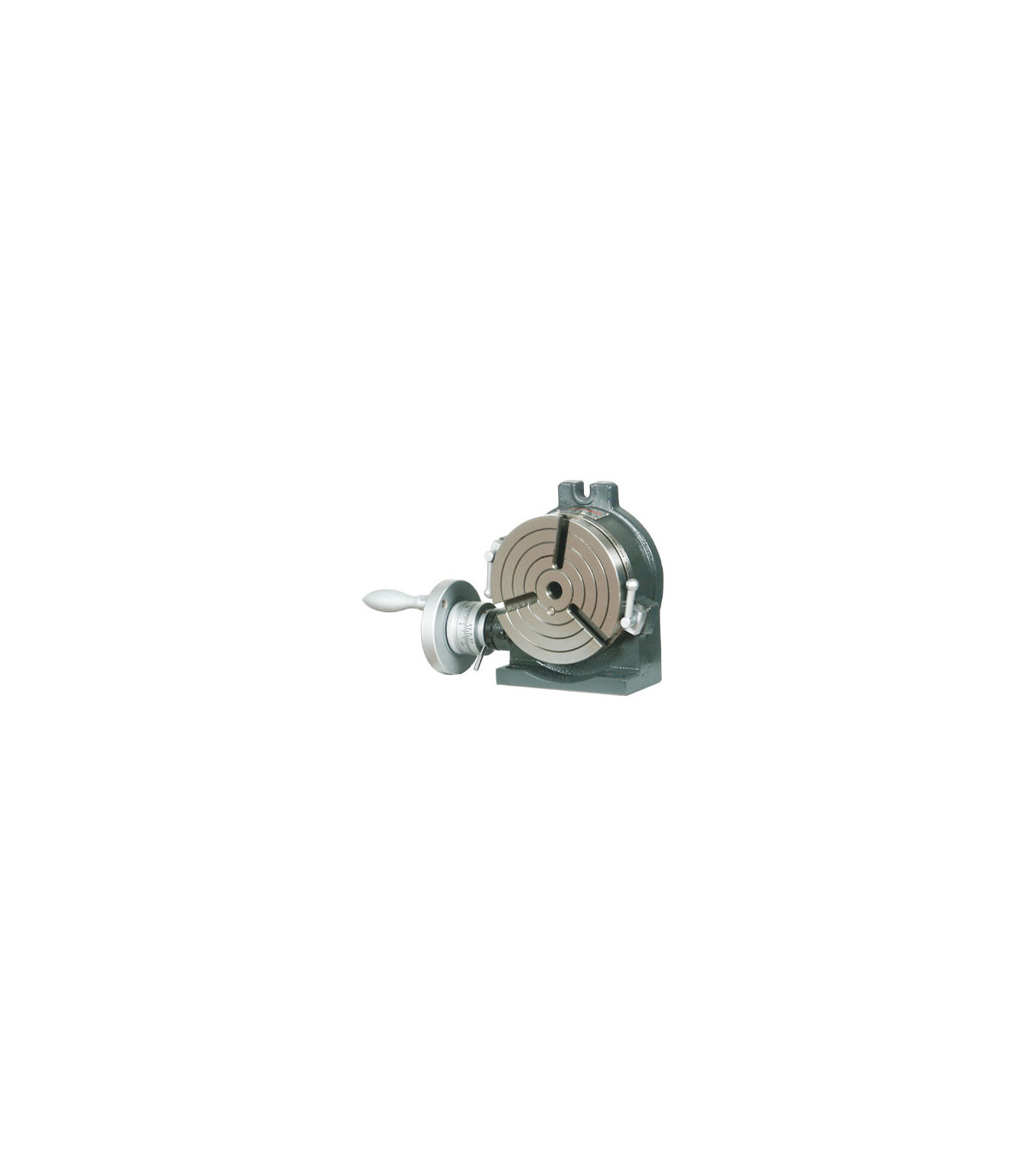

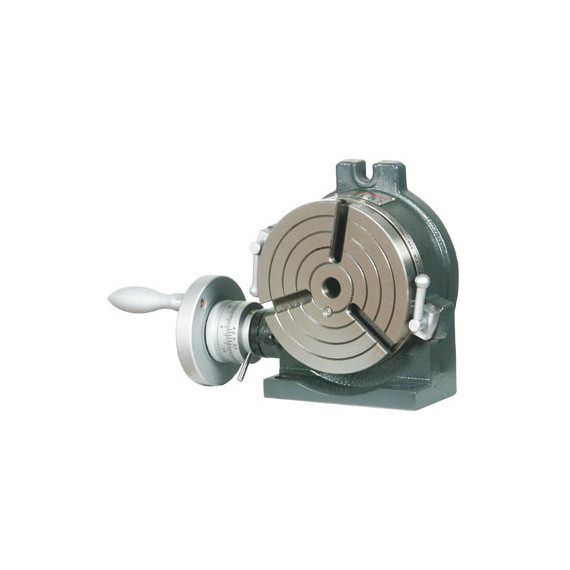

Horizontal vertical rotary indexing table RT 150 OPTIMUM

Iron dividing plate RT 150 OPTIMUM. The iron dividing plate RT 150 OPTIMUM stands out for its precision and stability. With a scale of 360° and a clamping diameter of 150 mm, it is ideal for machining and manufacturing in the automotive and aerospace industries. Its design allows for precise rotation, facilitating the production of angular parts with high efficiency.

FEATURES

• The work table has a scale of 360°
• Precision storage
• One rotation of the handwheel corresponds to a rotation of 4°
• Stability even under high stress
• Scale division on the handwheel 2′
• Large spindle hole for clamping longer workpieces
• Division possible via scaled handwheel with Nonio
• Hardened and ground screw

RT 200

• Angular degree parts with a 360-degree angle scale
• 16 mm nut (M16)
• With optional indirect discs, it is possible to perform divisions in large numbers.

TECHNICAL SPECIFICATIONS

Clamping surface diameter 150 millimeters

Closed height 79 millimeters

Maximum height 102 millimeters

Clamping surface slot width 11 millimeters

Number of slots on the clamping surface 3

VPE 1

Dimensions and weights

Approximate length 204 millimeters

Approximate width/depth 156 millimeters

Approximate weight. 12 kilograms

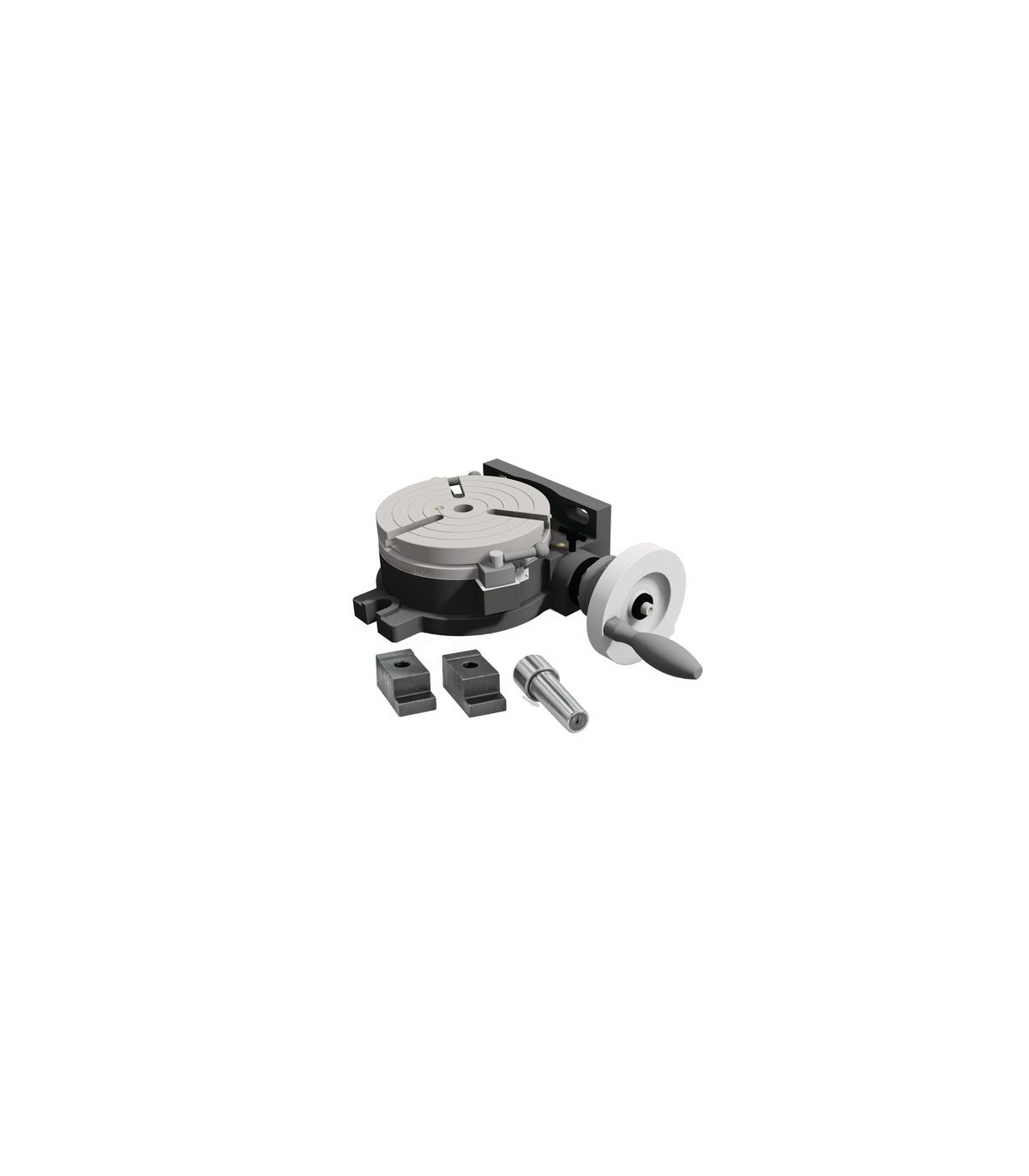

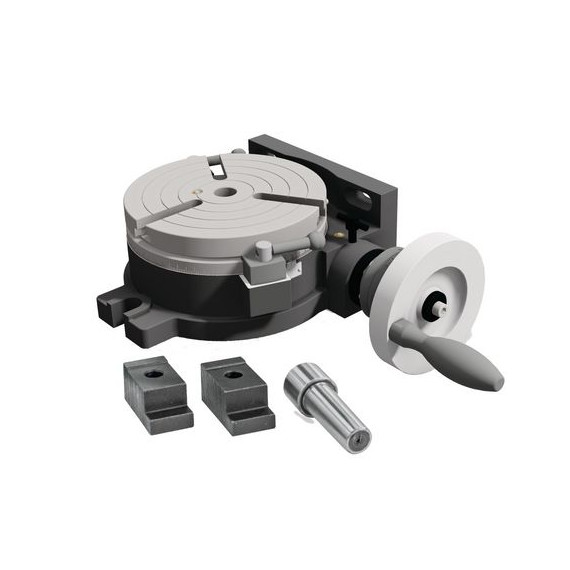

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• 2 clamping blocks
• Centering cone MT 2

FOR WHAT TYPE OF WORK IS IT SUITABLE

The iron dividing plate RT 150 OPTIMUM is suitable for:

• Machining
• Precision manufacturing
• Automotive industry
• Aerospace industry
• Engineering
• Mass production of parts and milling work.
