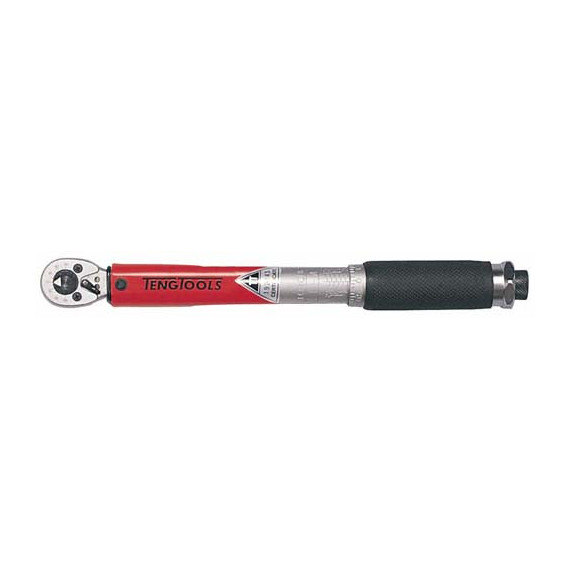

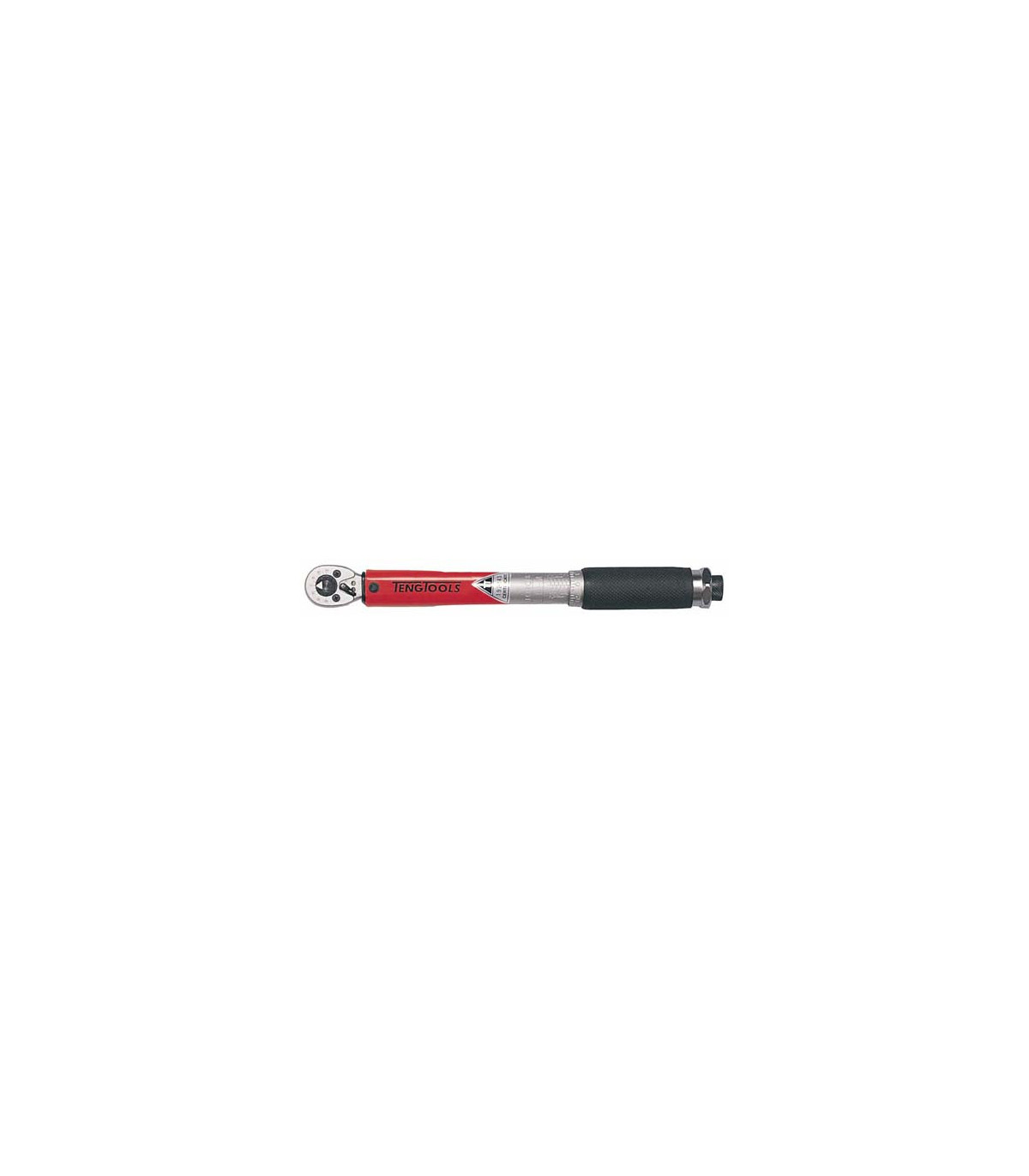

Torque wrench with ratchet 3/4" 140-980 Nm 3492AG-E2 TENG TOOLS

The TengTools 3492AG-E2 3/4″ torque wrench has a torque range of 140 to 980 Nm, making it ideal for heavy industrial applications that require high tightening torques, such as the installation of large machinery parts and truck assembly. This torque wrench is designed for clockwise tightening of right-hand threads with a reversible 24-tooth ratchet mechanism (DIN3122) and incorporates an integrated angular gauge for easy re-tightening. The ratchet mechanism has a swing arc of 15° and an accuracy of ±4%, ideal for most professional applications. Additionally, it features a rotating lock to ensure that the set torque is maintained. Its intuitive design includes a clear scale that shows Nm and ft/lb. The handle has clear markings indicating where to place the hand, which improves ergonomics and performance. The tool is delivered in a convenient case for easy transport and storage. Each torque wrench is assigned a unique number and is individually tested to comply with ISO 6789 standards and comes with a "Declaration of Conformity" to ensure accuracy.

According to the DIN3122 standard. With the ratchet, the torque wrench can be used for both tensioning and final torque checking. Reversible with a lever, but only for right-hand tightening for tension checking. Equipped with a gauge for post-tensioning. Graduated in Nm and ft-lb. Adjustable with a lock. Accuracy ± 4%. Matte finish. Rubber handle. Degree scale for post-tensioning of cylindrical jaws. 3/4 140-980 Nm 100-700 lbf-in 24 1.213 mm 6.61 kg.

FEATURES OF THE 3/4" TORQUE WRENCH 140-980 Nm

Equipped with an integrated angular gauge for easy subsequent adjustment.

Click-type mechanism to signal when the required torque is reached.

Additional reference scale ft/lb.

Marked to show the correct place to apply pressure.

Rotating lock function to ensure the set torque is maintained.

Reversible 24-tooth ratchet mechanism (DIN3122) providing 15° increments.

Designed to tighten fasteners clockwise.

Accuracy of +/- 4% and compliant with ISO6789 for guaranteed precision.

Each torque wrench has its own individual certification number.

Supplied in a convenient storage case.

TECHNICAL DATA

APPLICATIONS

Torque wrench for heavy-duty applications such as automotive and mechanics.

REGULATIONS

ISO 6789
