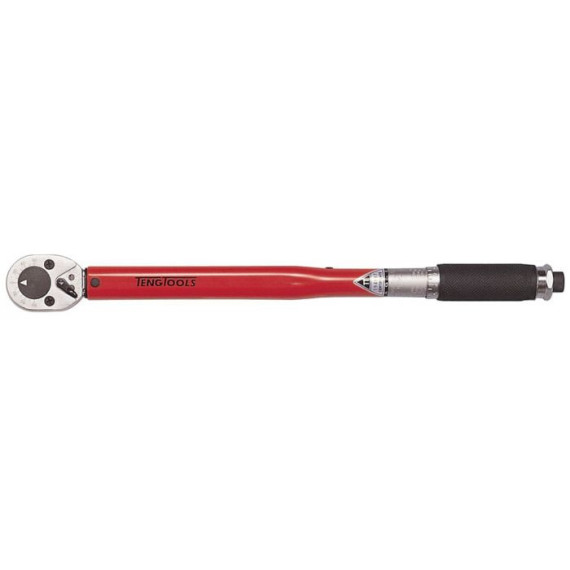

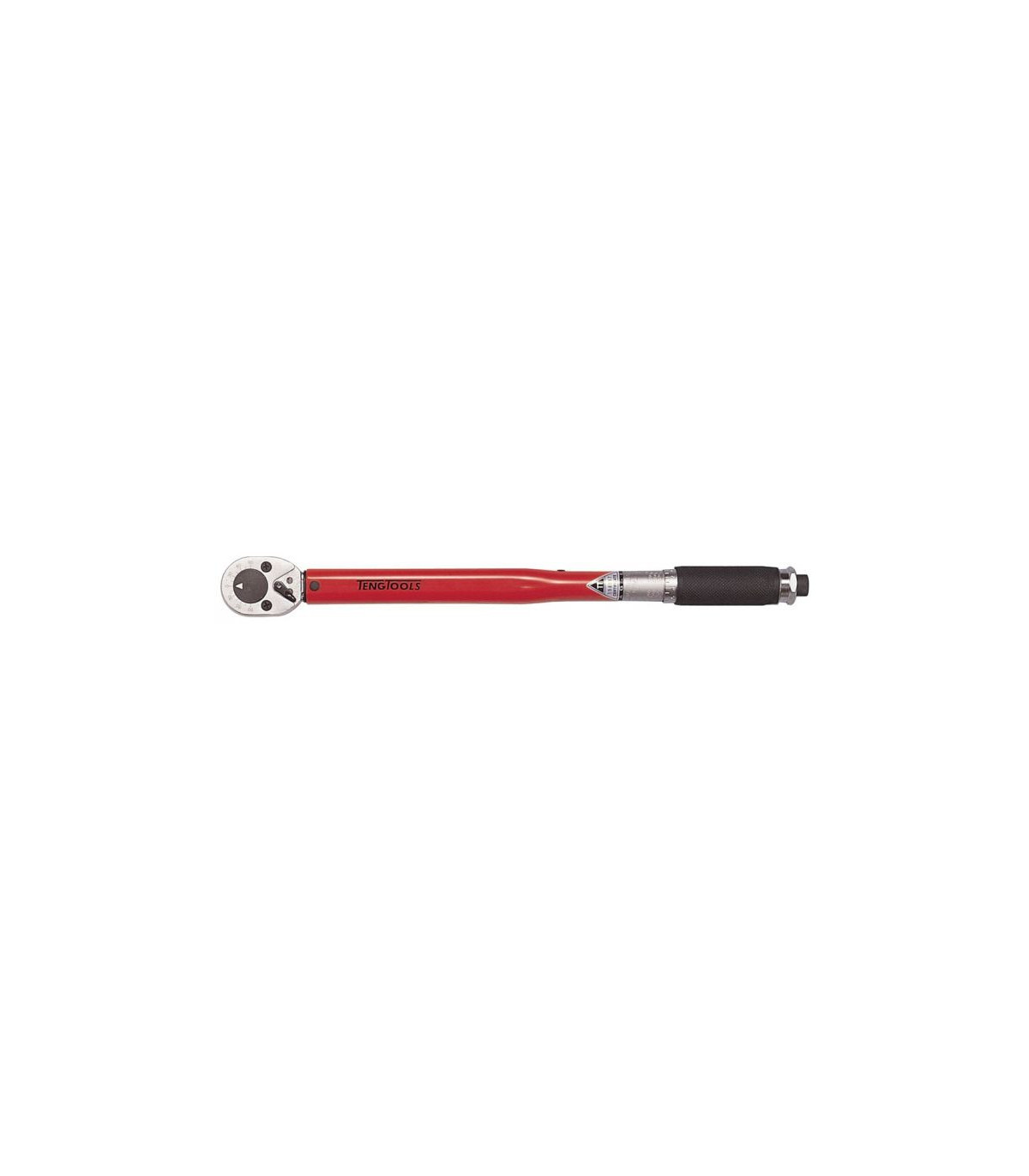

Torque wrench 3/4" 140-700 Nm 3492AG-E1 TENG TOOLS

The TengTools 3492AG-E1 torque wrench with a 3/4″ drive offers precision and performance for professional users in heavy industries such as aerospace and automotive. It has a torque range of 140 to 700 Nm and an accuracy of ±4%, with a clear scale displaying torque values in Nm and ft/lb. It incorporates a click mechanism that indicates when the desired torque is reached and an integrated angular gauge that simplifies post-tightening procedures. The secondary scale in ft/lb makes it more suitable for different measurement systems, while the markings on the handle indicate where to place the hand to apply force correctly. Its design is user-friendly and features a rotating lock that maintains the set torque during use. A reversible 24-tooth ratchet mechanism with a 15° swing arc ensures easy and precise tightening of right-hand threads. A sturdy case is included for easy transport. Each torque wrench is assigned a unique number and is individually tested to meet ISO 6789 standards and comes with a "Declaration of Conformity" to ensure accuracy.

According to standard DIN3122. With the ratchet, the torque wrench can be used for both tensioning and final torque checking. Reversible with a lever, but only for right-hand tightening for tension checking. Equipped with a gauge for post-tensioning. Graduated in Nm and lbs feet. Locking adjustment. Accuracy ± 4%. Matte finish. Rubber handle. Degree scale for post-tensioning of cylindrical jaws. 3/4 140-700 Nm 100-500 lbf-in 24 1.065 mm 6.61 kg.

FEATURES

Equipped with an integrated angular gauge for easier post-adjustment.

Click-type mechanism to signal when the required torque is reached.

Additional reference scale ft/lb.

Marked to show the correct place to apply pressure.

Rotating lock function to ensure the set torque is maintained.

Reversible 24-tooth ratchet mechanism (DIN3122) providing 15° increments.

Designed to tighten fasteners clockwise.

Accuracy of +/- 4% and compliant with ISO6789 for guaranteed precision.

Each torque wrench has its own individual certification number.

Supplied in a handy storage case.

TECHNICAL DATA

WHAT TYPE OF WORK IS IT SUITABLE FOR

For professional use in heavy industries such as aerospace and automotive.

NORMATIVE

ISO 6789 standard specifies the requirements and testing methods for manual torque tools used in the controlled tightening of bolted joints.
