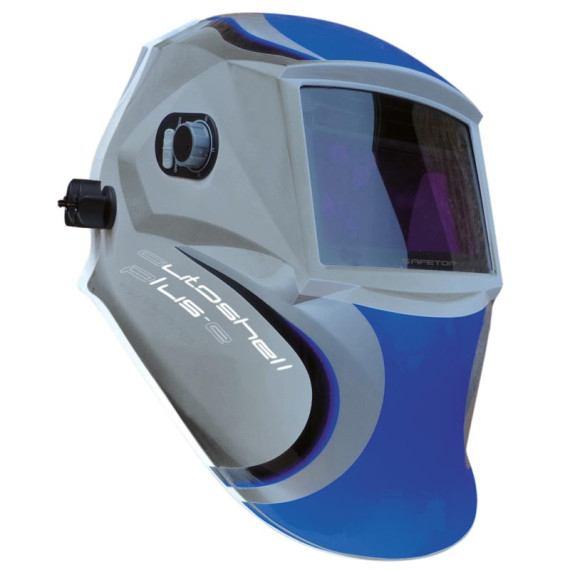

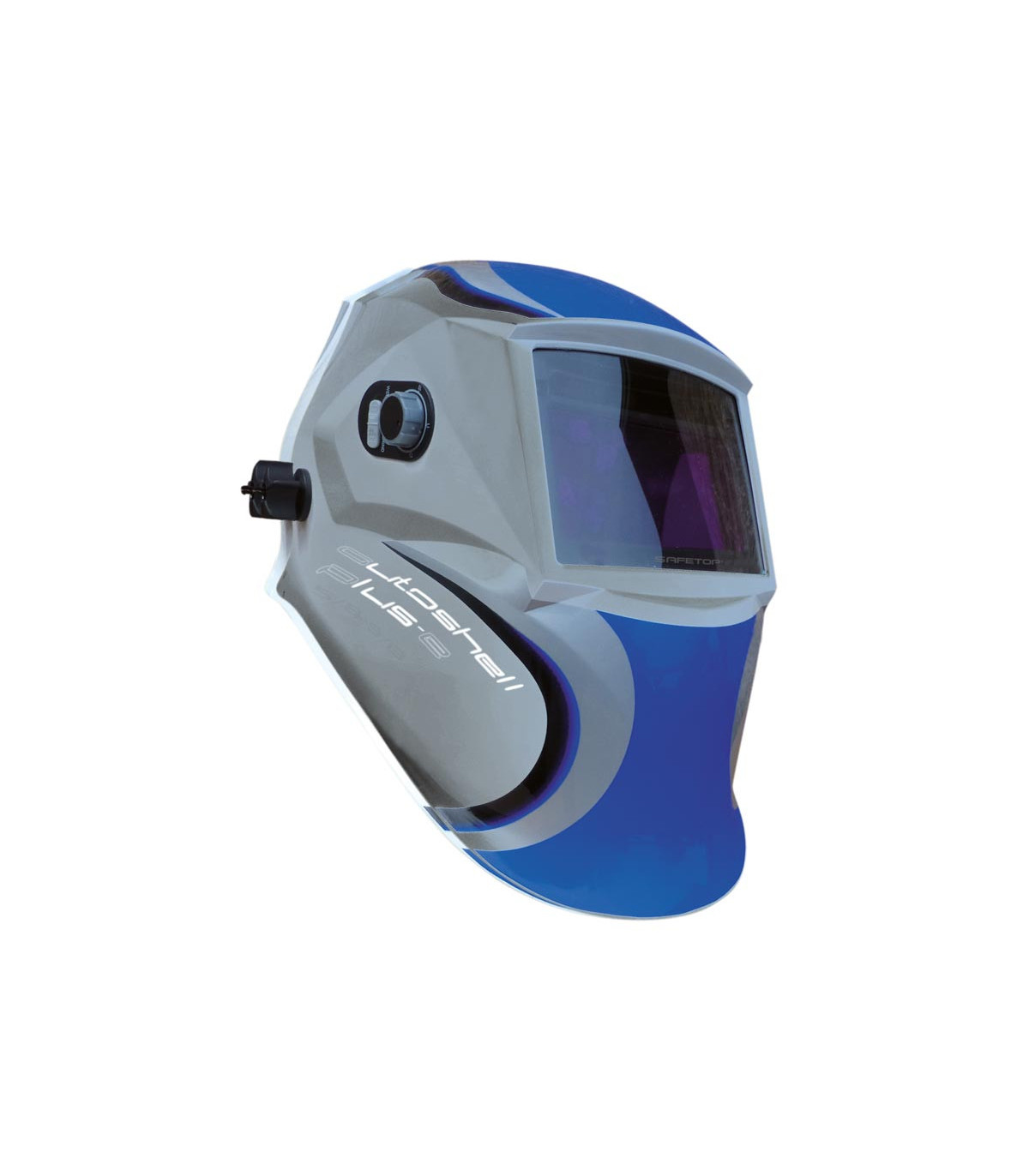

SAFETOP Autoshell Plus-E automatic welding helmet

Professional, high performance, with a glossy gray/blue nylon casing. •Ultralight and moisture resistant.

Electrode, MIG/MAG, TIG, GRINDING

FEATURES

• Professional, high performance.
• Optimized performance, with a glossy gray/blue nylon casing, ultralight and moisture resistant. With a photoelectric cell with an extended field of vision of 98x55mm. Variable active tone 5-8/9-13: from grade 5 to DIN8, suitable for autogenous welding, oxy-fuel cutting, and from DIN9 to DIN13 for MIG, TIG. Sensitivity to the intensity of the electric arc and delay of darkening from 0.1 to 1.0 s infinite, all optimized.
• With automatic on-off.
• 4 arc sensors.
• Rest state: DIN grade 4
• Cartridge of 125x102x10mm with a viewing area of 98x55 mm.

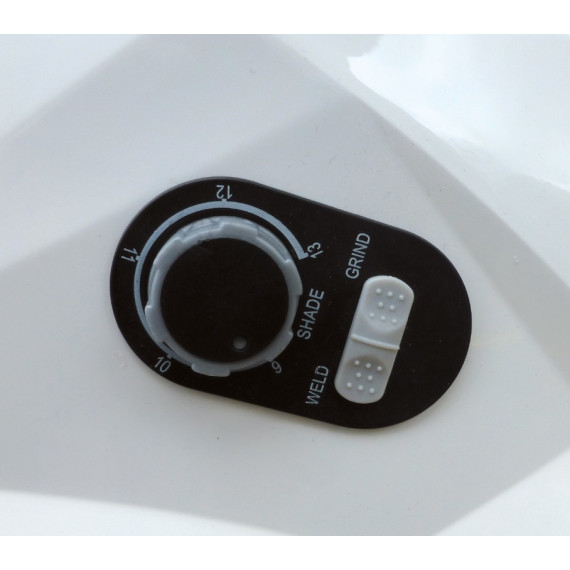

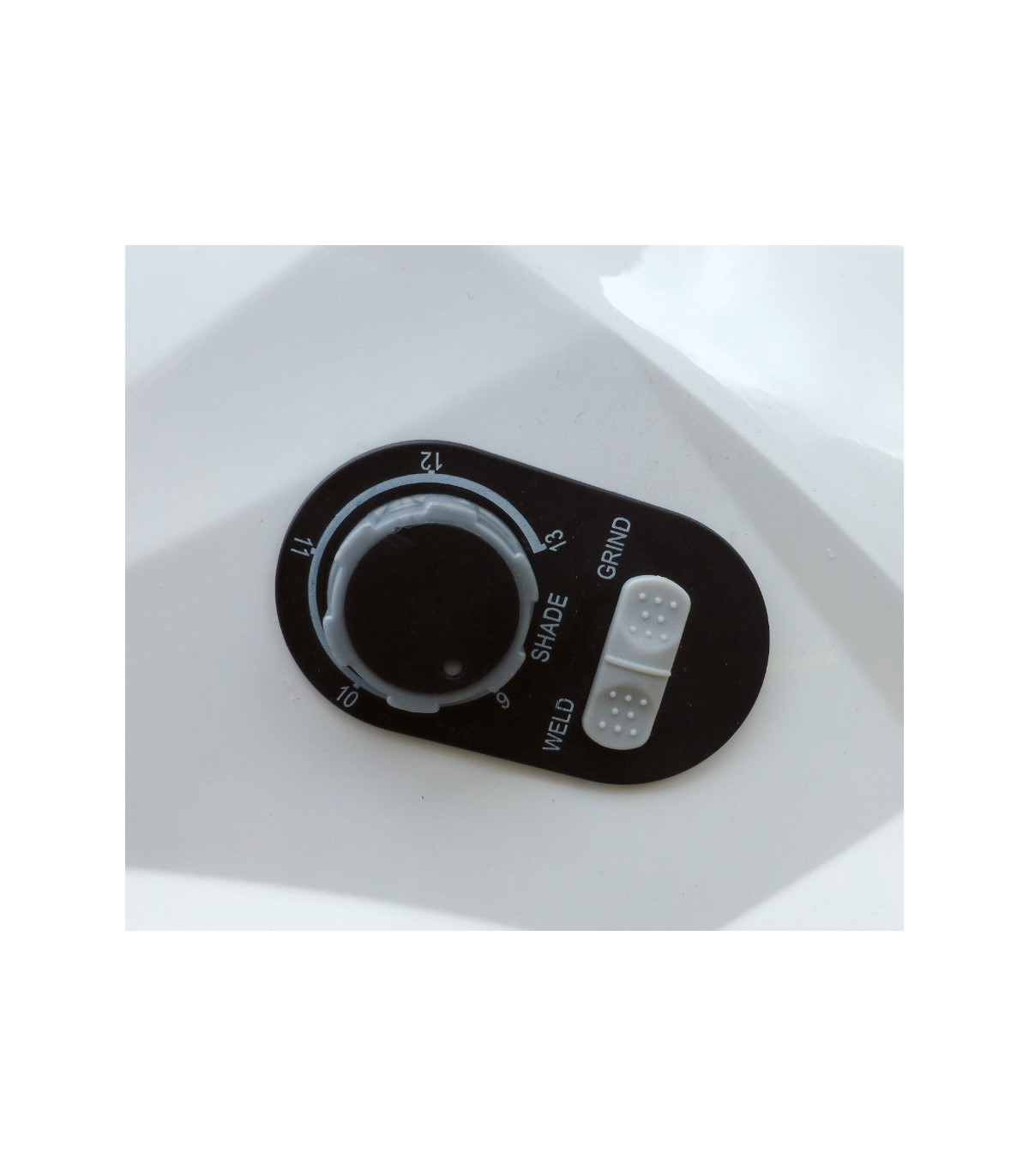

• GRIND function that allows using the screen in clear mode for touch-ups, grinding, etc.
• Reaction time: <1/25000 s.
• TIG welding: low TIG amperage: >5 amperes. DC >5 amperes.
• UV/IR protection DIN 16.
• UV ratio 313 mm < 0.002%
• Low volume alarm: YES. ADF self-check: YES
• Operating temperature between -10ºC and 55ºC.
• Exterior material: reinforced fireproof nylon.

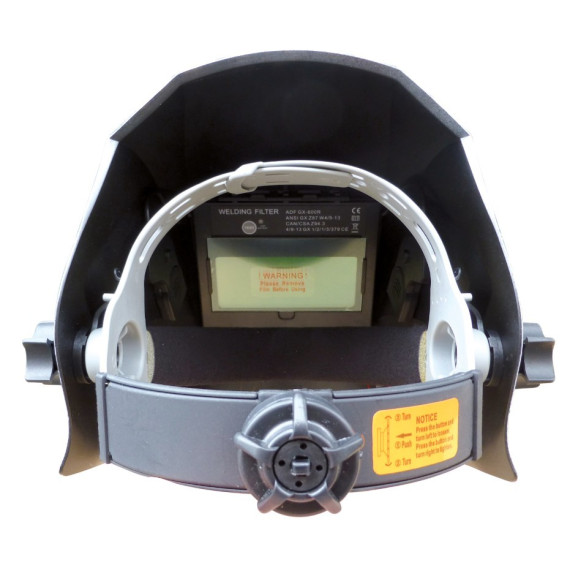

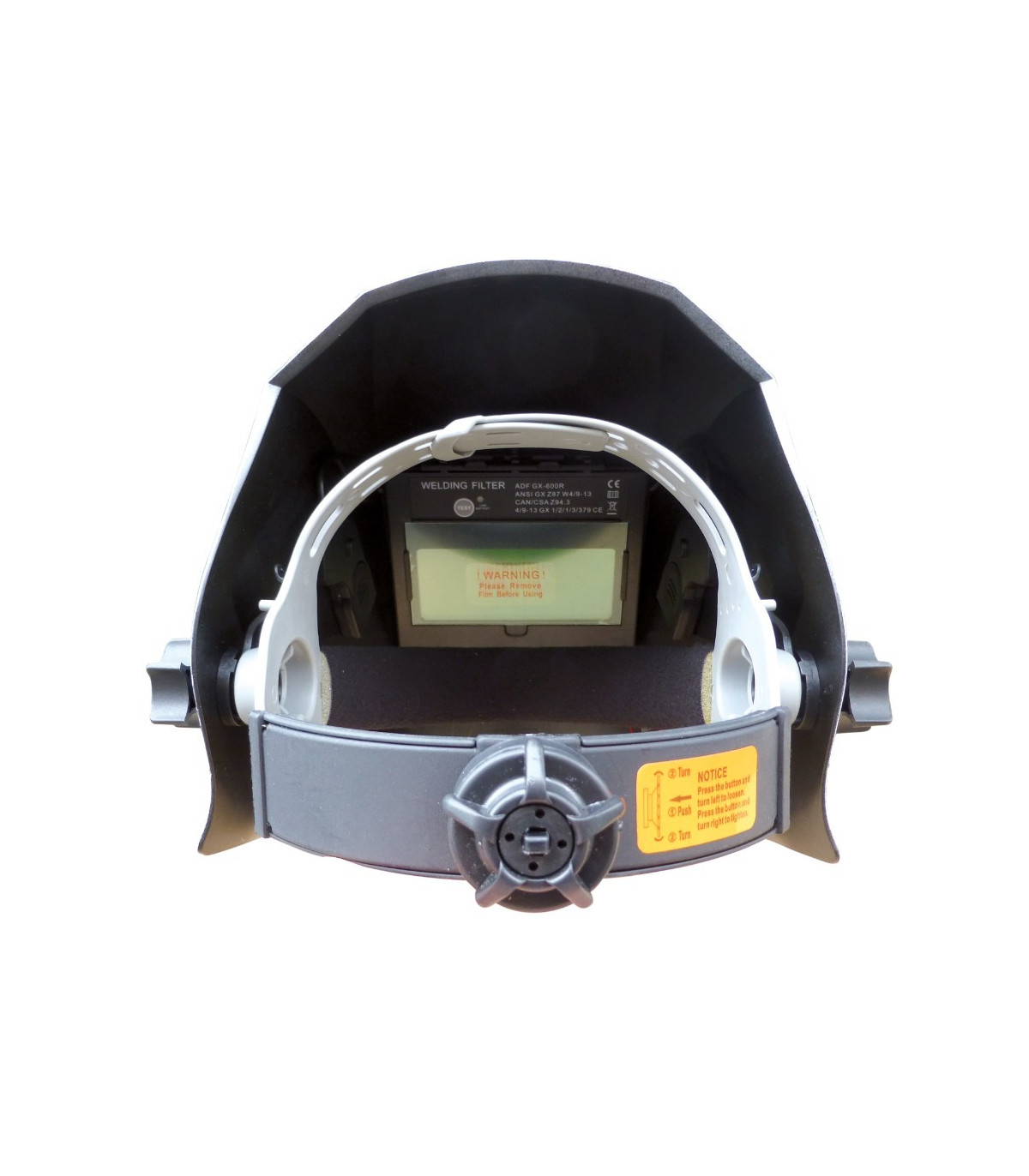

• Exceptionally comfortable suspension harness with position adjustments and rest function.
• Replaceable lithium batteries.

CERTIFICATION

EN 175 / EN 379

APPLICATIONS

Suitable for electrode, MIG/MAG, TIG, GRINDING

PACKAGING

1 unit / 6 units (box)

AUTOSHELL PLUS SPARE PARTS
