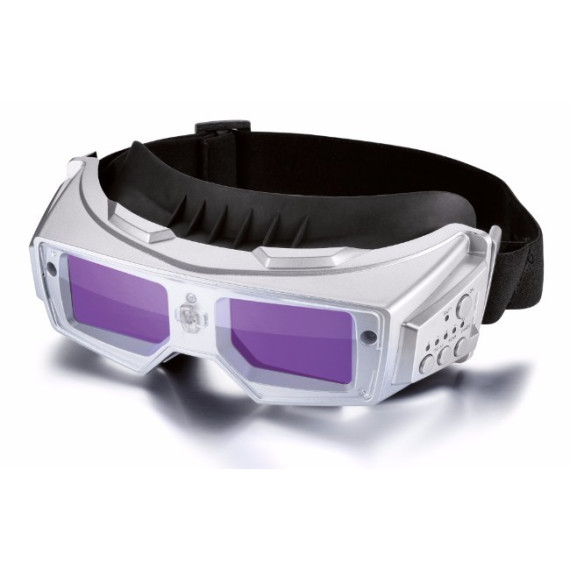

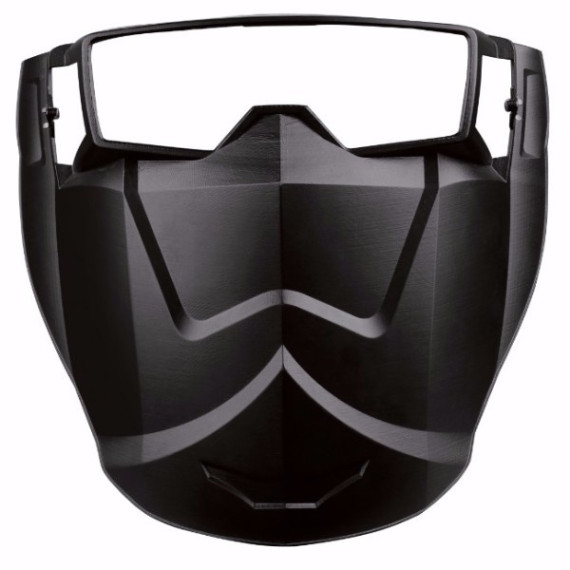

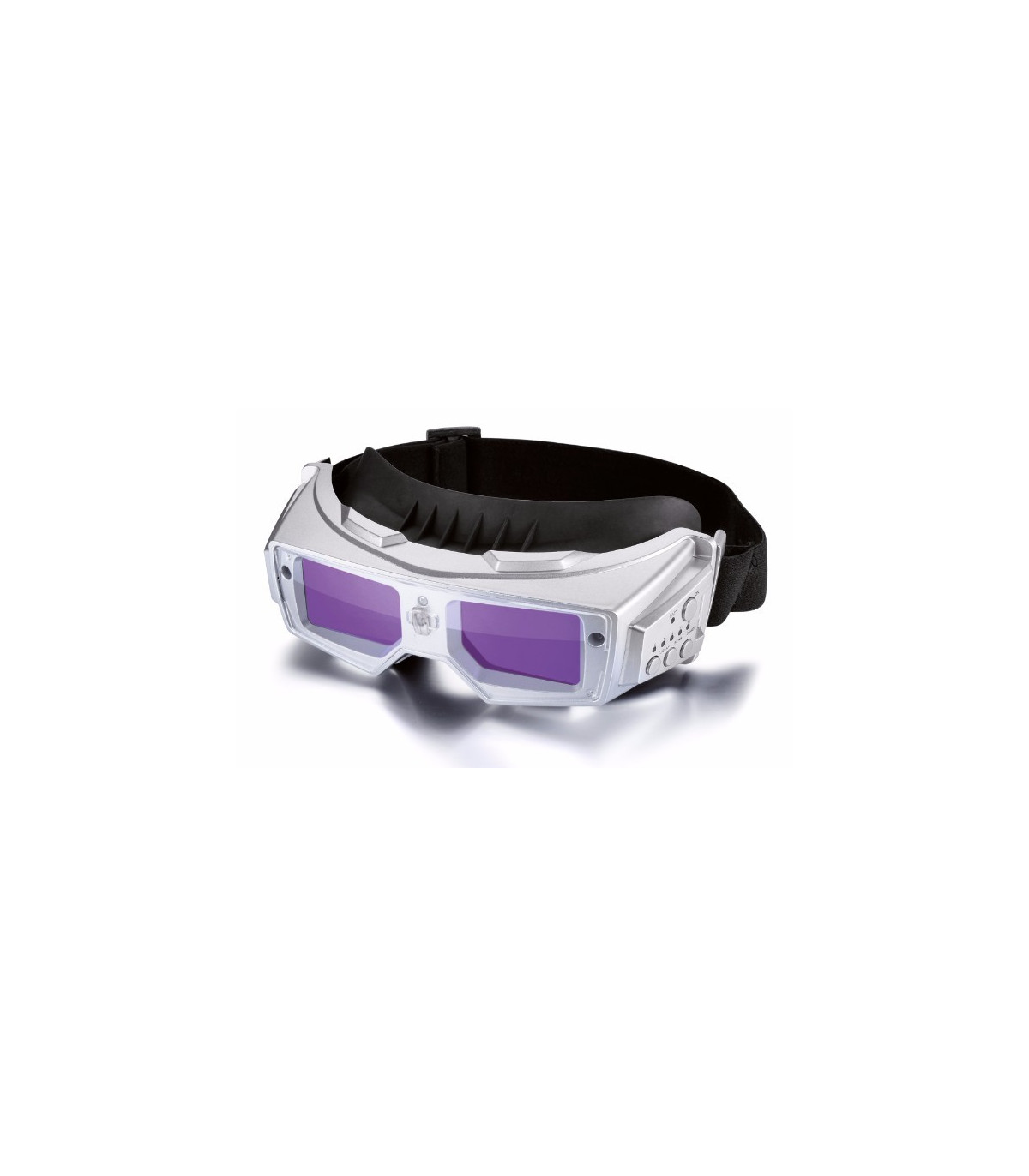

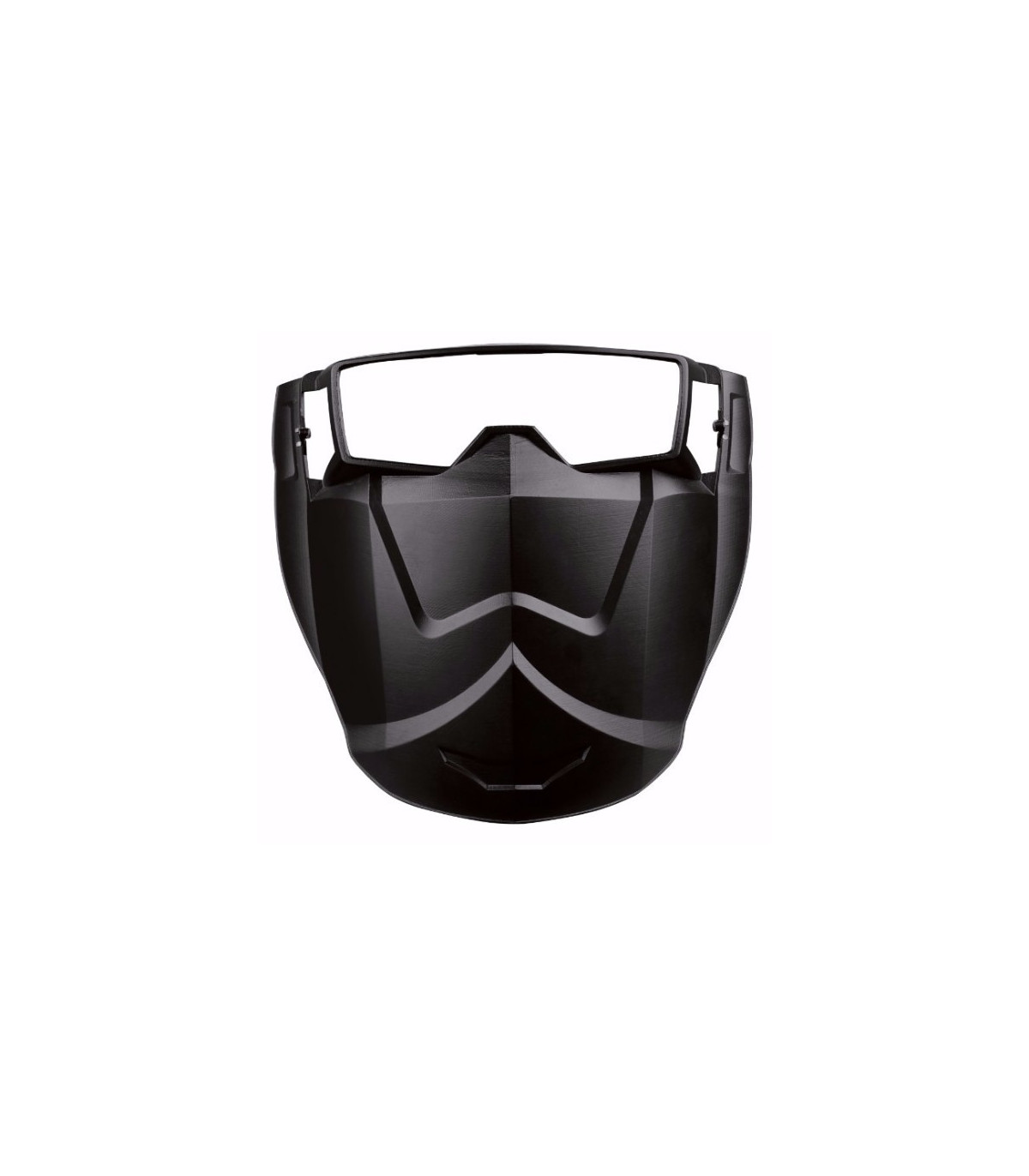

Electronic welding helmet with screen and hood SAFETOP Cobra FX-200

Automatic welding goggles with digital control of darkening and sensitivity. With an exclusive ventilation system that promotes eye breathability. Its high-quality casing serves as an anti-impact barrier.

FEATURES

• Extra heat resistant.

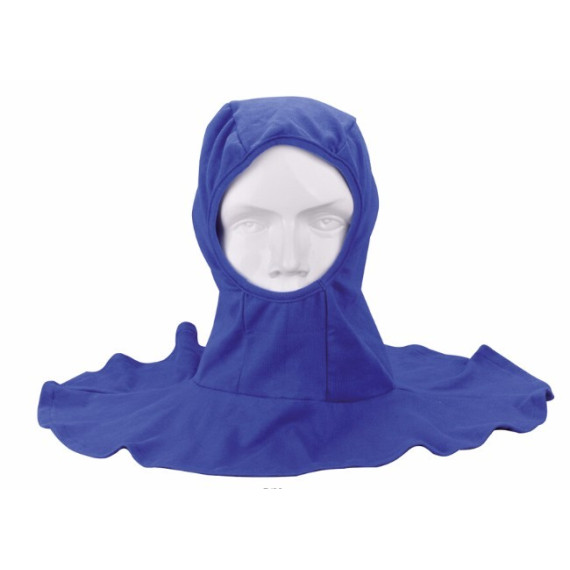

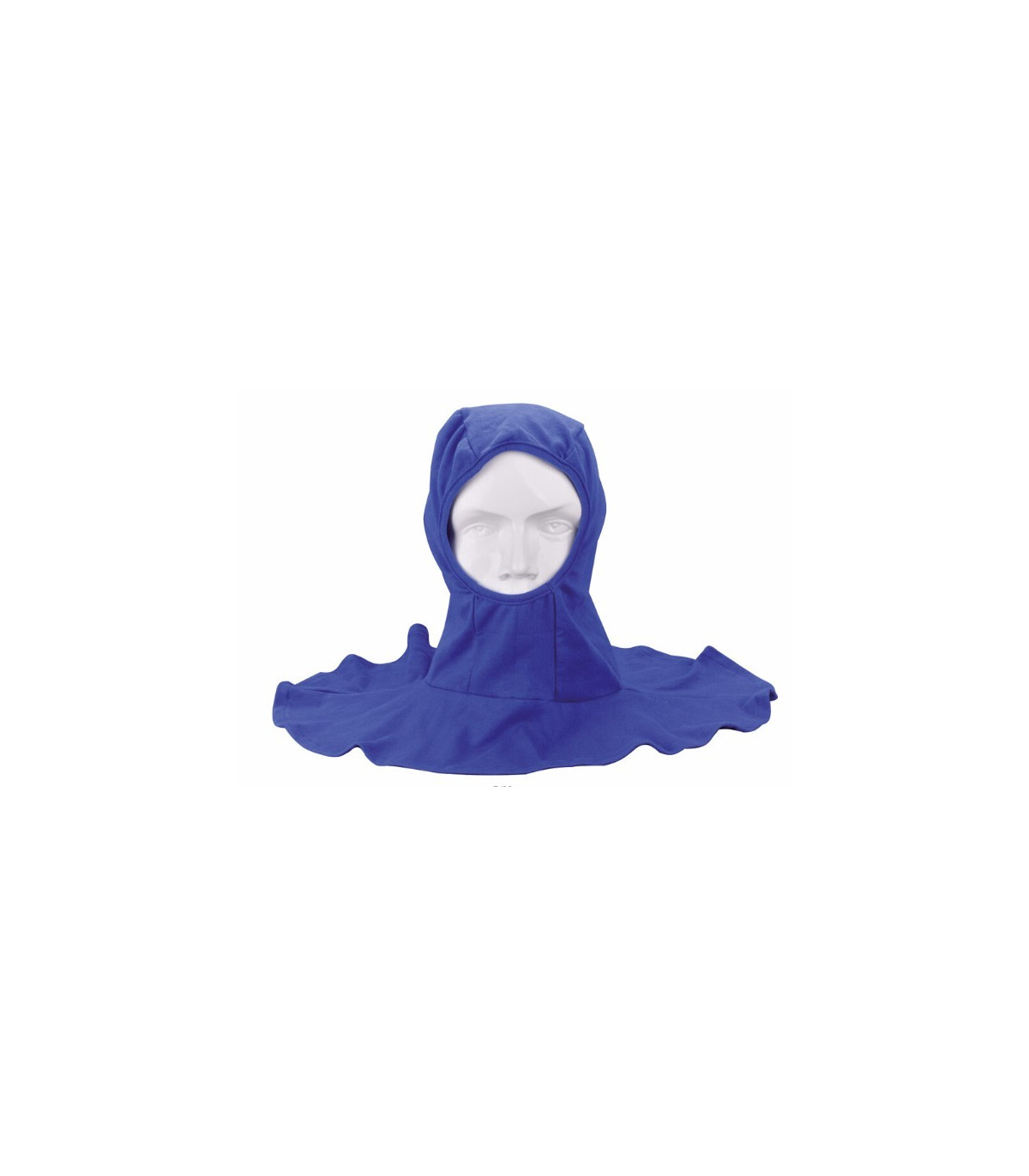

• Supplied with flame-retardant lens and hood.
• Switching time: 1/25,000 s.
• Clear state DIN4.
• Variable dark state: 5, 7, 9, 11, 13.
• High-definition filter: 1/1/1/2.
• Adjustable sensitivity and darkening.
• With grinding function.
• 2 arc sensors.
• Viewing area: 47.5 x 28 mm
• Cartridge size: 175x73x92 mm
• UV/IR protection (ultraviolet and infrared).
• Powered by solar energy or through 2 lithium batteries. With low battery alarm.
• ON/OFF function. With automatic shut-off function (the screen will turn off after 10 minutes of inactivity).
• Operating temperature -5oC + 55 oC

TECHNICAL DATA

• * Clear state #4
• * Variable dark state 5,7,9,11,13
• * Switching time: 1/25000 s
• * Delay time: 0.1/0.3s/0.6s/0.8s/1.0s N5/N7/N9/N11/N13
• * Grinding function
• * Adjustable sensitivity
• * 2 arc sensors
• * Power supply: 2 lithium batteries
• * ON/OFF function
• * Low battery alarm

MATERIALS

Polypropylene - Cotton hood

PACKAGING

1 unit

APPLICATIONS

SMAW, MAG, TIG, MIG, PAC, cutting, PAW, microplasma, and arc welding, etc.

STANDARDS/REGULATIONS

EN175 1F (welding screens) EN379 (welding filters) ANSI Z87.1 (ADF and screen), CSA Z94.3, AS/NZS, RoHS (Restriction of hazardous substances)
