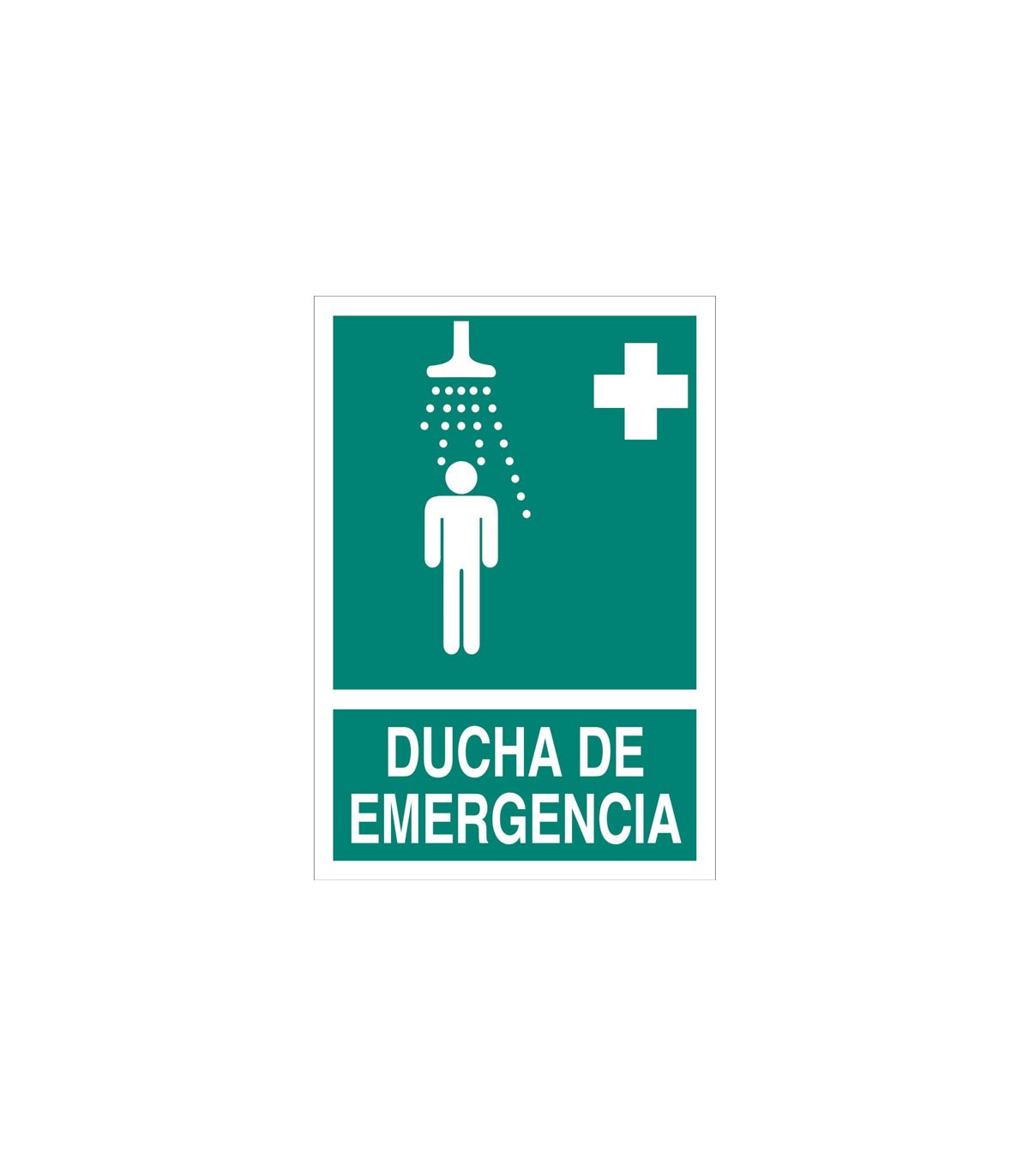

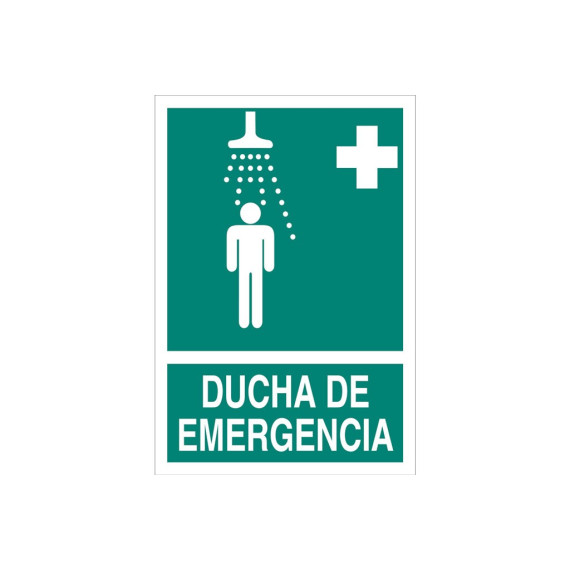

Emergency Shower Signal (text and pictogram) luminescent COFAN

Evacuation signal Emergency shower (text and pictogram) COFAN. It is a high-quality emergency sign that is easy to install. The sign is used to indicate buildings, auditoriums, companies, and factories to mark the areas designated for emergency first aid kits.

The sign is made with a photoluminescent pigment layer, (after absorbing light, the product emits it in the dark, so it does not require any electrical source and can be charged an indefinite number of times).

The evacuation safety signs are used to indicate and guide people towards emergency exits in the event of an occurrence or situation that requires evacuation. These signs are essential to ensure safety and facilitate the quick and orderly evacuation of a building, auditorium, company, or factory.

PRODUCT IDENTIFICATION

According to UNE 23035/4:

• Name or brand of the manufacturer
• Date of manufacture
• Denomination (class A or class B as applicable)

According to RIPCI 513:

• Name or brand of the manufacturer

MINIMUM LUMINESCENCE VALUES AFTER SALT CHAMBER

All NMZ signage undergoes various internal and external light response tests that ensure compliance with the light intensity values outlined in UNE 23035.

CLASS A:

CLASS B:

CHARACTERISTICS

SUPPORT MATERIALS PVC

According to UNE 53127:

• White PVC 1mm for class A and transparent PVC 0.7mm for class B
• White lacquered aluminum 0.6mm thick.
• Stability with Tª < 55º.
• Negligible water absorption (0.04 ± 0.01)%.
• Self-extinguishing.
• No appreciable lead and phosphorus content (less than 0.01%)
• Non-toxic.

PICTOGRAMS

According to standards:

• UNE EN ISO 7010
• UNE 23033/1

TEXTS

• According to UNE 23033/1

PHOTOLUMINESCENT PRODUCT

• Made from pigments.
• Unlimited photoluminescent charge and discharge cycles

COLOR

Shades according to standard:

• UNE EN ISO 7010
• UNE 23033/1
• High adhesion and resistance ink.
• Allows for great flexibility in the final product.
• Non-flammable. Non-toxic

FINAL THICKNESS

Class A

• PVC 1.2 mm (±10%).
• ALUMINUM 0.8 mm (±10%).

Class B

• PVC 0.8 mm (±10%).
• ALUMINUM 0.7 mm (±10%).

REFERENCE

• Printed on the sign

DIMENSIONS

• According to UNE 23033/1

COLOR PERCENTAGES

• According to UNE 23033-1

MAXIMUM VIEWING DISTANCE

• Printed on the sign.

To calculate the necessary dimensions of a sign, the following formula will be applied, up to a maximum distance of 50 m:

S≥ L2 /2000

“S” represents the surface area of the sign in square meters, and “L” the distance in meters from which the sign can be perceived.

MEASURES

148X105 mm

210X148 mm

297X210 mm

420X297 mm

REGULATIONS

- UNE 23034/1998 (Evacuation) - Fire safety. Safety signage. Evacuation routes.

- UNE 23035-1/2003 - Fire safety. Photoluminescent signage-

- UNE 23035-4/2003 - NMZ signs periodically exceed radioactivity tests that guarantee the non-emission of the signaling element in compliance with UNE. 23035-4.

- UNE 53127/2002 - Cellular plastics. Determination of combustion characteristics of specimens in a horizontal position subjected to a small flame.

- UNE EN ISO 7010 : 2012 - Graphical symbols. Colors and safety signs. Registered safety signs (ISO 7010:2011) (Ratified by AENOR in September 2012.)

- RD 314/2006 (CTE - Technical Building Code)

- RIPCI 2017 (Extinction) - Regulation of Fire Protection Installations.

- NMZ signs are manufactured with a certified quality management system UNE-EN ISO 9001

STORAGE, CLEANING, AND CONSERVATION

The working temperature should not exceed 45º C. Higher temperatures may deform the support material.

The optimal storage temperature should be between 15º C and 25º C; with a humidity of 10/50%.

Cleaning methods; avoid using abrasive products. It is recommended to clean them with water and neutral detergents.

The technical building code – Basic document on fire safety requires that photoluminescent signage must comply with UNE 23035.

To maintain the functionality for which the signaling systems have been conceived, SEKURECO recommends keeping the signs free of dust, dirt, or any residue or object that may obstruct visibility and identification of the same.

For cleaning, it is advisable to use soapy solutions preferably, avoiding the use of solvents or abrasive products that may deteriorate the surface of the sign.

Photoluminescent signs should be positioned in such a way that they receive energy from a natural or artificial light source to ensure their proper functioning.

According to RD 513/2017 (TABLE III), luminescent signaling systems must undergo an annual inspection/review conducted by specialized personnel from the manufacturer, a maintenance company, or by the user or owner of the installation.

Once the useful life period of the signs that make up the signaling system has elapsed, the inspection of these elements will be carried out following the indications outlined in RD 513/2017 and UNE 23035-2

SIGN INSTALLATION

Check our blog to learn how to install a sign or poster: https://www.sekureco.eu/blog/76_consejos-de-instalacion-de-senales-de-seguridad.html

The RECOMMENDED INSTALLATION HEIGHT ranges between 2 and 2.50 meters, always maintaining a distance of 0.30 meters from the ceiling.

Photoluminescent signs should be positioned to receive energy from a natural or artificial light source to ensure their proper functioning.

The FIXING of the signaling element must be done on a firm surface free of dirt.

The sign can be secured using MECHANICAL ELEMENTS (screws, rivets, etc...) or ADHESIVES (mounting adhesive, glues, silicones…) carefully, avoiding soiling the visible surface or deforming it.

The EVACUATION signage should be installed in such a way that from any point likely to be occupied in the premises, an evacuation can be initiated, so it is recommended to install directional signs at all routes, intersections, stairs, etc. that serve as pathways.

The signage on DOORS will be placed above the door frame with the appropriate label (“EXIT”, “EMERGENCY EXIT”, “NO EXIT”, …).

The signage for FIRE PROTECTION, rescue, and/or assistance means will be carried out on the same elements to be signaled whenever possible.

APPLICATIONS

• Commercial and office buildings
• Hospitals and medical care centers
• Schools and universities
• Airports and transport stations
• Hotels
• Shopping centers
• Industrial facilities and factories
• Theaters, cinemas, and entertainment venues
• Restaurants and food establishments.
