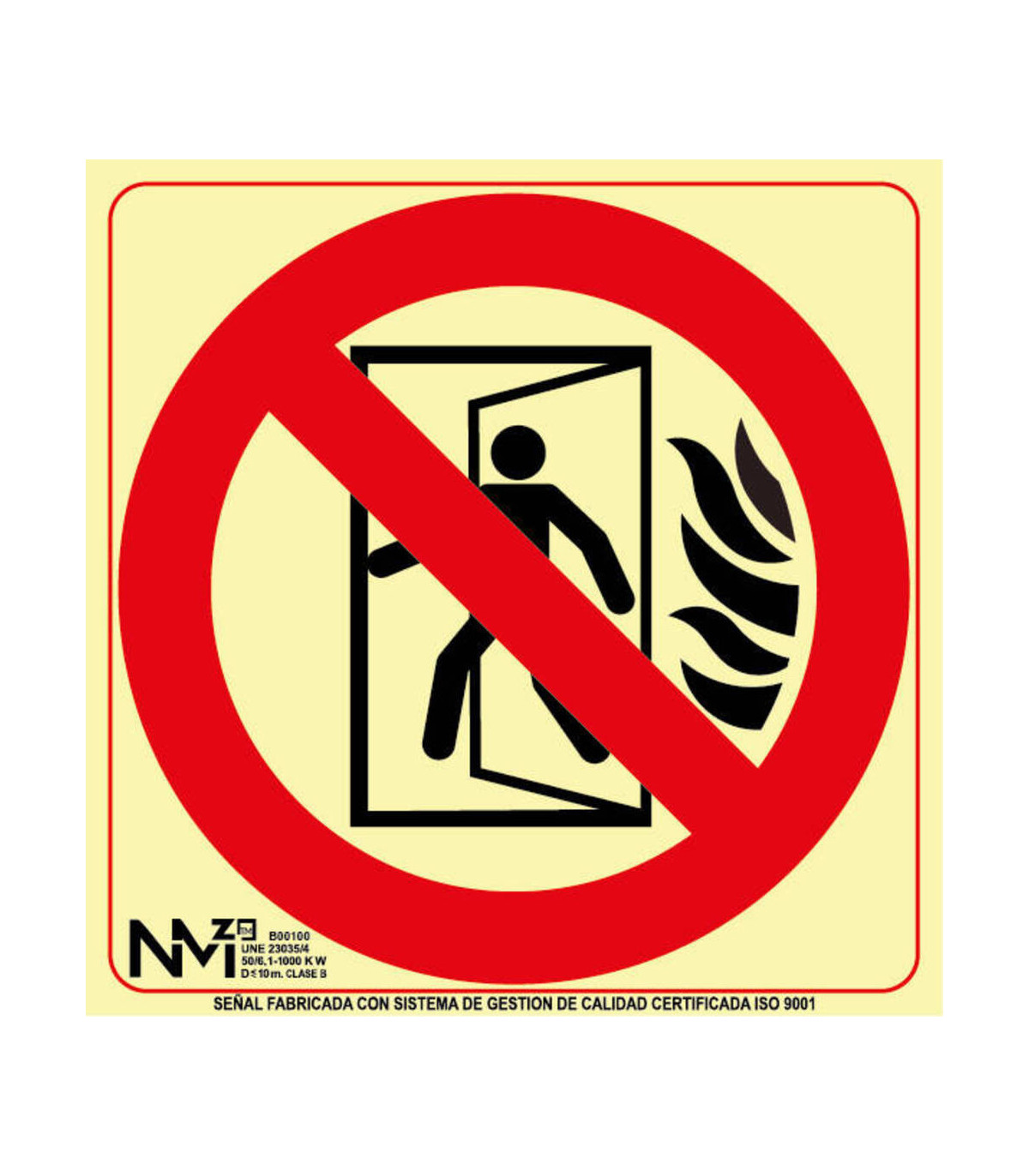

Sign "No use in case of emergency - No Departure" high-light pictogram

Sign "No use in case of emergency - No Departure" high-light pictogram

PRODUCT IDENTIFICATION

According to UNE 23035/4:

• Manufacturer name or brand
• Date of manufacture
• Denomination (class A or class B as appropriate)

According to RIPCI 513/2017:

• Lot number

MINIMUM LUMINESCENCE VALUES AFTER THE SALT CHAMBER

All signalling of NMZ is subject to different internal and external light response tests that ensure compliance with the light intensity values contemplated in the UNE 23035 standard.

CLASE A:

CLASE B:

CHARACTERISTICS

MATERIALS SOPORT PVC

According to UNE 53127:

• White PVC 1mm for class A and transparent PVC 0.7mm and 0.5mm for class B
• White lacquered aluminium of 0.6mm thick.
• Stability with Ta . 55o.
• Absorption of despicable water (0.04 ±0.01)%.
• No fuel.
• No significant lead and phosphorus content (inferiors to 0.01%)
• Not toxic.

PICTOGRAMME

According to rules:

• UNE EN ISO 7010
• UNE 23033/1

TEXTS

• UNE 23033/1

PRODUCTO FOTOLUMINISCENTE

• Composed of pigment base.
• Unlimited upload and download photo-luminiscent cycles

COLOR

Tones according to standard:

• UNE EN ISO 7010
• UNE 23033/1
• High adherence and resistance ink.
• It allows great flexibility in the final product.
• Not self-inflammable. Non-toxic

FINAL SPACE

Class A

• PVC 1.2 m/m (±10%).
• ALUMINIO 0.8 m/m (±10%).

Class B

• PVC 0.8 m/m (±10%).
• ALUMINIO 0.7 m/m (±10%).

REFERENCE

• Print on the signal

DIMENSIONS

• UNE 23033/1

OF COLOR

• UNE 23033-1

MXIMA OF VISION

• Impresa on the signal.

To calculate the necessary dimensions of a signal, up to a maximum distance of 50 m, the formula:

S≥ L2 / 2000

“S” represents the surface of the signal in square meters, and “L” the distance in meters from which the signal can be perceived.

ACTION

CLASE A

• A0A400.........210X210 (PVC Luminiscente 1mm)
• FA03400...........420X420 (PVC Luminiscente 1mm)
• FA0A900........210X210 (Aluminium Luminiscente 0.5mm)
• FA03900...........420X420 (Aluminium Luminiscente 0.5mm)
• FA0G900...........630X630 (Aluminium Luminiscente 0.5mm)

CLASE B

• B00A100.........210X210 (PVC Luminiscente 0.7mm)
• FB03100.........420X420 (PVC Luminiscente 0.7mm)

NORMATIA

- UNE 23033/1:2019 (Extinction) - Fire safety. Signaling

- UNE 23033/2:2019 (Instalations) - Fire safety. Security signaling. Part 2: Signing and identifying fire protection facilities.

- UNE 23034/1998 (Evacuation) - Fire safety. Security signaling. Evacuation routes.

- UNE 23035-1/2003 - Fire safety. Photoluminiscent signaling-

- UNE 23035-4/2003 - NMZ signals regularly exceed radioactivity tests that guarantee the non-emission of the signaling element in compliance with the UNE standard. 23035-4.

- UNE 53127/2002 - Cellular plastics. Determination of the characteristics of combustion of probes in horizontal position subjected to a small flame.

- UNE EN ISO 7010 : 2012 - Graphic symbols. Colors and safety signals. Security signs registered (ISO 7010:2011) (Ratified by AENOR in September 2012.)

- RD 314/2006 (CTE - Technical Building Code)

- RIPCI 2017 (Extinction) - Regulation of Fire Protection Facility.

- NMZ signals are manufactured with UNE-EN ISO 9001 certified quality management system

STORAGE, CLEANING AND PRESERVATION

The working temperature should not exceed 45o C. Higher temperatures can deform the supporting material.

The optimal storage temperature will be between 15o C and 25o C; and with a humidity of 10/50%.

Cleaning methods: avoid using abrasive products.It is recommended to clean with water and neutral detergents.

The technical building code – Basic fire safety document requires that photoluminiscent signaling must comply with UNE 23035.

In order to maintain the functionality for which the signage systems were designed, SEKURECO recommends keeping signs free of dust, dirt, or any debris or objects that could impair their visibility and identification.

For its cleaning, it is advisable to use soap solutions preferably, avoiding the use of solvents or abrasive products that may deteriorate the surface of the signal.

Photoluminescent signals should be placed in such a way that they receive the energy of a natural or artificial light source to ensure their proper functioning.

According to the RD 513/2017 (TABLA III), the luminiscent signaling systems must be subject to an annual inspection/revision that will be carried out by specialized manufacturer staff, a maintenance company, or by the user or owner of the installation.

After the period of life of the signals that make up the signaling system has passed, the inspection of these elements will be carried out following the indications collected in the RD 513/2017 and the UNE 23035-2
