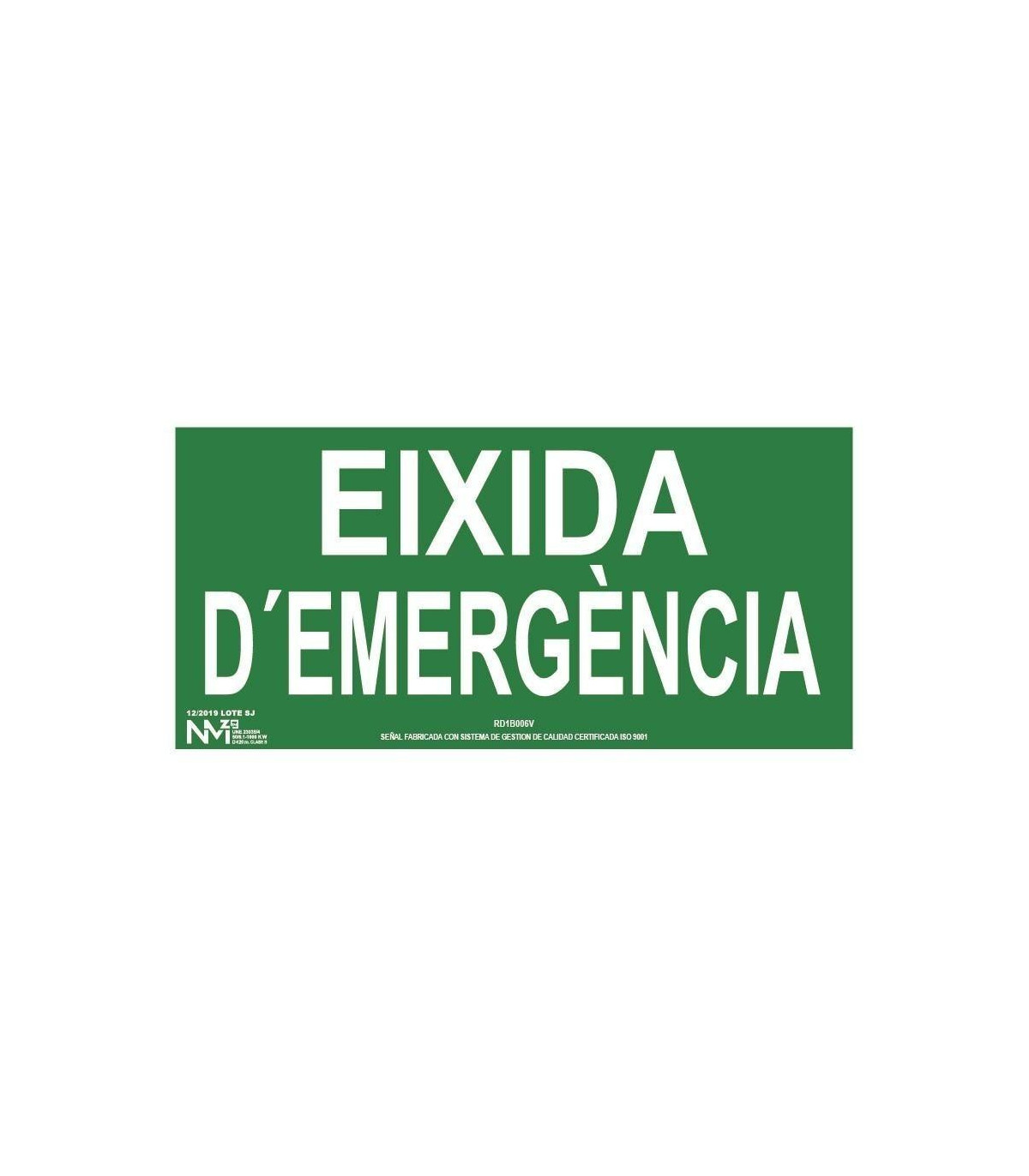

Luminous evacuation signs Large Format Valencian Emergency Exit SEKURECO

Large Format Valencian Emergency Exit Luminous Evacuation Signs SEKURECO. Emergency and evacuation exit sign, made with a layer of photoluminescent pigment (after absorbing light, the product emits it in the dark, so it does not require any electrical source and can be charged an indefinite number of times).

PRODUCT IDENTIFICATION

According to UNE 23035/4:

• Manufacturer's name or brand
• Manufacturing date
• Designation (class A or class B as applicable)

According to RIPCI 513:

• Manufacturer's name or brand

MINIMUM LUMINESCENCE VALUES AFTER SALT CHAMBER

CLASS A:

CLASS B:

CHARACTERISTICS

SUPPORT MATERIALS PVC

According to UNE 53127:

• 1mm white PVC for class A and 0.7mm transparent PVC for class B
• 0.6mm thick white lacquered aluminum.
• Stability with T° < 55º.
• Negligible water absorption (0.04 ± 0.01)%.
• Self-extinguishing.
• No appreciable lead and phosphorus content (less than 0.01%)
• Non-toxic.

PICTOGRAMS

According to standards:

• UNE EN ISO 7010
• UNE 23033/1

TEXTS

• According to UNE 23033/1

PHOTOLUMINESCENT PRODUCT

• Made from pigments.
• Unlimited photoluminescent charge and discharge cycles

COLOR

Shades according to standard:

• UNE EN ISO 7010
• UNE 23033/1
• High adhesion and resistance ink.
• Allows great flexibility in the final product.
• Not self-flammable. Non-toxic

FINAL THICKNESS

Class A

• PVC 1.2 m/m (±10%).
• ALUMINUM 0.8 m/m (±10%).

Class B

• PVC 0.8 m/m (±10%).
• ALUMINUM 0.7 m/m (±10%).

REFERENCE

• Printed on the sign

DIMENSIONS

• According to UNE 23033/1

COLOR PERCENTAGES

• According to UNE 23033-1

MAXIMUM VIEWING DISTANCE

• Printed on the sign.

To calculate the necessary dimensions of a sign, up to a maximum distance of 50 m, the formula will be applied:

S≥ L2 /2000

“S” represents the area of the sign in square meters, and “L” the distance in meters from which the sign can be perceived.

MEASURES

CLASS A

• FA11406-V..............320x160 mm (PVC 1 mm)
• FA18406-V..............640x320 mm (PVC 1 mm)
• FA1K406-V..............960x480 mm (PVC 1 mm)
• FA11906-V..............320x160 mm (Aluminum 0.5 mm)
• FA18906-V..............640x320 mm (Aluminum 0.5 mm)
• FA1K906-V..............960x480 mm (Aluminum 0.5 mm)

CLASS B (PVC 0.7 mm)

• FB11006-V..............320x160 mm (PVC 0.7 mm)
• FB18006-V..............640x320 mm (PVC 0.7 mm)
• FB1K006-V..............960x480 mm (PVC 0.7 mm)

REGULATIONS

- UNE 23033/1:2019 (Extinction)

- UNE 23033/2:2019 (Installations)

- UNE 23034/1998 (Evacuation)

- UNE 23035-1/2003

- UNE 23035-4/2003

- UNE 53127/2002

- UNE EN ISO 7010 : 2012

- RD 314/2006 (CTE)

- RIPCI 2017 (Extinction)

STORAGE, CLEANING AND CONSERVATION

The working temperature should not exceed 45º C. Higher temperatures may deform the support material.

The optimal storage temperature will be between 15º C and 25º C; and with a humidity of 10/50%.

Cleaning methods; avoid applying abrasive products. It is recommended to clean them with water and neutral detergents.
