Evacuation signal Exit in Basque luminescent Large Format SEKURECO

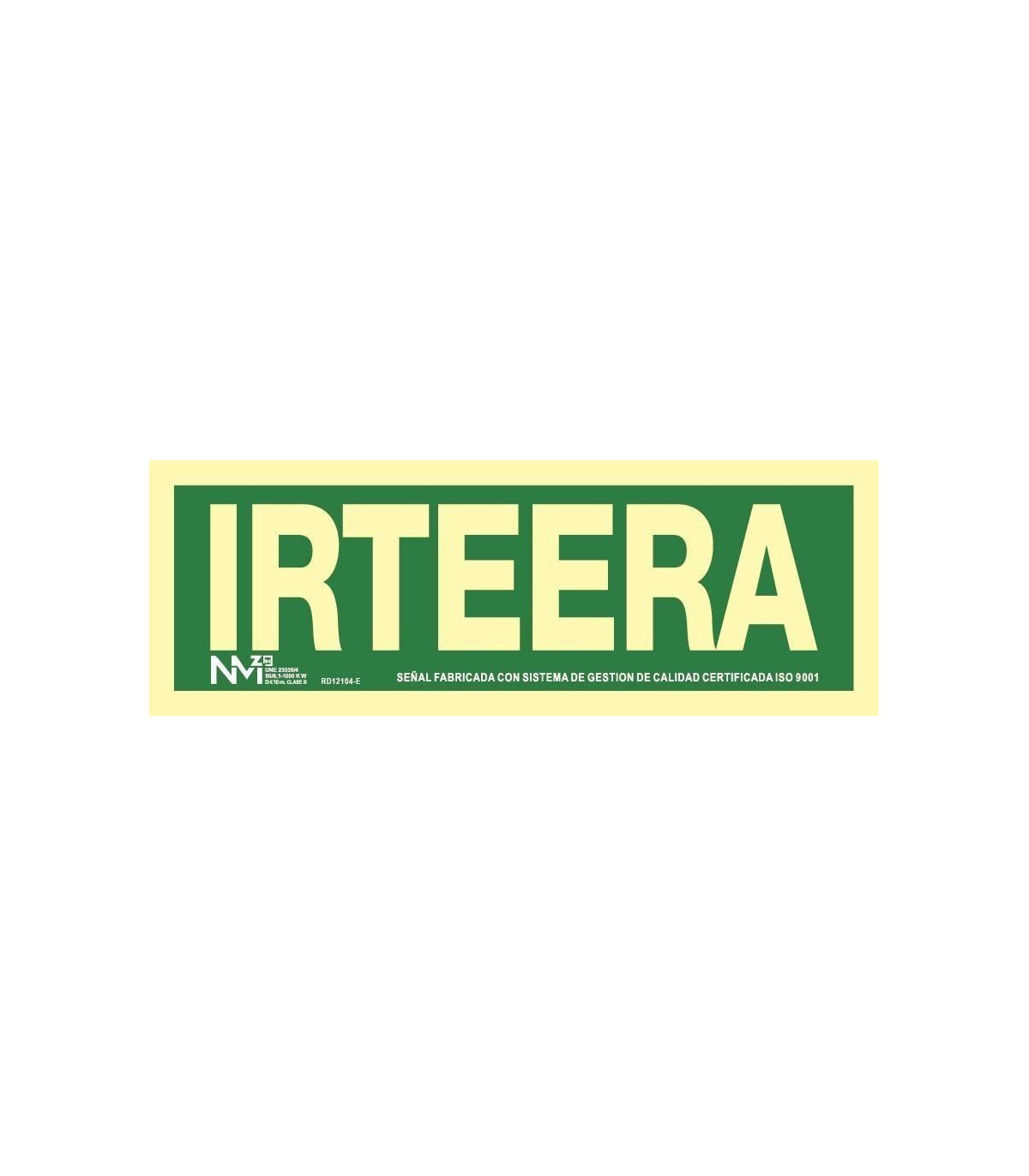

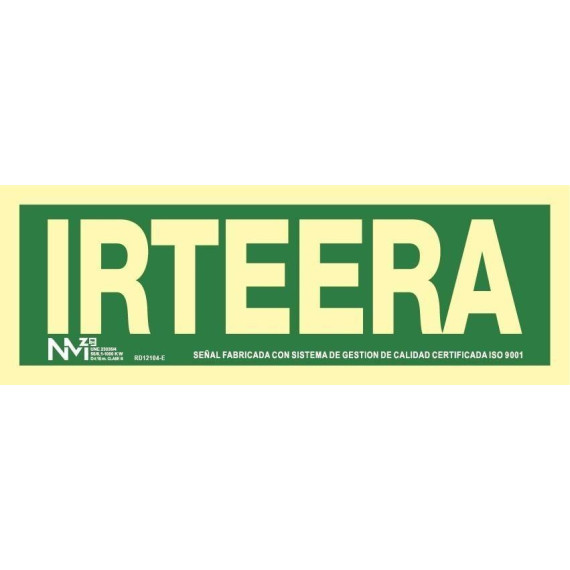

Emergency signal and evacuation Exit written in Basque "Irteera", made with a photoluminescent pigment layer (after absorbing light, the product emits it in the dark, so it does not require any electrical source and can be charged an indefinite number of times).

The sign is used to install in structures and spaces designated as exit areas in buildings and common spaces. Suitable for industries.

PRODUCT IDENTIFICATION

According to UNE 23035/4:

• Manufacturer's name or brand
• Manufacturing date
• Designation (class A or class B as applicable)

According to RIPCI 513:

• Manufacturer's name or brand

MINIMUM LUMINESCENCE VALUES AFTER SALT CHAMBER

CLASS A:

CLASS B:

CHARACTERISTICS

SUPPORT MATERIALS PVC

According to UNE 53127:

• White PVC 1mm for class A and transparent PVC 0.7mm for class B
• White lacquered aluminum 0.6mm thick.
• Stability with Tª < 55º.
• Negligible water absorption (0.04 ± 0.01)%.
• Self-extinguishing.
• No significant lead and phosphorus content (less than 0.01%)
• Non-toxic.

PICTOGRAMS

According to standards:

• UNE EN ISO 7010
• UNE 23033/1

TEXTS

• According to UNE 23033/1

PHOTOLUMINESCENT PRODUCT

• Made from pigment-based compounds.
• Unlimited photoluminescent charge and discharge cycles

COLOR

Shades according to standard:

• UNE EN ISO 7010
• UNE 23033/1
• High adhesion and resistance ink.
• Allows for great flexibility in the final product.
• Non-flammable. Non-toxic

FINAL THICKNESS

Class A

• PVC 1.2 m/m (±10%).
• ALUMINUM 0.8 m/m (±10%).

Class B

• PVC 0.8 m/m (±10%).
• ALUMINUM 0.7 m/m (±10%).

REFERENCE

• Printed on the sign

DIMENSIONS

• According to UNE 23033/1

COLOR PERCENTAGES

• According to UNE 23033-1

MAXIMUM VIEWING DISTANCE

• Printed on the sign.

To calculate the necessary dimensions of a sign, the following formula will be applied, up to a maximum distance of 50 m:

S≥ L2 /2000

“S” represents the area of the sign in square meters, and “L” is the distance in meters from which the sign can be perceived.

MEASURES

CLASS A

• FA11404-E..............320x160 mm (PVC 1 mm)
• FA18404-E..............640x320 mm (PVC 1 mm)
• FA1K404-E..............960x480 mm (PVC 1 mm)
• FA11904-E..............320x160 mm (Aluminum 0.5 mm)
• FA18904-E..............640x320 mm (Aluminum 0.5 mm)
• FA1K904-E..............960x480 mm (Aluminum 0.5 mm)

CLASS B

• B11104-E..............320x160 mm (PVC 0.7 mm)
• FB18004-E..............640x320 mm (PVC 0.7 mm)
• FB1K004-E..............960x480 mm (PVC 0.7 mm)

REGULATIONS

- UNE 23033/1:2019 (Extinction)

- UNE 23033/2:2019 (Installations)

- UNE 23034/1998 (Evacuation)

- UNE 23035-1/2003

- UNE 23035-4/2003

- UNE 53127/2002

- UNE EN ISO 7010 : 2012

- RD 314/2006 (CTE)

- RIPCI 2017 (Extinction)

STORAGE, CLEANING AND CONSERVATION

The working temperature should not exceed 45º C. Higher temperatures may deform the support material.

The optimal storage temperature should be between 15º C and 25º C; with a humidity of 10/50%.

Cleaning methods; avoid applying abrasive products. It is recommended to clean them with water and neutral detergents.
