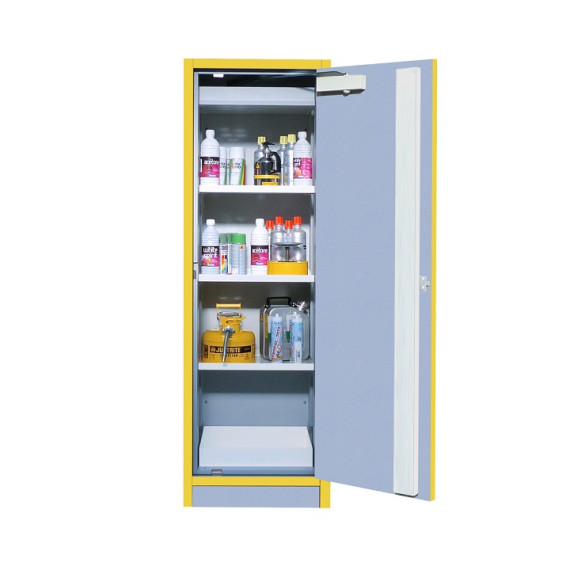

Tall cabinet with 1 door and 3 shelves equipped for flammable products 30 Minutes ECOSAFE

Fire-resistant safety cabinet with 30 minutes of resistance, with 3 shelves. It is a tall piece of furniture with 1 door, equipped.

Type 30 certification tested and approved according to EN 14470-1 (04-2004) and EN 1363-1 (06-2000).

With storage capacity (L): 130 and weight (kg): 117.00.

FEATURES

• Air intake and exhaust ducts of Ø 100 mm for natural ventilation or connection with forced ventilation / filtration system.
• Constructed from melamine: good chemical resistance in general.
• The thermo-expandable seals of the doors help maintain the fireproof internal body.
• Automatic closing doors.
• Easy connection with an exhaust system or a filtration box.

BENEFITS

• Fire resistance of 30 minutes according to the ISO 834 fire heating curve.
• Base area not manageable by a forklift when removing the panel (except for models under the bench).
• Automatic closing doors with the possibility of keeping the doors open. If the temperature rises to 47 °C, a fuse automatically closes the door(s).

TECHNICAL DATA

• Cabinet materials: melamine
• Door color: light gray RAL 7035
• Number of doors: 1
• Type of doors: hinged doors
• Hinges: left and right
• Door closure: automatic locking
• Ventilation diameter (mm): 100
• Number of compartments: 1
• Shelves: 3
• Retention trays: 1
• Retention capacity (L): 20
• External dimensions h x w x d (mm): 1980 x 605 x 550
• Internal dimensions h x w x d (mm): 1580 x 495 x 420
• Shipping dimensions h x w x d (mm): 2180 x 1200 x 800
• Permissible load: 30
• Storage capacity (L): 130
• Weight (kg): 117.00
• Gray structure (RAL 7035), yellow edges (RAL 1023).
• Safety labeling according to EN 14470-1.

ADVANTAGES

• Fire resistance of 30 minutes according to the ISO 834 standard curve.
• Base with cover to facilitate movement by pallet jack when empty, except for "under furniture" models.
• If the temperature rises to 47°C, a fusible link automatically closes the door(s).

PASSIVE SAFETY

• Insulated panel construction with high resistance to chemical attack.
• Light gray frame RAL 7035 with silver fields yellow RAL 1023.
• Standardized labeling
• Adjustable height retention shelves with a 32 mm pitch.
• Removable containment sump at the bottom. The containment sump must be placed at the bottom of your cabinet. If you wish to use it as storage space, you must first place a perforated cover plate (see options) corresponding to your containment sump.

ACTIVE SAFETY

• Ventilation holes Ø 100 mm for possible connection.
• Automatic closing door(s) with predominance of the leaves.
• Door(s) retention system in the open position with automatic thermal regulation closure at 47°C.
• Ventilation ducts with a thermofusible system to isolate the contents of the cabinet in case of fire.
• 3-point key lock.
• Spark-proof locking system.
• Adjustable leveling feet.
• Thermo-expandable door seals.

OPTIONS

• Additional shelf.

• Perforated cover for containment sump.

• Sliding drawer/Containment sump.

• PVC covers.

• Ventilation or filtration boxes.

• Absorbent mats to place at the bottom of the containment sump (packs of 10 sheets reference JF10D).

NORMATIVE AND CERTIFICATION

Compliance: EN 14470-1, FM 6050

• Tested and approved according to EN 14470-1 (04/2004) and EN 1363-1 (06/2000).

• Tested and approved according to FM 6050 (Factory Mutual International).

• Standardized warning labels according to ISO 3864 and ISO 7010, NF X08.003, Directive 92/58/EEC, EN 14470-1 (04-2004) and FM specifications.

• Fire test by a French testing laboratory accredited according to EN:17025 by COFRAC, according to the ISO 834 standard curve.
