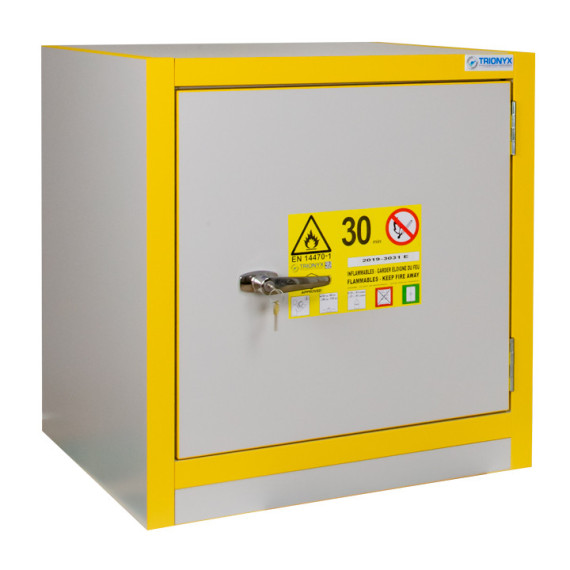

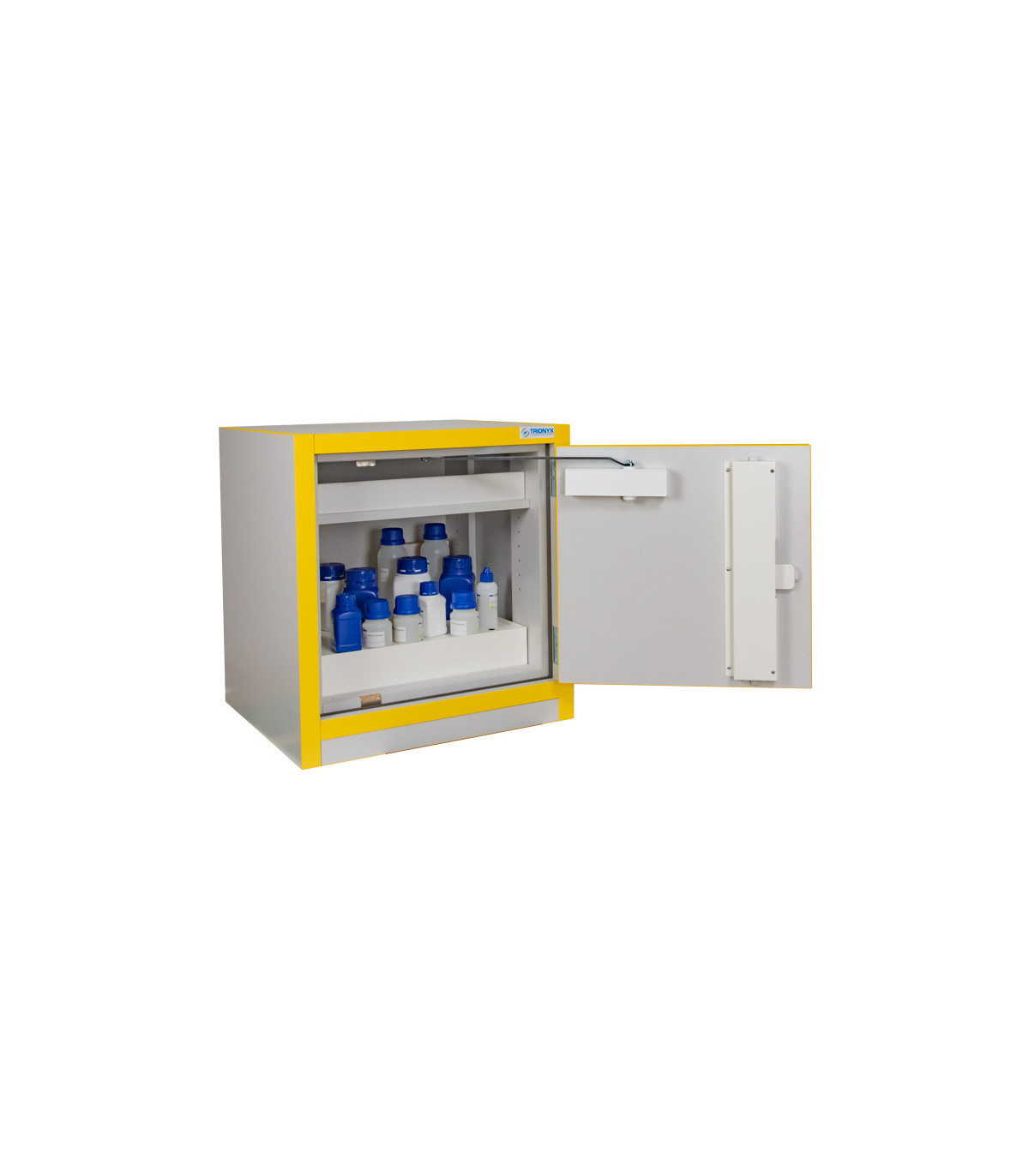

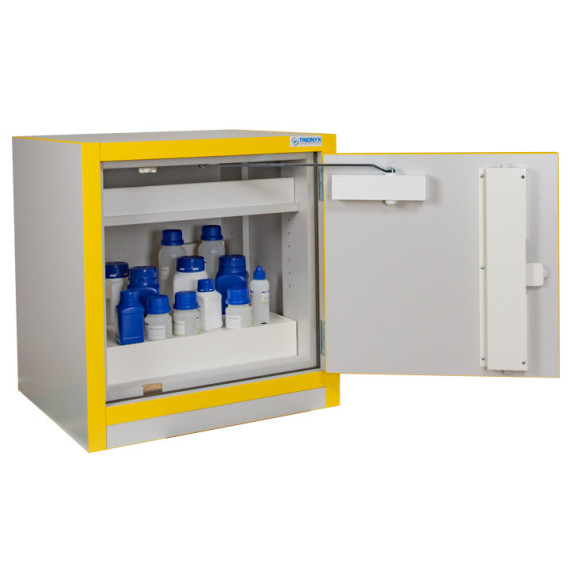

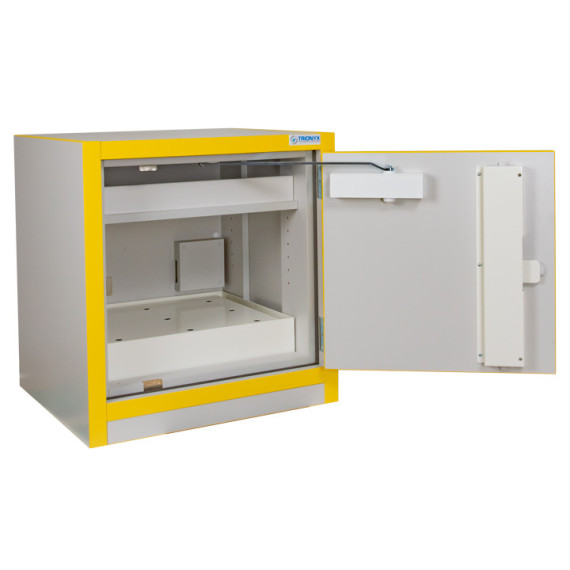

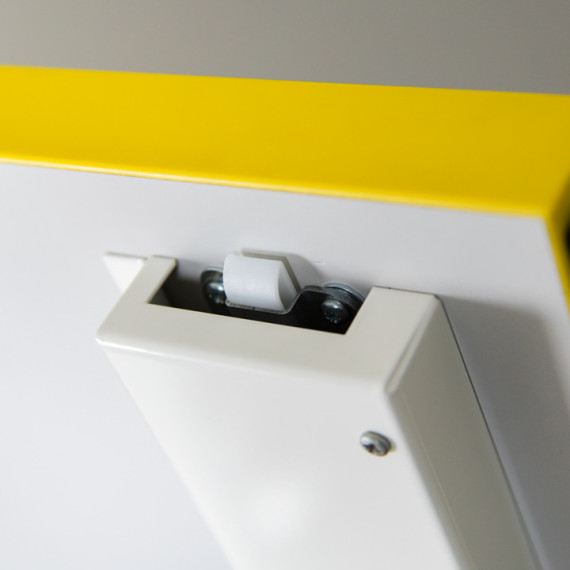

Melamine security cabinet (30 minutes) with folding door ECOSAFE

30 MINUTES CABINET with hinged door made of Melamine for the storage of flammable materials.

It has holes for ventilation connection, tested and approved according to FM 6050.

*Product made to order, no order cancellations or material returns are accepted.

FEATURES

• Model 3031E
• Cabinet materials: Melamine
• Door color: light gray RAL 7035
• Number of doors: 1
• Type of doors: swinging door

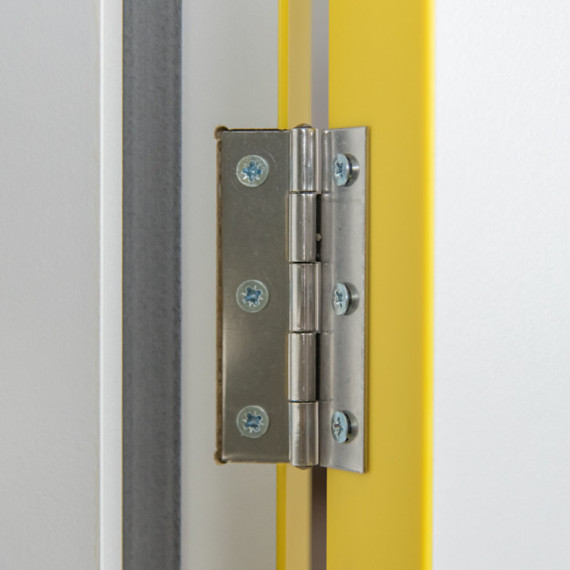

• Left and right hinges
• Door closure: automatic lock
• Ventilation diameter (mm): 100

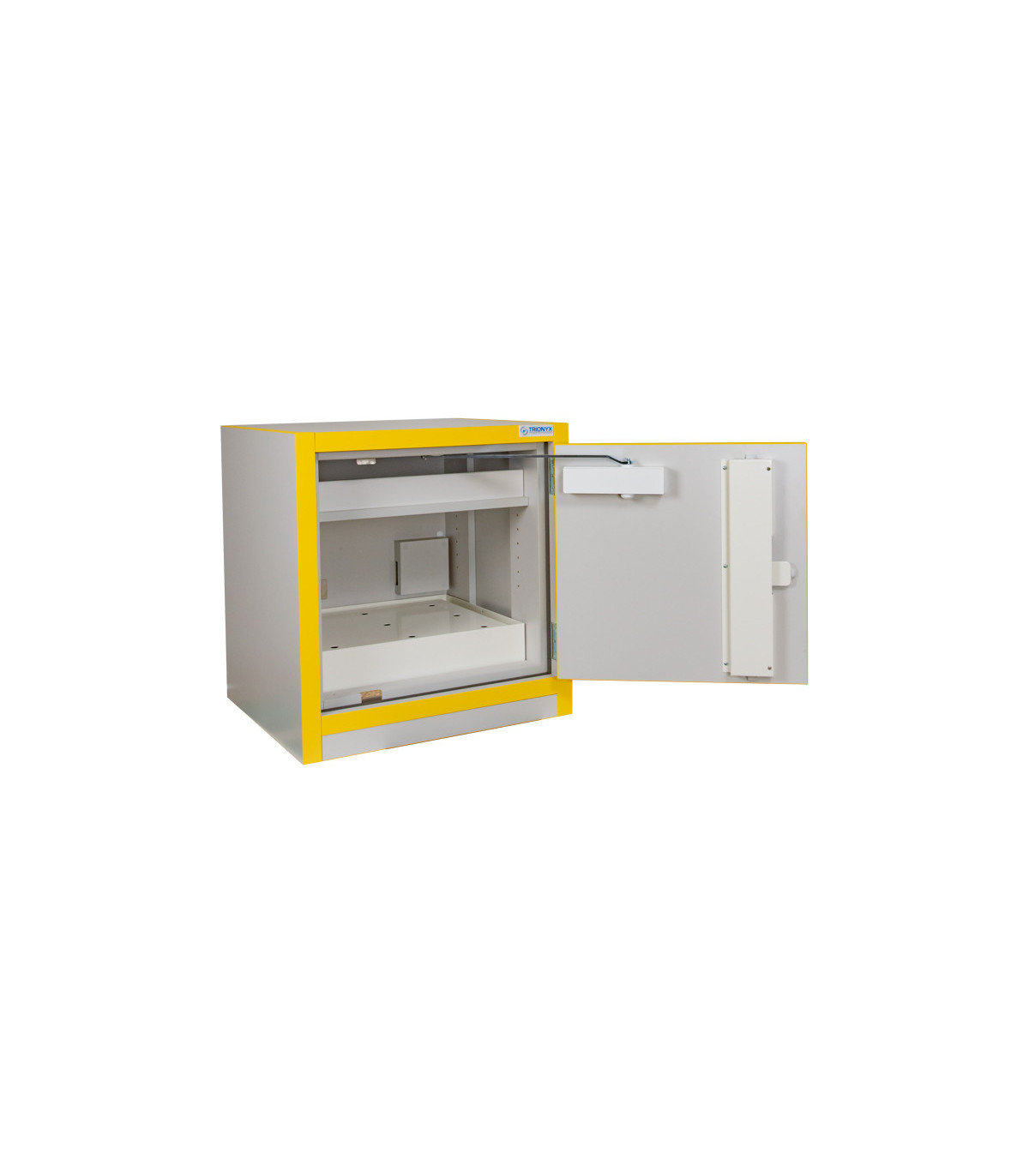

• Number of compartments: 1
• Retention trays: 1
• Grid: 1

TECHNICAL DATA

• Retention capacity (L): 20
• External dimensions h x w x d (mm): 635 x 605 x 630
• Internal dimensions h x w x d (mm): 366 x 491 x 419
• Shipping dimensions h x w x d (mm): 835 x 1200 x 800
• Permissible load: 30
• Storage capacity (L): 30
• Weight (kg): 64.00
• Customs Code: 94036000

COMPLEMENTARY ACCESSORIES

• ORG Filter Filtration Steel Drawer (Ref: CDF-A)
• Steel ventilation box (Ref: CDV-A)
• Cases and cabinets have filtration - Ventilation - Drawer has air recirculation without filter (Ref: H50C)
• Connection kit for comfortable (Ref: KRC)
• Vertical recycling air box (delivered without filter) (Ref: H40+)

APPLICATIONS

For the storage of flammable materials

NORMS AND CERTIFICATION

Compliance with EN 14470-1, (Construction requirements and test conditions for safety cabinets with fire resistance for the storage of flammable liquids in the workplace). - FM 6050

- Type 30 tested and approved according to EN 14470-1 (04-2004) and EN 1363-1 (06-2000).

- (1) Type 10 minutes tested and approved according to FM 6050 (Factory Mutual International).

- Standardized labeling according to ISO 3864 and EN 14470-1 (04-2004), European directive 92/58/EEC and FM regulations

ADVANTAGES

• Fire resistance of 30 minutes according to the fire heating curve ISO 834.
• Pedestal area passable under a lift by removing the panel (except in under-bench models).
• Automatic closing doors with the possibility of keeping the door(s) open. If the temperature rises to 47°C, a fusible link automatically closes the door(s).

ACTIVE SAFETY

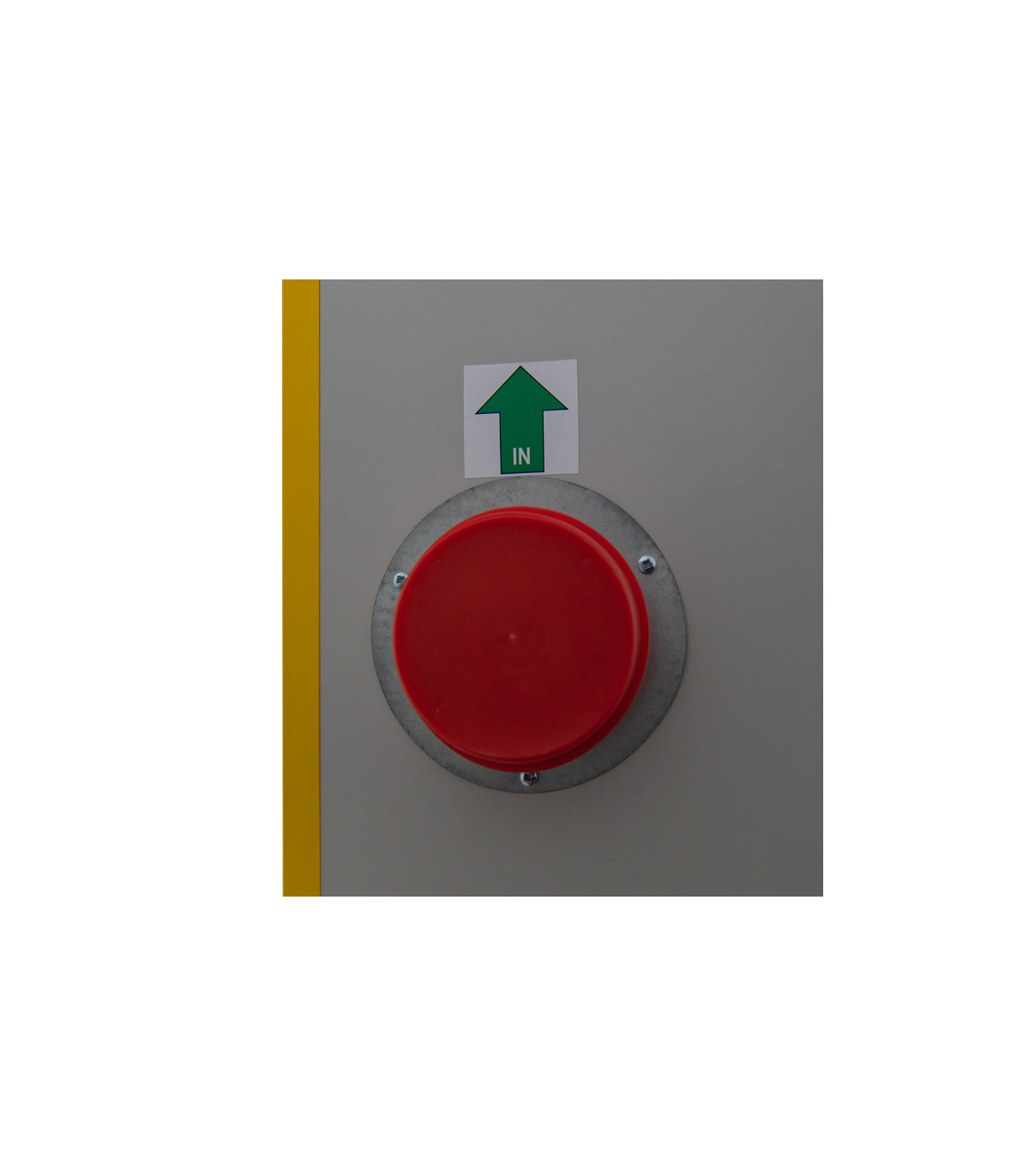

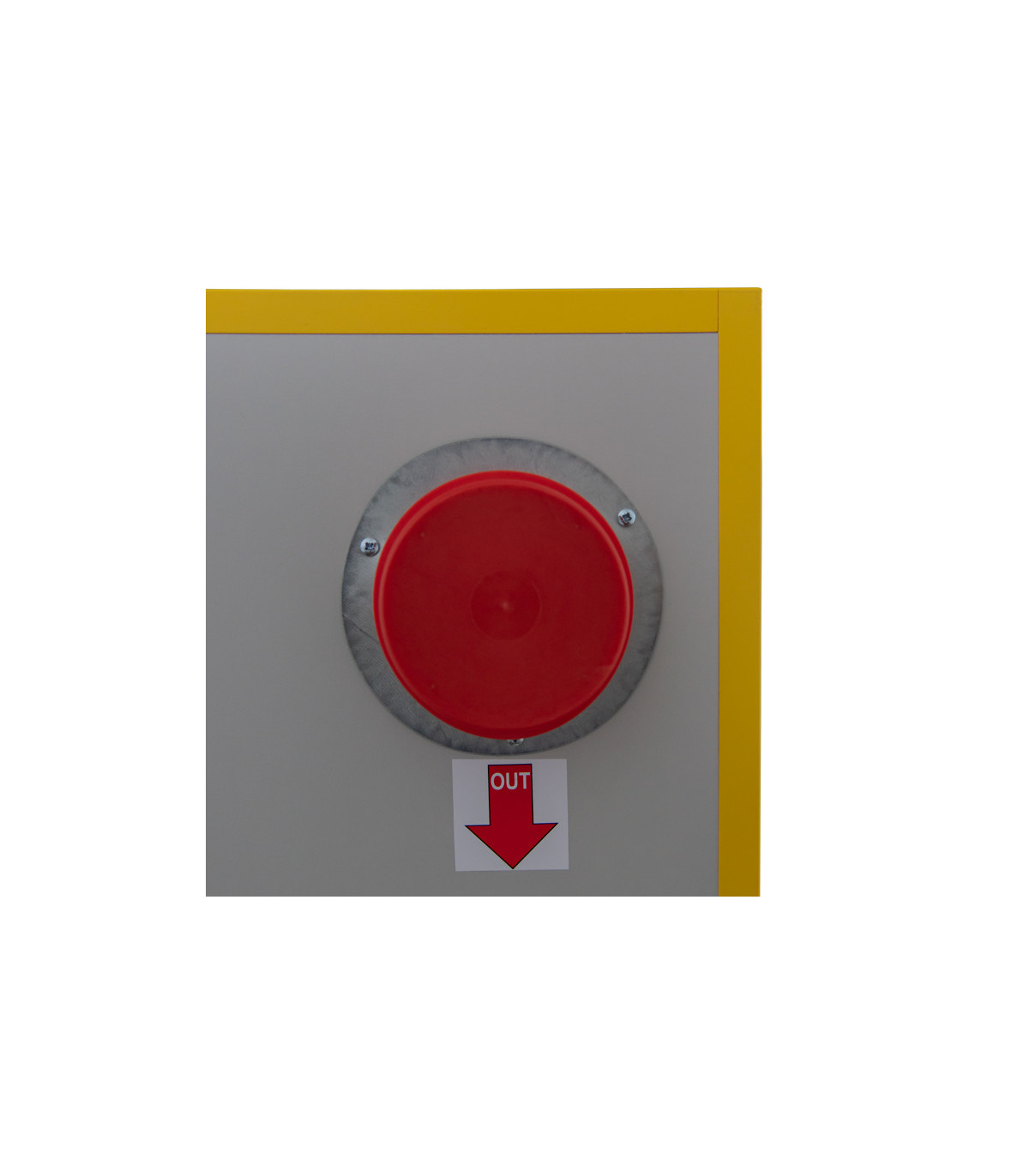

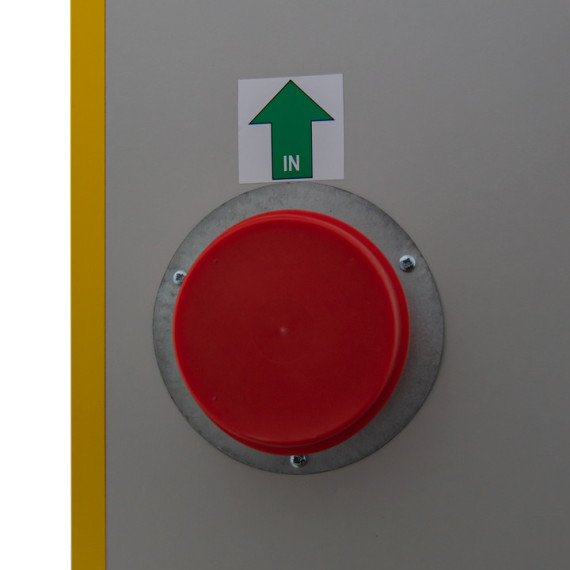

- Air inlet and outlet ducts of Ø 100 mm, either for natural ventilation or connection with forced ventilation/filtration system.

- In case of fire, a thermal fuse automatically seals the ventilation system.

- The thermo-expandable seals of the door(s) help maintain the internal body fireproof.

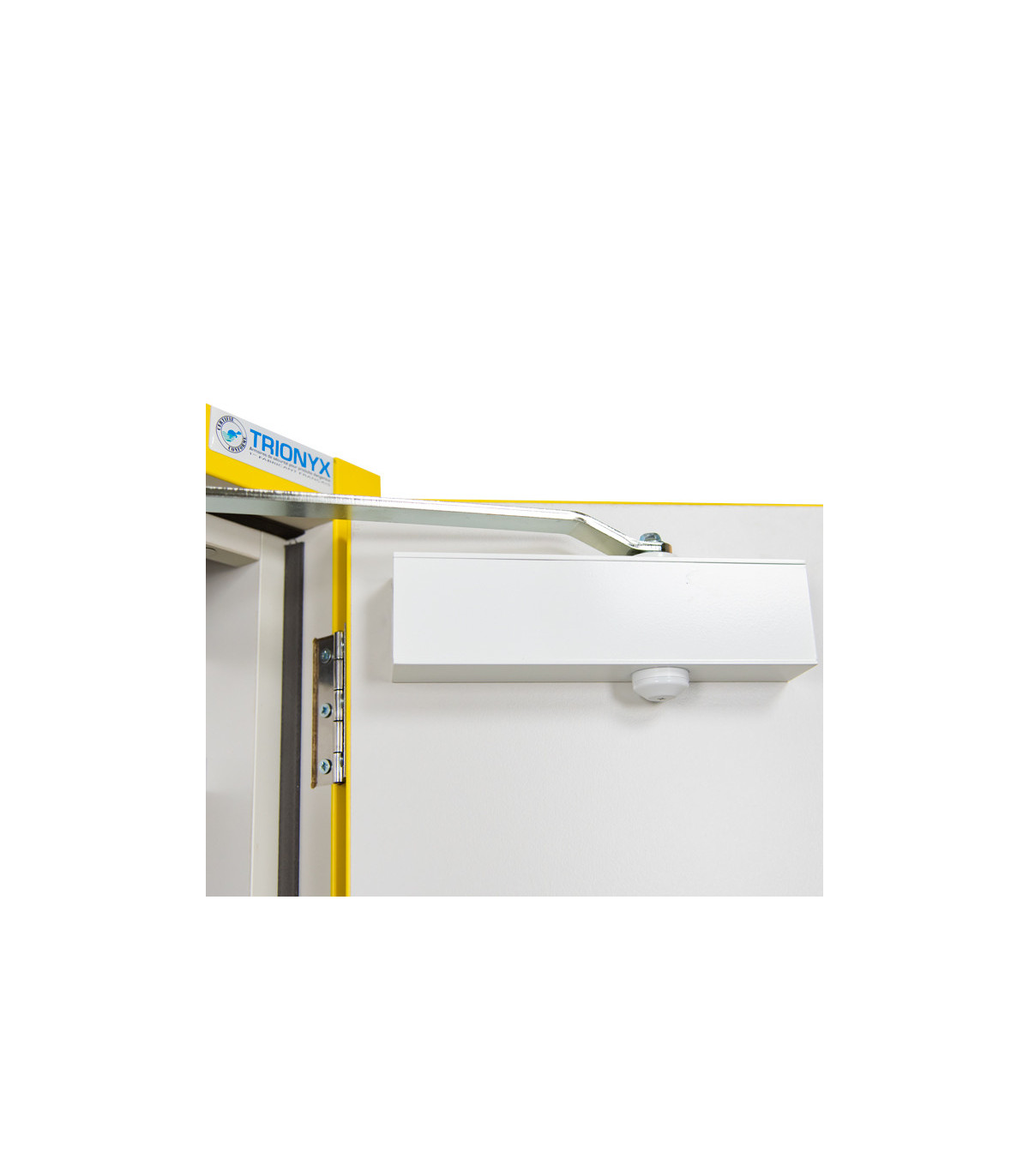

- Automatic closing doors.

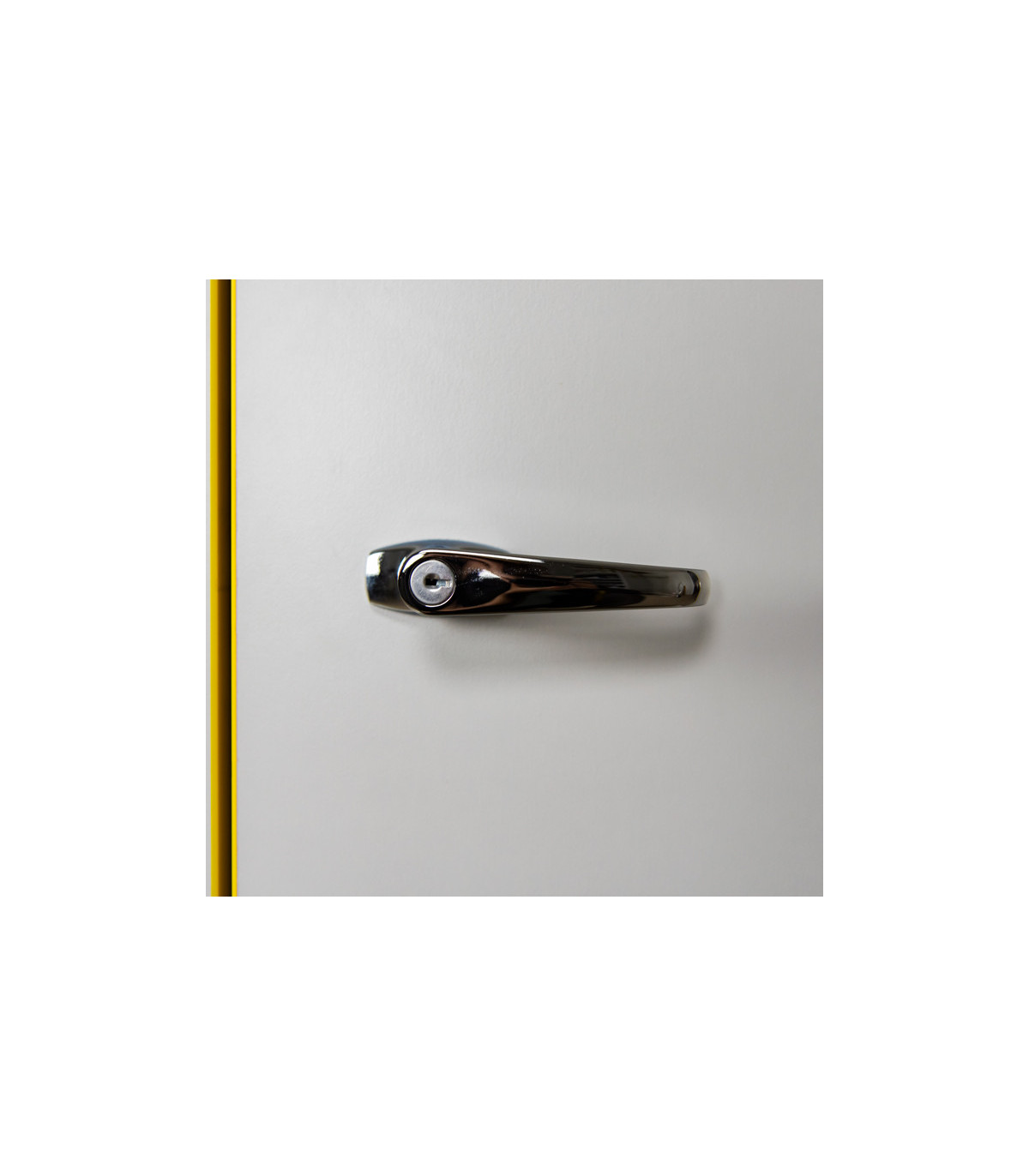

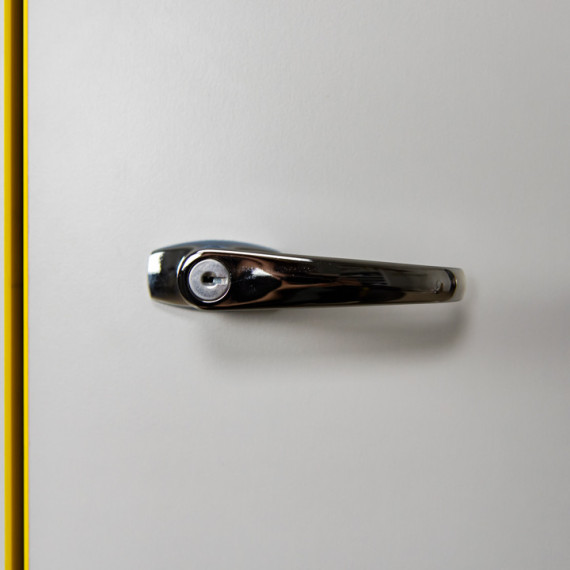

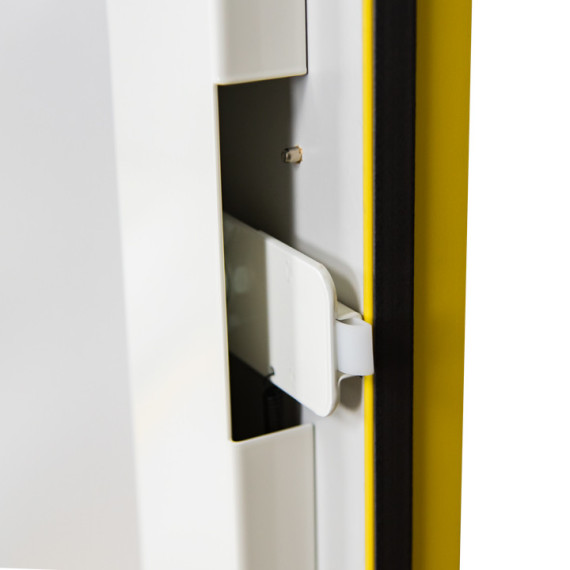

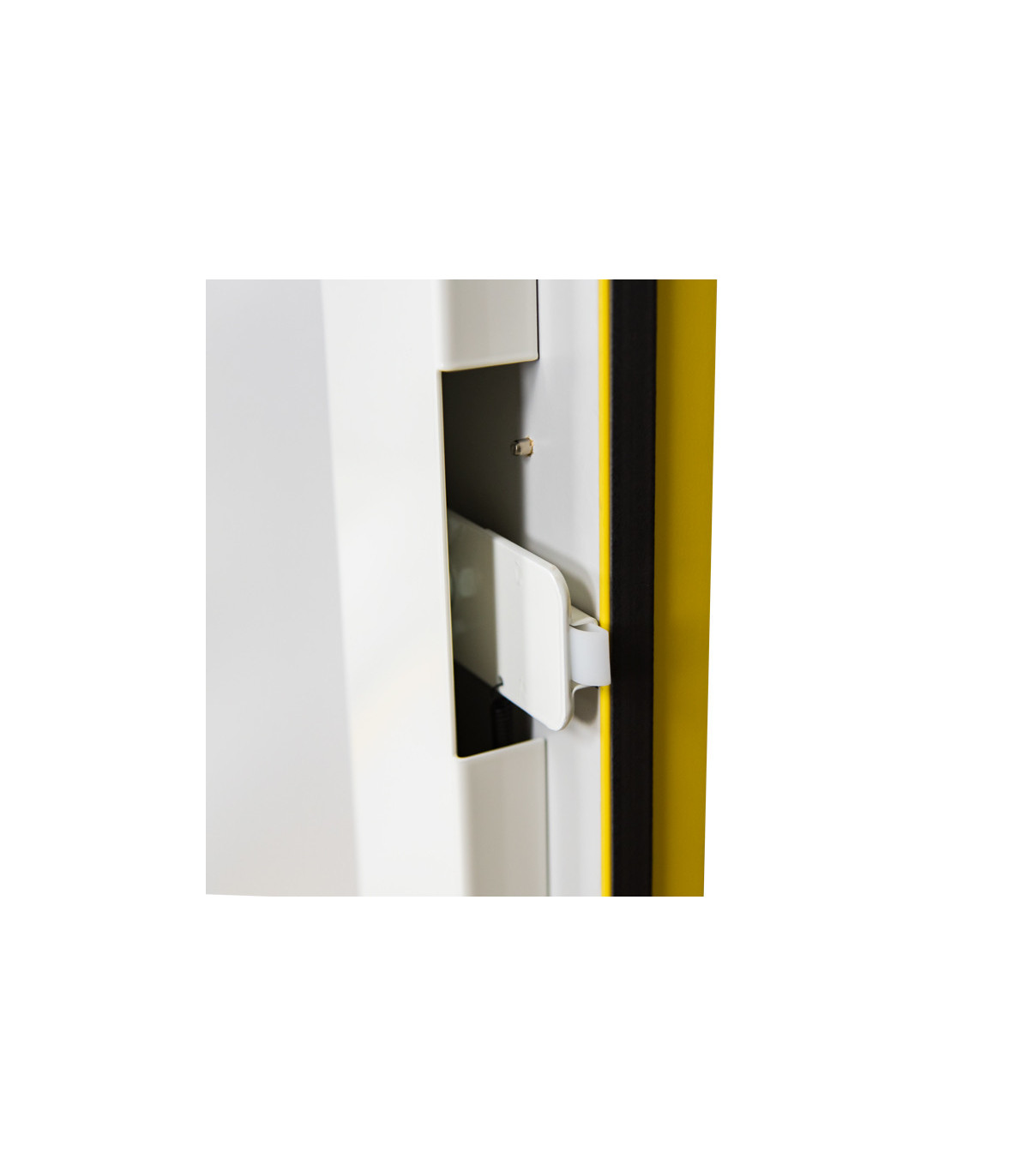

- Doors with three-point locking mechanism with lock.

- Spark-proof locking system.

- Adjustable leveling feet to improve stability.

OPTIONS

- Additional containment shelf.

- Perforated cover for containment sump.

- Self-retracting shelf.

- PVC containment shelf and containment sump.

- Easy connection with an escape system or a filtration box.

- Industrial absorbent mat (P/N: JF10D).
