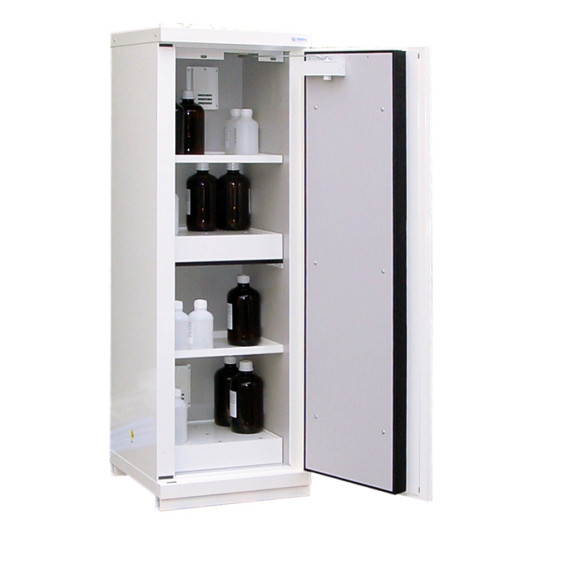

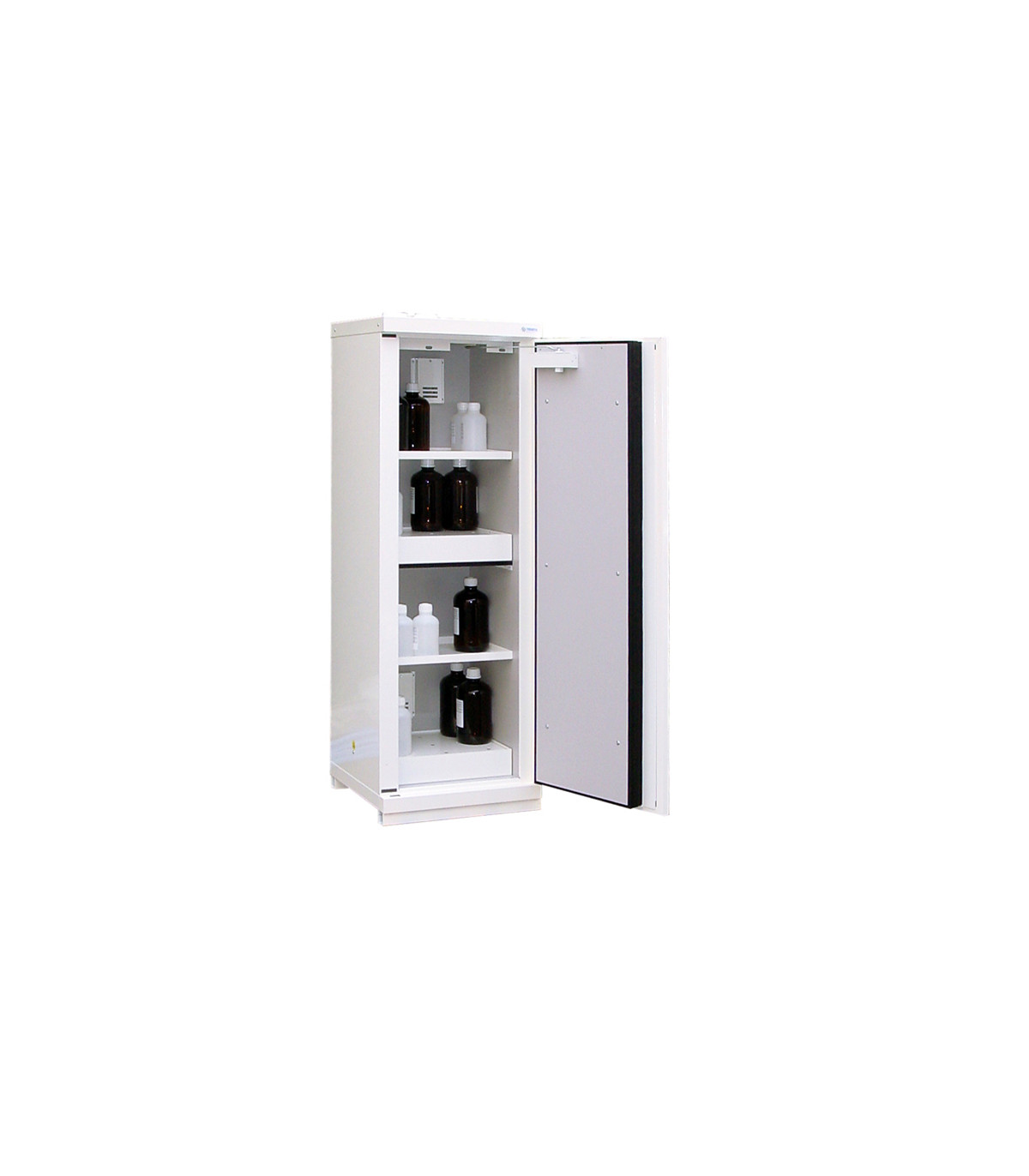

High security cabinet with 1 door and 2 compartments for flammable products 110 L ECOSAFE

Tall safety cabinet with 1 door and 2 compartments for the storage of flammable products with a capacity of 110 liters. Tested and approved by an independent European laboratory. Tested and approved according to EN 14470-1 (04/2004) and EN 1363-1 (06/2000).

Standardized labeling according to ISO 3864 and EN 14470-1.

FEATURES

• Passive safety:
• Double wall construction: • Outer body made of steel sheet (12/10) with high-quality Epoxy coating RAL 9010. • Inner body constructed from white melamine-based wood (RAL 9010).
• Thermal insulation panel between walls to avoid thermal bridges.
• Removable lower containment sump.
• Safety labels according to EN 14470-1.
• Adjustable containment shelves. - Grounding link.
• Active safety:
• Air inlet and outlet ducts of Ø 100 mm, either for natural ventilation or connection with forced ventilation/filtration system.
• In case of fire, a thermal fuse automatically seals the ventilation system.
• The thermo-expandable seals of the door(s) help maintain the internal body fireproof.
• Separate locking door(s) with cylinder locks.
• Automatic closing door(s) with the possibility of keeping the door(s) open. If the temperature rises to 47°C, a fusible link automatically closes the door(s).

BENEFITS

• Fire resistance for 90 minutes (Type 90 approved) according to ISO Fire heating curve 834.
• In case of fire, a thermal fuse automatically seals the ventilation system.
• The thermo-expandable seals of the doors help maintain the interior.
• Non-combustible body.

TECHNICAL DATA

• Cabinet materials: steel 12/10 and internal walls in melamine
• Door color: white RAL 9010
• Number of doors: 1
• Type of doors: swinging door
• Hinges: left and right hinges
• Door closure: automatic locking
• Ventilation diameter (mm): 100
• Number of compartments: 2
• Shelves: 2
• Retention trays: 2
• Grids: 2
• Retention capacity (L): 40
• External dimensions h x w x d (mm): 1950 x 635 x 620
• Internal dimensions h x w x d (mm): (2 x 800) x 490 x 410
• Shipping dimensions h x w x d (mm): 2150 x 1200 x 800
• Permissible load: 30
• Storage capacity (L): 110
• Weight (kg): 304.00
• Standardized labeling according to ISO 3864 and EN 14470-1. (04/2004) standards, and European directive 92/58 / EEC.
• Inner body constructed from white melamine wood (RAL 9010).
• Safety labeling according to EN 14470-1.
• Doors with different color options in models 794Mx and 795Mxx. Models (see documentation for range 7.90): • Frame and shelves in white (RAL 9010); doors in yellow (RAL1023)

APPLICATIONS

For the storage of flammable products

CERTIFICATION AND REGULATIONS

• Tested and approved according to EN 14470-1 (04/2004) and EN 1363-1 (06/2000).

OPTIONS

- Doors with different color options in models 794Mx and 795Mxx (see documentation for Range 7.90): • structure and shelves in white (RAL 9010); doors in yellow (RAL1023)
