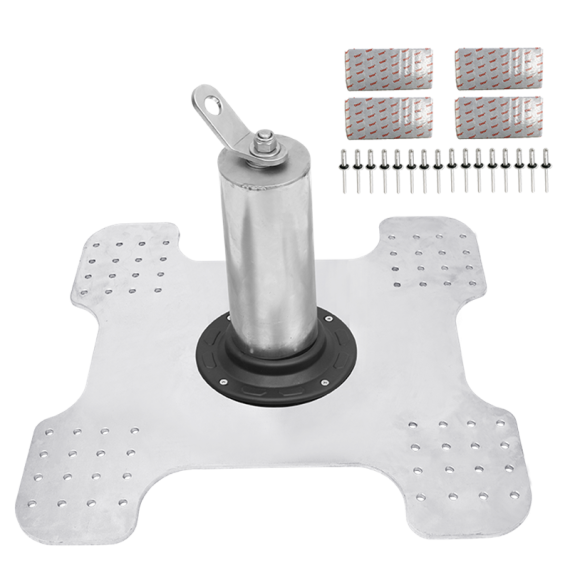

Anchor post with energy absorption system for steel sheet cover and resistance 26 kN KRATOS SAFETY

The Kratos Safety Energy Absorption Anchor Post is an essential element to ensure safety in height work on steel sheet roofs. Designed to dissipate the energy generated in the event of a fall, this post incorporates an advanced absorption system that protects the worker in case of an incident. Made of 316 stainless steel, it offers exceptional resistance to corrosion and atmospheric agents, ensuring a long service life. With a resistance of 26 kN, it exceeds the most demanding safety standards, providing peace of mind to workers.

FEATURES

• Mounting plate with different holes to adapt to various dimensions (see spacing measurements).
• Fixed with 16 watertight rivets on the steel sheet roof.
• Supplied with EPDM bands to achieve watertightness.
• Its design allows for the dissipation of energy generated by the stop of a fall.
• Material: Stainless steel
• Weight: 12.5 kg
• Compliance: EN 795:2012 Type A & TS 16415 Type A
• Static resistance according to EN 795:2012 standard: 15 kN
• Tensile strength > 26 kN

TECHNICAL DATA

• HS: 73269098

STANDARDS

- EN 795:2012 Type A refers to anchorage systems, but in this case, it focuses on portable anchorage devices. These devices are designed to be used on the ground or on flat surfaces and do not require a fixed installation on a structure. Type A includes requirements for their design, performance, and testing, ensuring that they are safe and effective in preventing falls. These systems are often used in situations where it is not practical or possible to install a permanent anchorage system, offering flexibility and mobility to workers performing tasks at height.

- The TS 16415 Type A regulation refers to a standard related to safety in the handling and use of lifting equipment. Specifically, it focuses on safety management systems for the design, manufacture, and maintenance of this equipment. The main objective is to ensure that safe procedures are followed to minimize risks and prevent accidents at work.

APPLICATIONS

• Maintenance
• Equipment repair
• Work at heights and fixed structures
