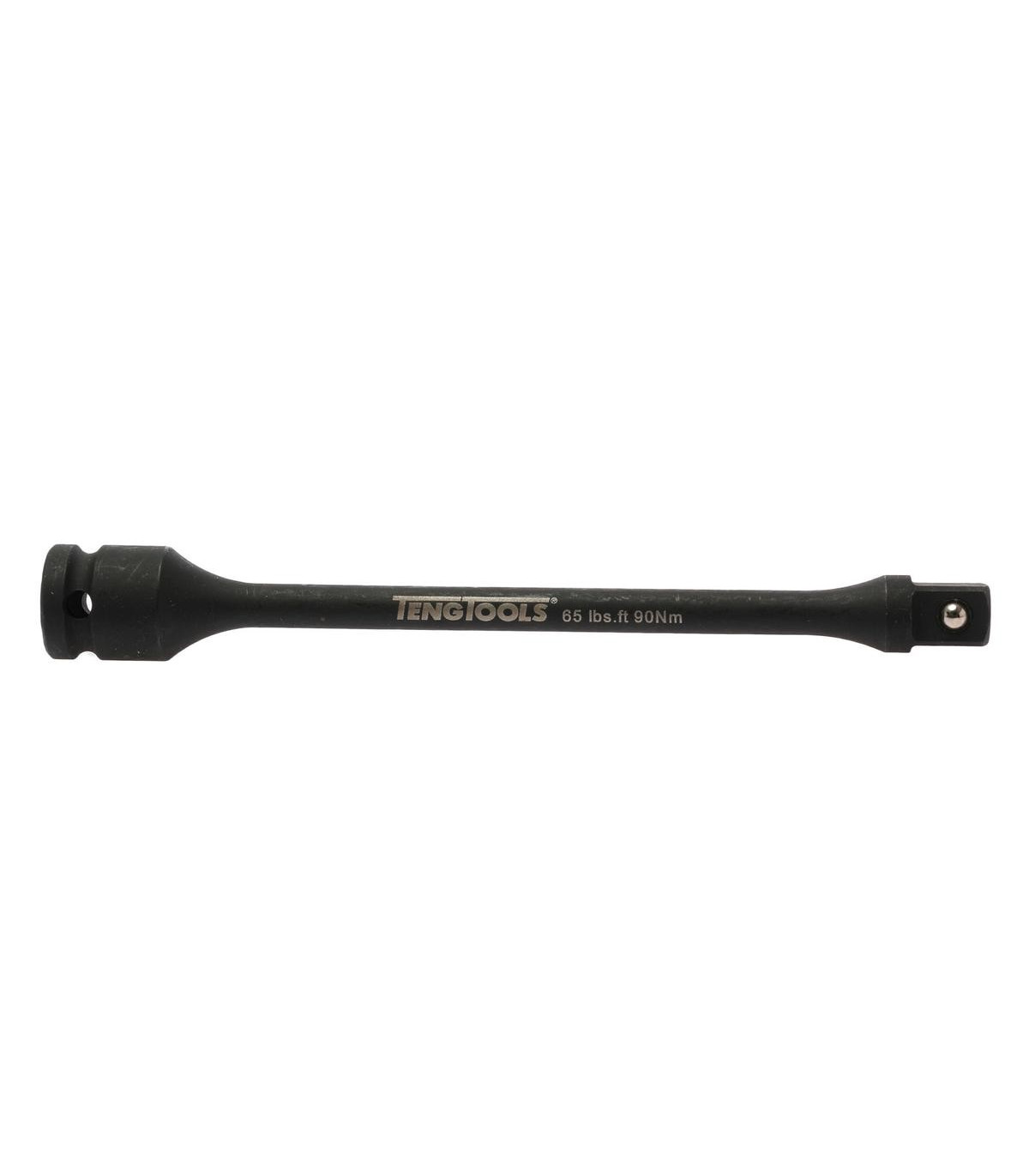

Impact Torque Bar 1/2" 90 Nm DIN 3121 TENGTOOLS

Professional impact torque bar of 90 Nm with a 1/2" square drive. Designed to be used with pneumatic or electric impact wrenches, this tool acts as a physical torque limiter to prevent over-tightening of wheel nuts on passenger cars and commercial vehicles.

FEATURES

• Precise torque limitation at 90 Nm (Newton-meter).

• 1/2 inch drive square compatible with most industrial impact tools.

• Made of Chrome Molybdenum (Cr-Mo) steel for maximum fatigue resistance.

• Green color code for quick and visual identification of the torque range in the workshop.

• Design allows the bar to absorb excess torque once the limit is reached, preventing damage to the threads.

BENEFITS OF THE 90 NM TORQUE BAR

The use of the TengTools torque bar ensures uniform and safe tightening of all wheel nuts. Its main benefit is the protection of critical components: it prevents studs from stretching or breaking and prevents deformation of brake discs caused by excessive or uneven tightening. It is the essential tool for optimizing workflow in tire workshops, allowing for quick engagement with the impact gun and precise finishing with a torque wrench.

TECHNICAL DATA

| Product code | 923090 |

| Torque | 90 Nm |

| Drive square | 1/2" |

| Identification color | Green |

| Material | Chrome Molybdenum (Cr-Mo) |

| Length | 195 mm |

USES AND APPLICATIONS

• Controlled tightening of wheel nuts on alloy and steel wheels.

• Maintenance of light vehicles and passenger cars with low torque specifications.

• Use in official quick mechanics services and specialized tire centers.

• Assembly of components where a constant approach torque is required.

NORMATIVE

• DIN 3121: Complies with international standards for square drive impact tools, ensuring maximum structural safety and precise tolerances under dynamic loads.
