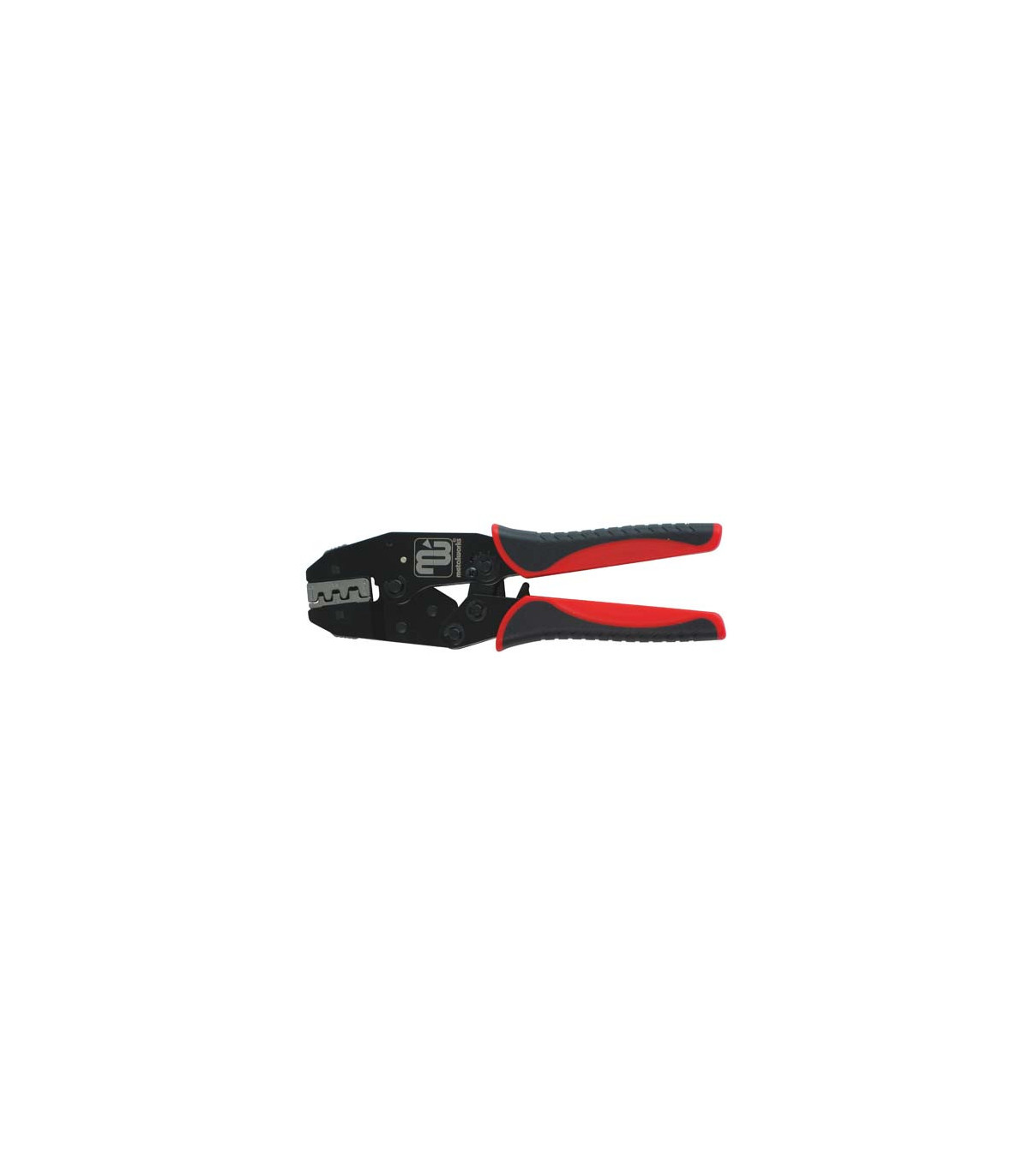

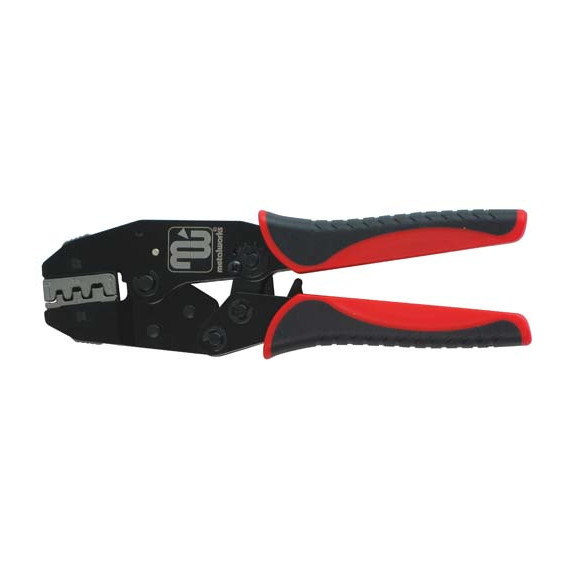

Pliers for terminal tips 4 Faces VES1600 METALWORKS

Hollow Point Crimping Pliers with 4 Faces (Square) | METALWORKS. Achieve a perfect square crimp with self-adjustment. These innovative pliers automatically adapt to the section of the hollow point (from 0.25 to 6.0 mm²), always performing a uniform and high-quality 4-face crimp.

For crimping terminals for non-insulated terminals. PVC-coated handle. Length 228 mm Capacity AWG 20-18 / 16-14 / 12-10

FEATURES

An intelligent crimping tool for maximum efficiency.

• Self-Adjusting Mechanism: Its main advantage is the self-adjusting mechanism. There is no need to select a profile; the four jaws close simultaneously and automatically adapt to the diameter of the hollow point, saving time and eliminating errors.

• Square Crimping: Performs a square profile crimp, which offers an excellent contact surface and a very firm grip on the wire, ideal for connections in modern terminals.

• Compact and Ergonomic Design: Its design is more compact and lighter than traditional ratchet pliers. The ergonomic handles allow for comfortable operation with one hand.

• Guaranteed Precision: The lever system and precision jaws ensure uniform crimping pressure from all four sides, resulting in reliable and professional-looking connections.

SPECIFICATIONS

• Type: Self-adjusting crimping pliers.

• Application: For hollow point terminals.

• Crimping Range: 0.25 - 6.0 mm².

• AWG (American Wire Gauge): 24-10 AWG.

• Crimping Profile: Square (4 faces).

• Total Length: 180 mm.

• Net Weight: 0.4 kg.

APPLICATIONS

• Assembly of electrical cabinets, especially with spring connection terminals or "push-in".

• Ideal for maintenance and repair work where different wire sections are encountered.

• Industrial automation, robotics, and home automation installations.

• The preferred tool for electricians and technicians seeking speed, precision, and versatility.
